From: Application of clay minerals in the synthesis of cretaceous mudstones and microstructural analysis of their deterioration mechanism

Fig. 13

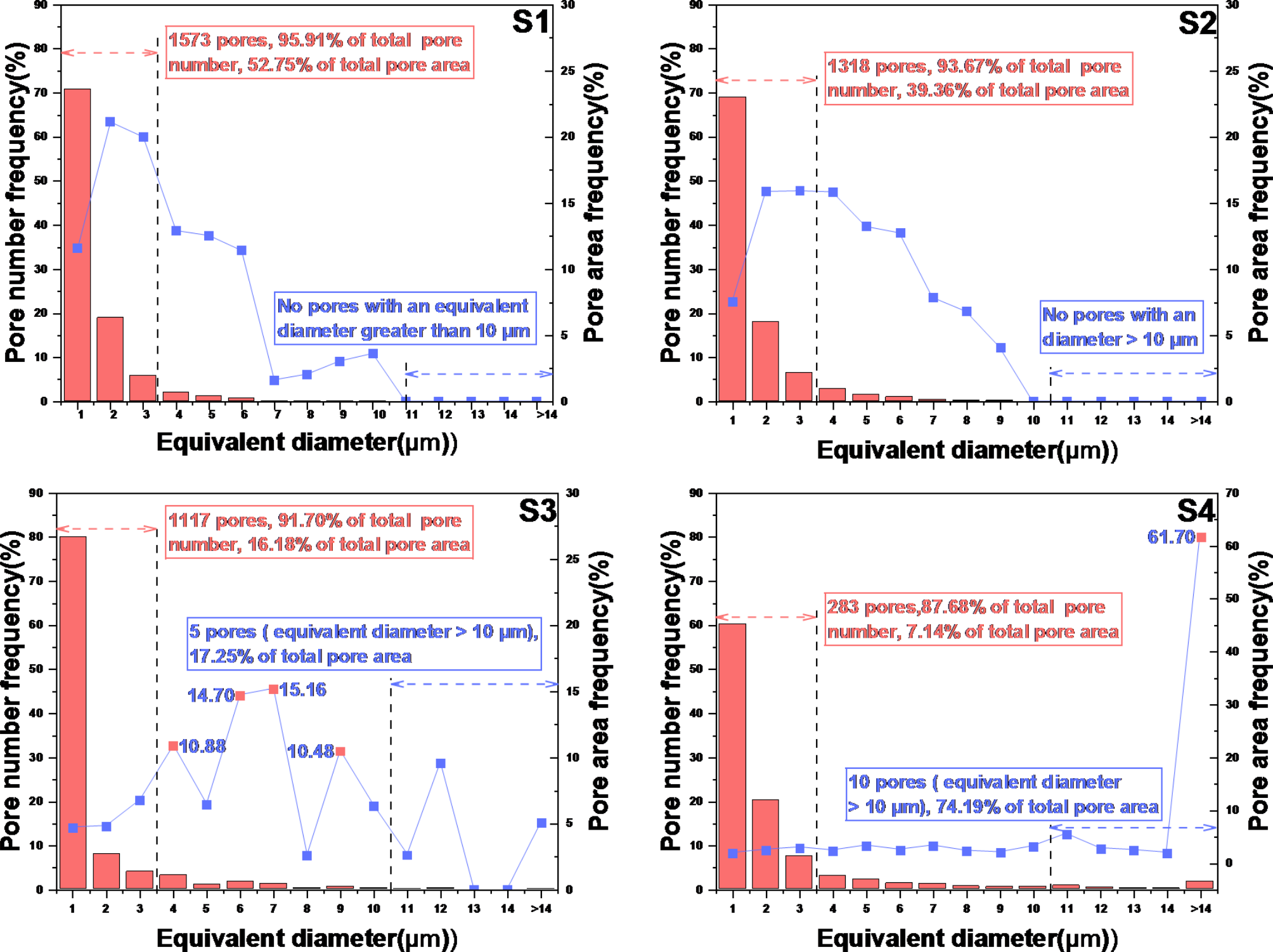

Equivalent diameter, fractal dimension and Porosity of the 4 samples (S1, S2, S3 and S4): (a) presents the overall porosity, fractal dimension and equivalent diameter of the 4 samples; (b) -(d) are the equivalent diameters, fractal dimensions, and porosity of pores with different pore size range, respectively, and they use the same Graph legend illustrated in (b).
