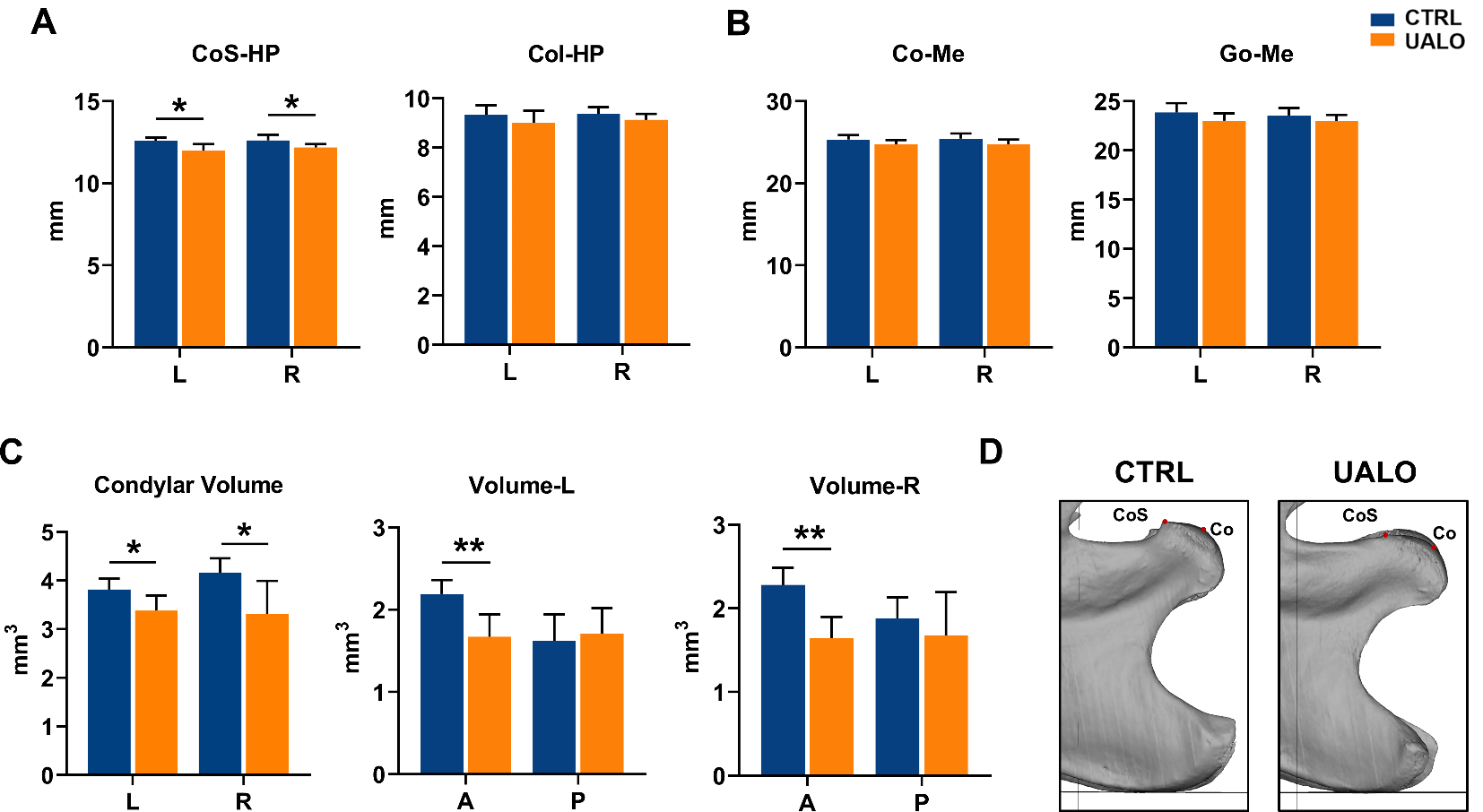

Analyses of mandibular morphology. (A) Comparison of mandibular height (CoS-HP) and mandibular height excluding the condyle (CoI-HP) between groups. L: left side; R: right side. n = 5 per group. *P < 0.05. (B) Comparison of mandibular length from the condylar point to the mental protuberance (Co-Me) and from the posterior point of the angular process to the mental protuberance (Go-Me) between groups.  L: left side; R: right side. n = 5 per group. (C) Comparison of the total volume of the condyle and the respective volumes of its anterior and posterior portions. L: left side; R: right side; A: anterior portion; P: posterior portion. n = 5 per group. *P < 0.05, **P < 0.01. (D) Representative specimens of the condylar morphology changes.
