Fig. 8

From: From 2D kaolinite to 3D amorphous cement

Fig. 8

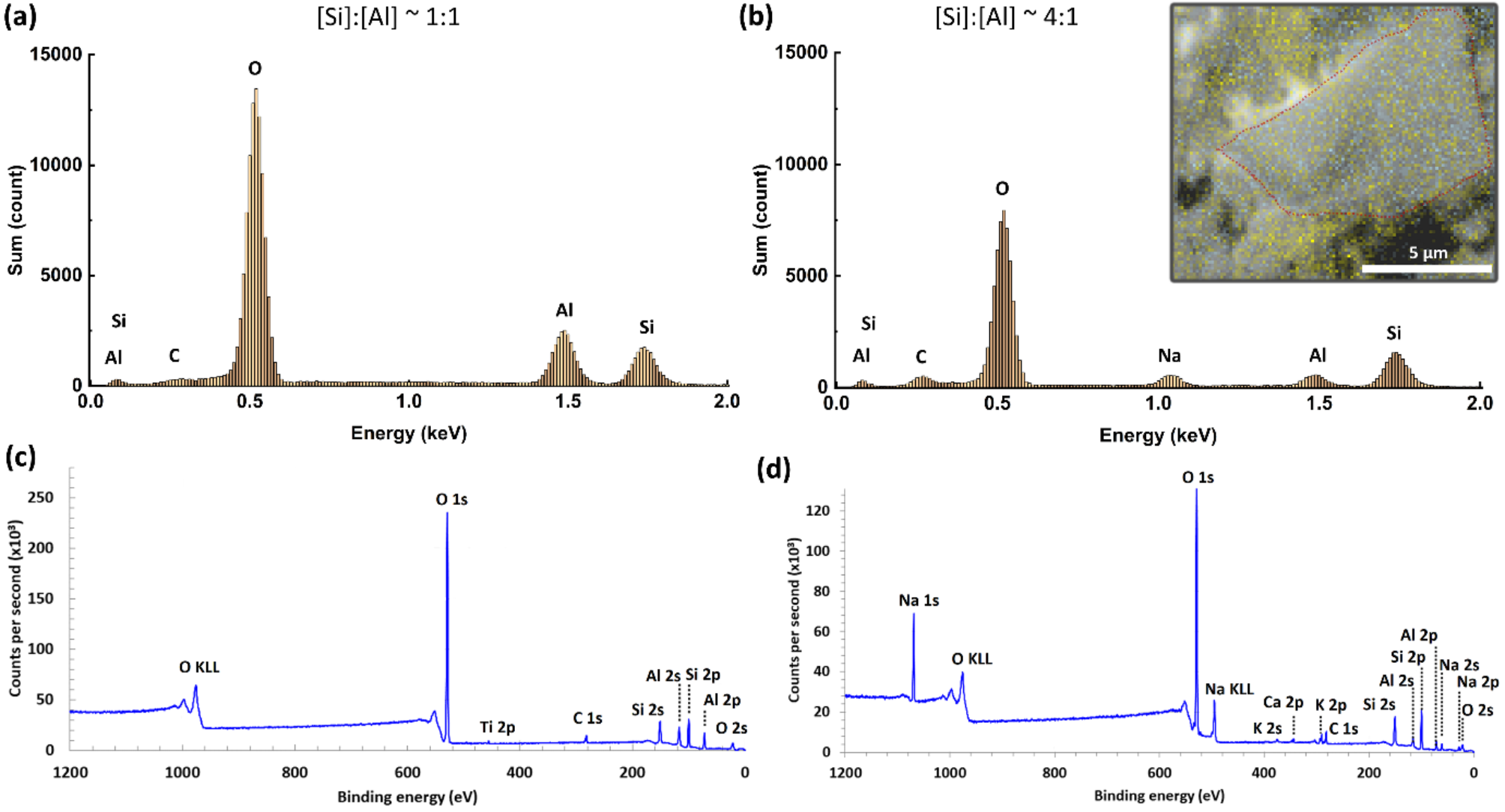

Atomic distribution of (a–c) MK and (b–d) AAM as obtained by EDX and XPS, respectively. The inset in (b) shows an SEM/EDX image with heterogeneous Al (blue) and Si (yellow) distribution when comparing the crystalline and amorphous phases in AAM, and the red dotted line highlights the edge limits of an AAM crystallite.
