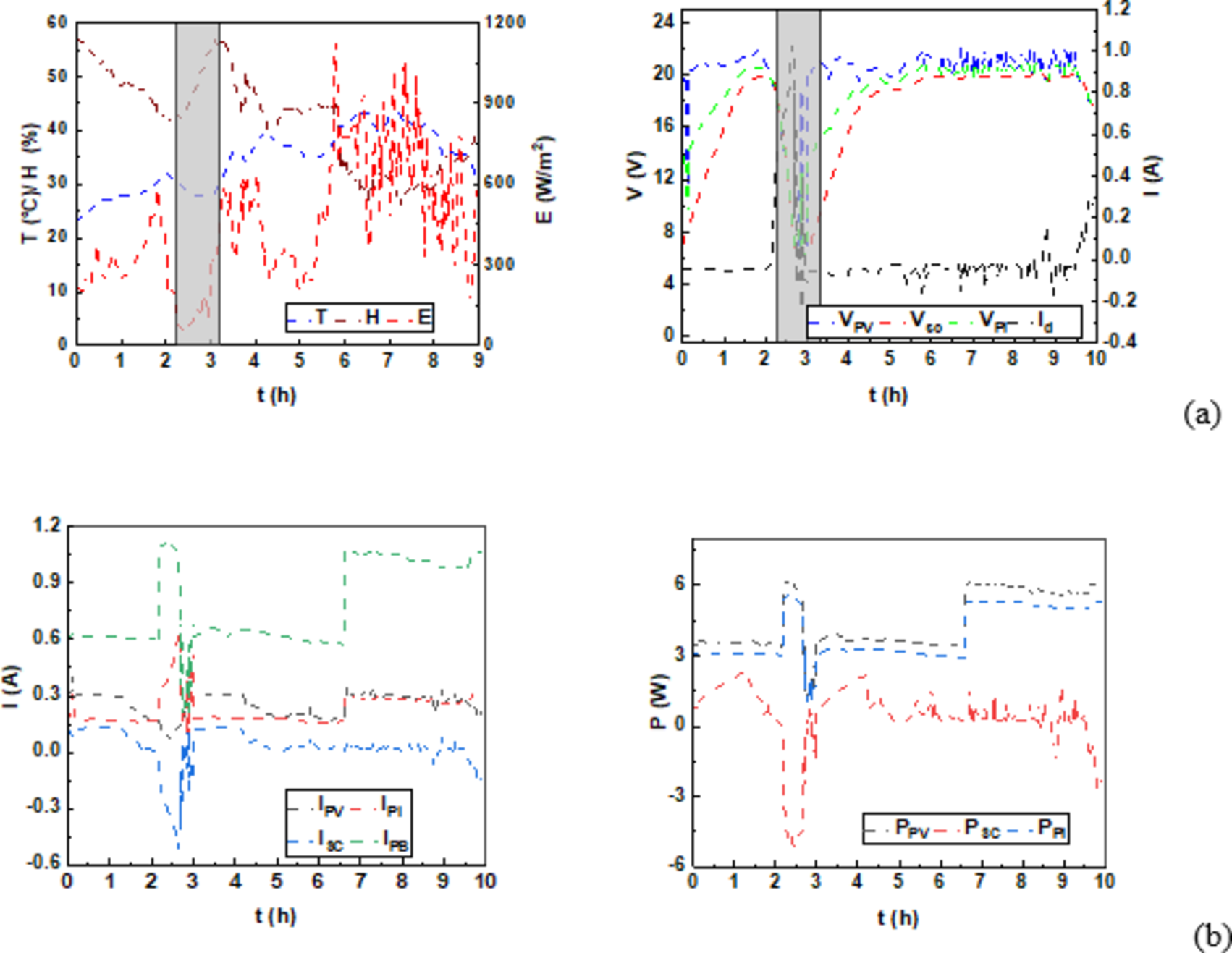

Fig. 10
From: Solar charger with power pack on camouflage fabric for field application
(a) Environmental conditions marked in grey rain period (left) and voltage waveforms of the charging and discharging of the supercapacitor module (right), (b) Charging and discharging current waveforms of the supercapacitor module and the power balance converter.
