Introduction

For many decades, titanium dioxide (TiO2) based materials have been the champion candidates for efficient photocatalysis and/or electrocatalysis1,2,3,4,5,6. Due to its strong photoabsorbance in the UV, chemical stability, high oxidative capacity, and affordability, TiO2 has been widely used for various applications such as solar energy conversion7,8, self-photocleaning9, gas sensing10, anode for hydrogen production11,12 or water decontamination13. To further extend the photosensitivity of TiO2 to the visible range, its doping/codoping with appropriate elements (such as N and W) has been shown to be very effective to narrow its bandgap to the visible range and use it successfully for the photodegradation of persistent contaminants in water under sunlight illumination5,14. Another approach for sensitizing this photocatalyst material is to prepare TiO2−x sub-oxides with oxygen vacancies15. In fact, when there are sufficient oxygen vacancies in the titanium dioxide lattice, new phases can form. Those phases are known under the generic term of Magneli phases, which are basically sub-stoichiometric titanium dioxide obeying the TinO2n−1 composition (with 3 ≤ n ≤ 10)16,17. These TinO2n−1 Magneli phase materials exhibit a combination of outstanding properties, such as excellent corrosion resistance, high chemical stability, and astonishingly good electrical conductivity18,19. In fact, unlike the semiconducting/insulating behavior of TiO2 (with a bandgap of 3.0-3.2 eV), the Magneli phases are known for their pseudo-metallic conductivity, with electrical conductivity reaching up to several hundreds of S/cm, particularly for the most conductive Ti4O7 composition20,21,22,23,24,25.

Thus, Ti4O7 arises as the most suitable anode material for different electro-oxidation-based applications, including water decontamination26,27,28 or hydrogen production29,30. Despite the popularity and attractiveness of Ti4O7 Magneli-phase material in the electro-oxidation field, its photothermal properties under solar illumination have been rather less investigated. Compared to the others photothermal materials (PTMs), transition metal oxides (TMOs) are less expensive than plasmonic metals or complex carbon-based materials and more stable than organic polymers. As a matter of fact, the potential of TMOs based materials for photothermal applications has been documented31,32,33,34. Among the most attractive TMOs, Fe3O435,36, black TiO237,38,39, Ti2O3 nanoparticles40 and Ti4O7 nanofibers or nanoparticles34,41 stand out by their high light-to-heat photoconversion efficiencies, making them highly attractive for water desalination or steam production34. For instance, Wang et al. have shown that the addition of Ti4O7 nanoparticles (of only 10 wt%) to magnesium nitrate hexahydrate (MNH) phase-change material significantly improved the absorption capacity of the resulting (MNH/Ti4O7) composite and consequently its photothermal conversion efficiency41.

While Ti4O7 is known for its high capacity to absorb light42, it has been mostly used under its powdered form as an additive to produce various hybrid materials (such as fibrous membranes34, phase-change composites41, or as microencapsulants42) with improved photothermal properties. Under their powdered form, the Magneli phase materials are generally synthetized via the reduction of rutile-TiO2 powder at high temperatures (in the 800–1150 °C range)28,43,44,45,46,47. Several reducing agents can be used, including metals (like Ti22, and Zr48) or gases (such as NH349 or the most widely used H244,50,51). However, the resulting material generally consists of a mixture of different titanium sub-oxides (TiOx) phases, making thus the production of a pure Magneli single phase quite challenging. Moreover, the reduction route requires long processing times, high annealing temperatures, and the use of gases requiring particular caution and/or involving safety issues49,52,53. It is also worth noting that during the thermal reduction-based synthesis of TinO2n−1 powders at high temperatures, the grains/particles tend to grow and agglomerate, making it difficult to control the nanostructure and effective surface of the resulting material (a key issue for electrode applications and rightly so47,54). Generally, the produced Magneli-phase powders are pressed to form pellets, which are subsequently used as electrodes in electrochemical applications26,28,44,55,56,57,58,59.

An interesting alternative to the powdered form and its above-highlighted limitations is the use of plasma-based physical vapor deposition (PVD) methods to produce dense Ti4O7 thin film coatings with more flexibility and process latitude. Thus, not only the structure and properties but also the thickness and morphology of the Ti4O7 films can be fairly controlled, regardless of the nature of the substrate to be coated. Moreover, the thermal budget for the plasma based synthesis of Magneli phase films is much lower than in classical thermal processing because part of the energy is supplied under an electromagnetic form. The relatively low processing temperatures offer the advantage of preserving the mechanical strength and corrosion resistance of the underlying metallic substrates. So far, several studies have been reported on the deposition of oxygen-deficient TiOx films via the reactive sputtering of a pure metallic titanium target, while varying the [O2]/[Ar] flow rate ratio inside the sputtering chamber60,61,62. Thus, several mixed TiOx phases (including TiO, Ti2O3, Ti4O7 and TiO2) films were obtained depending on the O2 proportion in the plasma carrier gas and/or the deposition temperature. Most of those studies focused on the sputter-deposition of either ultrathin TiOx films (few 10s of nm-thick) onto various metal electrodes for resistive switching devices63,64,65 or relatively thicker coatings (few 100s nm-thick) intended for mechanical or photocatalytic applications62,66,67. However, none of those reactive sputtering based processes was reported to produce pure-phase-Ti4O7 films. The investigation of the photothermal properties of such sputtered pure-Ti4O7 films has also not been reported so far.

Here, we propose an original and direct approach based on the use of a pure Ti4O7 target as a source material for the RF-sputter deposition of the Magneli-Ti4O7 films under Argon plasma carrier gas without resourcing to any reactive (reducing/oxidizing) background gas. Thus, in this study, we focused on the effect of the substrate deposition temperature (Ts) on the structural, morphological, electrical, optical and photothermal properties of the RF-sputter deposited Ti4O7 thin films. By varying Ts in the 25–650 °C temperature range, we demonstrate that single-phase Ti4O7 films with high crystalline quality, excellent electrical conductivity and high photothermal efficiency can be obtained at moderate deposition temperatures in the 450–500 °C range. Interestingly, the systematic study of the effect of Ts enabled us to establish, for the first time, that the high photoconversion efficiency of the sputtered-Ti4O7 films is linearly correlated to their integrated optical absorbance over the entire (300–1500) nm spectral range. The sputtering process developed here can be used to coat virtually any sort of substrates, widening thereby the range of possible applications for those Magneli-Ti4O7 coatings.

Results and discussion

Figure 1a shows the XRD spectra of the Ti4O7 films deposited onto Ti substrates as a function of their substrate deposition temperature (Ts). The XRD spectra of the underlying Ti substrate along with that of the Ti4O7 target used for the sputter deposition are also included in the figure for reference purposes. It is worth recalling here that the lattice parameters of the various Magneli phases are very close to each other, and some of them even overlap because of their identical triclinic structure22,49. More attention is thus required to discriminate between the different Magneli phases by using the XRD peak positions. Nonetheless, there are certain peak positions that can be regarded as fingerprints of the Ti4O7 phase. As a matter of fact, the peaks located at \(\:2{\uptheta\:}=20.7^\circ\:\), \(\:26.4^\circ\:\)and \(\:31.7^\circ\:\), are due to the respective crystallographic plans \(\:\left(10\stackrel{-}{2}\right)\), the \(\:\left(1\stackrel{-}{2}0\right)\) and \(\:\left(10\stackrel{-}{4}\right)\) of Ti4O734,68,69, and will be used hereafter to qualify for the presence of the Ti4O7 phase. These three XRD peaks are also seen to be the most prominent ones in the XRD spectrum of the Ti4O7 target source material (bottom blue spectrum of Fig. 1a). Our results clearly show that the films deposited at Ts = 25 °C and 300 °C did not exhibit any Ti4O7 related diffraction peaks, suggesting that they are amorphous. At Ts = 450 °C, 500 °C and 550 °C, the films consist of a well crystallized Ti4O7 phase, with its characteristic peaks (at \(\:2{\uptheta\:}=20.7^\circ\:,\:26.4^\circ\:\:\text{a}\text{n}\text{d}\:31.7^\circ\:\)) becoming more intense and narrow as Ts is increased. For Ts ≥ 600 °C, a phase transition occurs with the appearance of the rutile-TiO2 phase (at \(\:2{\uptheta\:}=27.5^\circ\:,\:36.1^\circ\:,\:41.3^\circ\:\:,\:54.4^\circ\:\:\text{a}\text{n}\text{d}\:56.7\:\)which becomes dominant at Ts = 650 °C. By using the Debye-Scherrer formula70, we have estimated the crystallite size of the \(\:\left(10\stackrel{-}{2}\right)\) and \(\:\left(1\stackrel{-}{2}0\right)\) planes of the Ti4O7 phase (Fig. 1b). It is found that the size of the Ti4O7 crystallites is sensitive to Ts and reaches its maximum value (of ~ 12 and ~ 19 nm, respectively) at Ts = 500 °C and then decreases for higher Ts values (≥ 550 °C), where the formation of rutile-TiO2 starts to take place. These results point out Ts = 500 °C as the most favorable substrate temperature for the sputter-deposition of highly crystallized Ti4O7 films.

Fig. 1
figure 1

(a) Typical XRD spectra of the sputter-deposited Ti4O7 films onto polished Ti substrates, as a function of their Ts. For reference purposes, the peak positions of Ti4O7 (in blue, JCPDS-050 0787), of rutile-TiO2 (in red, JCPDS-004-0551), and of titanium (in orange, JCPDS-005 0682) are also included in the figure; (b)Ts dependence of the crystallite size of both Ti4O7 and rutile-TiO2 phases; (c) Raman spectra of the sputtered Ti4O7 films for the different Ts ranging from 25 to 650 °C. The spectrum of the pure-Ti4O7 target (blue line) is also included as a reference; (d)Ts dependence of the Full width at half maximum (FWHM) of the 138 cm-1 characteristic peak of Ti4O7.

Raman spectroscopy is a very useful technique to use in conjunction with XRD in order to ascertain the presence of the Ti4O7 phase (with its characteristic peak located at 138 cm−1)71. Figure 1c shows the Raman spectra of both the Ti4O7 target and the Ti4O7 films deposited at different Ts (25–650 °C). It is found that the pure-Ti4O7 target exhibits not only the characteristic prominent peak of Ti4O7 at 138 cm−1, but also other peaks (184, 290, 470, and 554 cm−1) that can be used to identify the Ti4O7 phase. The Ti4O7 films deposited at lower temperatures (Ts ≤ 300 °C) exhibit a very broad and diffuse Raman peak covering the (100–400) cm−1 range where the Ti4O7 Magneli characteristic peaks are expected to appear. This is due to the amorphous state of the films (as revealed by XRD) where the Ti–O bonds are highly disordered and strongly distorted. As Ts is raised to 300 °C and above, the Ti4O7 Raman peaks take shape and become better defined, as a consequence of the temperature induced improvement of structural ordering in the films. Indeed, for 450 °C ≤ Ts ≤ 550 °C, the Ti4O7 films are seen to exhibit prominent Raman peaks at 138 and 184 cm−1 positions. For the Ti4O7 characteristic peak (138 cm−1), the films deposited at Ts = 500 °C exhibited the most intense and narrow one. Figure 1d shows that the full width at half maximum (FWHM) of the 138 cm−1 Raman peak significantly decreases and reaches its minimum value at Ts = 500 °C. This peak narrowing is indicative of the higher crystallinity/local ordering of the Ti4O7 films deposited at 500 °C. For higher temperatures (Ts ≥ 600 °C), the occurrence of the Ti4O7-TiO2 phase transition is confirmed, as the Raman peaks associated with the rutile-TiO2 are clearly seen to appear at Ts = 600 °C and become prominent at Ts = 650 °C to the detriment of the vanishing peaks of Ti4O7. These Raman results are in accordance with the XRD ones and confirm that Ts = 500 °C is the optimal temperature for obtaining Ti4O7 films with the highest crystalline quality.

Figure 2 shows typical SEM images of Ti4O7 films deposited at different Ts, namely 25, 500 and 650 °C. The thickness of the sputtered Ti4O7 films is typically of ~ 450 nm. The deposition rate of the sputtered Ti4O7 films was found to decrease slightly with Ts, from ~ 2.6 ± 0.1 nm/min at Ts = RT to ~ 2.4 ± 0.1 nm/min at Ts = 650 °C. Such a slight decrease of the deposition rate with Ts can result from both crystallization-induced film densification and some possible desorption from the film being deposited at high Ts. On the other hand, the morphology of the sputtered Ti4O7 films is found to change with Ts, as illustrated by Fig. 2. At Ts = 25 °C the films are seen to be exhibit a dense featureless and smooth morphology. At the optimal Ts of 500 °C, the morphology of the polycrystalline Ti4O7 films remains dense with the appearance of a domed-like fine columns leading to an apparent surface roughness. For high temperatures (Ts ≥ 600 °C), the columnar morphology develops further with the formation of densely packed larger columns and a slightly rougher surface.

Fig. 2
figure 2

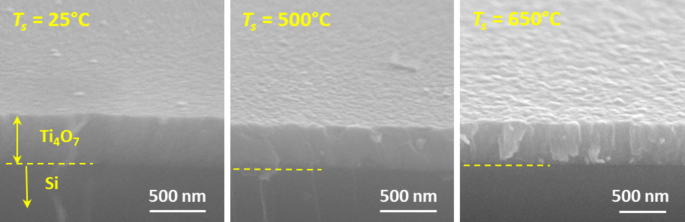

Typical cross-section SEM images of the sputtered Ti4O7 films deposited on silicon substrates at Ts = 25, 500, and 650 °C.

In contrast to titanium dioxide (TiO2), which is a wide bandgap (~ 3.2 eV) semiconductor with an insulating behavior, the Magneli phases are known to be highly conductive, with the Ti4O7 phase being the most conductive one with electrical conductivities in the (300–1900) S/cm range, depending on their preparation method and crystalline structure (poly- versus mono-crystalline)17,20,21,25,72. Figure 3 shows the Ts dependence of the electrical conductivity of the Ti4O7 films (sputter-deposited onto either quartz or silicon substrates). All the Ti4O7 films exhibit conductive behavior, with an impressive increase of their conductivity (by more than two orders of magnitude) when their Ts is increased from 25 to 500 °C, reaching up to a value as high as 740 S/cm at the optimal Ts temperature of 500 °C. This conductivity value is quite high for polycrystalline thin films (~ 500 nm-thick), as it falls in the upper range of conductivities quoted for bulk Ti4O717,25,26,72. It also compares well with the values generally quoted for graphite (i.e.; 727–1000 S/cm)54,73,74. For higher Ts (≥ 550 °C), the conductivity of the Ti4O7 films is found to decrease with Ts to a value of ~ 60 S/cm at 650 °C. This is believed to be due to the progressive formation of the less-conductive rutile-TiO2 phase (as revealed by XRD and Raman results), which takes place to the detriment of the vanishing Ti4O7 component of the films.

Fig. 3
figure 3

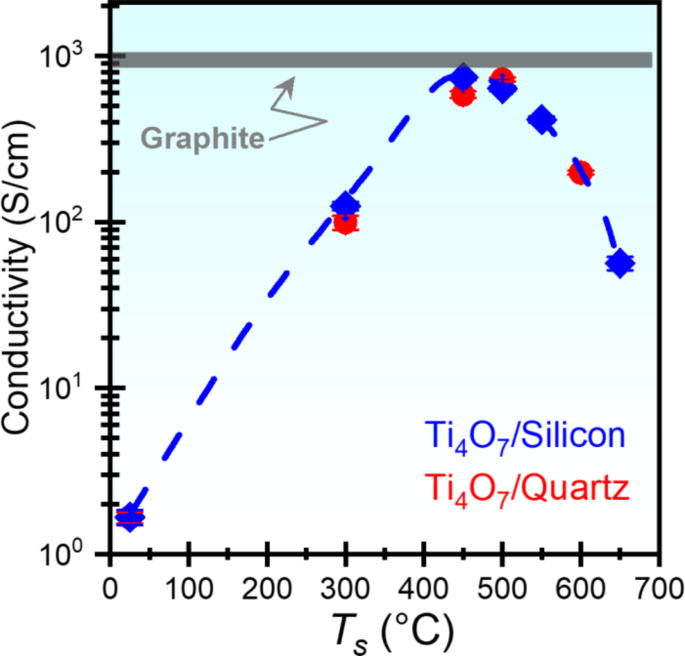

Electrical conductivity of the Ti4O7 films (deposited on both Si and quartz substrates) as a function of their Ts. The conductivity of graphite is also included for comparison.

To characterize the light absorption properties of the Ti4O7 films (deposited on quartz), their optical transmittance T(λ) and reflectance R(λ) were systematically measured over the 300–1500 nm spectral range. Figure 4a, b show the T(λ) and R(λ) spectra of the Ti4O7 films as a function of their Ts, respectively. For these optical measurements, the thickness of the Ti4O7 films (deposited onto optically transparent quartz substrates) was of ~ 130 nm to measure comfortably their optical transmittance. It is seen that the T(λ) of the Ti4O7 films is sensitive to their deposition temperature. It overally decreases over the entire spectral range when Ts is increased from 25 to 550 °C (a temperature at which T(λ) reaches its lowest level), then begins to rise back for Ts = 600 °C and 650 °C (Fig. 4a). On the other hand, the reflectance spectra of the Ti4O7 films are seen to be quite comparable in the visible for most Ts conditions, but are more scattered in the IR range with the highest reflectances exhibited by the films deposited at Ts ≥ 550 °C. The T(λ) and R(λ) components were used to calculate the absorption coefficient (\(\:{\upalpha\:}\left({\uplambda\:}\right)\)) of our Ti4O7 films according to the following equations75,76:\(\:\:{\upalpha\:}\left({\uplambda\:}\right)=-\frac{1}{t}\text{l}\text{n}\left[\frac{\text{T}\left({\uplambda\:}\right)}{{(1-\text{R}\left({\uplambda\:}\right))}^{2}}\right],\) where \(\:t\:\)is the Ti4O7 film thickness. It is worth mentioning here that the Ti4O7 films deposited on either silicon, quartz or titanium substrates exhibited the same crystalline structure and bonding states, as confirmed by both XRD and Raman spectra (not shown here). Figure 4(c) compares the absorption coefficients\(\:,\:{\upalpha\:}\left({\uplambda\:}\right),\) of the various Ti4O7 films deposited at different Ts. It is worth underlying here that expect for the two extreme Ts conditions (namely 25 °C and 650 °C, corresponding to the amorphous and mostly rutile phases, respectively), the sputtered Ti4O7 films exhibit strong optical absorption (i.e.; \(\:{\upalpha\:}\left({\uplambda\:}\right)\) values in the (0.5–1.7) 105 cm−1 range) over the broad spectral range of 300–1500 nm. Moreover, the absorption coefficient of the Ti4O7 films, over all the entire spectral range, is found to increase significantly as their Ts is raised from 25 to 450 °C (for instance, at a wavelength of 1 μm, the absorption coefficient of the Ti4O7 films increased by a factor of 3.3). The maximum of light absorption is exhibited by the Ti4O7 films deposited at 450 °C ≤ Ts ≤ 500 °C, where the highly crystallized Ti4O7 Magneli phase was formed. For higher Ts (≥ 550 °C), the absorption coefficients progressively diminish going back to \(\:{\upalpha\:}\left({\uplambda\:}\right)\:\)values close to those of the films deposited at Ts = 25 °C. To better qualify the overall light absorption of the Ti4O7 films, we calculated their integrated absorption coefficient (IAbs = Ʃα(λ).Δλ, or otherwise the integrated area under the \(\:{\upalpha\:}\left({\uplambda\:}\right)\) curve of Fig. 4c) over all the 300–1500 nm spectral range and plotted it as function of Ts. This is a straightforward tool to access easily the light absorption capacity of the Ti4O7 films, over the spectral range of interest, without resorting to the spectral emissivity of the films76 (a physical quantity that is not readily available for Ti4O7 films at the wavelengths of interest and certainly not for the temperature of the sample under insolation. Figure 4d clearly shows that the overall optical absorption of the Ti4O7 films (as characterized by IAbs) markedly increases (threefolds) when Ts is raised from 25 to 450-500 °C, where it reaches its highest value and then continuously drops back for Ts ≥ 550 °C.

Fig. 4
figure 4

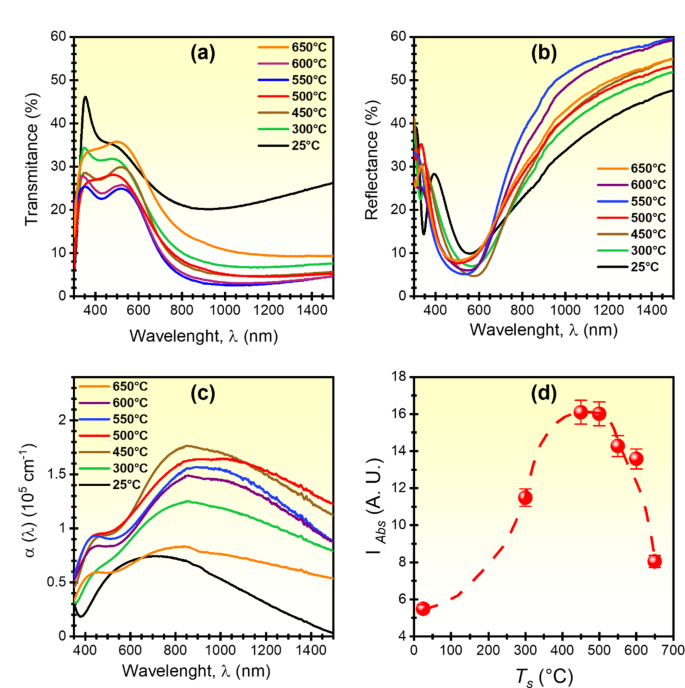

(a) Transmittance; (b) Reflectance of the Ti4O7 films as a function of Ts; (c) Comparison of the absorption coefficients, over the 300–1500 nm spectral range, of the Ti4O7 films deposited at different Ts; (d)Ts dependence of the integrated absorption coefficient (IAbs) of the Ti4O7 films.

The strong light absorption of sputtered Ti4O7 films prompts the evaluation of their capacity to convert the absorbed photons into charges. We have thus investigated the photoconduction properties of the Ti4O7 films by performing I–V measurements under both dark and UV lamp illumination (with an irradiance of 32.5 mW/cm2). Figure 5a shows a typical I-V curve of the Ti4O7 films deposited at Ts = 25 °C, where a photocurrent is clearly produced by the films upon their exposure to light. To better compare all the Ti4O7 films as a function of their Ts, we have calculated their associated photoresponse (Ph (%), defined as Ph(%) = [(ILight−IDark)/IDark] x 100). Figure 5b shows that while the films deposited at Ts = 25 °C exhibited a moderate photoresponse (of ~ 87%), the latter continuously decreases to reach its minimum (of only ~ 15%) at Ts = 500 °C, and then stabilizes around ~ 20% for higher Ts. It is interesting to note that the Ti4O7 films deposited at Ts= 500 °C exhibit the lowest photoresponse (Fig. 5(b)) even if their integrated light absorption capacity is the highest (Fig. 4(d)). This suggests that the absorbed photons are not necessarily converted into photocharges that could contribute to enhance the photoconduction of the Ti4O7 films. Instead, they might be converted into heat, given the strong capacity of the Ti4O7 films to absorb light (and particularly in the IR).

Fig. 5
figure 5

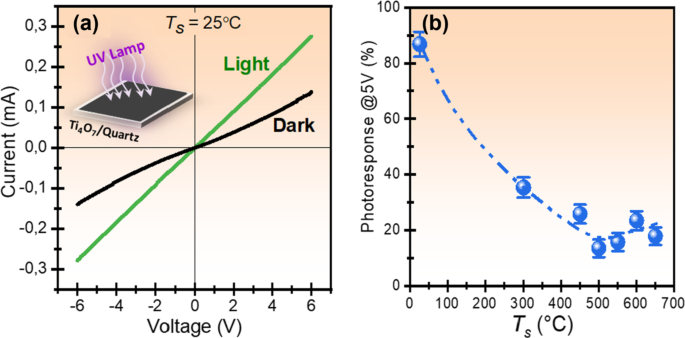

(a) Typical I–V curves of Ti4O7 films (deposited at Ts= 25 °C) under dark and light conditions; (b) photoresponse of the Ti4O7 films as a function of their Ts.

To assess the photo-thermal conversion properties of our sputtered-Ti4O7 films, we have calculated their external photothermal conversion efficiency (ηext = Q/q), which is given by the ratio between their generated heat per surface unit (Q) and the incident photonic power density (q = 1 kW/m2) delivered by an AM1.5 solar simulator40,77. To determine the density of heat (Q) generated by a sample, the latter is exposed to the solar illumination for 15 min while the rise of its temperature is real-time measured by an infrared thermal camera. Thus, the temperature of the sample increases from the ambient temperature (Tamb) until it reaches a plateau corresponding to the maximum temperature (Tmax) of the sample. At this point, a balance is defined between the amount of heat (Q) generated by the illuminated sample and the maximum of heat dissipated to its close surrounding environment (\(\:{Q}_{surr}^{max}\)), according to the following equation:

$$\:Q={Q}_{surr}^{max}=h\times\:s\times\:\left({T}_{max}-{T}_{surr}^{max}\right)$$
(1)

Where h is the heat transfer coefficient, s is the illuminated surface of the sample, and \(\:{T}_{surr}^{max}\) is the maximum temperature attained by the surrounding atmosphere of the sample. In a second step, when Tmax is reached, the solar illumination is turned off and the sample temperature decrease (heat dissipation phase) is tracked until it returns back to ambient. This temperature decay is fitted with the following exponential decay:40

$$\:T\left(t\right)=A.{e}^{(-w\times\:t)}+B.{e}^{(-{w}_{surr}\times\:t)}+C$$
(2)

where \(\:A={T}_{max}-B-C\); \(\:\:B=\frac{w}{w-{w}_{surr}}\times\:\left({T}_{surr}^{max}-{T}_{amb}\right)\); \(\:C={T}_{amb}=25\:\text{C}\), and\(\:w\) is the rate of energy loss, which is given by:40

$$\:w=\frac{h\times\:s}{{c}_{i}\times\:{m}_{i}}$$
(3)

Where ci and mi are the respective heat capacity and mass of the sample. Since our samples consist of a titanium substrate coated with a Ti4O7 film, the heat capacities of both materials (0.544 J g−1 °C−1 and 0.786 J g−1 °C−1 for Ti78 and Ti4O779, respectively) were taken into account in proportion to their actual mass fraction of the sample. The fitting of the temperature decay of the sample by Eq. (2) yields the constant values of A, B, C, \(\:w\) and \(\:{w}_{surr}\), enabling thus the calculation of \(\:{T}_{surr}^{max}\). In addition, Eq. (3) is used to determine the heat transfer coefficient \(\:h\) of the samples. Finally, by integrating the values of \(\:{T}_{surr}^{max}\) and \(\:h\) in Eq. (1), the generated heat (\(\:Q)\) can be calculated and the photothermal efficiency (\(\:{{\upeta\:}}_{ext}\)) determined, as above-defined. Figure 6(a) shows the temperature profiles of the various Ti4O7 films (deposited at different Ts) upon their solar illumination. It is clearly seen that the surface temperature of the films rises from Tamb = 25 °C until it stabilizes at a maximum temperature (Tmax) after 900 s of insolation. Firstly, it is worth noting that Tmax for the bare-Ti substrate (without the Ti4O7 coating) reaches a value of only 32.2 ± 0.6 °C. As soon as the Ti substrates are coated with Ti4O7 films, their associated Tmax reaches much higher values. Indeed, Tmax increases from 41 to 53–54 °C when the deposition temperature of the Ti4O7 films is increased from Ts = 25 to Ts = 450–500 °C. It then decreases to 48 °C for the films deposited at Ts = 650 °C. This dependence of Tmax on the deposition temperature of the Ti4O7 films confirms the determining role of the latter in the photothermal conversion process. Interestingly, the photothermal conversion is found to reach its maximum for the Ti4O7 films deposited at the optimal Ts of 450–500 °C, where the Ti4O7 phase is well crystallized and the highest IAbs is obtained. For Ts = 500 °C, Fig. 6b shows the thermal snapshots of the Ti4O7/Ti samples taken by the infrared camera at different illumination times, providing thus a visual evidence of their progressive heating upon illumination. The temperature decays following the shutdown of the illumination at 900s (Fig. 6a) of the different Ti4O7/Ti samples (deposited at different Ts) were fitted according to Eq. (2) and their associated photothermal conversion efficiency (ηext) calculated. Figure 6(c) shows the variation of ηext of the Ti4O7 films as a function of their Ts. It is seen that ηext is very sensitive to Ts, as it increases from (39.8 ± 1.2) % to as high as (74 ± 2) % when Ts is raised from 25 to = 450–500 °C. For higher Ts values (\(\:\ge\:\) 550 °C), ηext drops to reach an ηext value of 43.5 ± 1.3% at Ts = 650 °C. All the ηext values exhibited by the Ti4O7/Ti samples are significantly higher than that of the bare-Ti substrates (of ~ 18%; see Fig. 6c), confirming the prominent contribution of the Ti4O7 coating in the photothermal conversion of the samples. Achieving an ηext as high as ~ 74% by simply coating standard Ti metal substrates by a thin layer (of only ~ 450 nm) of Ti4O7 is highly interesting for efficient solar–thermal conversion device applications. The presence of the underlying Ti substrates might have nonetheless lowered the overall photo-thermal conversion performance of the samples, as a part of the heat generated by the Ti4O7 coating can be dissipated more easily through the metallic Ti substrates.

Fig. 6
figure 6

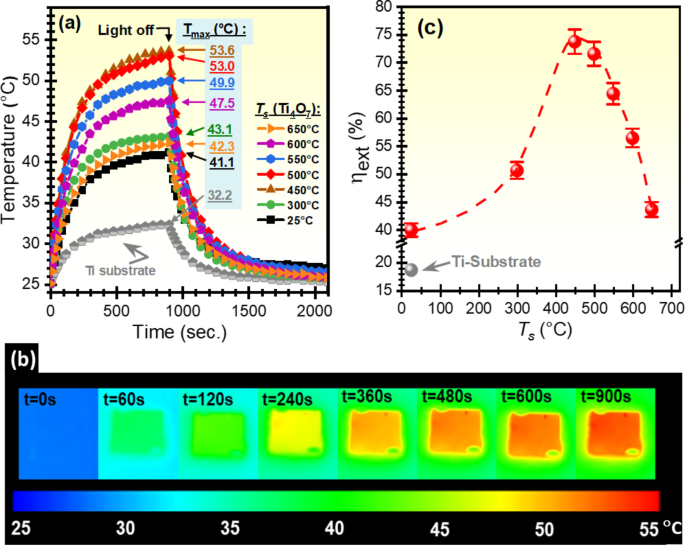

(a) Temperature profiles of the Ti4O7 films, deposited at different Ts (the solar simulator was lighted on for 900 s and then shutdown). The maximum temperatures (Tmax) reached by the samples following their insolation are indicated in light blue box; (b) Thermal images of the Ti4O7/Ti sample, coated at Ts = 500 °C, taken at different elapsing times (from t = 0 to 900 s); The actual size of the samples is 1ʹʹ x 1ʹʹ; (c) External photothermal conversion efficiency (ηext) of the Ti4O7 films as a function of their Ts.

In overall, our results suggest that the high-crystallinity of the Ti4O7 phase along with its associated high capacity to absorb light are key for an efficient photothermal conversion. By comparing the Ts dependence of both ηext and IAbs (Figs. 4d and 6c, respectively), it strikingly appears that both variations are very similar (i.e.; bell-shaped with their top around Ts = 450–500 °C), suggesting a strong correlation between these two quantities. In fact, this correlation is better evidenced in Fig. 7, where ηext is cross-plotted against IAbs. We were thus able to establish a linear relationship between ηext and IAbs. This clearly demonstrates, for the first time, that the photothermal conversion efficiency (ηext) of the sputtered Ti4O7 films linearly scales with their integrated optical absorption coefficient (IAbs). It also provides evidence that there is a direct conversion of the photons absorbed by the Ti4O7/Ti samples into heat.

Fig. 7
figure 7

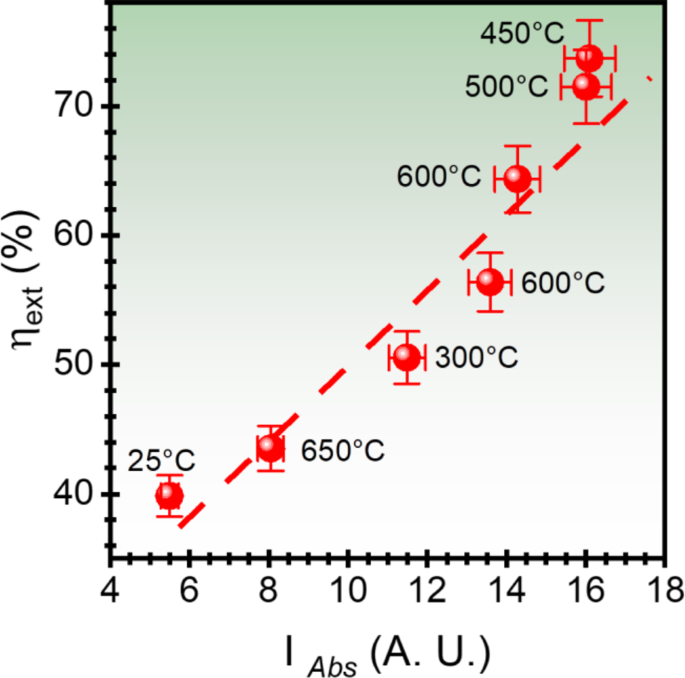

Linear relationship between the ηext of the Ti4O7 films and their integrated optical absorption coefficients (IAbs).

We can thus conclude that the ability to improve the optical absorbance of the Ti4O7 films (through surface roughening for example) has the potential to increase further their photothermal conversion efficiency. An extrapolation of the linear relationship established in Fig. 7 suggests that an increase of the optical absorption of the Ti4O7 films (by increasing their IAbs by ~ 20%) would lead to an ηext value as high as ~ 95%.

Conclusion

We have successfully developed a magnetron sputtering process for the deposition of Ti4O7 thin film coatings onto various substrates. By systematically varying the substrate temperature from 25 to 650 °C, we were able to identify an optimal Ts of 500 °C that yields highly crystallized Ti4O7 phase films with a densely packed and uniform columnar morphology. At the optimal Ts = 500 °C, not only the Ti4O7 crystallite size was found to reach its maximum size of 20 nm, but the Ti4O7 films also exhibited their highest electrical conductivity (~ 740 S/cm). For higher Ts (≥ 500 °C), the electrical conductivity of the Ti4O7 films starts to drop and reaches ~ 60 S/cm at Ts = 650 °C as a result of a progressive phase transition from Magneli-Ti4O7 towards rutile-TiO2. On the other hand, the light absorption capacity (i.e.; IAbs) of the Ti4O7 films is found to be very sensitive to their Ts and reaches its maximum for Ts in the 450–500 °C range. This strong light absorption was shown to be converted efficiently into heat. Indeed, the Ti4O7 films deposited at the optimal Ts of 450–500 °C exhibited an external photothermal conversion efficiency as high as ~ 74%. This is an outstanding performance considering the fact that the Ti4O7 coatings are deposited onto more heat-dissipating Ti substrates. Interestingly, our results have revealed a striking similarity of the Ts dependence of both ηext and IAbs. This enabled us to establish, for the first time, a linear correlation between the photothermal conversion efficiency of the Ti4O7 films and their integrated optical absorbance. This fundamental relationship sets a relatively simple pathway towards the design and optimization of highly efficient solar–thermal conversion devices. Accordingly, it is expected to achieve ηext values of ~ 95% by simply increasing the light absorption of the Ti4O7 (by ~ 20%) through, for example, the increase of their surface area. Finally, since sputtering is a well implemented technique in the industrial world with great capacity for large-area coatings and throughput, this work paves the way for the integration of sputtered-Ti4O7 coatings into real photothermal devices intended for sustainable water heating, energy storage or water desalination.

Methods

The Ti4O7 thin films were deposited using an RF (13.56 MHz) magnetron sputtering system and a Ti4O7 target (99.95% pure) at a power density of 7 W/cm2 and a bias voltage of – 30 V applied on the substrates. Prior to the sputter-deposition, the chamber is first cryo-pumped to a base pressure of ~ 3 × 10−8 Torr. Then, a high-purity (99.999%) argon gas carrier is injected at a constant flow of 10 sccm to maintain a constant residual pressure of 1.5 mTorr. The substrates to be coated are mechanically attached on the 6ʹʹ-diam. substrate holder positioned at 20 cm from the target. The substrate holder can be heated from its backside by an array of quartz lamps, allowing to control the actual substrate temperature (Ts) from 25 to 650 °C. Before placing the substrates on the rotating holder, they were cleaned with acetone, isopropanol, rinsed with deionized water and dried by a N2 jet. The Ti4O7 films were concomitantly deposited (in a sputter-up scheme) onto the following substrates: mirror-polished and Si (100), quartz, and pre-etched titanium (of a size of 1ʹʹx1ʹʹ, and 0.02ʹʹ thickness). While the Ti4O7 deposited onto quartz substrates were mainly used for optical and electrical measurements (because of the optical transparency and insulating character of quartz), those deposited onto silicon were used for SEM observations, and finally those deposited on Ti were used for XRD, Raman and photothermal characterizations. The Ti substrates were prepared by chemically etching their surface for one hour in a 10% (w/v) oxalic acid bath maintained at 90 °C. After their etching, the Ti substrates were cleaned by a standard cleaning procedure (acetone and isopropanol degreasing followed by de-ionized water rinsing) and dried by a N2 jet. Before starting their coating in the sputtering chamber, the surface of the substrates was in-situ cleaned by subjecting it to a gentle RF argon-plasma (at 20 mW/cm2 and a resulting bias of − 70 V). The target was also sputter-cleaned by lighting up the plasma for 20 min while keeping the gun shutter closed to shield the substrates. The thickness of the Ti4O7 films was in situ monitored by using a calibrated quartz-crystal microbalance. Scanning Electron Microscope (SEM, Tescan Vega 3 LMH) was also used afterwards to ex-situ measure the thickness of the films and characterize their morphology. X-ray diffraction (XRD) was employed to determine the crystalline structure of the Ti4O7 films deposited onto Ti substrates, as a function of their deposition temperature. The XRD spectra were acquired by using a PANalytical X-Pert-Pro system with a Cu-Kα source (λ = 1.5418 Å) at an incident grazing angle of 1.5°. Raman spectroscopy was also used to characterize the local environments of the Ti4O7 films by means of a Renishaw Raman spectrometer (inVia Reflex) using a 50 mW 532-nm-laser source (with an energy filter of 10% and a spot size of ~ 1.5 μm at x50 magnification). The electrical resistivity of the Ti4O7 films was systematically measured, as a function of Ts, by means of a four-point Probe testing system (Lucas Lab, S-302). The optical transmittance of the Ti4O7 films was characterized with a UV-Vis-NIR spectrophotometer (Perkin Elmer, Lambda 750) equipped with an integrating sphere. Finally, the photothermal properties of our Ti4O7 films (deposited onto etched-Ti substrates) were evaluated by placing them at a distance of 15 cm from the simulated sunlight source (AM1.5, 1 kW/m2). To avoid any heat loss by conduction from the back side of the irradiated sample, the latter was purposely suspended in air by a tiny ceramic frame with solely 4 small point contacts (mm size) at the corners. As such, the heat loss by conduction can be definitely neglected. The heat loss by radiation can also be ruled out as the temperatures reached by the sun irradiated samples remain relatively low (≤ 55 °C). Thus, the real-time temperature evolution of the Ti4O7/Ti films (under insolation and after shutting down the illumination) was measured by means of an infrared thermal camera (FLIR, T450sc, with a resolution of 320 × 240 pixels, a thermal sensitivity < 0.03 °C, a temperature range of − 20 to 650 °C). For the IR-camera measurements, we have used an averaged emissivity (ε) value of 0.9 for all the films. This average emissivity (ε) value was chosen after measuring the emissivity values (ε = 1-R, where R is the reflectance measured by FTIR76,80) of the sputtered Ti4O7 films, over all the (2.5–18) µm IR range, for all the deposition temperatures. In fact, for all the deposition temperatures, the emissivity of our sputtered-Ti4O7 films was found to decrease slightly from 0.98 to 0.82 when the IR wavelength is increased from 2.5 to 18 μm. Thus, for practical reasons, we used an averaged fixed value of 0.9 for all the samples. By changing the emissivity of the best performing films (deposited at Ts = 450 °C) from 0.85 to 0.95, we found that the uncertainty on \(\:{{\upeta\:}}_{ext}\) (obtained at ε = 0.9) is of ± 2.4%. Such an uncertainty is well accounted for in the error bars of Fig. 6c.
