Fig. 1

From: Vibrational resonance and chaos control in the canonical Chua’s circuit with a smooth nonlinear resistor

Fig. 1

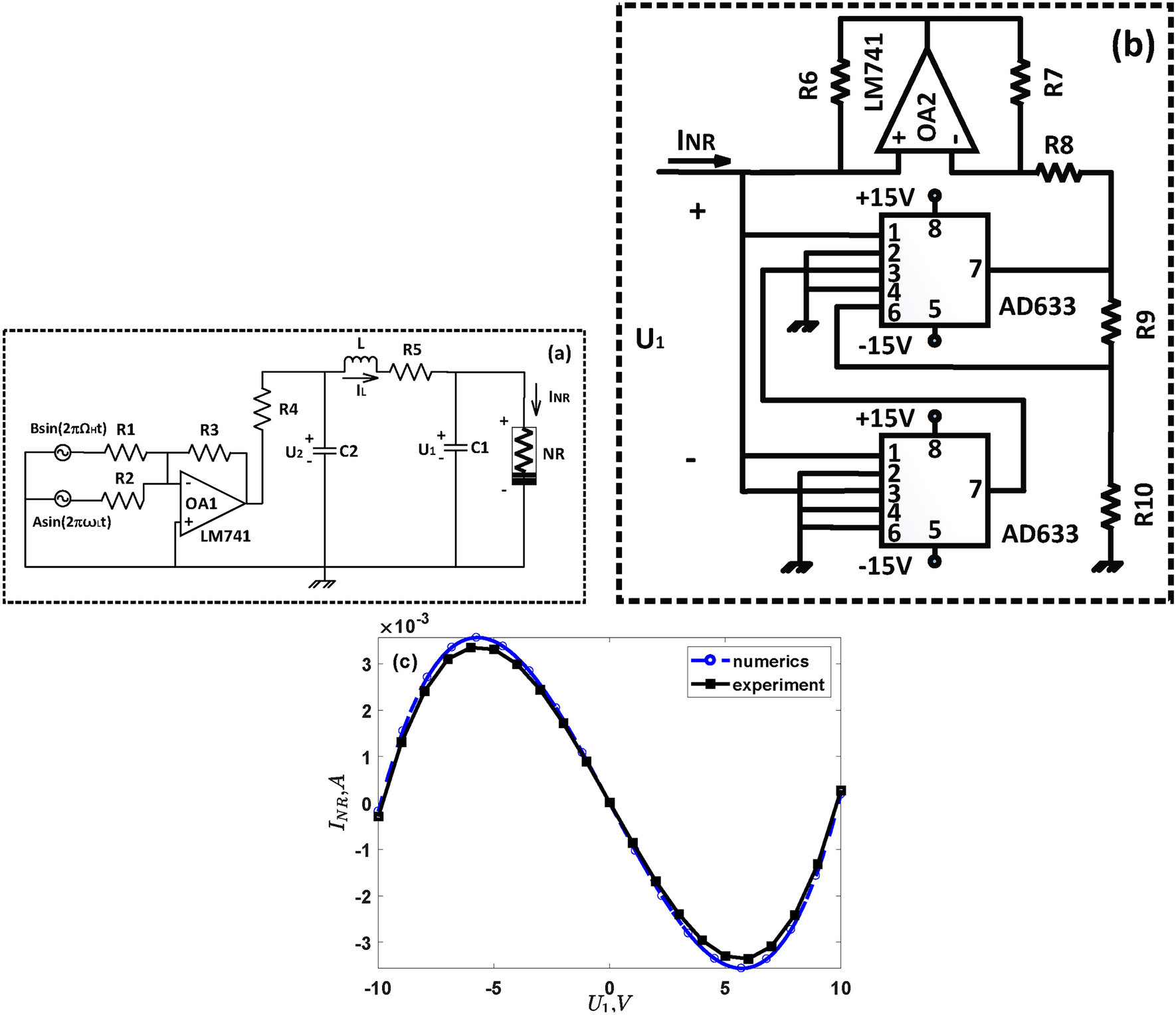

(a) Schematic diagram of the canonical Chua’s circuit consisting with a smooth nonlinear resistor driven by a biharmonic signal. (b) Circuit schematic of the smooth nonlinear resistor. (c) The current-voltage characteristic curve of the nonlinear resistor. The solid line represents the experimental results and the dashed line represents the numerical results based on the current (\({I}_{\textrm{NR}}\))-voltage (\({U}_{{1}}\)) equation.
