From: Plasma-aided direct printing of silver nanoparticle conductive structures on polydimethylsiloxane (PDMS) surfaces

Fig. 3

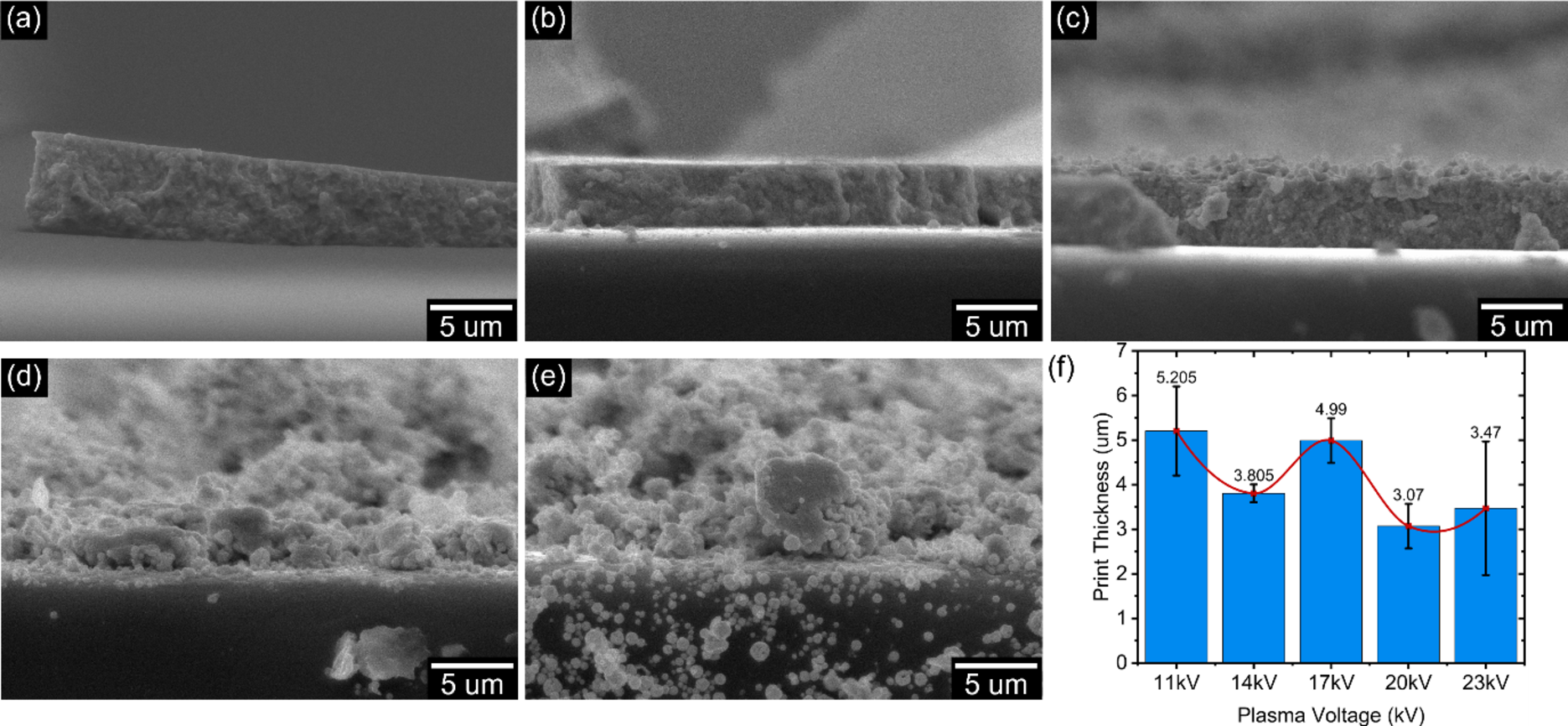

Cross-sectional SEM images of AgNP conductive structures (two times single print with plasma and immediate post-inert plasma treatment after each print) on PDMS printed with a plasma voltage of (a) 11 kV, (b) 14 kV, (c) 17 kV, (d) 20 kV, (e) 23 kV, (f) Plot of average print thickness of Ag conductive structure on PDMS for samples printed with a plasma voltage from 11 to 23 kV.
