Fig. 4

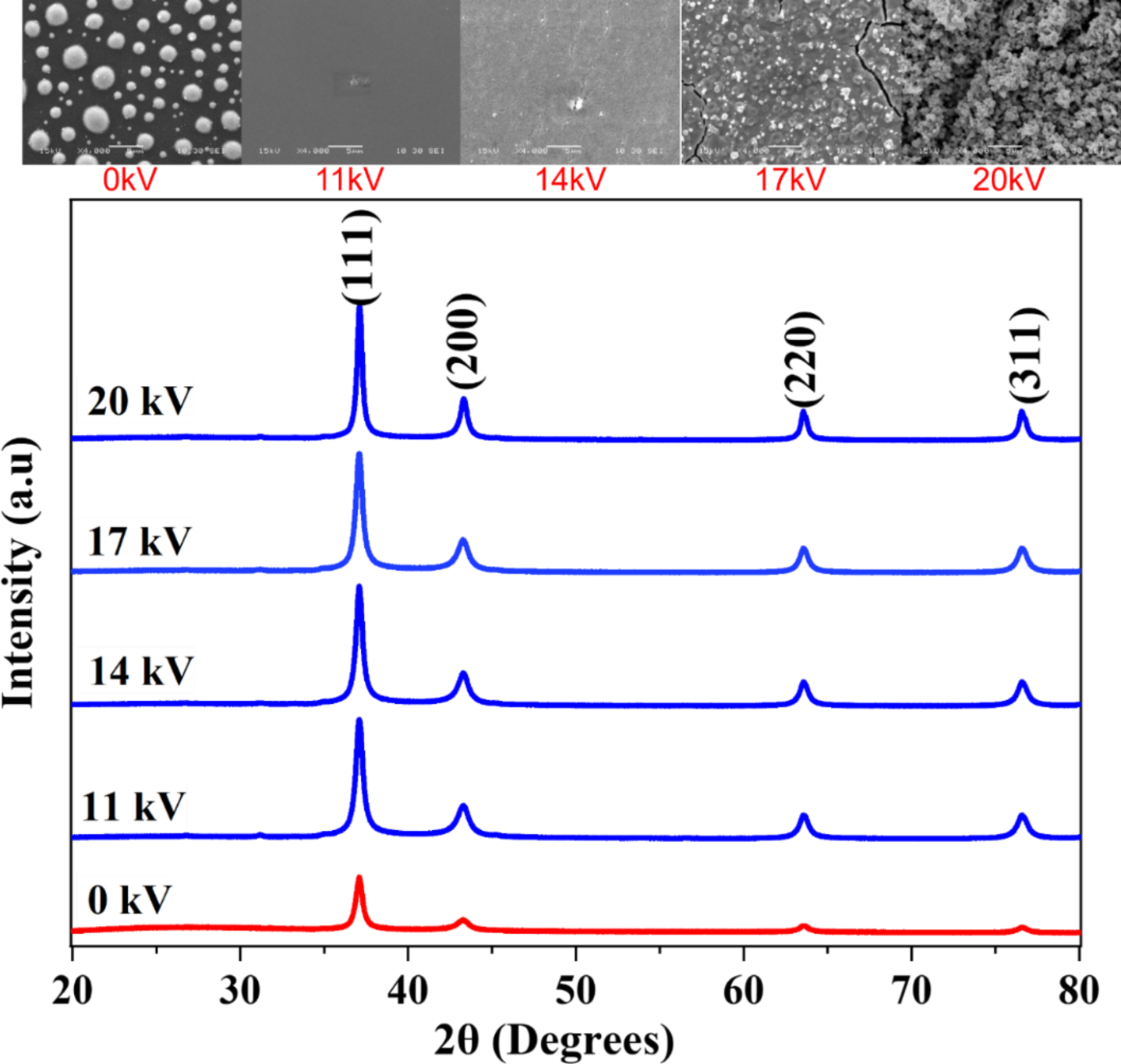

X-ray diffraction (XRD) patterns of plasma printed AgNP conductive structures on PDMS. Each structure underwent two successive single prints with plasma treatment, followed by immediate post-inert plasma treatment after each print. The patterns are presented for different plasma voltages (0, 11, 14, 17, and 20 kV).
