Fig. 17
From: Passive temperature sensing through chipless vanadium dioxide metasurface tags

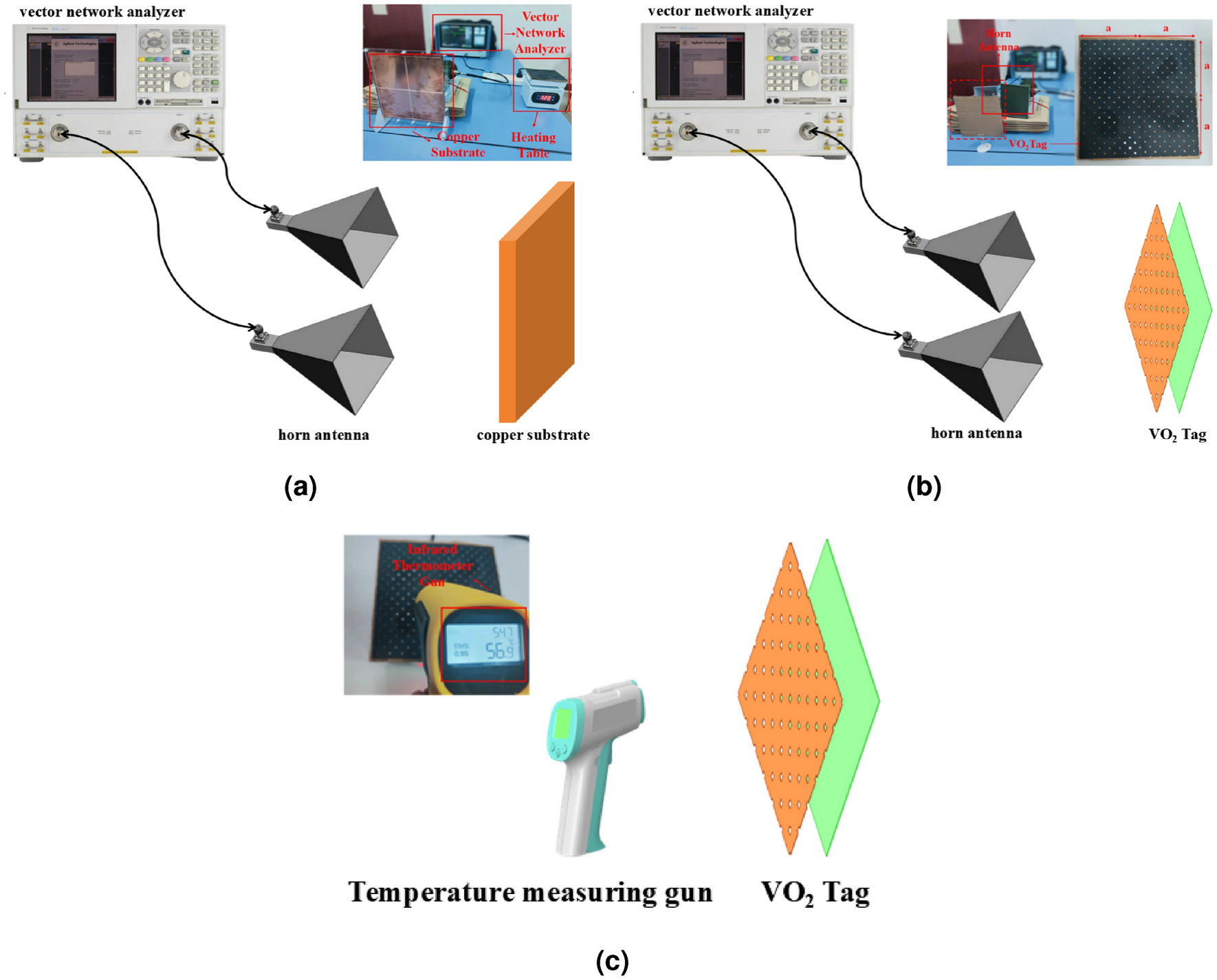

Passive temperature sensing tags test procedure (a) copper substrate calibration (b) testing environment for tags (c) tags heating and temperature measurement.
