Fig. 9
From: Nanoscale 3D spatial analysis of FTO/ZnO/Ag-x films subjected to photocatalytic activity

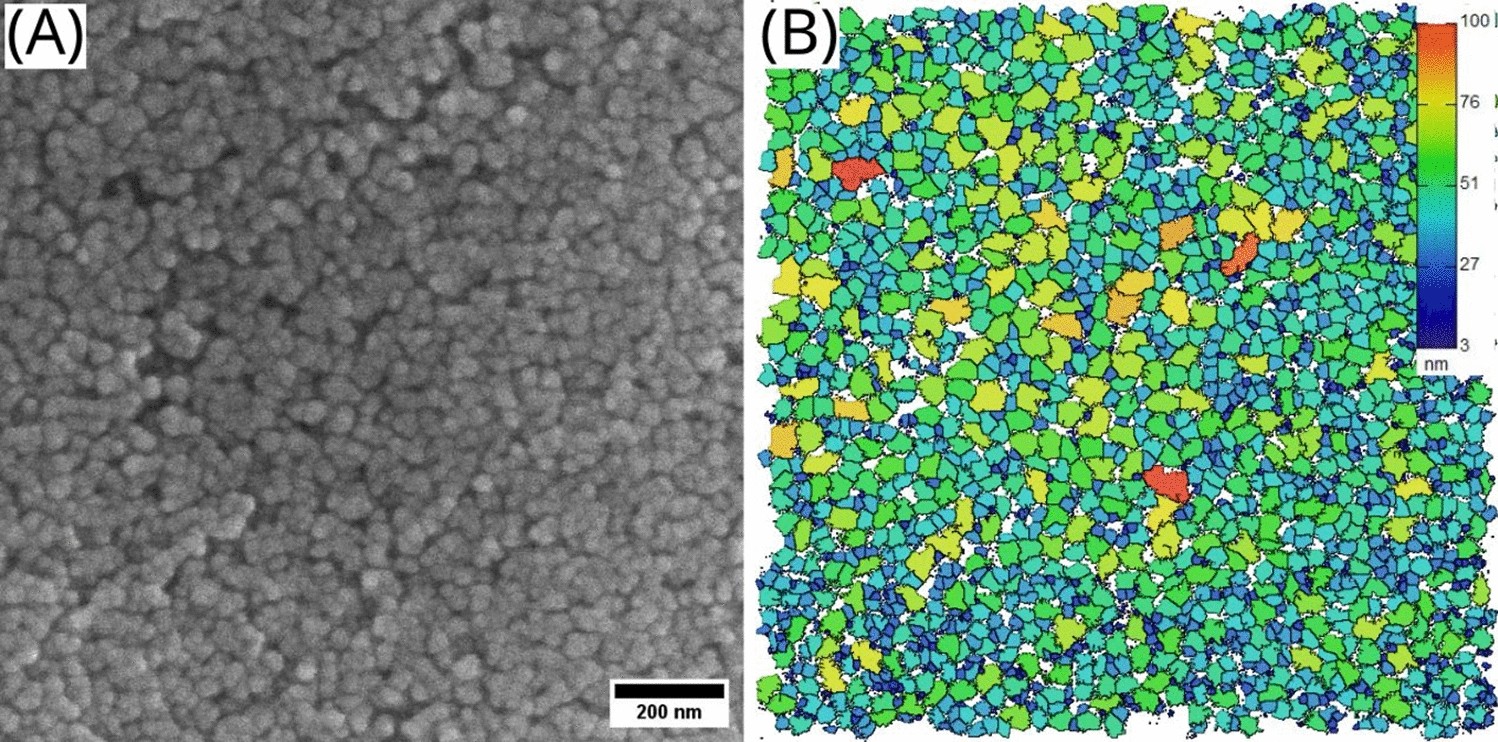

(A) FESEM image of FTO/ZnO/Ag-0 sample surface, and (B) corresponding color map showing the boundaries of the segments detected in the binarized image used to determine shape descriptors of dominant planar figures.
