Fig. 3

From: Predictive value of trendelenburg position and carotid ultrasound for fluid responsiveness in patients on VV-ECMO with acute respiratory distress syndrome in the prone position

Fig. 3

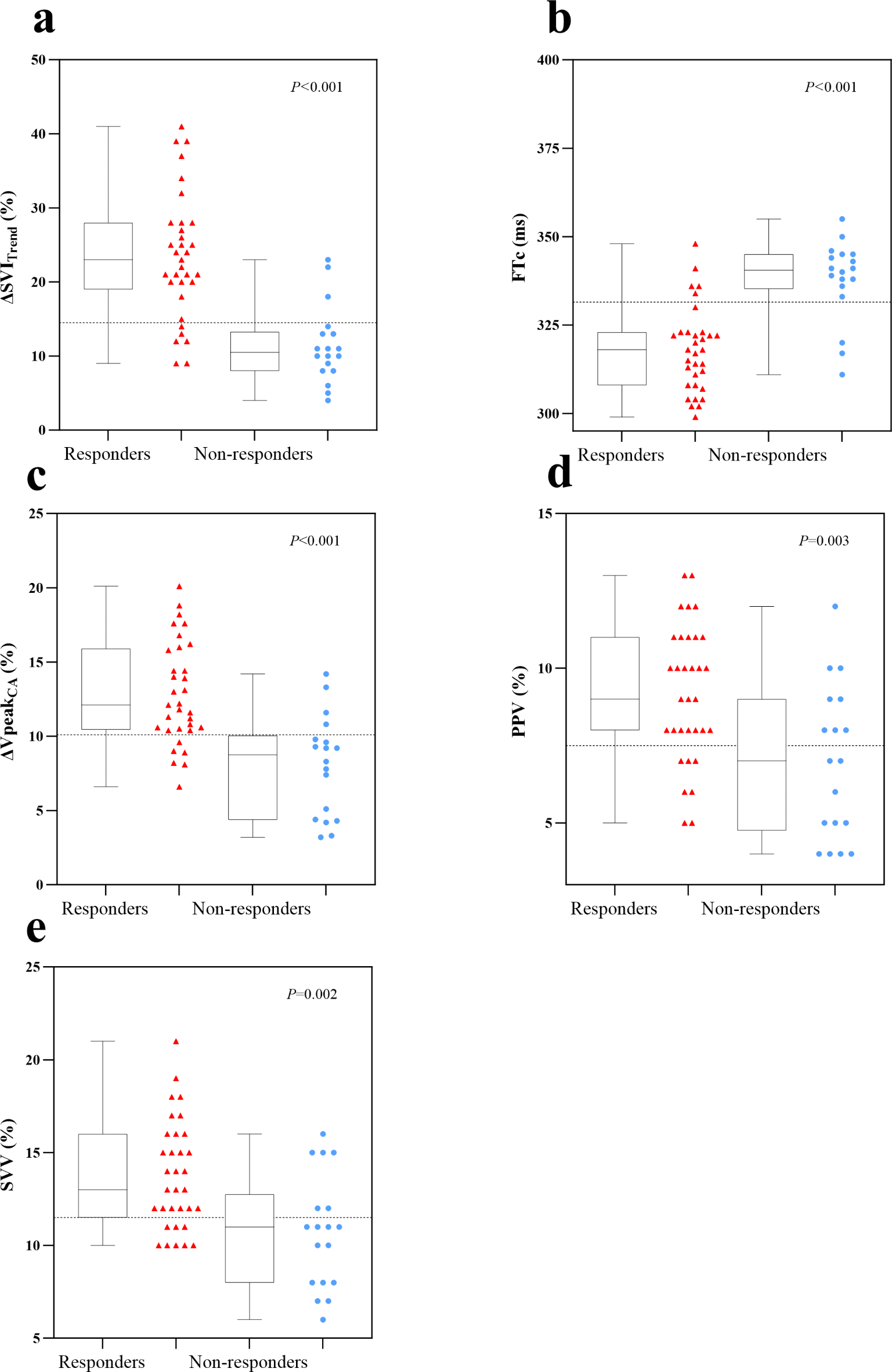

Individual values from five parameters to detect fluid responsiveness in fluid responders and non-responders. Black dotted line displays optimal thresholds for each diagnostic test computed by ROC curve analysis. (a) ΔSVITrend, Stroke volume index variation induced by the Trendelenburg position; (b) FTcBaseline, baseline carotid artery corrected flow time; (c) ΔVpeakCA, respirophasic variation in carotid artery blood flow peak velocity; (d) PPV, pulse pressure variation; (e) SVV, stroke volume variation.
