From: Evaluation of coupled SWAT-MODFLOW-NWT model for conjunctive use of surface water and groundwater resources in the Mahabad plain of Iran

Fig. 5

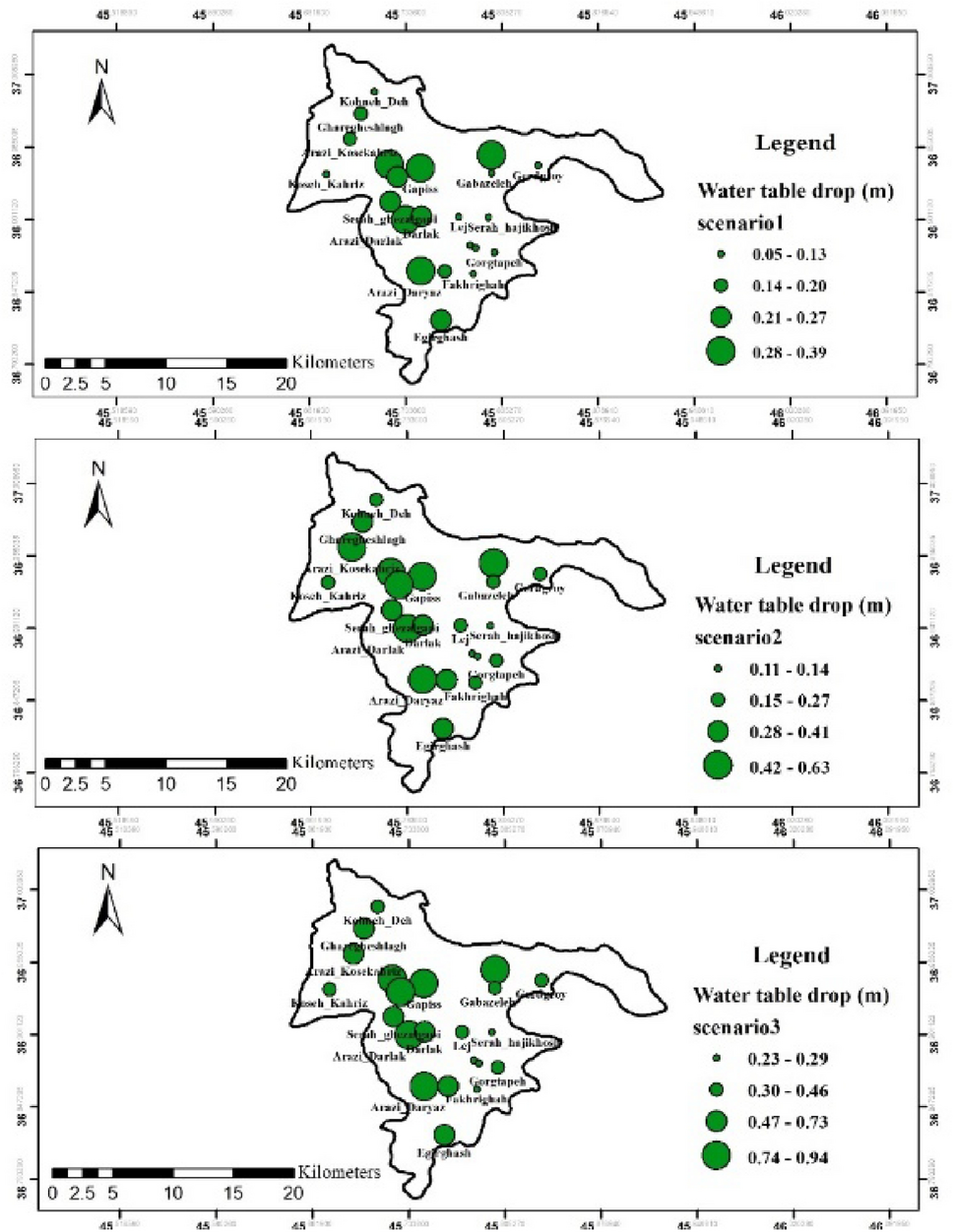

Values of drop in water table calculated by the coupled model at the location of piezometers (Scenario 1, Scenario 2, and Scenario 3: Irrigation water allocation was reduced by 10, 20, and 30 percent reduction in surface water resources, and the same amount of groundwater resources increased to preserve the total amount of allocation.)
