Fig. 17
From: Failure risk study of anchor bolts durability for loess slope under long-term hydro-thermal effect

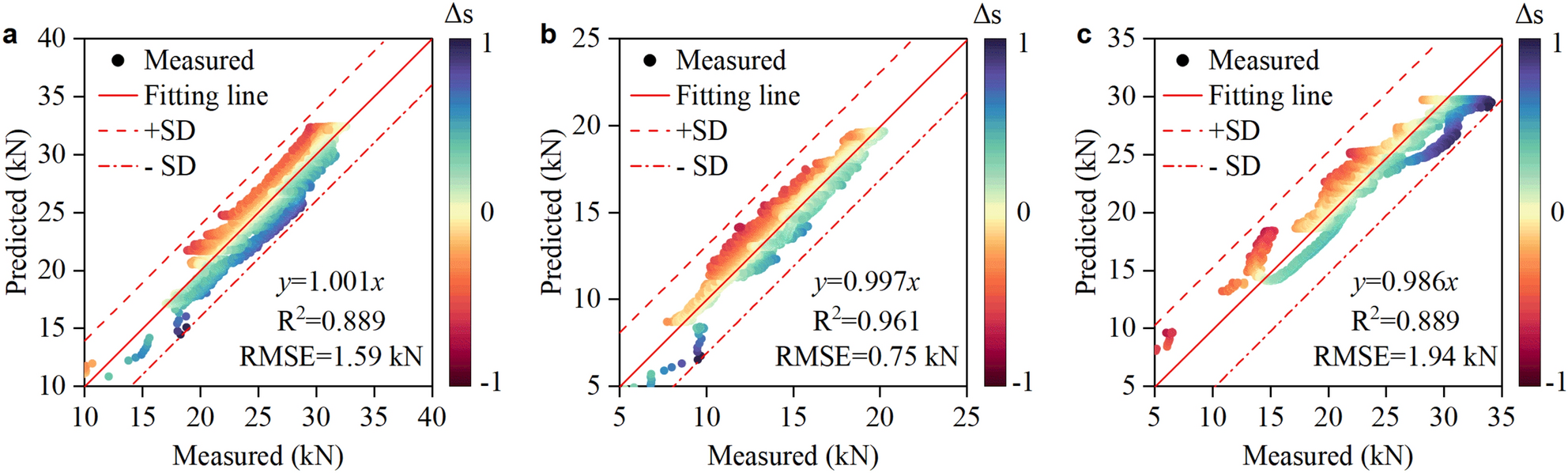

Measured values vs. predicted values for axial force of anchor bolt. (a) S2, (b) S5, (c) S8. The color scale refers to the normalized discrepancy (Δs) between the measured and predicted value, SD represents standard deviation.
