From: Research and application of multi-frequency electromagnetic technology in real-time online characterization of steel microstructures and mechanical properties

Fig. 11

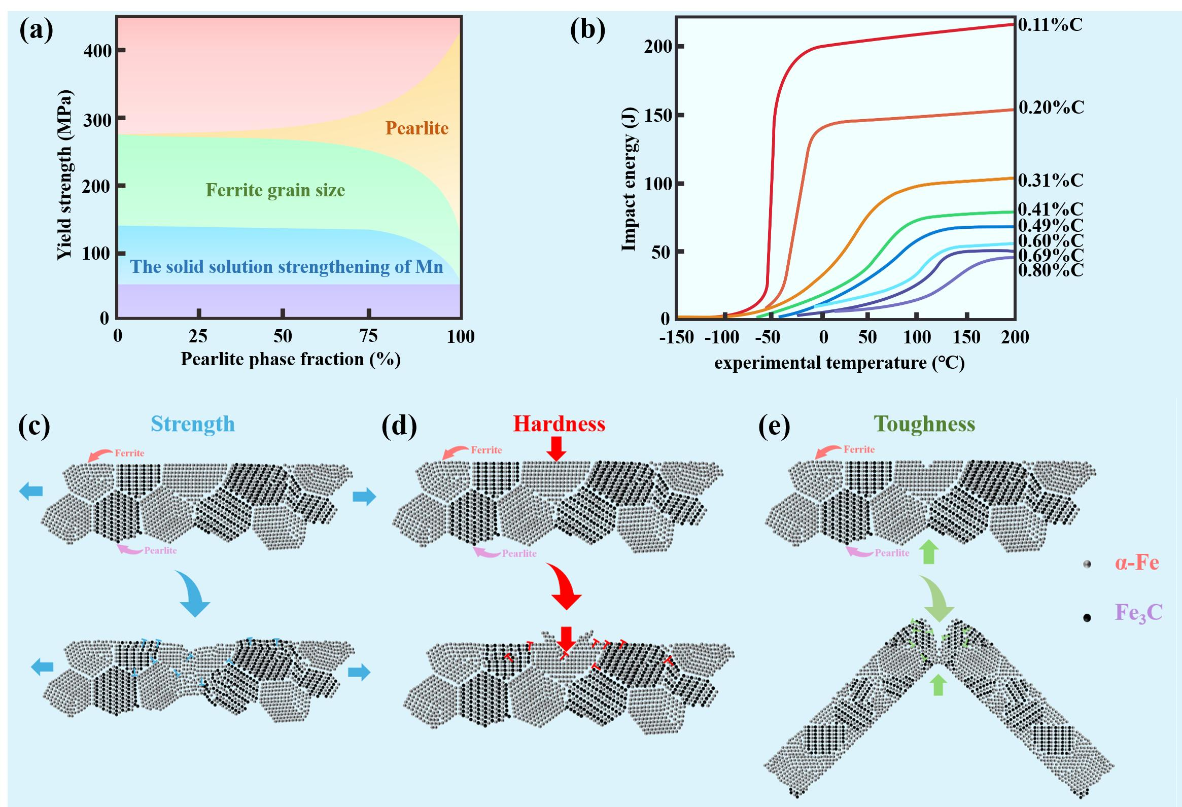

(a) The relationship between yield strength and ferrite phase fraction (b) the relationship between impact energy and experimental temperature (c) the mechanism by which dislocations affect strength (d) the mechanism by which dislocations affect hardness (e) the mechanism by which dislocations affect toughness.
