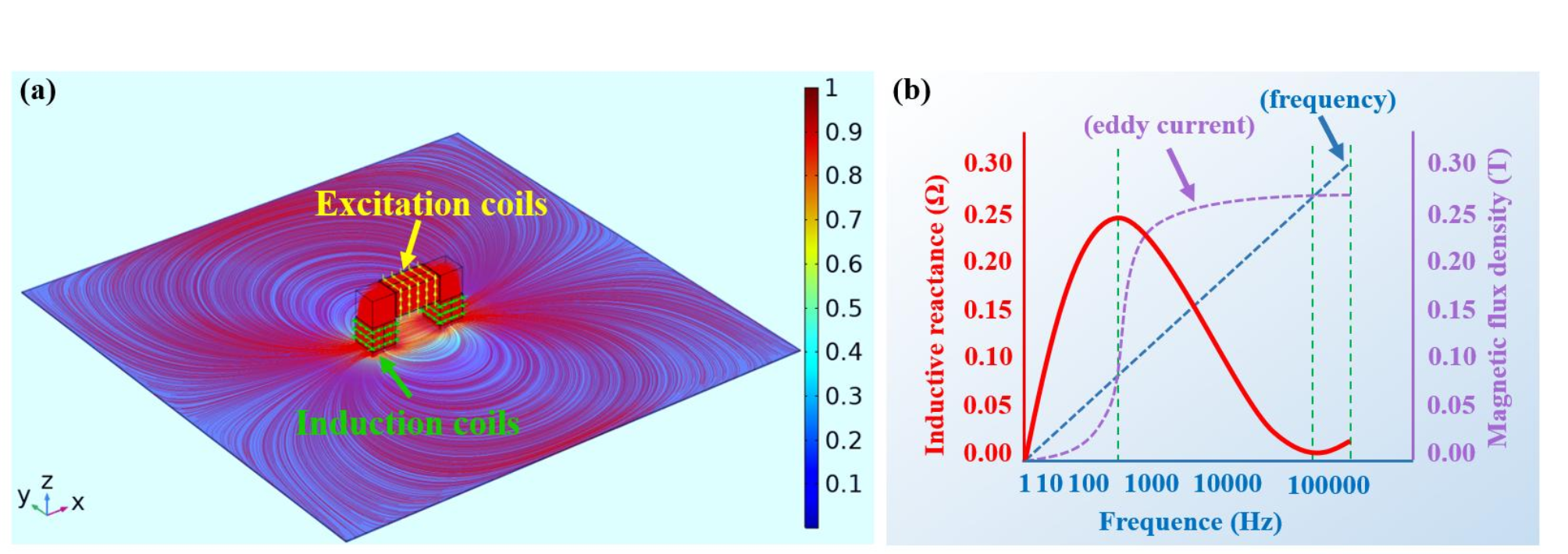

Fig. 2

(a) FE model for a laboratory U-shaped sensor on a strip steel sample showing the surface contour plot of the magnetic flux density; red streamlines indicate the magnetic flux density in ferrite core (b) schematic of inductive reactance-frequency curve.
