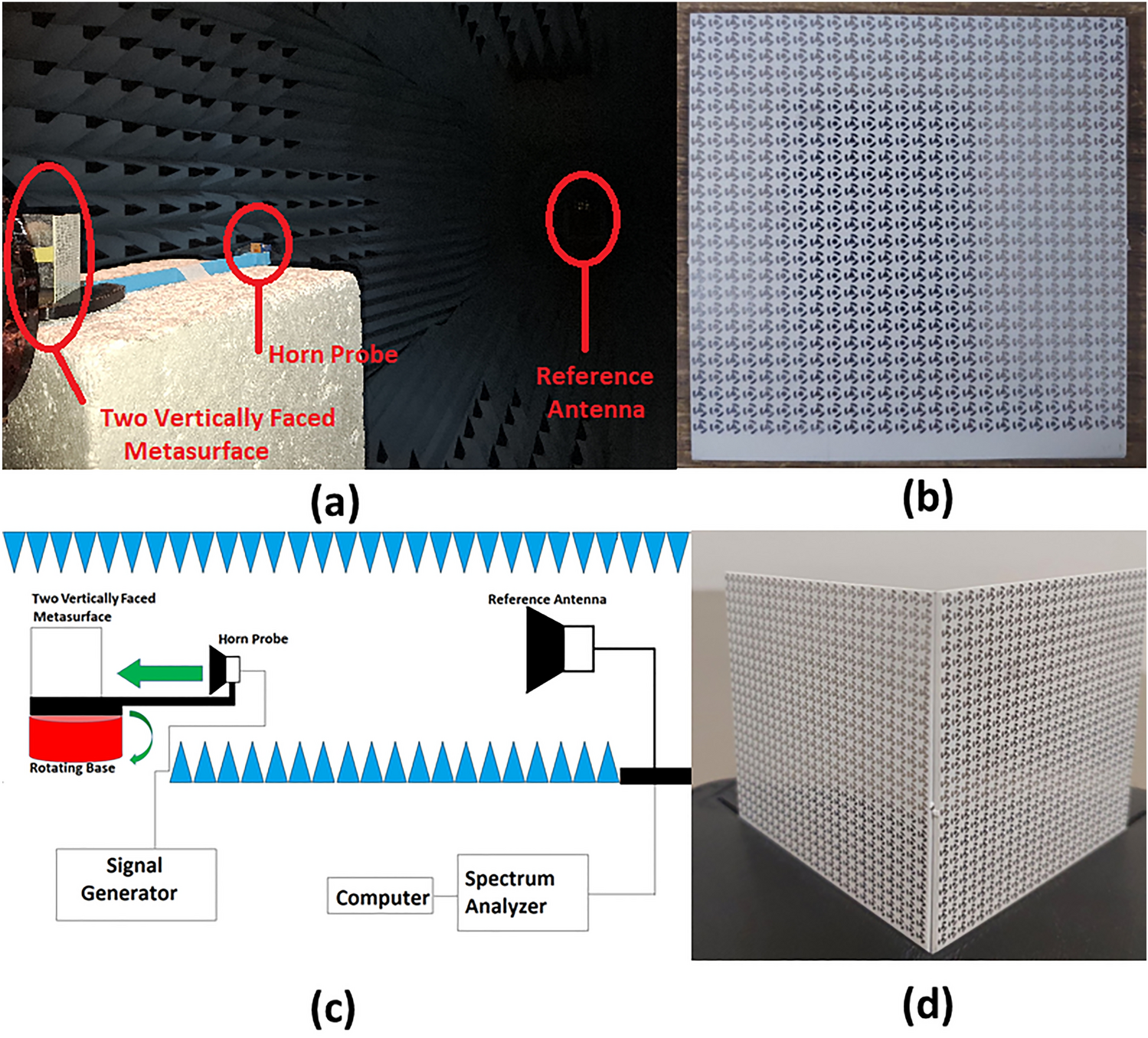

Figure 12

Schematics of fabricated 2*26*26 two vertically faced metasurface and test setup (a) Test setup in anechoic chamber (b) Schematics of single sheet metasurface (c) Block diagram of test setup (d) Arrangement of two single planar surfaces to form two vertically faced metasurface.
