Figure 4

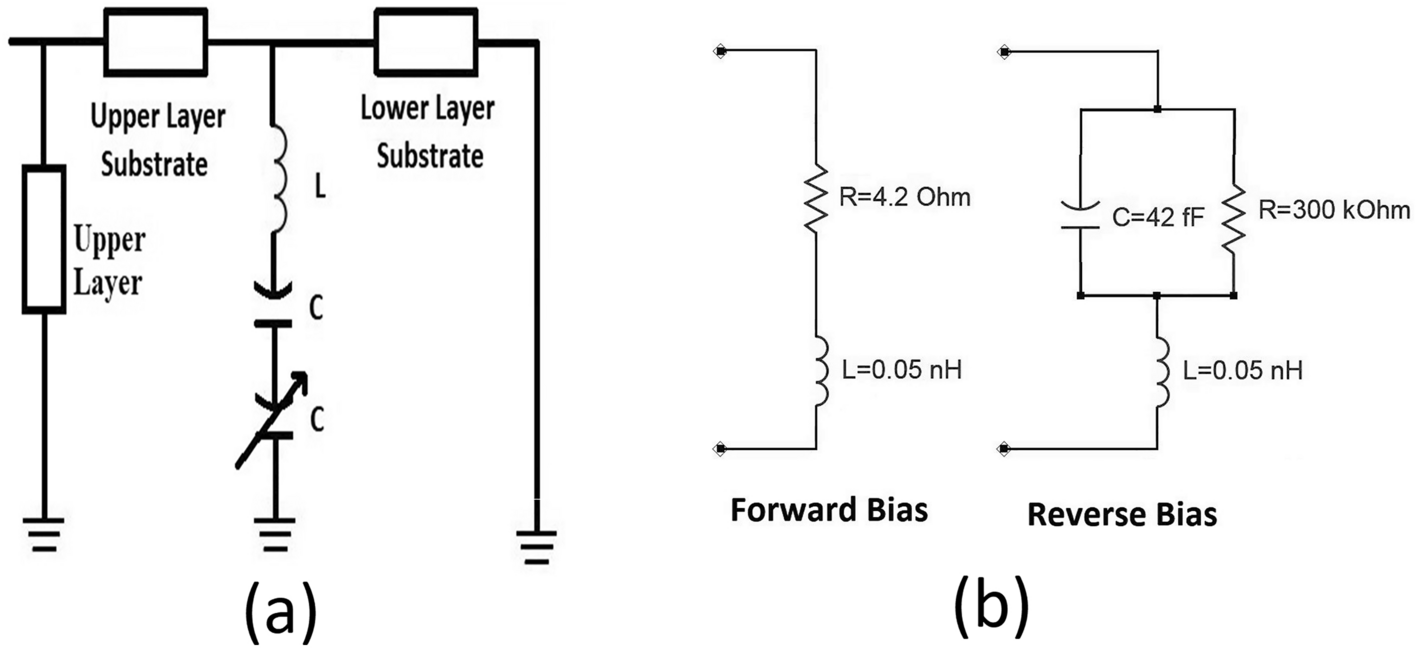

(a) Equivalent circuit of the designed unit cell. The bottom layer is split ring with coil and capacitor equivalent circuit, while the top layer is patch and three delay lines act transparently when the top layer pin diode are in forward bias mode. (b) Equivalent circuit of Macom -0000907 pin diode used.
