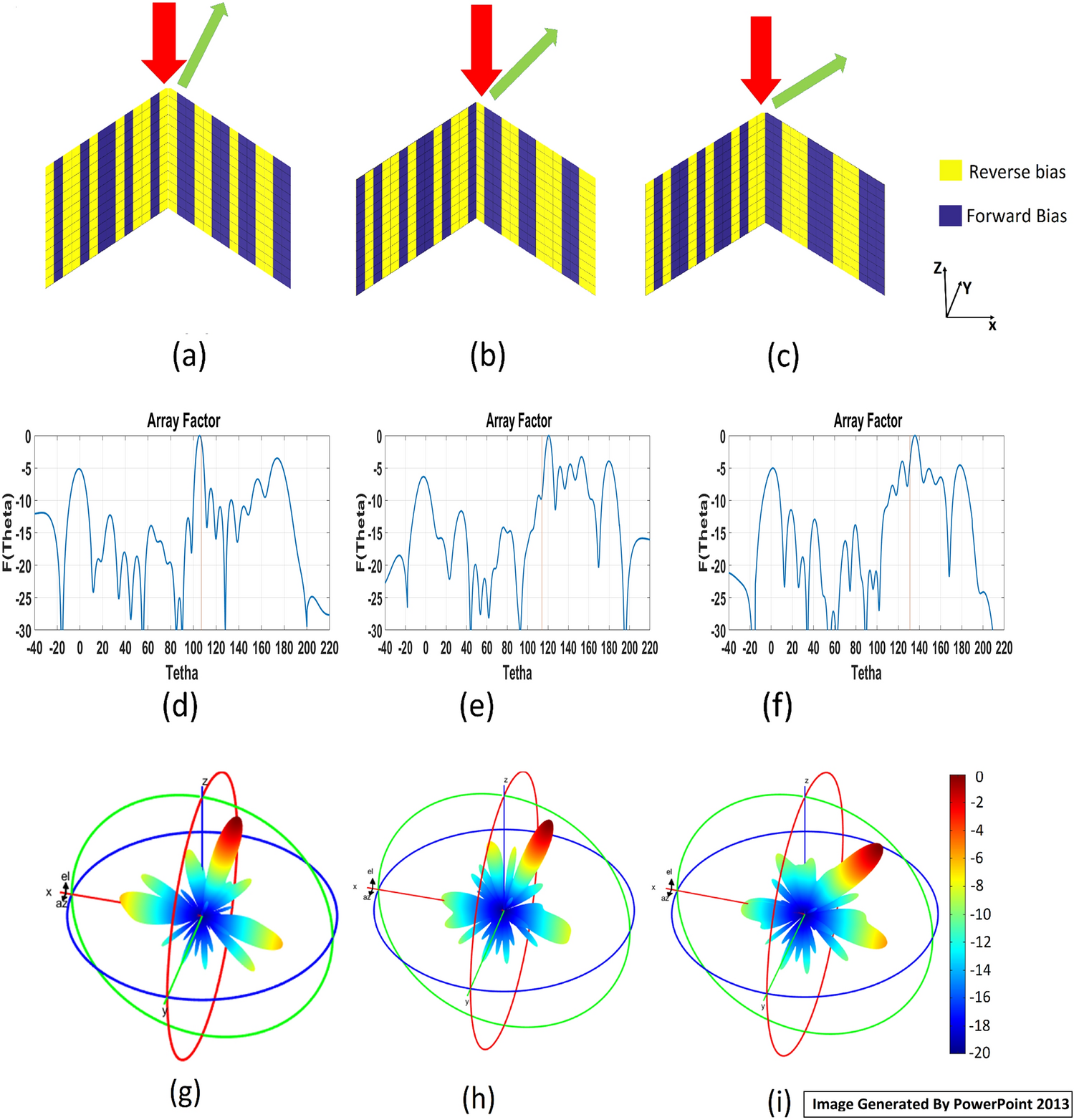

Figure 9
The unit cell phase states are demonstrated for 2 vertical faces for (a) 15° reflection direction; (b) 30° reflection direction; (c) 45° reflection direction. The incident wave originates from the broadside and is demonstrated in red arrows. The analytical model of the radiation pattern obtained in MATLAB simulation (2D radiation pattern) (d) 15°; (e) 30°; (f) 45°. Radiation pattern of two vertically-faced metasurfaces at 26 GHz obtained in full wave simulation (3D radiation pattern). With desired reflection direction of (g) 15°; (h) 30°; (i) 45°.
