Fig. 1 | Scientific Reports

Fig. 1

From: Puerarin pretreatment provides protection against myocardial ischemia/reperfusion injury via inhibiting excessive autophagy and apoptosis by modulation of HES1

Fig. 1

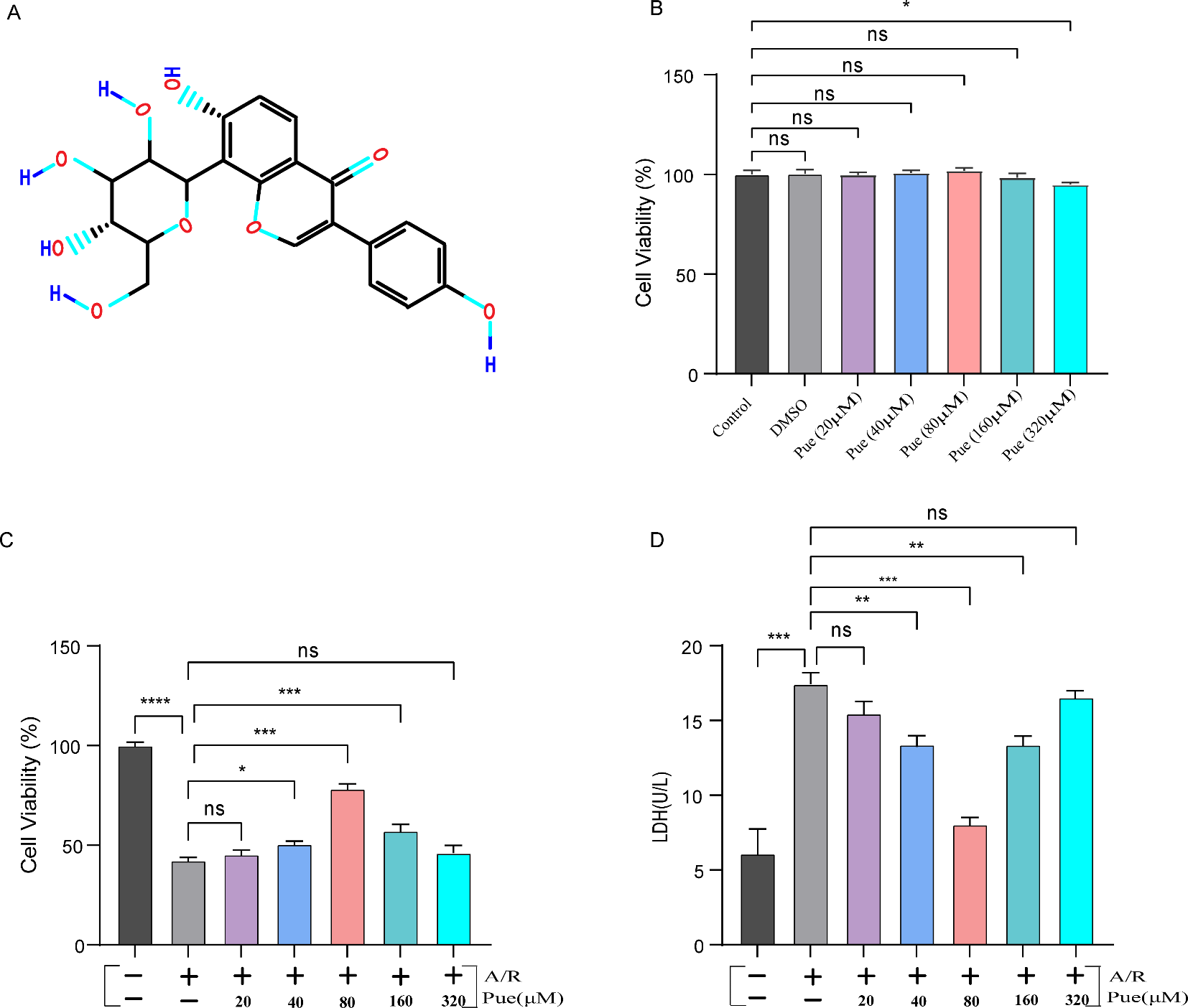

Pue preclude H9c2 cardiomyocytes from injury induced by A/R. (A) Chemical formula for Pue. (B, C) Cell Counting Kit-8 assay of A/R-induced H9c2 cardiomyocyte viability after different concentrations of Pue pre-treatment. (D) LDH. Data are showed as the mean ± SD (n = 3). *P < 0.05, **P < 0.01, ***P < 0.001. Pue, Puerarin; A/R, anoxia/reoxygenation; LDH, lactate dehydrogenase; ns, not significant.
