From: Assessing clenbuterol’s modulation of metabolic and inflammatory pathways in Nile tilapia (Oreochromas niloticous) fed high fat diet

Fig. 6

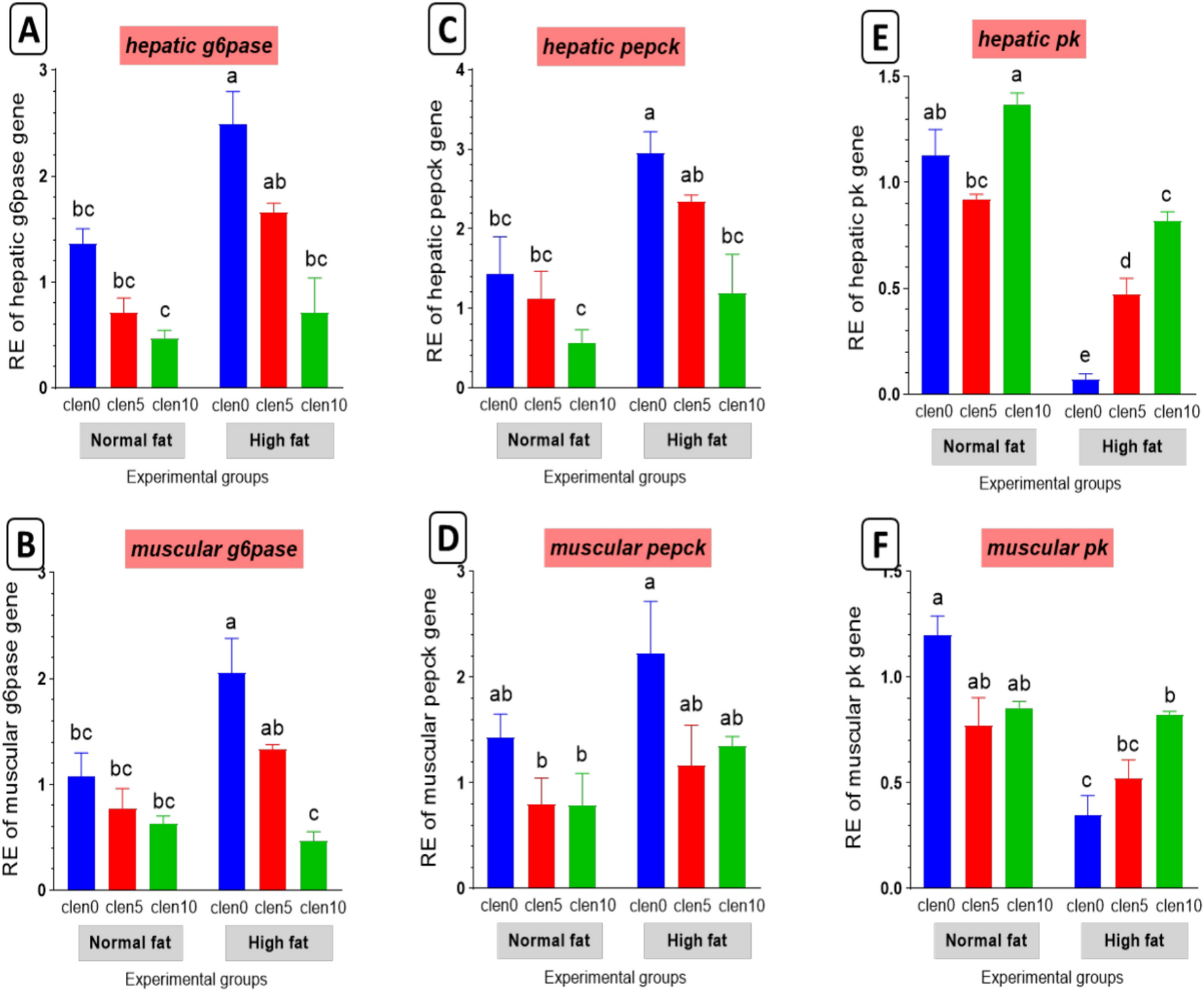

Glucose metabolism-related genes in liver and muscle of Nile tilapia groups fed on normal and high fat diets with clenbuterol. (A and B) glucose-6-phosphatase: g6pase, (C and D) phosphoenolpyruvate carboxy kinase: pepck, (E and F) pyruvate d kinase: pk. P value results of the two-way ANOVA are represented on the top of each figure. Columns with different superscript letters in the same figure are significantly different (p ≤ 0.05).
