Introduction

Chronic kidney disease (CKD) is defined as an abnormality in kidney structure or function that has existed for a minimum of three months. CKD is an important public health issue worldwide, with significant health implications. Information on the prevalence of CKD is available for 73.9% of countries, with a median global prevalence of 9.5%1. Microvascular blood flow in the kidney is an important indicator of pathophysiology, because abnormal perfusion could be either a cause or a consequence of disease development2. Therefore, the evaluation of renal blood flow (RBF) is important for understanding the pathophysiology of CKD. RBF can be estimated using blood data and substances such as para-aminohippuric acid and inulin, or by endogenous markers such as creatinine and cystatin C3. These methods use blood data to evaluate the average RBF of the bilateral kidneys, whereas imaging techniques such as dynamic renal scintigraphy, MRI-ASL, DCE-MRI, and PET-RBF have been developed to assess the RBF of individual kidneys2,3,4,5,6. Our previous study revealed a correlation between RBF and renal function3. Conventional renal scintigraphy can also evaluate glomerular filtration rate (GFR), another important indicator of renal function.

Oxidative stress (OS), a crucial factor in CKD, is caused by an imbalance between pro-oxidants and antioxidants, typically due to the excessive generation of reactive oxygen species (ROS), which induce damages to cellular proteins, lipids, and DNA, and also increase inflammation7. There is growing evidence that ROS causes OS, inflammation and fibrosis, which in turn contribute to redox imbalance and renal dysfunction7,8,9. The underlying pathophysiological mechanisms contributing to this process include activation of the renin-angiotensin-aldosterone system (RAAS), reduction in the GFR, elevated blood pressure, and inflammatory responses8. In addition, OS is linked to the development of several CKD complications, including cardiovascular disease and inflammation7,8,10,11. Given the critical role of OS in CKD progression and its associated complications, renal OS assessment, in addition to quantitative RBF measurement, is important to gain a comprehensive understanding of the underlying pathophysiology of CKD. Advanced oxidative protein products (AOPPs) and 8-isoprostanes are systemic markers that indirectly reflect renal OS status12,13, whereas PET imaging would effectively delineate changes in individual renal OS and provide potential applications for personalized medicine such as selection of therapeutic options including antioxidant therapy and their monitoring.

Cu (II)-diacetyl-bis(N4-methylthiosemicarbazonate) (Cu-ATSM) with radioactive copper is a positron emission tomography (PET) tracer designed for detecting hypoxia and imaging OS in the brain, heart, and tumors14,15,16,17,18,19,20. The cited studies have shown that early-phase images obtained after tracer injection reveal blood flow, whereas later-phase images (10–15 min post-injection or later) reveal Cu-ATSM retention16,17. We developed a method for RBF measurement using dynamic 64Cu-ATSM PET data and demonstrated its reliability by comparing PET-RBF values with the estimated RBF (eRBF) calculated from the estimated GFR (eGFR) as well as the RBF obtained from arterial spin labeling MRI (MRI-ASL)3. In the study, 64Cu-ATSM standardized uptake values (SUVs) obtained from later-phase images, which were expected to reflect the OS levels of the kidneys, did not show differences between healthy control (HC) subjects and patients with CKD. This is probably occurred because the total amount of 64Cu-ATSM reaching the kidneys differed between CKD patients and HC subjects as a result of RBF reduction in the CKD patients. SUV values reflect only the retention of tracer that reaches the tissues, and decrease in blood flow in the organ affects the total retention. Therefore, 64Cu-ATSM SUVs should be corrected for individual RBF to assess the renal OS correctly.

The purpose of the 64Cu-ATSM PET/MRI study presented here was to evaluate renal OS levels, and analyze the relationship between renal OS and disease severity in patients with CKD, thus, the role of OS in the pathophysiology and progression of CKD could be clarified. To this end, we measured RBF from early-phase images and applied them to correct SUV images and to estimate OS levels in the kidney appropriately.

Materials and methods

Subjects

Thirty patients (nine females) with CKD and seven HC subjects (two females) participated in this study. Of the 30 patients, 12 had diabetic kidney disease (DKD), eight had nephrosclerosis (NS), three had IgA glomerulonephritis (IgAGN), three had non-IgA glomerulonephritis (non-IgAGN), two had minimal change nephrotic syndrome (MCNS), and two had drug-induced nephropathy. IgA/non-IgAGN and MCNS were determined by biopsy. Serum creatinine levels were measured by the Division of Clinical Laboratories at the University of Fukui Hospital (Fukui, Japan) within a week before 64Cu-ATSM PET/MRI, using the enzyme colorimetry method. The eGFR was calculated from the serum creatinine (cr) level using the following equation21:

$${\text{eGFRcr}}\left( {{\text{mL/min/1}}{\text{.73m}}^{{\text{2}}} } \right){\text{ }} = {\text{ }}194{\text{ }} \times {\text{ serum cr}}^{{ - 1.094}} \times {\text{ age}}^{{ - 0.287}} \left( { \times {\text{ }}0.739{\text{ for females}}} \right).$$

CKD was categorized into two groups: mild CKD (stages 2–3a) and advanced CKD (stages 3b–5), based on the eGFR categories corresponding with the current CKD nomenclature specified by Kidney Disease: Improving Global Outcomes (KDIGO)1. This study was approved by the Research Ethics Committee of the University of Fukui Hospital (approval number: 20170053). The study was conducted in accordance with the principles of the Declaration of Helsinki. All participants provided written informed consent before undergoing the PET/MRI scans.

Dynamic 64Cu-ATSM PET/MRI imaging

64Cu was produced using an RDS Eclipse biomedical cyclotron (Siemens, Göteborg, Sweden). The details were described elsewhere22,23. In brief, a gold disc (25 mm in diameter, 2 mm thick) with a central dimple filled with enriched 64Ni (> 99%) was bombarded with 11 MeV protons. 64Cu was separated using the established procedure, and 64Cu-ATSM was produced by stirring 64Cu-saline and ATSM in DMSO22.

All participants underwent 64Cu-ATSM PET/MRI using a whole-body scanner (Signa PET/MR ver. 26, GE Healthcare, Milwaukee, WI, USA). This scanner enables the simultaneous acquisition of PET data across 89 image slices (slice thickness: 2.78 mm) in three dimensions (3D). Performance tests indicated that the transaxial intrinsic resolution of the PET images ranged between 4.2 mm and 4.3 mm full width at half maximum (FWHM). According to the manufacturer’s instructions, the PET/MRI scanner was calibrated before 64Cu-ATSM PET/MRI was performed, using a dose calibrator (CRC-12, Capintec Inc., Florham Park, NJ, USA) and a pool phantom with 18F solution.

A 30-minute list-mode 3D PET scan was initiated using the time-of-flight acquisition mode at the time of bolus injection of 64Cu-ATSM (250–430 MBq) into the antecubital vein. Multiple MRI sequences were acquired during the PET scan, including T1- and T2-weighted images (WI), as well as LAVA-FLEX (GE Healthcare) for PET attenuation correction (AC). Dynamic PET data were reconstructed using the 3D-ordered subset expectation maximization (OSEM) method and the point spread function modeling algorithm in 34 frames (12 × 5s, 6 × 10s, 3 × 20s, 4 × 30s, 5 × 60s, and 4 × 5 min). The following OSEM parameters were utilized for the reconstruction of PET images: subsets, 16; iterations, 2; trans-axial post-Gaussian filter cutoff, 4 mm in a 384 mm field of view; pixel size, 3 × 3 mm2. 64Cu-ATSM uptake in the kidney was assessed using a SUV image converted from static PET data 15–30 min post-injection. The SUV calculation was conducted as follows; SUV = (tissue radioactivity concentration)/ [(injection dose)/ (body weight)].

Calculation of RBF and adjusted OS index

The RBF image (mL/min/100 g) was calculated from the first 3-min frames of the dynamic PET data with a one-tissue compartment model. The details of the RBF calculation from the dynamic PET data has been described elsewhere3,24. Circular regions of interest (ROIs; diameter, 10 mm) were drawn in the abdominal aorta at the level of the renal artery using three image slices of early phase PET images to estimate the arterial input function. The mean ROI values of the three slices were calculated for each frame as the arterial radioactivity at the mid-frame time of the dynamic PET data.

Ten circular ROIs, 10 mm in diameter, were placed on each kidney using 3–6 slices (three slices were used for most subjects, and four to six slices were used in cases with severe renal atrophy) on LAVA-FLEX MRI images acquired during dynamic PET to obtain the cortical RBF and SUV (Fig. 1). To evaluate the renal tissue OS quantitatively, the RBF-adjusted SUV was calculated from the SUV with a correction for RBF. In this new parameter, SUV is corrected to avoid the influence of RBF on tracer accumulation, which would delineate the relative OS level in the tissue14,17,19, and we define it as adjusted OS index (aOSi), i.e., aOSi = [SUV/ RBF (mL/min/100 g)] x 100 (g), where the regional RBF was corrected into the unit of (mL/min/g). aOSi images were also calculated using the same equation.

Fig. 1
Fig. 1The alternative text for this image may have been generated using AI.
Full size image

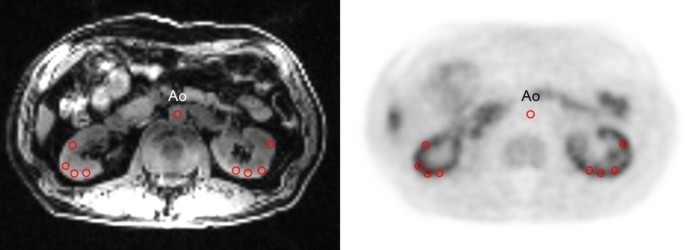

Example of ROIs set at the same slice level on LAVA-FLEX MRI (left) and PET (right) images. The locations of ROIs are exactly the same because the two images were acquired simultaneously. Ao indicates abdominal aorta.

Statistical analysis

Numerical data are presented in the form of the mean ± standard deviation (SD). Before comparisons were drawn, normal distribution and variance homogeneity tests were performed on the parameters for each group. If the data conformed to a normal distribution and had equal variances, the overall differences among the three groups were compared using an analysis of variance (ANOVA). Tukey’s Honestly Significant Difference (HSD) test was used as a post-hoc test. If the data were not normally distributed or the variances were unequal, the overall differences among the three groups were compared using the Kruskal-Wallis test, and Dunn’s test was used as a post-hoc test. The Pearson correlation was used to analyze the relationships between the parameters. The relationship between CKD stages and the aOSi was analyzed using the Spearman correlation. All statistical analyses were performed using R (version 4.4.0; https://www.r-project.org/). Values with P < 0.05 were considered statistically significant. P-values were adjusted using the Benjamini-Hochberg method.

Results

There were nine patients in the mild CKD group (five in stage 2 and four in stage 3a) and 21 patients in the advanced CKD group (nine in stage 3b, eight in stage 4, and four in stage 5). The demographics and mean values for each group are listed in Table 1. The age, creatinine level, and eGFR of patients with advanced CKD were significantly higher than those of subjects in the HC group. Creatinine levels and eGFR of patients with advanced CKD were significantly higher than those of patients with mild CKD.

Table 1 Participants’ demographics and values of biomarkers (mean ± SD).
Full size table

The SUVs did not differ significantly among the three groups (Table 1; Fig. 2a). The RBF in patients with advanced CKD was significantly lower than that in the HC group (Fig. 2b, P < 0.001) and in patients with mild CKD (Fig. 2b, P = 0.004). The aOSi for patients with advanced CKD was significantly higher than that for the HC group (Fig. 2c, P = 0.039). The aOSi for patients with mild CKD was similar to that for subjects in the HC group and tended to be lower than that for patients with advanced CKD (Fig. 2c, P = 0.066).

Fig. 2
Fig. 2The alternative text for this image may have been generated using AI.
Full size image

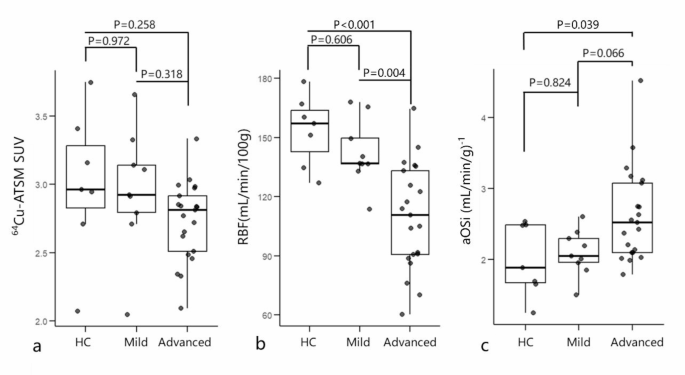

Box and whisker plots of 64Cu-ATSM SUV, RBF, and aOSi of the three designated groups. SUVs do not differ significantly among the groups (a), and RBF in patients with advanced CKD is significantly lower than those in other groups (b). The aOSi for patients with advanced CKD is significantly higher than that for the HC group (Kruskal-Walli’s test), but not significantly different from that for patients with mild CKD (c).

Figure 3 shows good correlations between RBF and eGFR (Fig. 3a, r = 0.81, P < 0.001) and between RBF and creatinine (Fig. 3b, r = − 0.66, P < 0.001) in all subjects, indicating that the renal dysfunction was associated with decreased RBF. The relationship between the 64Cu-ATSM SUV and other biomarkers is illustrated in Fig. 4. The 64Cu-ATSM SUV was not correlated with creatinine across all participants (Fig. 4a), yet demonstrated slight correlations with eGFR (Fig. 4b, r = 0.33, P = 0.049) and CKD stages (Fig. 4c, r = − 0.34, P = 0.040). In patients with CKD, no correlation was observed between the 64Cu-ATSM SUV and other biomarkers (Fig. 4d–f). When comparing the aOSi and other biomarkers, significant correlations were found with creatinine and eGFR, in all participants (r = 0.75 and − 0.65, respectively) as well as in CKD patients only (r = 0.78 and − 0.64, respectively) (Fig. 5). The aOSi was also correlated with the CKD stages, with (r = 0.57) or without the HC group (r = 0.58) (Fig. 5c and f).

Fig. 3
Fig. 3The alternative text for this image may have been generated using AI.
Full size image

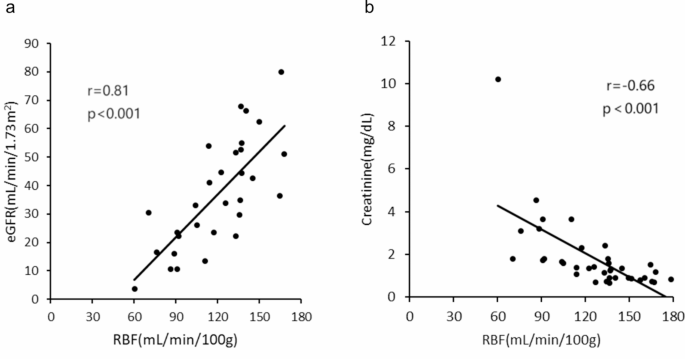

Relationship between eGFR, creatinine and RBF. Scatter plots of RBF vs. eGFR (a) and RBF vs. creatinine (b) show significant correlations (r = 0.81 and r=-0.66, respectively).

Fig. 4
Fig. 4The alternative text for this image may have been generated using AI.
Full size image

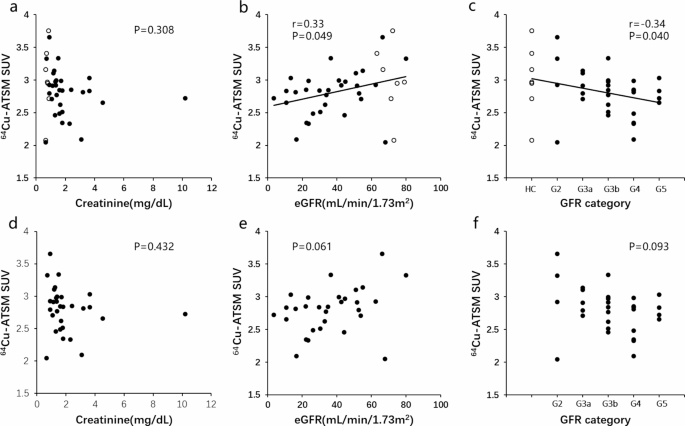

Scatter plots of the 64Cu-ATSM SUV vs. other biomarkers. In all subjects (top row), the SUV was not correlated with creatinine ((a), P = 0.308); however, it demonstrated slight correlations with eGFR ((b), r = 0.33, P = 0.049) and CKD stages ((c), r = − 0.34, P = 0.040). Circles (o) represent healthy control subjects and filled circles (●) represent patients with CKD. In the CKD patients (bottom row), the SUV was not correlated with creatinine ((d), P = 0.432), eGFR ((e), P = 0.061), or CKD stages ((f), P = 0.093).

Fig. 5
Fig. 5The alternative text for this image may have been generated using AI.
Full size image

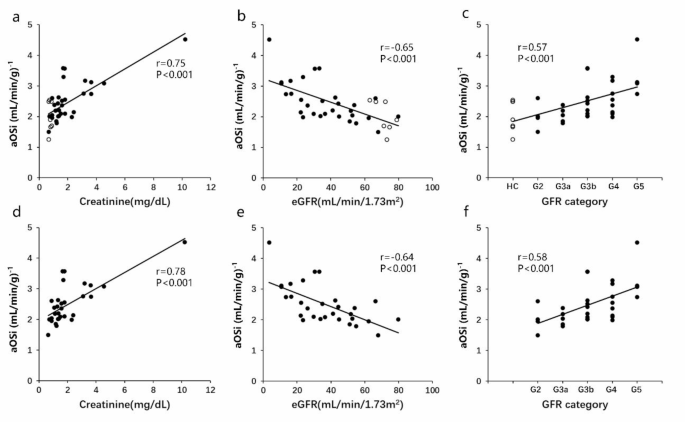

Scatter plots of the aOSi vs. other biomarkers. In all participants (top row) and in CKD patients (bottom row), the aOSi was positively correlated with creatinine ((a,d), r = 0.75, 0.78; P < 0.001) and CKD category ((c,f), r = 0.57, 0.58; P < 0.001), and inversely correlated with eGFR ((b,e), r = − 0.65, − 0.64; P < 0.001). Circles (o) represent healthy control subjects and filled circles (●) represent patients with CKD.

Figure 6 shows representative images for a HC subject and patients with mild and advanced CKD, with respect to 64Cu-ATSM PET images of the SUV, RBF and aOSi. The advanced CKD patient (right column) had atrophic kidneys, decreased RBF and increased aOSi compared to those images of the HC subject and the patient with mild CKD.

Fig. 6
Fig. 6The alternative text for this image may have been generated using AI.
Full size image

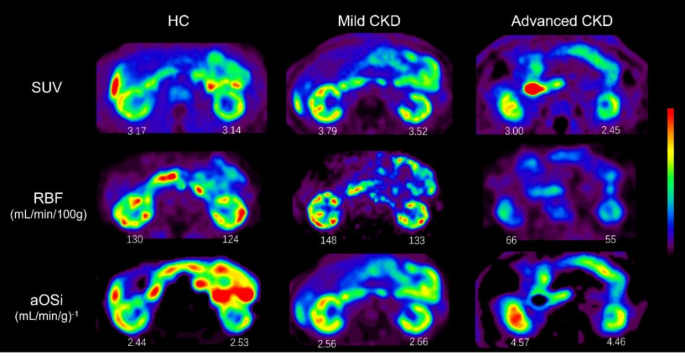

Representative 64Cu-ATSM PET images of SUV, RBF, and aOSi for a healthy control (HC), patients with mild and advanced chronic kidney disease (CKD). The number below each kidney represents the mean values of the corresponding parameter.

Discussion

In the present study, the renal aOSi was significantly correlated with creatinine level, eGFR, and the CKD stage, for CKD patients as well as for all participants. The eGFR also correlated well with the RBF, which is consistent with the results of our previous study3. The 64Cu-ATSM SUV was not correlated with creatinine and slightly correlated with eGFR (r = 0.33) and CKD stage (r = -0.34) when including all subjects; however, no significant correlation was observed for the CKD patients. These findings indicate that renal OS level assessed by aOSi is associated with the CKD stage and 64Cu-ATSM PET imaging is a promising method for evaluating renal OS non-invasively.

Cu-ATSM labeled with various Cu isotopes (60Cu, 61Cu, 62Cu, or 64Cu) has been developed as PET tracers for imaging hypoxic tissues and regions of OS15,20. Hypoxic tissue increases ROS production, inducing additional oxidative stress and damage to organs. The mechanism of 64Cu-ATSM accumulation is based on the reduction of divalent copper [Cu(II)] in the compound to monovalent copper [Cu(I)] under over-reduced conditions, where Cu(I) is eventually irreversibly trapped in cells14. Recent studies reported that patients with neurodegenerative diseases demonstrated greater Cu-ATSM SUV in brain regions responsible for early Alzheimer’s disease (eAD), amyotrophic lateral sclerosis (ALS), and Parkinson’s disease17,19,25. Several other studies also demonstrated that OS in the brain, heart, and tumors can be evaluated using Cu-ATSM PET imaging, the results of which correlate well with disease progression14,15,16,17,18,19,20.

In the present study, 64Cu-ATSM SUVs from later-phase images did not differ significantly between patients with CKD and HC subjects, notwithstanding the reduction of RBF in patients’ kidneys, suggesting that the 64Cu-ATSM SUV may not sufficiently reflect the OS levels in the kidney. Since the RBF in patients with advanced CKD was significantly lower than that in HC subjects and patients with mild CKD, the amount of 64Cu-ATSM reaching the kidney tissue was considered to be limited. To assess renal OS using 64Cu-ATSM PET accurately, SUV values should be corrected for RBF reduction to avoid the influence of different amounts of tracer arrival. As mentioned in the previous study on eAD, it is important to consider the regional differences in blood flow when making quantitative comparisons of OS levels25.

Following RBF correction, patients with advanced CKD demonstrated a significantly higher aOSi compared to HC subjects, although patients with mild CKD did not show a significant difference. A previous study indicated that plasma 8-isoprostanes, a marker of oxidative stress, was elevated in patients with stage 3–5 CKD, compared to patients with early CKD and HC subjects, whereas early CKD patients and control subjects showed no differences12. Similarly, Villalpando-Sánchez DC, et al. reported that AOPPs were significantly more prevalent in stage 4–5 CKD compared to early CKD13. These results are consistent with our results, although the difference in the aOSi between mild CKD and advanced CKD was not found to be significant in this study (P = 0.066). In the early stages of CKD, the kidneys may compensate for the impaired function by increasing the workload of the remaining nephrons. This adaptive change may temporarily mask overt signs of symptoms in the early stages of CKD.

In the present study, the aOSi were significantly correlated with creatinine levels, eGFR, and GFR categories in all participants as well as patients with CKD. Previous studies have reported that the AOPPs were positively correlated with creatinine levels, and that there were significant inverse correlations between plasma 8-isoprostanes, AOPPs, and eGFR in patients with CKD13,26. Hypoxia in the kidneys may induce swelling of the proximal tubular cells, increase intrarenal resistance (IRR = arterial pressure/RBF) and reduce blood flow throughout the renal cortex, which may accelerate GFR decline and CKD dysfunction7,27. AOPPs and 8-isoprostanes are systemic markers that indirectly reflect renal OS status, whereas 64Cu-ATSM PET delineates individual renal OS changes effectively as PET images. This capability suggests promising applications in personalized medicine, allowing for more targeted treatment strategies and improved management of kidney-related diseases.

Antioxidants therapy may be a potential treatment option for patients with CKD. Several preclinical studies have indicated that antioxidants such as isoliquiritigenin and BAY-543, a soluble guanylyl cyclase activator, can enhance renal total antioxidant capacity28,29. In non-dialysis patients with stage 3–5 CKD, the antioxidant sulforaphane (SFN) improved the antioxidant system30. These results suggest that antioxidants can slow the kidney dysfunction of caused by OS in CKD. 64Cu-ATSM PET for the assessment of renal OS may be a valuable tool for monitoring and optimizing antioxidant therapy in patients with CKD. If the potential role of antioxidants in reducing renal OS is identified and applied to CKD, 64Cu-ATSM PET will be a promising tool to assess therapeutic efficacy.

A limitation of this study is its relatively small sample size. Further studies with larger sample sizes are needed to confirm the results of differences in OS levels across each CKD stage, as well as across subgroups, based on various clinical causes and phenotypes.

Conclusions

Increased aOSi of the kidney, RBF-adjusted SUV to estimate tissue OS level, is related to the renal function and CKD stage, especially in advanced CKD (G3b–G5). PET-OS imaging with 64Cu-ATSM and RBF correction may be a promising tool to improve our understanding of CKD pathogenesis and to monitor further antioxidant therapy.
