Fig. 3
From: Interpretable and integrative deep learning for discovering brain-behaviour associations

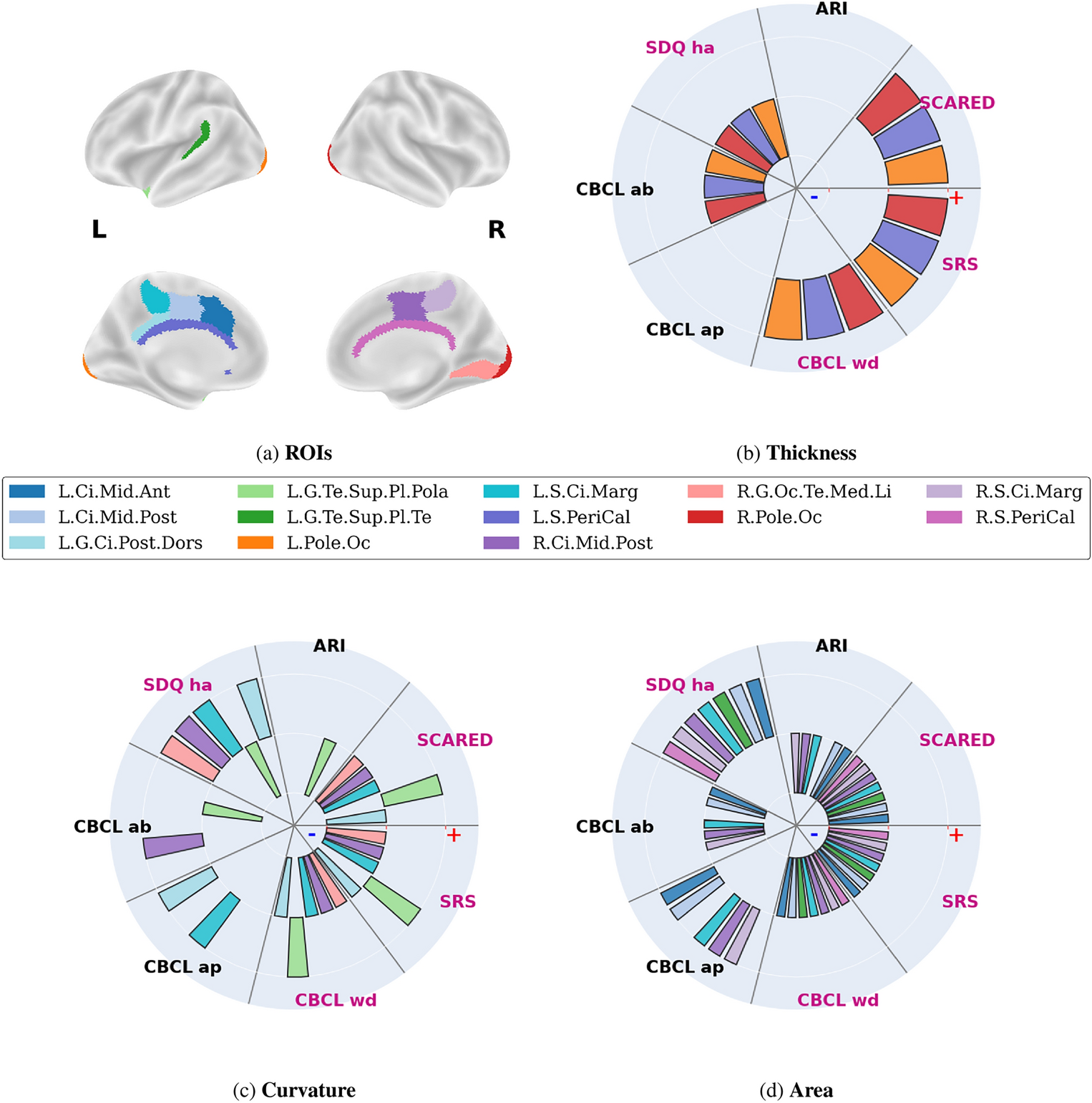

Transdiagnostic assessment: display ROIs associated with the selected SRS, SDQ-ha, SCARED and CBCL-wd eCRF scores for each of the cortical thickness, curvature and area metrics. In (a), the highlighted ROIs are displayed on an inflated surface. Note that the same colour code is used in all plots. In (b), (c), and (d), the polar plots indicate the sign of each association (negative if the bar is pointing inside the circle, and positive if it is pointing outwards), for the thickness, curvature, and area metrics, respectively. Note that only the retained associations are displayed. The following notations are used: L: left, R: right, Ci: cingulate, Oc: occipital, Te: temporal, S: sulcus, G: gyrus, Mid: middle, Post: posterior, Dors: dorsal, Med: medial, Marg: marginal, Ant: anterior, PeriCal: pericallosal, Sup: superior, Li: lingual, Pl: plan, Pola: polar.
