From: SHP1 and its downstream p38/SP1/PI3K/YAP/Notch-1 signaling in trophoblast cells suppressed the progression of Preeclampsia via inhibiting proliferation of SMCs

Fig. 1

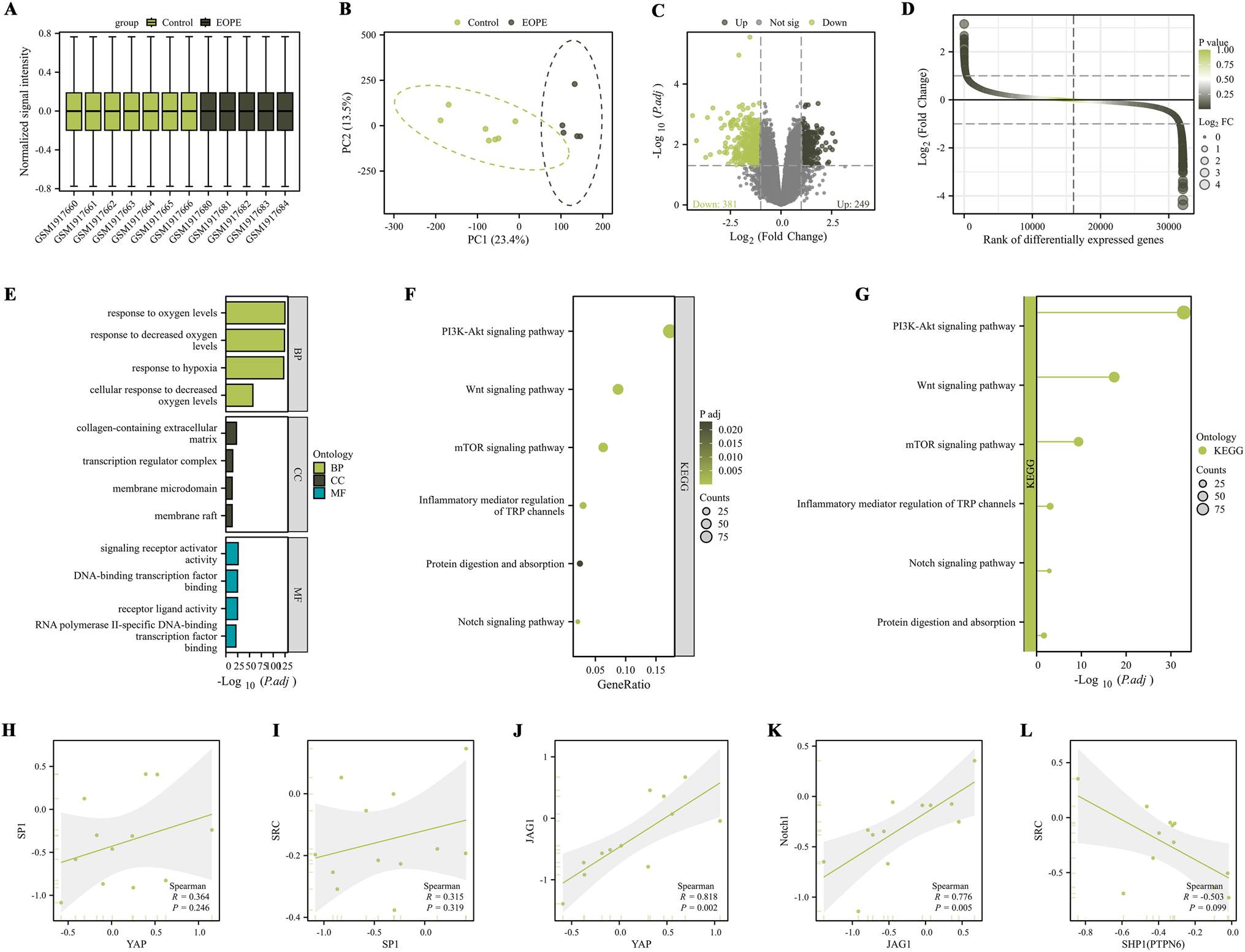

Raw letter analysis. (A) Sample-corrected box plots; (B) Sample differential PCA plots; (C) Differential gene volcano plots; (D) Differential gene sequencing plots; (E) GO enrichment analysis histograms; (F) KEGG enrichment analysis bubble plots; (G) KEGG enrichment analysis lollipop plots; (H) YAP and SP1 correlation scatterplots; (I) SP1 and SRC correlation scatterplots; (J) YAP and JAG1 correlation scatterplots; (K) JAG1 and Notch1 correlation scatterplot; (L) SHP1 (PTPN6) and Src correlation scatterplot.
