Fig. 5
From: Design and simulation of a 7.0 T conduction cooled superconducting magnet

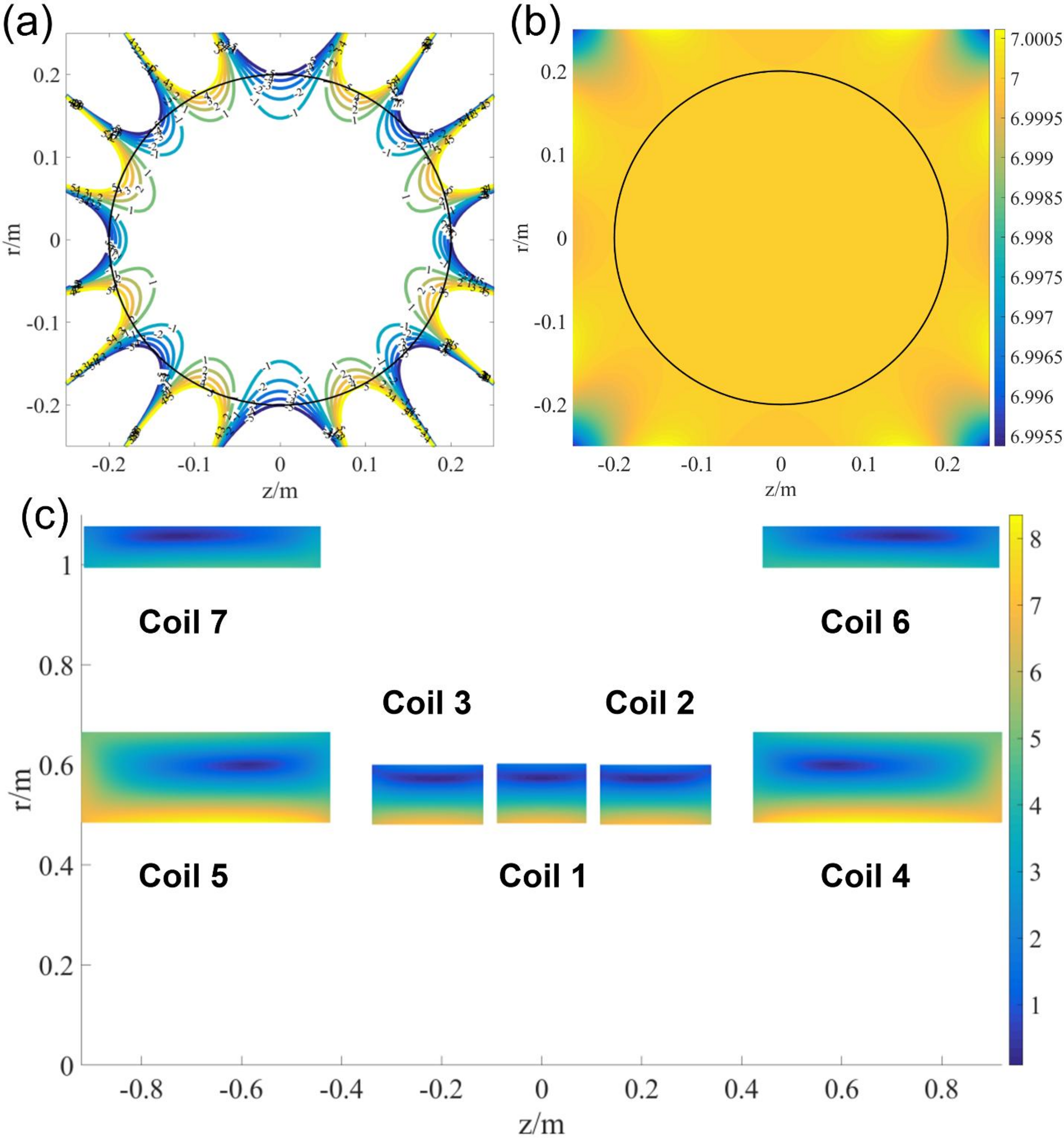

Magnetic field distribution of the designed short-cavity magnet. (a) Field uniformity inside 400 mm DSV, (b) Magnetic field strength inside DSV, (c) Coils magnetic field distribution.
