From: Exploring the therapeutic potential of Thymus vulgaris ethanol extract: a computational screening for antimicrobial compounds against COVID-19 induced mucormycosis

Fig. 12

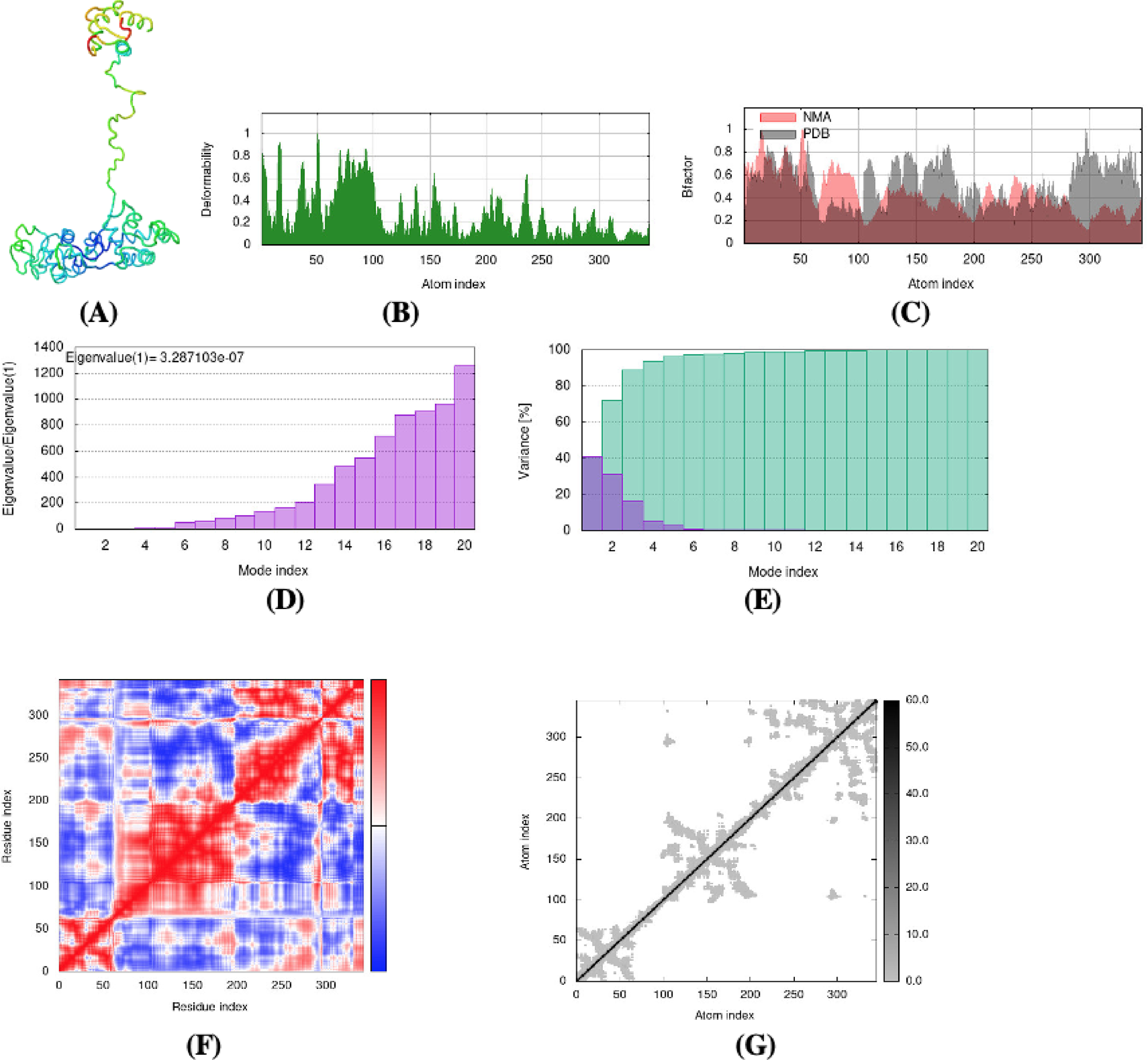

NMA of the chlorogenic acid docked with EGFR (A) shows the docked compound (B) shows the deformability, which indicates a low level of deformation at all the residues (C) shows the B-factor, (D) Eigen values are shown, and (E) indicates the variance explained in both red and green (F) and (G) show the covariance and elastic network of the complex.
