Fig. 13
From: Failure mechanisms and reinforcement of pipe-framed solar greenhouses under snow loads

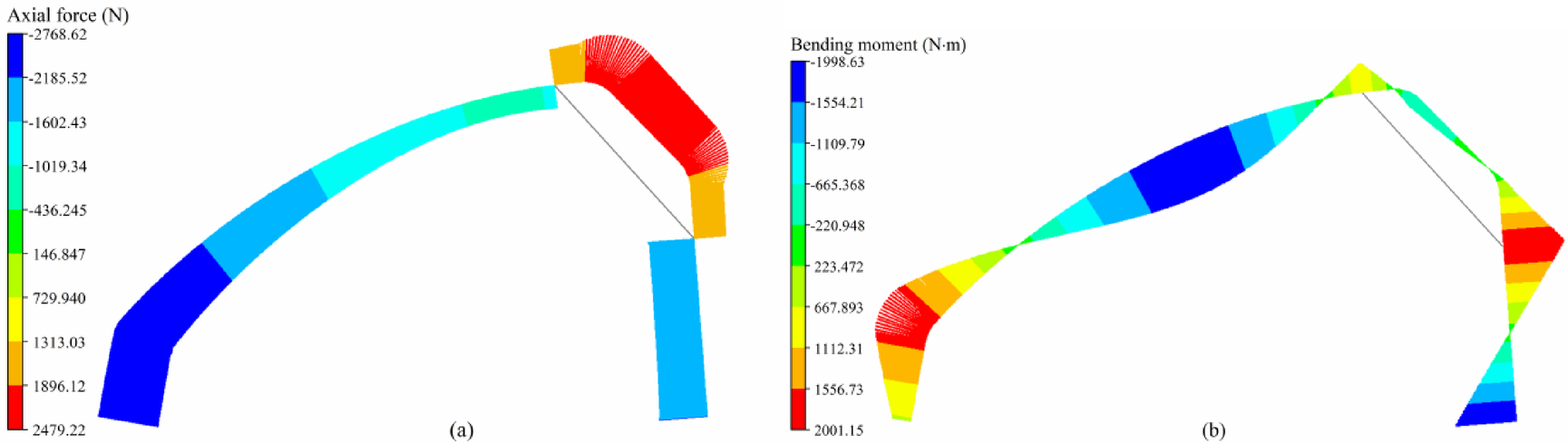

Internal force distributions of the model S1N5 at the peak non-uniform snow load: (a) axial force distribution and (b) bending moment distribution.
