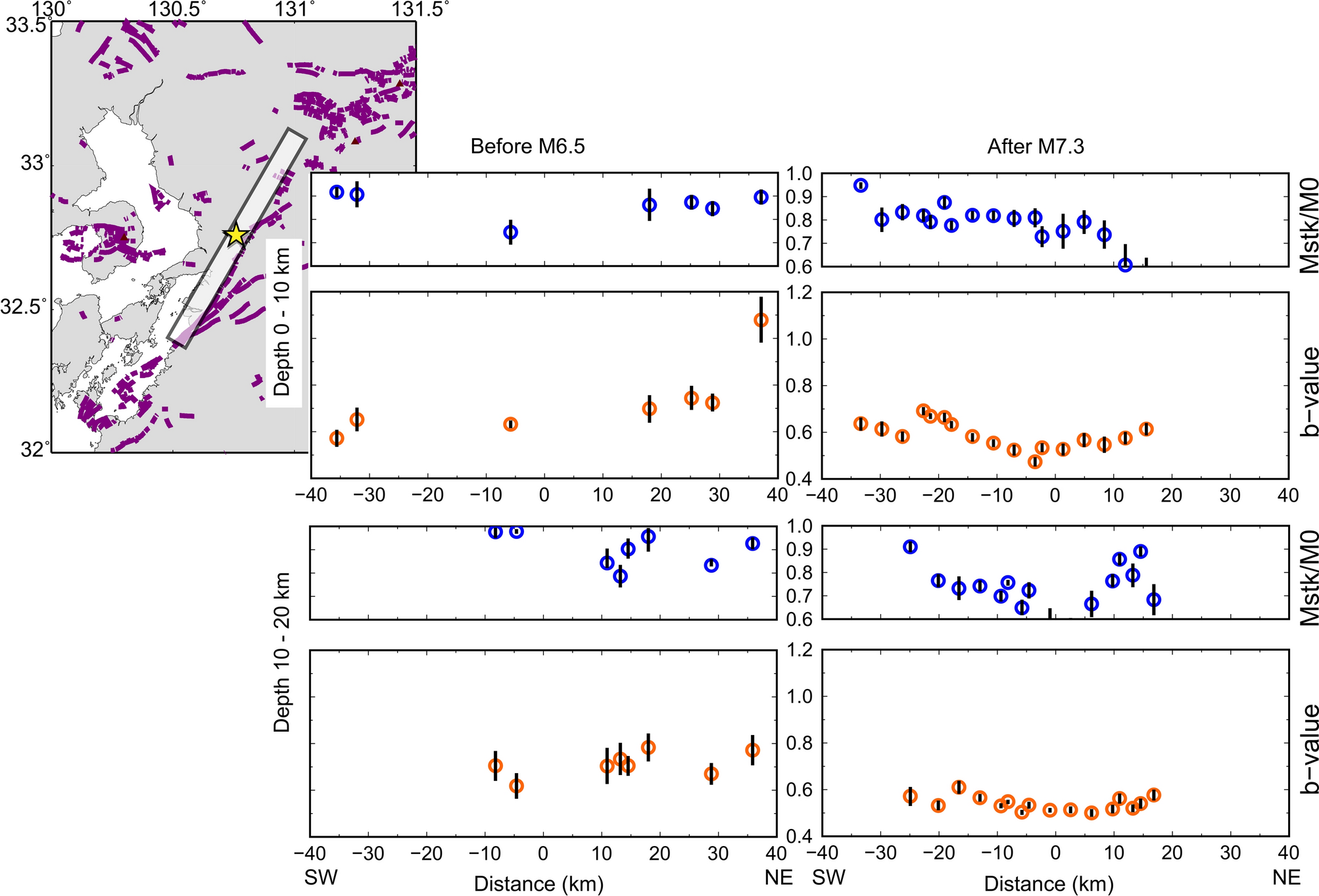

Fig. 4
b-value and Mstk/M0 for every period and depth range. Results plotted are along the segment shown in the inset map (upper left). The star indicates the hypocenter of the main shock.
Fig. 4 | Scientific Reports
b-value and Mstk/M0 for every period and depth range. Results plotted are along the segment shown in the inset map (upper left). The star indicates the hypocenter of the main shock.
