Introduction

The Internet of Things (IoT) is a rapidly developing and widely adopted technology for daily life gadgets connected to the Internet. The IoT is a vast network of interconnected devices that uses information and communication technologies as its main foundation according to the International Standardization Unit (ITUT). The interconnected devices exchange large amounts of data and security is the key issue in IoT networks1. Today, IoT is incorporated into industries for extra reliability and time-saving2. However, with such wide use in daily life and industrial applications, there are significant cybersecurity concerns. Botnets have emerged as one of the largest threats, responsible for a large extent of malicious activities from distributed denial of service (DDoS) attacks to spamming and phishing3. In addition, recent advancements in artificial intelligence (AI) make it easier for attackers to develop fresh and intuitive ways to hack IoT systems. When it comes to defending against the specific security vulnerabilities that are anticipated in the IoT network, typical machine learning (ML) techniques and strategies are insufficient4. Therefore, to address the security flaws in the developing IoT network, security experts and researchers would need to assess current procedures and improve them to cope with these challenges5.

To effectively detect botnets, it is important to understand what they are and how they work. A botnet is typically a collection of compromised workstations and servers that are used to leverage untapped processing power for computationally challenging tasks. A botnet can comprise numerous internet-connected gadgets that might have received malicious software on purpose from attackers. With botnets, it is possible to conduct DDoS attacks, steal data, and get access to devices. A malicious attack called a botnet attack employs a collection of linked computers to take down a network, network device, website, or IT environment6. It is only committed with the goal to obstruct ordinary business operations or to degrade the common carrier’s standards. Therefore, the most important aspect of computer security would be the successful detection and prevention of botnets. Botnet detection is an essential part of cyber defense as it helps identify and stop botnets from causing damage. One popular open-source tool for botnet detection is the Snort intrusion detection system7. This tool is designed to monitor network traffic and identify potential threats such as botnets.

Botnet detection techniques include monitoring network traffic, analyzing system logs, and scanning for known botnet signatures. Botnet detection is crucial for protecting against cyber threats. The use of tools like Snort and understanding the characteristics of botnets can help identify and prevent potential attacks8. To keep IoT entities, organizations, and people safe, modern protection mechanisms should be implemented on the network. IoT botnet-based DDoS attacks, where hackers infect the devices with the script, are the main security threat9. Botnet detection is a challenging problem in cyber security. Botnet detection often involves analyzing large volumes of network traffic and system logs. Ensuring the accuracy and completeness of this data can be difficult, particularly in complex network environments where there are many different types of devices and protocols10. Botnets can be very large, involving thousands or even millions of infected devices. Detecting and mitigating these threats at scale requires sophisticated tools and techniques, as well as a well-trained security team. A variety of ML techniques can be used to identify and segregate these botnet devices when more devices become candidates to be botnet devices11.

As more units become candidates for being botnet devices, identifying and discriminating these botnet units can be automated using ML techniques. For this purpose, state-of-the-art ML algorithms need to be utilized to identify botnets and malicious visitors. Today, ML approaches are being used more and more in various social, medical, business, and industrial applications12. Existing studies have demonstrated that ML can be potentially important in identifying botnet attacks. The creation of a botnet detection model utilizing ML can significantly increase the botnet detection accuracy and reduce the processing time13. Keeping in view the performance and potential of ML models, this study presents an ML approach for automated botnet attack detection and makes the following contributions.

  • A botnet detection approach is proposed in this study to enhance IoT network security based on ML. The proposed approach is a stacking model comprising k nearest neighbor (KKN), support vector machine (SVM), decision tree (DT), random forest (RF), and multilayer perceptron (MLP) as the base classifier while logistic regression (LR) is used as the meta classifier.

  • The dataset used for experiments consists of various botnet attacks including generic, exploits, fuzzers, denial of service (DoS), reconnaissance, analysis, backdoor, shellcode, and worms attack types. Preprocessing is applied to the dataset such as null value removal and categorical value handling using label encoding to improve model performance.

  • A thorough evaluation is carried out comprising a variety of metrics. Additionally, k-fold cross-validation is employed to investigate the generalizability of the proposed approach. Performance comparison with existing approaches is also carried out for further corroboration.

The preceding part is distributed into the following sections: Section "Related work" presents the literature review of the current research works and technologies. Section "Materials and methodology" involves introducing the overall research approach, describing the data collection methods, and discussing the models utilized in this study. Section "Results and discussion" shows the results and discussion of the proposed approach. Section "Conclusion" presents the conclusion.

Related work

This section discusses the existing botnet detection and prevention strategies using ML models.

Botnets can be used for a variety of cyber-attacks and distributed denial of attacks (DDoS) are among the most common attacks. DDoS attacks can be launched by Botnets on targeted servers or applications by flooding them with a high volume of traffic, rendering them unavailable to legitimate users. With botnets, it is possible to conduct distributed denial-of-service (DDoS) assaults, steal data, and get access to devices14. In addition, cyber-attack fuzzers combined with algorithmic learning for machines, support vector machines (SVM), artificial neural network (ANN), k-nearest neighbor (KNN), decision tree (DT), and multilayer perceptron (MLP) are examples of these algorithms. The most accurate algorithms are SVM and KNN as reported in15.

Cyber security

A successful botnet detection strategy is necessary for preserving cyber security because botnets are one of the most important cyber security risks in recent years. Infected computer networks known as botnets are used by a bot master to conduct illegal operations like spamming, DDoS attacks, data theft, etc.16. There are several widely used strategies for overall cyber security. In order to address cyber security challenges, we primarily focus on approaches involving the use of ML. The outcomes show that this approach outperforms neural network and tree algorithm-based alternatives in terms of detection rate, processing time, and computational cost, and achieved an accuracy of 94%17.

Cyber security is the protection of data programs and connections between computers from various undesirable threats like unauthorized attacks, alteration, and fabrications represented by systems or software because traditional security techniques are insufficient for identifying network security. The study18 developed an intrusion detection system (IDS) to look into and ascertain the system’s security. The authors investigated various ML models to categorize cyber-attacks and report results for the models such as Bayesian network (BN) 90%, Naive Bayes (NB) 91%, random forest (RF) 94%, DT 93%, random tree (RT) 90%, decision table (DTb) 92%, and ANN 91%19.

One of the well-known technologies used in the cyber business is signature-based network intrusion detection. The intrusion DTree20 model was integrated with a number of well-known ML algorithms, including NB, LR, SVM, and KNN in order to evaluate the performance of the system security model. NB, LR, SVM, and KNN show accuracy scores of 0.90, 0.94, 0.96, and 0.94, respectively while the Intrusion DTree model showed superior performance with a 0.98 accuracy score. Malicious attack technologies are developing more quickly than defense methods. The objectives of cyber security are data protection, resource protection, data privacy, and data integrity. In this context21, carried out experiments involving SVM, DT, deep belief network (DBN), RF, NB, and ANN models and reported excellent results with DT.

Along the same lines22, utilized different models for cyber security evaluation and reported promising results. NB, SVM, and KNN achieved 95.55%, 97.78%, and 93.34% accuracy, respectively. In addition, the study23 utilized KNN, RF, DT, and MLP with the DT classifier obtaining the best performance.

Machine learning

Various ML models have been utilized for botnet attack detection. For example, a KNN is adopted for botnet attack detection in24 along with other ML models. KNN obtained an accuracy of 98.55% while SVM, DBN, recurrent neural network (RNN), convolutional neural network, and DT obtained an accuracy of 82.31%, 93.49%, 77.55%, 99.41%, and 99.8%, respectively. The non-parametric KNN method is applied to classify various patterns. It determines how similar all training samples are to the unlabeled samples25. Each of the training samples has been assigned and is a vector with a class label in a multidimensional feature space. KNN chooses 6% and 26% fewer characteristics than PSO-KNN and GA-KNN, respectively. As can be shown, TSA-KNN not only performs superior to the other two algorithms with respect to speed but also accuracy (5.5% and 10.8% higher). In essence, TSA-KNN outperforms the competition in terms of total performance26.

SVM also is frequently employed for classification and utilizing datasets with a high dimensionality is a strength of SVM. SVM, RF, bagging, DT, and KNN are used in27 for malware detection. Using the IoT malware dataset, SVM showed a 99.3% accuracy. Similarly28, utilized SVM for intrusion detection with an accuracy of 69.79%, while recall, precision, and F1 scores are 0.80, 0.70 and (0.65, respectively.

The study29 uses a dataset gathered from object technology and data security (OTDS)30 and Czech University (CTU-13) for experiments involving SVM, DT and MLP. DT model exhibits good performance with an accuracy of 92% while the precision, recall and f1 scores are 0.922, 0.922, and 0.92, respectively. Similarly31, employed DT to classify network packets into normal and malicious traffic. An accuracy of 97.2% is reported.

In32, RF performs well for the majority of attack types with accuracy higher than 95%, whereas KNN has slightly lower accuracy. RF performed better achieving 95.7% accuracy and 93.9% recall. An ML-based botnet detection model is developed by utilizing domain name service query data and assesses its performance using well-known ML methods33. The findings of the research demonstrate the viability of applying ML techniques for botnet detection, with the random forest method providing the best overall detection accuracy of over 90%.

Employing MLP for intrusion detection and comparing it to eight different classifiers or methodologies, 99.63% of true positive attacks are detected in34. With a false positive rate of just 0.47 percent, this intrusion detection system is effective. Similarly35, used DT, MLP, NB, and SVM for botnet attack detection. The analysis showed that DT achieves the highest accuracy and provides the best performance. The obtained accuracy is 99.3%, 98.9%, 96.9%, and 97.1% for DT, MLP, NB, and SVM, respectively36.

Another important work in this context is37 which discusses the vulnerabilities of deep learning approaches with respect to malware detection. The study investigated data poisoning with noise injection and gradient-based data poisoning in detail employing several DL models and exposing their weaknesses for such attacks. The authors propose a framework called ‘Deep Image’ in38 to perform malware detection in an IoT environment. Dynamic features are obtained from the attacks and converted into binary images. The transformed images are later used with clustering, probabilistic and DL approaches for attack classification. The study reports superior results for the proposed approach.

Materials and methodology

Since most attacks in the IoT context occur in real time, a quick attack detection system with improved accuracy is needed. This might be accomplished by utilizing fewer features, which would simplify the system and speed up execution thereby being useful in the real-time detection of attacks. We suggest using ML as a strategy for Botnet detection in IoT devices to address this problem. Figure 1 illustrates the architecture of the proposed system. It is based on the stacking of KNN, SVM, DT, RF, and MLP, called KSDRM.

Fig. 1
figure 1

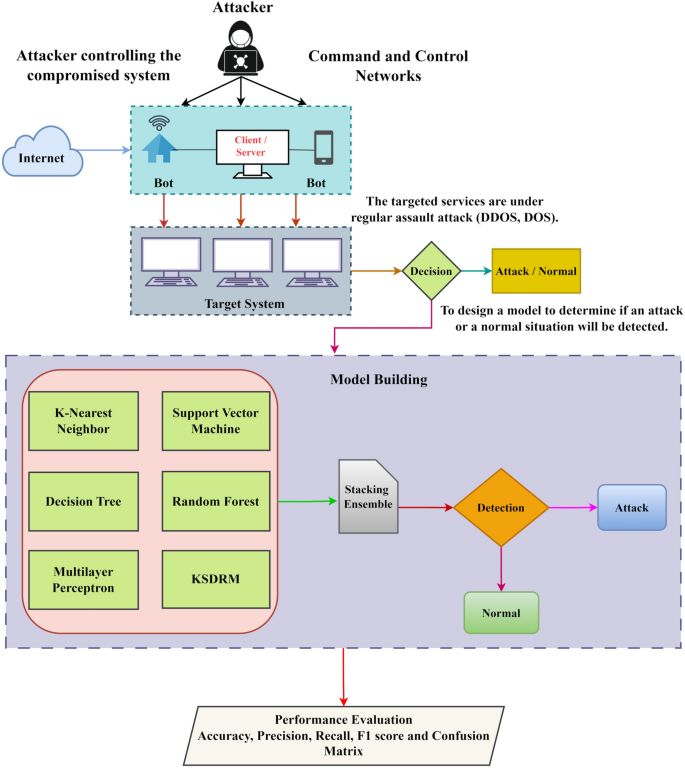

Botnet detection system to enhance the security using ML.

Full size image

The proposed research focused on analyzing the performance of ML classification for botnet detection. The ML classifiers, such as KNN, SVM, DT, RF, MLP, and the proposed model KSDRM have been implemented using the COLAB platform. The UNSW-NB15 dataset is used to train ML models. Figure 2 shows the workflow of the proposed approach. The dataset used for experiments consists of 82332 occurrences and 45 features based on IoT network communication. A train-test split is mostly used to estimate how well a model will perform on untested data. The train test split distributes the dataset into training and testing data with a ratio of 80:20. The testing set is used to assess the model’s performance while the training set is used to fit the model. Six ML models such as KNN, SVM, DT, RF, MLP, and stacking KSDRM.

Fig. 2
figure 2

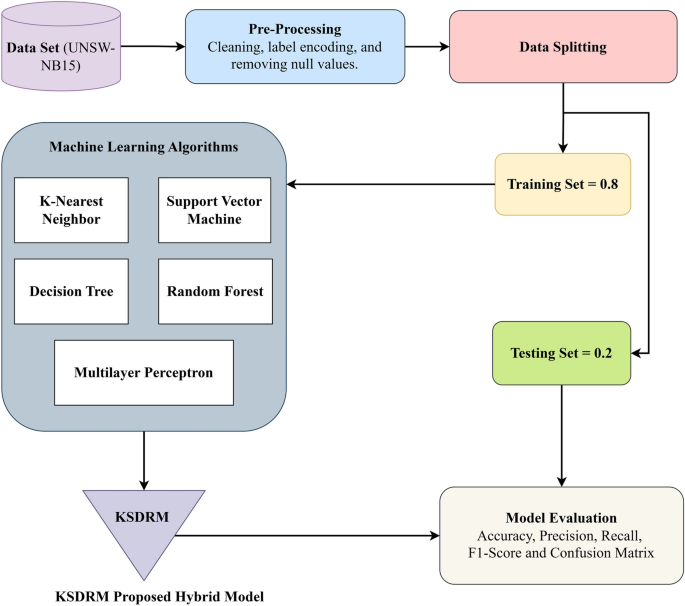

Workflow of the proposed approach.

Full size image

Dataset description

The dataset is collected from the well-known dataset repository Kaggle. The UNSW-NB15 dataset comes with both a training set and a testing set. UNSW_NB15_training-set.csv and UNSW_NB15_testing-set.csv are the training set and testing set for the dataset, respectively. The main dataset used to evaluate the performance of the model is the training file set, which is then partitioned into training and testing datasets for additional processing in the ratio of 0.8 to 0.2. The data consists of 82332 instances with 45 features. The details of the dataset are given in Table 1.

Table 1 The statistics of the training dataset.
Full size table

Data preprocessing

Data preprocessing has been applied to the dataset to prepare the data for model training and testing. In order to do this, the dataset must be loaded, cleaned, adjusted, and changed into a form that is suitable for the ML models. The dataset suggests that class distribution is imbalanced, as shown in Fig. 3. Label encoding is used to convert categorical features to numerical values.

Fig. 3
figure 3

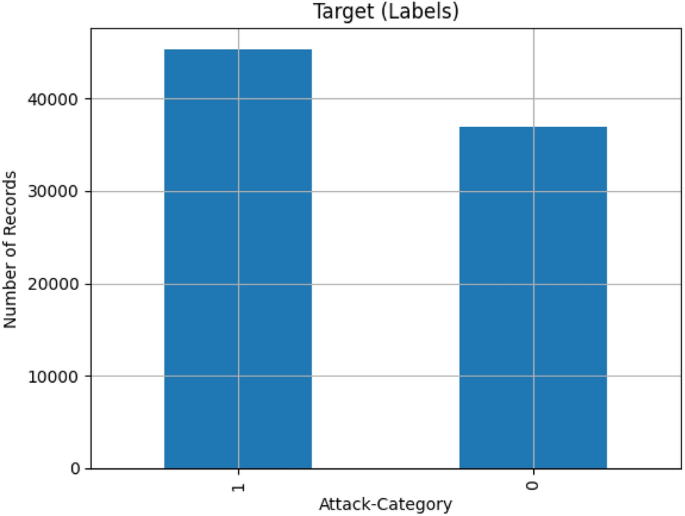

Distribution of records for different classes.

Full size image

Categorical value handling

When working with categorical data, one common task is to encode the categorical values into numerical representations that can be used by ML algorithms. One popular technique for this purpose is using a label encoder, which assigns a unique numerical label to each category in the data. To handle missing values in categorical data while using a label encoder, a few approaches can be used. One option is to replace the missing values with a specific placeholder, such as ’NaN’, before applying the label encoder. Label encoding is available as a feature in various libraries, including scikit-learn. The Label Encoder class in scikit-learn can be used for this purpose, focusing on encoding target labels rather than input features.

Machine learning algorithms

ML algorithms are computational models designed to automatically predict the label of a class, rather than relying on explicit programming by a developer. This study employs the following popular ML algorithms.

  • K-Nearest neighbors: KNN is an easy-to-interpret algorithm that categorizes new data points based on how similar they are to nearby data points. Based on the majority class of the data point’s closest neighbors, a new sample is assigned to a class. In this model, the value of k, which denotes the number of neighbors, is critical and should be selected based on the properties of the information.

  • Support vector machines: SVM is a potent method used for both regression and classification tasks. It locates the best hyperplane in the data space for the greatest class separation. SVM is useful for handling complicated and nonlinear data. It seeks to produce decision boundaries with the widest margin between classes. It is renowned for handling small to medium-sized datasets efficiently and can handle high-dimensional data as well.

  • Decision tree: DT is a hierarchical model that produces predictions using a tree-like structure. Each leaf node represents a class label, whereas each internal node represents a test on an attribute and its result. DT can handle categorical and numerical data and is easily interpretable and comprehendible. However, if it is not correctly regularized, it could experience overfitting.

  • Random forest: To generate predictions, an ensemble learning model called RF, combines different decision trees. It generates a collection of decision trees, each of which independently predicts the outcome. The projections of each individual tree are combined to get the final prediction. The robustness and capacity of RF to manage high-dimensional data are well recognized.

  • Multilayer perceptron: An artificial neural network called MLP, is made up of many layers of interconnected nodes (neurons). It is a flexible algorithm used for both regression and classification tasks. Through its hidden layers, MLP may discover intricate relationships and patterns in data. By adjusting the weights and biases, MLP can approximate any function, making it a powerful algorithm. However, training an MLP requires careful selection of network architecture and tuning of hyperparameters to achieve optimal performance.

Proposed stacking KSDRM model

An ML technique called stacking is used to integrate the results of various classification models to get a more potent and precise final prediction. To improve the overall predictive performance, stacking combines several ML techniques. In this study, KNN, RF, SVM, DT, and MLP are combined. By stacking models, we can benefit from the strengths and diversity of different algorithms. Each algorithm may have its own unique way of capturing the data’s patterns that make a prediction more reliable and precise. Stacking helps in reducing bias and variance, improving generalization, and reducing overfitting to the training data.

Stacking is a powerful ensemble learning technique that leverages the strengths of multiple ML algorithms. Stacking can enhance the overall predictive performance by combining the predictions in a layered fashion, leading to improved accuracy and robustness in ML models. Thus, the proposed KSDRM model’s architecture is displayed. The strength of several ML algorithms, including KNN, SVM, DT, RF, and MLP, has been harnessed in stacking, a type of sophisticated ensemble learning. In contrast to ensemble approaches (KNN+SVM+DT+RF+MLP), which combine several models for greater generalization and interpretability, ML stacking methods take more data and compute resources and provide less interpretability, even when they address very complex problems. By layering predictions together, this stacking can increase the accuracy and resilience of ML models, which in turn can enhance overall prognostic performance. Stacking becomes more resilient to different data distributions when an ensemble approach is used. Furthermore, as computational complexity rises, the model becomes more challenging to comprehend, necessitating a thorough evaluation of the combination and training procedure. Combining models under stacking produces accurate outcomes, while individual models won’t produce very good results. To evaluate the final prediction made via stacking ensembles for predictive modeling, LR is used, as shown in Fig. 4.

Fig. 4
figure 4

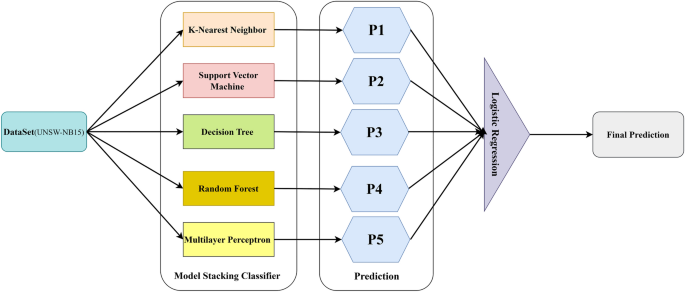

Proposed stacking model.

Full size image

The decision to use a stacking ensemble model over deep learning techniques such as CNNs, LSTMs, or RNNs stems from both practical and performance-based considerations. While deep learning models excel at capturing complex temporal and spatial dependencies in IoT data, they often require large datasets, intensive computational resources, and longer training times. In contrast, stacking leverages the strengths of multiple lightweight models, combining their diverse learning behaviors through a meta-learner for better generalization and reduced overfitting. Experiments showed that KSDRM performs competitively without the overhead of deep neural networks. Additionally, stacking offers greater interpretability and is less vulnerable to adversarial manipulation compared to deep learning, as highlighted in recent studies. For resource-constrained environments like IoT-based botnet detection, the stacking model provides a more scalable, explainable, and efficient solution. Including deep learning models in future comparisons would be valuable, but the results show that stacking offers an optimal balance between accuracy, efficiency, and robustness.

In addition to base models, the choice of using the LR model as a meta-learner comes from its unique advantages. The LR is more suitable for interpretability compared to other ML models. Being a linear model it is marked by low variance. In addition, when used as a meta-learner it does not add complexity to the based models, thereby making it suitable to reduce the probability of overfitting. It is also computationally efficient to train and particularly useful when the stacking involves multiple models which is the case in the current study. The weighted average of the based models can be efficiently obtained by the LR model and it can decide the weights of based models, both for strong and weak models. Using LR as the meta-learner improves accuracy better than voting.

Stacking, also known as stacked generalization, is an ensemble approach that reduces the generalization error of many base models by combining their predictions.

Base models:

$$\begin{aligned} h_1(x), h_2(x), \dots , h_n(x) \end{aligned}$$

Final prediction by meta-model:

$$\begin{aligned} {\hat{y}} = f(h_1(x), h_2(x), \dots , h_n(x)) \end{aligned}$$

Having low bias but high variance, the realm of high overfitting provides an example:

  • Decision Trees can memorize training data (low bias, high variance).

  • The small data set and poorly tuned kernel may lead to overfitting in SVM.

A single model’s error can be decomposed as:

$$\begin{aligned} \text {Error} = \text {Bias}^2 + \text {Variance} + \text {Irreducible Error} \end{aligned}$$

Overfitting = High Variance Poor generalization on unseen data.

Ensemble learning generates a model capable of blending the best entity predictions so as to enhance all:

Variance reduction: The variance of an ensemble (with uncorrelated models) is reduced:

$$\begin{aligned} \text {Var}_{\text {ensemble}} = \frac{1}{n^2} \sum _{i=1}^{n} \text {Var}(h_i) \end{aligned}$$

This means the ensemble is more stable than any single model.

Bias-Variance Trade-off: Stacking helps reach a balance by averaging out the error of DT, an underfitted model (like KNN on complex data), and other models.

$$\begin{aligned} \text {Bias}_{\text {meta}} \approx \text {low}, \quad \text {Variance}_{\text {meta}} \ll \text {any single model} \end{aligned}$$

Validation result

The essential evaluation method for the KSDRM architecture is k-fold cross-validation. The idea here is to split the data into k folds, or sections, of approximately equal size. The remaining folds serve as the model’s training data, and the model is utilized as a separate split for validation k times during the training process. This lowers the chance of overfitting or underfitting by offering a thorough evaluation of that model. Lastly, for a more accurate estimation of the model performances, the performance metrics extracted from each fold can be averaged. This comprehensive view sheds light on the model’s capacity for generalization and opens the door for certain areas of development. The proposed KSDRM is shown in Fig. 5.

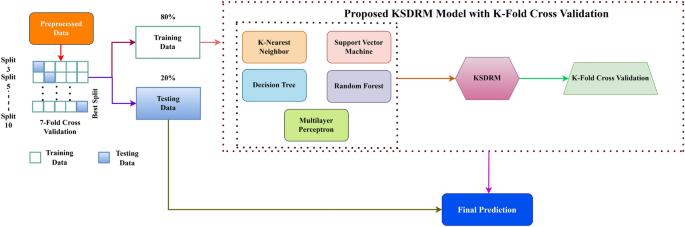

Fig. 5
figure 5

Structure of the proposed approach using the k-fold cross-validation with the KSDRM model.

Full size image

Evaluation parameters

Well-know metrics for evaluating the effectiveness of ML models, particularly for classification tasks, include accuracy, recall, precision, and F1 score. These metrics are used to evaluate how accurately the model predicts various classes of the input data. Accuracy is calculated using.

$$\begin{aligned} Accuracy = \frac{(TP+TN)}{(TP+TN+FP+FN)} \end{aligned}$$
(1)

where TP stands for true positive, which is the number of attacks that are accurately predicted, FP is false positive which refers to a normal packet that is mistakenly detected as an attack, TN stands for true negative, demonstrating the normal packet predicted as normal packet and FN is false negative denotes an attack that is predicted as a normal packet.

Although accuracy is a commonly used statistic, it may not be enough especially when working with unbalanced datasets. Recall also referred to as sensitivity or true positive rate, is the ratio of correctly predicted positive cases to actual positive occurrences. It shows that the model is capable of correctly identifying all pertinent positive cases. Increased recall value implies that the model is successful in reducing false negatives.

$$\begin{aligned} Recall = \frac{TP}{TP+FN} \end{aligned}$$
(2)

Precision also known as positive predictive value is the ratio of correctly predicted positive instances to all predicted positive instances. It shows how accurate the model is at identifying positive cases and reducing false positives. An elevated value suggests that the model produces few false positives.

$$\begin{aligned} Precision = \frac{TP}{TP+FP} \end{aligned}$$
(3)

A frequent statistic used to assess the efficacy of binary classification algorithms is the F1 score. By merging precision and recall into a single score, it provides a fair evaluation of the model’s correctness. The following formula is used to determine the F1 score.

$$\begin{aligned} F1 score = \frac{2 * (Precision * Recall)}{(Precision + Recall)} \end{aligned}$$
(4)

Results and discussion

This section provides experimental results and a discussion of the results. The effectiveness of ML models is assessed using accuracy, precision, recall, and F1 score. All models are implemented in Python programming language on Colab Notebook on a system running on a Windows 10 operating system with 16GB RAM.

Performance of machine learning models

Various models are employed to analyze their performance in comparison to the proposed approach. Table 2 displays the results of all ML models that are utilized in this study. Experimental results reveal that RF obtains the best performance for botnet attack detection with 97.34% accuracy. It is followed by a 92.45% accuracy by DT. SVM and MLP show poor performance with 75.62% and 75.66% accuracy, respectively while KNN obtains an 81.22% accuracy.

Table 2 Experimental results of all ML models.
Full size table

Models show different results for training and test datasets, as shown in Figs. 6 and 7. KNN successfully predicted using the training set with an accuracy of 90.14%, precision of 90.16%, recall of 90.14%, and F1 score of 90.15%. This performance is reduced when using a testing set with an accuracy of 81.22%, precision of 81.25%, recall of 81.22%, and F1 score of 81.23%.

Fig. 6
figure 6

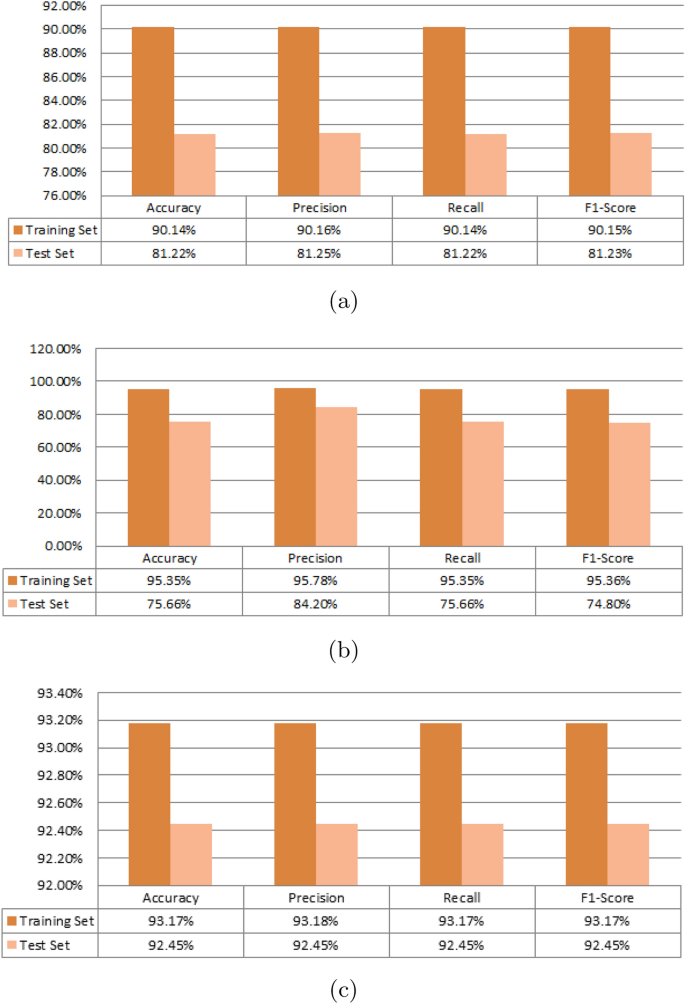

Performance analysis of ML models used in this study, (a) K nearest neighbor, (b) Support vector machine, and (c) Decision tree.

Full size image

SVM works by discovering the most suitable hyperplane that maximizes the margin between the extraordinary instructions of statistics points. With accuracy, precision, recall, and F1 score of 95.35%, 95.78%, 95.35%, and 95.36%, respectively, it shows superb performance on the training set. However, for the testing set it obtains an accuracy of 75.66%, precision of 84.20%, recall of 75.66%, and F1 score of 74.80%.

The effectiveness of the DT algorithm was evaluated. With an accuracy of 93.17%, it correctly predicted the outcomes of the model performance on the training set. It also obtains good results regarding precision, recall, and F1 scores with 93.18%, 93.17%, and 93.17%, respectively. DT obtains very good results for the testing set as well and achieves 92.45% accuracy while precision, recall, and F1 scores are 92.45%, 92.45%, and 92.45%, respectively.

Fig. 7
figure 7

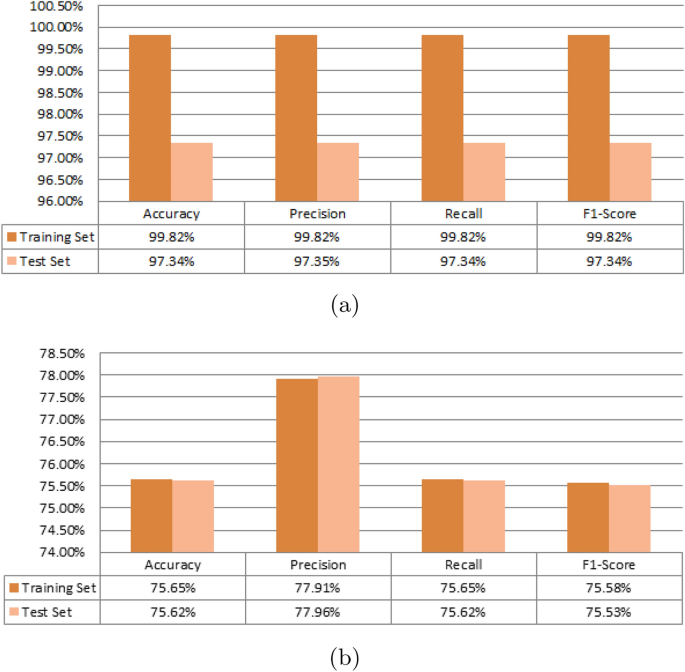

Performance analysis of ML models used in this study, (a) Random forest, and (b) Multilayer perceptron.

Full size image

RF model is recognized for its potential to manage complicated information and high-dimensional feature spaces. It is also efficient in handling model overfitting. It showed superior performance both with the training and testing data. For the training dataset, it obtains 99.82% accuracy, 94.82% precision, 99.82% recall, and 99.82% F1 score. It outperforms all other models with a superb 97.35% accuracy for the testing test. Similarly, superior results are obtained concerning precision, recall, and F1 scores.

MLP is a powerful supervised learning model that is highlighted for its ability to learn the complex relationship between the data and class labels. Despite its ability to produce good results, its performance in botnet attack detection is not good. It obtains an accuracy of 75.65%, precision of 77.91%, recall of 5.65%, and F1 score of 75.58%, which is inferior to those of RF and DT models. Its performance with the testing set is also mediocre with an accuracy of 75.62%, precision of 77.96%, recall of 75.62%, and F1 score of 75.53%.

Figure 8 illustrates the performance of the models regarding correct and false predictions for normal and attack traffic. The diagonal values show the correct predictions concerning TP and TN. It shows that KNN has 13,374 correct predictions while 3,093 predictions are wrong. A total of 12,459 predictions are correct while 4,008 are wrong predictions. For DT, 15,224 predictions are correct with only 1,243 wrong predictions making it one of good performing models for botnet attack detection. On the other hand, RF shows superb performance with a remarkable 16,029 correct predictions and has only 438 wrong predictions. FN and FP predictions by RF are also the lowest showing its performance concerning specificity and sensitivity. MLP shows poor performance with 4,015 wrong predictions and 12,452 correct predictions, thereby showing the least number of correct predictions among the employed models.

Fig. 8
figure 8

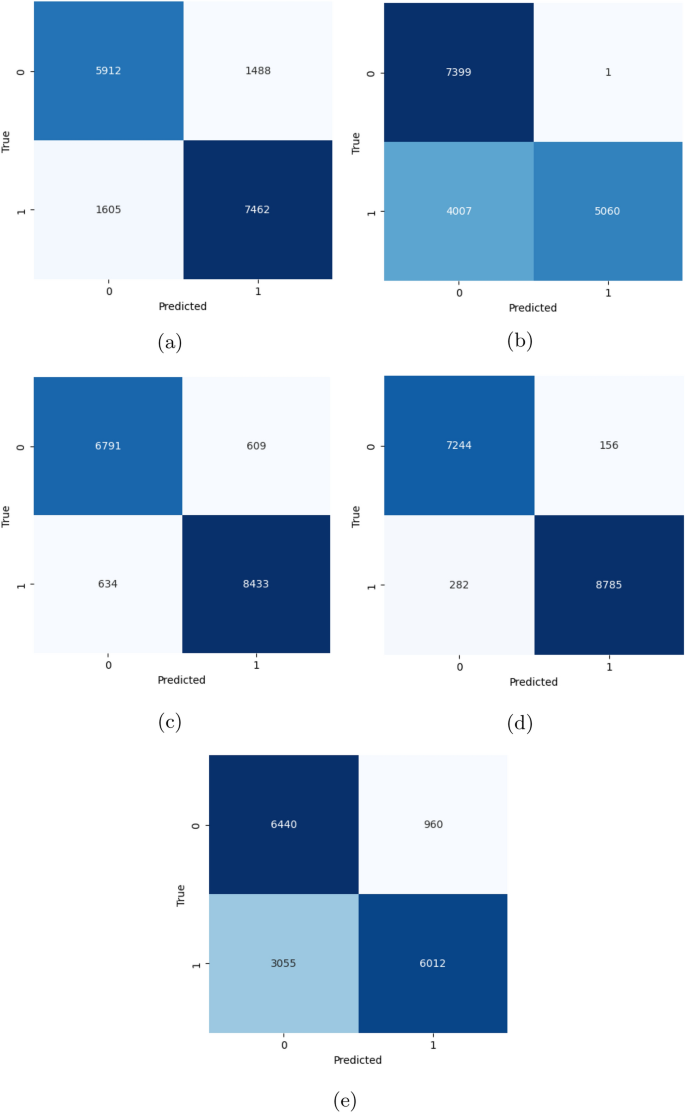

Confusion matrices of all ML models, (a) K nearest neighbor, (b) Support vector machine, (c) Decision tree, (d) Random forest, and (e) Multilayer perceptron.

Full size image

Performance of proposed stacking model

The proposed model is tested in comparison to other employed models. Experimental results show that it obtains the best results compared to other models with an accuracy of 97.94% which is the highest among all models. Table 3 shows the results of all employed models concerning the accuracy, precision, recall, and F1 score. Results indicate that the proposed model performs better than other models and obtains the best results for all performance evaluation metrics.

Table 3 Analysis of all employed models.
Full size table

Figure 9 shows the performance of the proposed stacking model concerning the number of correct and wrong predictions. It indicates the model makes 16,042 correct predictions which are higher than RF which obtained the best performance among all the models. Similarly, the 425 wrong predictions by the proposed stacking model are less than the best-performing RF model which has 438 wrong predictions. Combining multiple models in stacking tends to overcome the deficiencies of various models and produces good results.

Fig. 9
figure 9

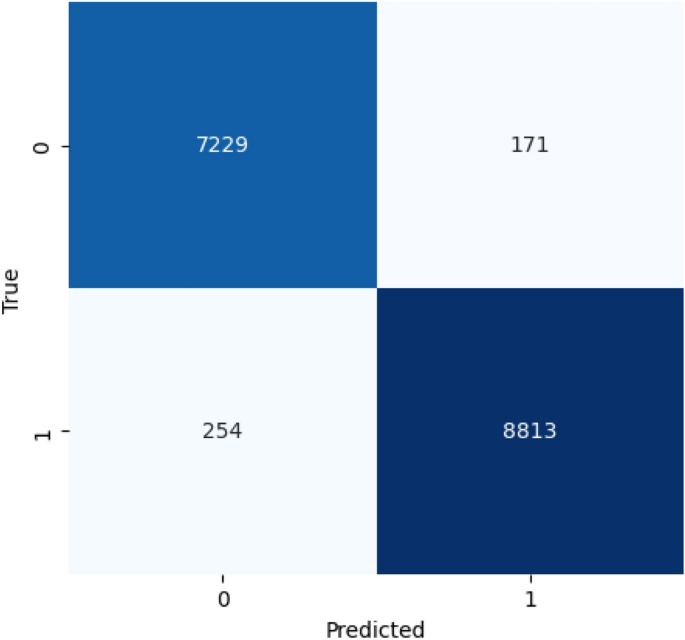

Confusion matrix of the proposed stacking model.

Full size image

Results of K-fold cross-validation

The proposed approach has to use k-fold cross-validation in order to verify the KSDRM model’s performance. Tables 4, 5, 6 and 7 display the outcomes for k values 3, 5, 7, and 10, in that order. The outcomes demonstrate that Table 6 with k=7 performs noticeably better than any other table. With an f1 score of 99.87%, 99.89% accuracy, 99.88% precision, and 99.89% recall, it effectively strikes a solid compromise between separating positive prediction occurrences from proven dependability in classification overall. Tables 4, 5, 6 and 7 displays the measurement’s accuracy, f1 score, recall, and precision validation findings. Additionally, each of these findings is significant for evaluating the classifiers’ botnet detection capabilities.

Table 4 Model performance with k =3.
Full size table
Table 5 Model performance with k =5.
Full size table
Table 6 Model performance with k =7.
Full size table
Table 7 Model performance with k =10.
Full size table

Performance comparison

In order to assess the effectiveness of the proposed model, a performance comparison with current state-of-the-art models is desired. Several previous studies that used ML models for botnet detection have been chosen for this purpose. For example, studies39,40,41,42 deployed RF and DT models and obtained very good results. Similarly43, proposed an SVM model and utilized the same dataset that is used in this study. Both44 and45,46,47 made use of KNN, MLP, and RF models for the same task while48 leveraged an SVM model. Results comparison given in Table 8 reveals that the proposed model outperforms these studies and obtains a better accuracy using the same dataset UNSW-NB15.

Table 8 Comparative analysis with existing models.
Full size table

Limitations of study

In spite of the better results compared to existing approaches, this study has several limitations. The proposed KSDRM model demonstrates high accuracy and robustness in detecting botnet attacks, however, resilience against adversarial machine learning (AML) attacks remains an important area for future consideration. Adversarial tactics, such as evasion attacks, can subtly manipulate input data to bypass detection without altering malicious behavior. Traditional models in the KSDRM stacking like DTs and RF offer some natural resistance to gradient-based attacks due to their non-differentiable nature, unlike neural networks. However, a dedicated adversarial robustness evaluation was not conducted in this study. Incorporating adversarial training, defensive distillation, or input sanitization techniques could further enhance the security of the model. We acknowledge this as a limitation and propose that future work should focus on systematically testing and improving the model’s defenses against such adversarial threats, ensuring more secure deployment in IoT environments.

Conclusion

Botnet detection is a difficult yet important task in computer security. Since botnet attacks are evolving over time, attackers are always coming up with new strategies to make it hard to detect and stop such attacks. This makes it difficult for security experts to stay up-to-date on threats and modify their detection techniques as necessary. Machine learning models can be employed for botnet and malicious traffic identification. This study proposes a stacking model where various models are combined to leverage the advantage of their predictive capability. Experiments are performed employing five classifiers DT, RF, SVM, KNN, and MLP to evaluate their performance in comparison to the proposed stacking model. Experimental results reveal that RF shows the best performance with a 97.34% accuracy, followed by the DT model which obtains a 92.45% accuracy. However, the proposed stacking model achieves the highest accuracy of 97.94% and outperforms all employed models. Its specificity and sensitivity are also high showing its capability to identify true positive and true negative instances. Performance comparison with existing state-of-the-art models further validates its performance.
