Fig. 16
From: Combined contour error control method for five-axis machine tools based on digital twin

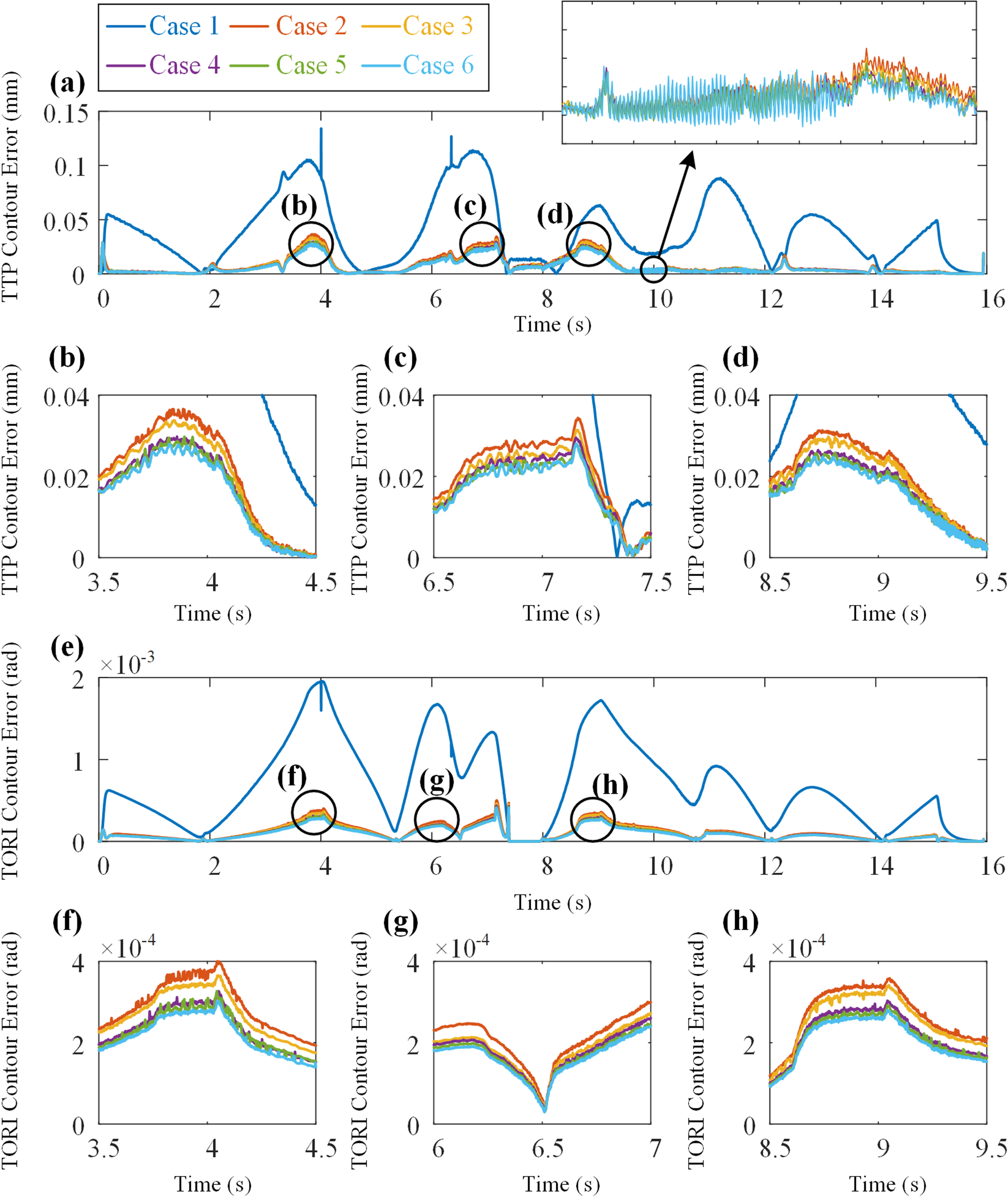

Tool contour error under different cases: (a) tool tip position contour error; (b–d) partial enlargement of tool tip position contour error; (e) tool orientation contour error; (f–h) partial enlargement of tool orientation contour error.
