From: Angiogenesis related gene signatures predict prognosis and guide therapeutic strategies in renal clear cell carcinoma

Fig. 8The alternative text for this image may have been generated using AI.

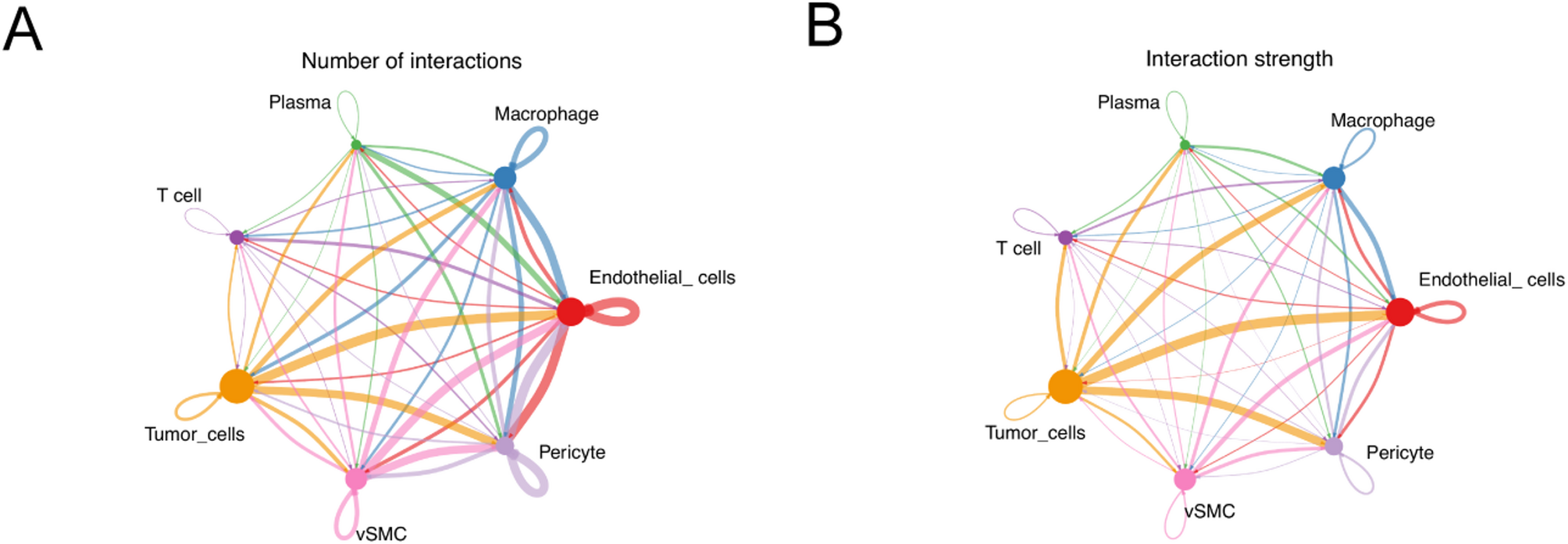

Analysis of KIRC cell communication: (A) Graph of the number of cellular communications; the thickness of the connecting lines is related to the number of intercellular communications; the thicker the connecting lines are, the greater the number of intercellular communications is, and the arrows of the connecting lines point in the direction of signaling. (B) Intensity of the cellular communication graph; the thicknesses of the lines and the arrows have the same meaning as before.
