A practical evaluation of AutoML tools for binary, multiclass, and multilabel classification

Abstract

Selecting the most suitable Automated Machine Learning (AutoML) tool is pivotal for achieving optimal performance in diverse classification tasks, including binary, multiclass, and multilabel scenarios. The wide range of frameworks with distinct features and capabilities complicates this decision, necessitating a systematic evaluation. This study benchmarks sixteen AutoML tools, including AutoGluon, AutoSklearn, TPOT, PyCaret, and Lightwood, across all three classification types using 21 real-world datasets. Unlike prior studies focusing on a subset of classification tasks or a limited number of tools, we provide a unified evaluation of sixteen frameworks, incorporating feature-based comparisons, time-constrained experiments, and multi-tier statistical validation. We also compared our findings with four representative prior benchmarks to contextualize our results within the existing literature. A key contribution of our study is the in-depth assessment of multilabel classification, exploring both native and label-powerset representations and revealing that several tools lack robust multilabel capabilities. Our findings demonstrate that AutoSklearn excels in predictive performance for binary and multiclass settings, albeit at longer training times, while Lightwood and AutoKeras offer faster training at the cost of predictive performance on complex datasets. AutoGluon emerges as the best overall solution, balancing predictive accuracy with computational efficiency. Our statistical analysis—at per-dataset, across-datasets, and all-datasets levels—confirms significant performance differences among tools, highlighting accuracy-speed trade-offs in AutoML. These insights underscore the importance of aligning tool selection with specific problem characteristics and resource constraints. The open-source code and reproducible experimental protocols further ensure the study’s value as a robust resource for researchers and practitioners.

Introduction

Automated Machine Learning (AutoML), as the name suggests, automates the Machine Learning (ML) process, reducing the need for manual human labor and in-depth knowledge in the area¹. Several AutoML tools—presented in this study—are available, but choosing one is not trivial since each has its particularities and is intended to solve different binary, multiclass, and multilabel classification problems. One of ML’s goals is to predict values or categories for new (i.e., unseen) data as accurately as possible. Thus, selecting an AutoML tool is essential, particularly when balancing model performance and training efficiency. Given the rapid industrial uptake of AutoML, the community still lacks a single “all-tasks” benchmark that is both statistically rigorous and reproducible.

Despite intense activity, we found no prior study that (i) validates results at three nested levels–per-dataset, across-datasets, and all-datasets—and (ii) contrasts native versus label-powerset multilabel handling. As summarised in Table 2, even the largest benchmarks (Truong et al.², Wever et al.³, and Gijbers et al.⁴) omit one or both facets, making their findings hard to generalise. Specifically, Truong et al. cover only binary and multiclass tasks; Wever et al. treat multilabel classification exclusively; and Gijbers et al. excludes multilabel datasets and reports only aggregate scores without per-dataset or corpus-wide significance testing. In contrast, our work evaluates sixteen widely used Python frameworks on twenty-one real-world datasets that span all three classification types, applies the above three-tier statistical analysis, and is therefore, to the best of our knowledge, the most comprehensive AutoML benchmark to date.

Our contributions are fourfold: (1) the first systematic AutoML comparison that jointly covers binary, multiclass, native multilabel, and powerset multilabel tasks; (2) a tight 5-min, hardware-controlled experimental design with standardised weighted-$F_1$ and timing metrics; (3) a comprehensive multi-layer validation pipeline (per-dataset, across-datasets, all-datasets) that quantifies accuracy–speed trade-offs with robust significance tests; and (4) the public release of all code, including the end-to-end statistical scripts, so researchers can replicate or extend every figure and table (see Code availability). Crucially, these scripts allow the entire statistical analysis to be rerun with ease.

This paper is organized into seven parts: “Theory review” section explains the main concepts necessary for understanding the article; “Related work” section reviews prior studies on AutoML, positioning our research within existing literature; “Assessment methodology” section presents the work proposal, containing details of the steps performed and why only classification (and not regression) problems were addressed; “Experiments” section describes the experiments conducted, as well as the results obtained and in-depth analysis (quantitative and qualitative) of these results, including benchmarking our findings against four representative prior studies; “Statistical analysis” section provides an extensive statistical validation of the results, employing multi-tier significance tests to compare the performance of AutoML frameworks at different levels; “Threats to validity” section discusses potential limitations of the study, addressing internal, external, and construct validity concerns; and finally, “Conclusion” section presents the main findings derived from this work and proposes future research directions.

Theory review

The comparative study proposed in this paper addresses several areas of study, such as machine learning, hyperparameter optimization, neural architecture search, and AutoML. A brief theoretical review of each area follows.

Machine and supervised learning

Machine learning (ML) is a significant domain within Artificial Intelligence (AI) that enables computer systems to learn from data rather than being explicitly programmed. In supervised learning, a subset of ML, systems use labeled datasets during training to produce models that can classify new, unseen data based on patterns learned from the training data⁵.

Supervised learning methods are designed to solve classification and regression tasks. This work focuses on classification, where the objective is to assign input data to predefined categories based on the learned patterns. Classification tasks include:

• Binary classification Involves classifying data into two mutually exclusive categories, such as determining whether an email is spam or non-spam based on word frequency and structure or predicting if a patient has a disease or is healthy based on medical test results like blood pressure and cholesterol levels.

• Multiclass classification Assigns each sample a single label from a set of more than two mutually exclusive categories, such as classifying animal images as cats, dogs, or birds based on physical features or categorizing movies into genres like drama, comedy, or action based on themes, plot structures, and viewer preferences.

• Multilabel classification Associates each sample with one or more labels simultaneously, such as tagging an image with “beach,” “sunset,” and “vacation” to describe its multiple attributes, or assigning research keywords like “machine learning,” “AI,” and “data science” to a paper to reflect its diverse topics and focus areas.

The key difference among these tasks lies in the complexity of the output: binary handles two classes (Fig. 1a), multiclass assigns one label from many (Fig. 1b), and multilabel allows multiple labels per sample (Fig. 1c), often requiring models to capture label interdependencies.

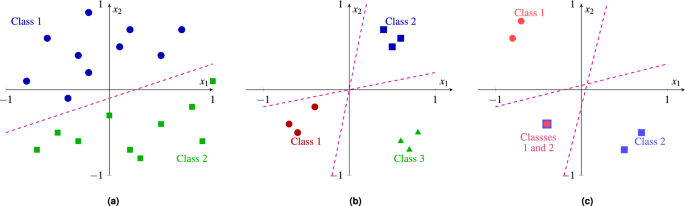

Fig. 1

Binary, multiclass, and multilabel classification examples.

In addition, several algorithms widely discussed in the literature are often associated with solving specific tasks. For instance, binary classification tasks frequently utilize algorithms such as Support Vector Machines (SVMs)⁶ and logistic regression⁷. Multiclass classification often employs decision trees⁸, k-nearest neighbors (KNN)⁹, or neural networks¹⁰. For multilabel classification, specialized algorithms such as Binary Relevance (BR)¹¹, Classifier Chains (CC)¹², Label Powerset (LP)¹³, or adaptations of neural networks¹⁴ are commonly used. The AutoML tools discussed in this paper leverage this knowledge to automate the selection and optimization of ML models or pipelines, enhancing efficiency and reducing the need for extensive manual intervention.

Hyperparameter optimization (HPO)

ML models require not only the learning of parameters during training but also the careful selection of predefined settings called hyperparameters. Training algorithms work by iteratively adjusting model parameters, such as weights in a neural network, to minimize a loss function and improve performance on the training data¹⁵. Hyperparameters govern the behavior of this process and can include values such as the learning rate, the number of layers in a neural network, or the depth of a decision tree. Well-chosen hyperparameters can significantly improve model performance and computational efficiency.

Hyperparameter optimization (HPO) aims to identify the best configuration of these settings to maximize the model’s performance, often measured using a validation metric such as accuracy or $F_1$ score. Unlike parameters, which are adjusted dynamically during training, hyperparameters must be determined before training begins. The HPO process involves defining a search space of potential configurations, evaluating their effectiveness, and iteratively refining the search to approach the optimal solution^16,17.

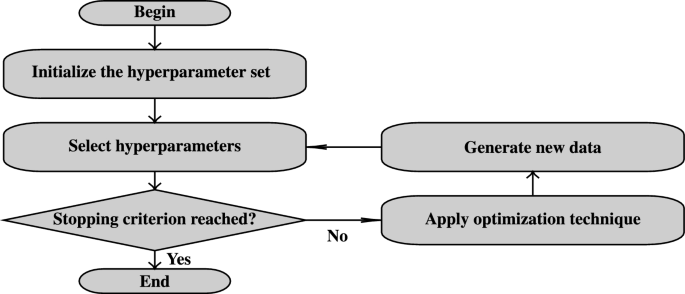

Figure 2 illustrates the general workflow of HPO, emphasizing its iterative nature. The problem setup includes selecting an evaluation metric, defining the range of potential values for each setting, and determining how these configurations will be assessed during the search process.

Methods for exploring the search space can be broadly categorized into manual and automated approaches. Manual methods rely on user expertise and intuition, often requiring extensive trial and error. Automated methods, in contrast, utilize algorithms to evaluate configurations systematically and will be discussed in detail in the remainder of this section¹⁸.

Fig. 2

General hyperparameter optimization flow chart. Adapted from Loka et al.¹⁹ and Nguyen et al.²⁰.

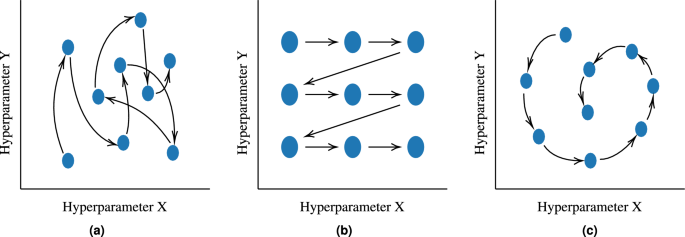

Random Search (Fig. 3a) and Grid Search (Fig. 3b) can be used for both classification and regression. Both models use cross-validation and two parameters: the model with the hyperparameter values to be optimized and the search space¹⁶. The difference between them is in the search space definition, where Random Search tests several hyperparameter settings, and Grid Search exhaustively tests all settings (i.e., all possible combinations)²¹.

Fig. 3

Random Search, Grid Search, and Bayesian Optimization. Adapted from Chen²².

Bayesian optimization aims to deduce black-box functions that are initially unknown and usually have a high computational cost to be solved. The Bayesian strategy (Fig. 3c) combines information from the unknown hyperparameter function with sample data to obtain information that will be used to deduce the optimal values of the function. In addition, Gaussian processes are also used to fit the high and low point distributions. Finally, the entire process is repeated until the maximum number of iterations is reached or the difference between the optimal and current values is less than a specified threshold¹⁷.

The TPE algorithm is commonly used in various domains, including image processing, solar radiation prediction, and work accidents. It employs a Gaussian distribution to model hyperparameter values based on experimental data. Random search is performed initially to initialize the response surface sampling distributions. The hyperparameter space is divided based on fitness values and a predefined threshold, as depicted in Fig. 4a. The optimal hyperparameters are determined from the best observations. Increasing the number of initial iterations improves the distribution²⁰.

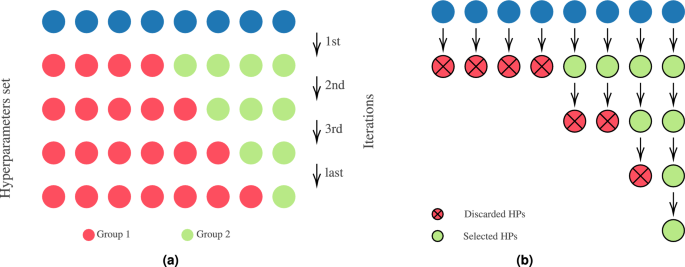

Fig. 4

Tree-structured parzen estimator and Hyperband. Adapted from Nguyen et al.²⁰ and Li et al.²³.

Unlike other algorithms, Hyperband adopts an early-stopping strategy and requires two inputs to determine the resource allocation. The first input specifies the maximum allocated resources for a configuration, while the second controls the proportion of configurations discarded during successive halving (see Fig. 4b). This approach allows Hyperband to evaluate more configurations in high-cost problems without making strong assumptions. The algorithm begins aggressively to maximize exploitation and ensures that at least one configuration receives resources. Subsequent iterations decrease the minimum resource allocation based on the defined proportion until the final iteration employs Random Search. Hyperband can adaptively allocate resources and may favor conservative allocations in certain scenarios²³.

The process of optimizing hyperparameters encompasses a range of techniques applicable to various machine learning models. These models, along with some of their respective hyperparameters, include (but are not restricted to):

• Decision trees (DTs) maximum depth limits tree complexity to prevent overfitting, while minimum samples per leaf ensure splits are meaningful and not based on small, noisy subsets.

• K-Nearest neighbors (KNN) number of neighbors (k) determines decision boundary smoothness; small k captures fine details but risks overfitting, while large k smooths predictions at the cost of local precision.

• Neural networks (NNs) learning rate governs training speed and stability, with smaller values ensuring steady convergence. Hidden layers and neurons affect model complexity, enabling simple to intricate pattern recognition.

• Random forests (RFs) number of trees enhances stability by averaging predictions, while maximum features per split control tree diversity, balancing accuracy and robustness.

• Support vector machines (SVMs) regularization parameter (C) controls the trade-off between overfitting and generalization, with smaller C enforcing simpler models. Kernel type (e.g., linear or polynomial) maps data into higher-dimensional spaces for separating non-linear patterns.

While manually tuning these hyperparameters can be a tedious and time-consuming process, automated hyperparameter optimization contributes significantly to AutoML by reducing the need for human effort, improving the performance of ML algorithms, and being more accessible to reproduce than manual configuration²⁴. However, some difficulties are noted, such as the high cost of evaluations when the models, datasets, or pipelines are complex and the lack of clarity about which hyperparameter needs optimization and which ranges should be optimized.

Neural architecture search (NAS)

Deep learning’s ability to automatically extract features has revolutionized machine learning²⁵, shifting the focus to designing effective neural architectures—the blueprints for network structure. Hyperparameters define these architectures, such as the number of hidden layers and neurons within each layer. During training, the network’s internal parameters (weights and biases) are iteratively adjusted through gradient-based optimization techniques like backpropagation²⁶ to minimize a loss function. Manually designing neural architectures is labor-intensive and requires significant expertise.

While gradient-based optimization excels at refining a neural network’s parameters through backpropagation²⁶, Neural Architecture Search (NAS) tackles a more fundamental challenge: automatically identifying the hyperparameters that optimize the network architecture itself²⁷.

The success of deep learning hinges on a well-designed neural network architecture. However, manually crafting these architectures is a highly specialized and time-consuming task. Neural Architecture Search (NAS) addresses this challenge by automating the discovery of optimal architectures²⁷.

As shown in Fig. 5, the NAS methodology typically consists of three main components:

• Search space The set of possible building blocks, such as layer types (e.g., fully connected, convolutional, pooling), activation functions, and other structural elements. A well-defined search space balances flexibility with computational feasibility, enabling the discovery of meaningful architectures.

• Search strategy The method used to navigate the search space and generate promising architectures. Strategies range from simpler approaches like random search to advanced techniques such as evolutionary algorithms. The choice of strategy affects the speed and quality of the search, with trade-offs between exploration and computational cost.

• Evaluation strategy The process of assessing a candidate architecture’s performance, typically using metrics like accuracy or loss on a validation set. Results guide the search toward better architectures, balancing efficiency and accuracy to impact both search effectiveness and the quality of the final results.

Fig. 5

General NAS methodology. Adapted from Elsken et al.²⁷.

As mentioned earlier, the search strategy is critical in NAS as it determines how the search space is explored. Two common strategies are:

• Evolutionary optimization Inspired by biological evolution, this approach generates a population of candidate architectures and evaluates their performance. High-performing architectures are combined and mutated to produce new candidates in iterative cycles, gradually leading to improved designs²⁸.

• Random search This simpler approach randomly samples architectures from the search space, evaluating each using the chosen evaluation strategy (e.g., accuracy on a validation set). After a set number of iterations, the architecture with the best performance is selected. Despite its simplicity, random search can be surprisingly effective, particularly in smaller search spaces²⁹.

Traditional NAS approaches separate the search and evaluation phases, which can be computationally expensive. One-shot methods streamline the process by integrating these phases into a single step to overcome these challenges, significantly reducing computational costs. Two notable one-shot NAS algorithms are:

• Efficient neural architecture search (ENAS) Treats all possible architectures as sub-graphs of a larger supergraph. Each node in the supergraph contains several candidate operations. Once an architecture is trained, its weights are shared with other architectures that share edges in the supergraph³⁰.

• Differentiable architecture search (DARTS) Relaxes each node’s choice of activation functions into a softmax distribution over all possible operations. This allows the search space to be optimized continuously by minimizing both validation and training loss³¹.

NAS can be an integral step within an AutoML framework, enhancing the automation of the machine learning pipeline by selecting neural network architectures. The concept of AutoML, including its integration with NAS, will be explained in the next subsection.

Automated machine learning (AutoML)

As previously mentioned, ML is an assertive discipline of AI that can solve many issues by recognizing patterns or making data-based predictions. However, it requires human knowledge, interference, and effort from data scientists.

Automated ML was born to reduce these and other inconveniences. According to Ref.³², AutoML may reduce numerous manual tasks and permit domain experts to create and work well with ML pipelines without advanced expertise in ML or statistics. Reference³³ sees AutoML as a conjunction of automation and ML. They say that AutoML highlights the facility of configuration and control of ML learning tools, making it self-adaptive to problems.

To explore AutoML’s potential, we selected frameworks based on popularity, community adoption, features, and Python support. Most are open source and actively maintained on GitHub, ensuring accessibility and transparency. To provide a broader view, we included 4intelligence, a commercial framework. These frameworks were chosen for their ability to automate key stages of the ML pipeline for structured data. Below, we outline their main features and capabilities.

• 4intelligence³⁴: A cloud-based framework by 4intelligence for binary and multiclass classification, requiring minimal user input. It automates data cleaning, feature engineering, preprocessing, and model selection using various algorithms.

• AutoGluon³⁵: An open-source AutoML toolkit with deep learning capabilities for tabular, image, and text data tasks. Automates major steps in the ML process, making it accessible for users with diverse skill levels.

• AutoKeras³⁶: An open-source system that leverages CPUs and GPUs to train neural networks, focusing on image and text classification and regression tasks. Employs Keras and Bayesian optimization for efficient neural architecture search (NAS) with a user-friendly interface that requires no deep learning expertise.

• Auto-PyTorch³⁷: Built on PyTorch, this framework automates NAS and HPO for optimal neural networks, primarily for tabular data tasks. It streamlines the development of models for classification and regression problems.

• AutoSklearn³⁸: Based on scikit-learn, it offers diverse preprocessing methods and supports classification, regression, and multilabel tasks. Incorporates meta-learning to enhance Bayesian optimization efficiency and reduce training time.

• EvalML³⁹: Automates the entire ML pipeline for structured data, including data loading, cleaning, feature engineering, model selection, HPO, and model evaluation, enabling model building with reduced coding effort.

• FEDOT⁴⁰: An AutoML framework designed for complex ML tasks, including classification. It employs evolutionary algorithms to optimize pipeline creation, focusing on interpretable results to support data-driven decision-making.

• FLAML⁴¹: A lightweight AutoML library that prioritizes efficient, cost-effective search for accurate models by optimizing the search process to minimize computational costs beyond evaluating each configuration.

• GAMA⁴²: An open-source AutoML framework that optimizes pipelines for supervised tasks using genetic programming, offering an intuitive interface for model selection and HPO in classification and regression.

• H2O⁴³: Optimized for scalable ML, supporting efficient parallel training of multiple models on large datasets. Aims to achieve competitive performance by utilizing distributed algorithms designed for high efficiency.

• LightAutoML⁴⁴: A comprehensive, open-source framework emphasizing transparency in ML. Automates data preparation, feature engineering, model selection, HPO, and model deployment, ensuring interpretability in predictions.

• Lightwood⁴⁵: An open-source AutoML library developed by MindsDB, focusing on integrating machine learning models directly within databases. It automates core processes like data preprocessing and feature selection for structured data, emphasizing accessibility and ease of use.

• mljar-supervised⁴⁶: Dedicated to supervised learning tasks, focusing on both accuracy and interpretability. Automates model selection, HPO, and training with insights into model performance and feature importance.

• NaiveAutoML⁴⁷: A lightweight AutoML tool designed for simplicity, automating tasks like data cleaning, feature selection, and basic model evaluation. Ideal for interpretable applications with minimal setup.

• PyCaret⁴⁸: A low-code Python library simplifying the ML workflow. Automates preprocessing, feature engineering, model selection, hyperparameter tuning, and evaluation, supporting classification, regression, clustering, and anomaly detection, and seamlessly integrates with popular deployment tools.

• TPOT⁴⁹: Uses genetic programming to generate and refine ML pipelines automatically. Manages data preprocessing, feature selection, and model selection with minimal input, providing user-friendly and modifiable pipelines.

It is shown in works like⁵⁰, which uses real-life datasets, how helpful AutoML is, making it possible for people without broad knowledge to operate datasets and make a difference with its creation. “Related work” section will further confirm the potential and user-friendliness of AutoML tools through a comprehensive analysis of existing works.

In addition, Table 1 summarizes the key features and capabilities of each AutoML framework, such as data handling (missing data, duplicates, noisy data, outliers), categorical data management, scaling, normalization, feature engineering, NAS, and supported classification types. This comparison will provide insights into the strengths and limitations of each framework, aiding in informed decision-making for researchers and practitioners.

Thus, this paper uses the domains presented above and their characteristics as categories of comparison between the AutoML tools studied to provide detailed insights into how each tool addresses these areas.

Table 1 Frameworks summary.

Related work

This section situates our research within AutoML. “Overview of existing research” section reviews existing studies on frameworks, surveys, and applications, while “Research gap and our contribution” section identifies research gaps and outlines our contributions through benchmarking and in-depth statistical analysis.

Overview of existing research

We review literature on AutoML, examining its functionalities, applications, and evaluations. Our synthesis highlights assessment methodologies, metrics, scalability challenges, and the transition from domain-specific to general-purpose benchmarking.

Truong et al.² compared AutoML tools across datasets, assessing their performance, advantages, and limitations. While AutoML tools excel in feature engineering, data preprocessing still requires significant human intervention. The evaluation involved around 300 OpenML datasets, with accuracy as the primary metric for binary and multiclass classification tasks. It was observed that no single tool consistently outperformed others across diverse tasks, indicating performance variations depending on the specific test. Notably, H2O excelled in binary classification, while AutoKeras led in multiclass classification.

Wever et al.³ advanced the study of AutoML by focusing on multilabel classification. They introduced a benchmarking framework ensuring uniform runtime constraints, search space models, and evaluation routines across multiple optimization approaches, including Bayesian optimization and bandit algorithms. Their results underscored the difficulties posed by large search spaces and found that a grammar-based best-first search approach outperformed others for multilabel tasks.

Mustafa and Azghadi⁵¹ surveyed AutoML in clinical notes analysis, highlighting its challenges and advantages in healthcare. The most commonly used algorithms for clinical notes analysis were Support Vector Machine, Convolutional Neural Networks, Random Forest, and Linear Regression. It was noted that no single feature selection algorithm consistently provided optimal results across all datasets. Future research suggests exploring new feature-extraction techniques, comparing feature selection methods, and developing tools combining Bayesian optimization with random search.

Similarly, Bahri et al.⁵² reviewed AutoML techniques for unsupervised anomaly detection. The review addresses challenges in building high-quality machine learning models through AutoML, emphasizing scalability, evaluation metrics, and handling high-dimensional data. The methodology involves summarizing representative methods, evaluating their performance, and discussing their advantages and disadvantages. Additionally, various automated methods and strategies for anomaly detection are reviewed, including meta-learning approaches and meta-features. Results include insights into the current state of AutoML, highlighting limitations and open research questions, along with updated overviews of AutoML and HPO methods. Furthermore, the article examines anomaly detection algorithms, highlighting common uses, challenges like hyperparameter sensitivity, and frameworks such as PyOD and PyODDS for scalability and pipeline optimization.

In addition to domain-specific applications, AutoML has shown promise in augmenting model training processes. Lin et al.⁵³ developed a solution to optimize augmentation policies during network training. The solution, named OHL-Auto-Aug, treated the augmentation policy as a parameterized probability distribution, and its strategy for neural architecture search was based on AutoML techniques. It was formulated as a bilevel framework where, in the inner loops, the network parameters were trained using a standard Stochastic Gradient Descent along with augmentation sampling. In the outer loops, augmentation distribution parameters were trained using REINFORCE gradients with trajectory samples. The solution achieved a search efficiency 60x faster on CIFAR-10 and 24x faster on ImageNet than the previous state-of-the-art approach.

Extending AutoML’s application across diverse domains, Angarita-Zapata et al.⁵⁴ conducted a study on hybrid AutoML for traffic forecasting, focusing on using the AutoSklearn framework. The study explored three scenarios: optimization, meta-learning, and ensemble learning; meta-learning combined with ensemble learning; and selecting the best-performing pipeline suggested by meta-learning. The study used speed measurements at 5-min intervals for highways and 15-min intervals for urban areas. AutoSklearn assumes pipelines ranked near position 1, with meta-features closest to the input dataset, perform better. However, the distance measure showed a weak correlation with performance, and pipelines below position 25 were excluded based on this similarity metric.

AutoML’s impact on medical imaging was explored by Beduin⁵⁰, who proposed a new residual model called AutoResCovidNet using AutoKeras. This model aimed to compare X-ray images of healthy, pneumonia, and COVID-19-diagnosed individuals. The chosen metrics for analysis were accuracy, precision, sensitivity, and $F_1$ score, with parameters designed to enhance image processing accuracy. Before AutoML, preprocessing was performed on the COVIDx-m dataset to optimize the training data. Despite testing 20 models, AutoResCovidNet did not surpass existing results in the literature. However, the study highlighted the advantages of AutoML in accelerating model development and enabling focused research for more specific and satisfactory outcomes. The user-friendly interface, simplicity, and strong processing power of AutoKeras were recognized.

Expanding on domain-specific applications, van Eeden et al.⁵⁵ compared multinomial logistic regression, Naïve Bayesian classifier, and AutoSklearn for predicting psychiatric diagnoses. They hypothesized that AutoSklearn would outperform the Bayesian classifier, surpassing traditional regression techniques in detecting complex patterns. They also hypothesized that AutoSklearn would be efficient when including single items and follow-up measures. The study used data from the Netherlands Study of Depression and Anxiety (NESDA), excluding non-Dutch fluent patients and other psychiatric disorders. Variables such as gender, age, ethnicity, education level, relationship status, and employment status were considered. AutoSklearn outperformed logistic regression and the Bayesian classifier on more complex predictor sets, but its accuracy varied depending on the predictor variables used. However, AutoSklearn was the most consistent across predictor sets.

Beyond specific applications, Ferreira et al.⁵⁶ proposed a benchmark study to examine the characteristics of eight open-source AutoML frameworks (AutoKeras, Auto-PyTorch, AutoSklearn, AutoGluon, H2O, TPOT, rminer, and TransmogrifAI) along with twelve popular OpenML datasets (such as 37—Diabetes and 23—Contraceptive Method Choice). These datasets were divided into regression, binary, and multiclass classification tasks. The study compared the performance of these tools across different scenarios: General Machine Learning (GML), Deep Learning (DL), and XGBoost (XGB). In the GML scenario, results indicated that TransmogrifAI excelled in binary classification, AutoGluon in multiclass classification, and rminer in regression tasks. In the DL scenario, H2O performed well in binary classification and regression tasks, while AutoGluon stood out in multiclass classification. For XGB, rminer was the top choice for binary classification and regression tasks, and H2O for multiclass classification. Overall, the GML approach demonstrated superior predictive performance, with tools like TransmogrifAI, AutoGluon, and rminer consistently delivering strong results across tasks.

Romero et al.⁵⁷ evaluated the performance of three widely used AutoML frameworks—AutoSklearn, H2O, and TPOT—on highly imbalanced binary classification tasks in the healthcare domain. Using de-identified medical claims data, they predicted the occurrence of six different diseases, each framed as a separate binary task. Their evaluation focused on imbalanced-aware metrics, such as the Area Under the Precision-Recall Curve (AUPRC), due to the low prevalence of positive cases. While all AutoML tools outperformed a tuned Random Forest baseline, their relative performances were not statistically distinguishable, suggesting no single framework had a consistent advantage across tasks. This study highlights the need to evaluate AutoML tools under real-world data imbalance, especially in high-stakes domains like healthcare.

Synthesizing these insights, Del Valle et al.⁵⁸ systematically reviewed AutoML for multilabel classification and multi-target regression. The review analyzed existing AutoML approaches, encompassing search space definition, optimization algorithms, and evaluation metrics while identifying limitations and proposing future research directions. The protocol involved selecting studies from various online data sources, employing a four-step process: submitting a search string, initial and final selection, and snowballing. Initially identifying 94 studies, the review ultimately selected 12 for analysis, which included models such as convolutional networks and grammar-based genetic programming. Key findings include determining suitable evaluation measures for each context, exploring alternative loss functions, enhancing search space definition, developing methods for large datasets (e.g., transfer learning), and investigating meta-learning approaches to expedite the AutoML search process.

Neverov et al.⁵⁹ applied AutoML to wave data classification, addressing parameter optimization challenges. The authors analyzed frameworks including MLJAR AutoML, AutoGluon, AutoKeras, and TPOT, evaluating performance on datasets like Sonar, Doppler, and Winnipeg, featuring energy bands, radar matrices, and labels like mine/rock, car/human/drone, and crops. Using genetic algorithms and Bayesian optimization, AutoGluon achieved the highest accuracy, outperforming other frameworks. The study also demonstrated AutoGluon ’s ability to combine models and optimize performance, making it faster, more reliable, and accurate, underscoring AutoML’s effectiveness in wave data classification and real-world applicability.

Salehin et al.⁶⁰ expanded on AutoML’s broader implications by conducting a comprehensive review of AutoML and Neural Architecture Search (NAS). They analyzed existing literature and provided insights into advancements, challenges, and future directions. Employing a systematic review approach, the authors identified studies from reputable databases. The review covers various aspects, including AutoML methods, industrial applications, and open issues related to performance and accuracy. It highlights the role of these techniques in optimizing deep neural applications and addressing challenges in accuracy, latency, and energy consumption. Additionally, the article discusses the motivation behind AutoML research and its potential impact on innovation across industries. It also examines open issues and limitations, offering insights into potential developments.

To systematically evaluate and compare the performance of various AutoML frameworks, Gijbers et al.⁴ introduced Automated Machine Learning Benchmark (AMLB), a comprehensive benchmarking framework. AMLB provides a standardized environment with a diverse collection of real-world datasets covering tasks such as classification and regression of varying complexities. By establishing consistent evaluation metrics and protocols, curating datasets from multiple domains to test generalization capabilities, presenting empirical results of state-of-the-art AutoML frameworks, and offering an open-source platform to encourage reproducibility and future research, the authors emphasize the importance of such benchmarks in advancing AutoML development. AMLB is a valuable resource for researchers and industry professionals by identifying performance gaps and guiding practitioners in selecting appropriate tools to understand and improve AutoML technologies.

Eldeeb et al.⁶¹ proposed a large-scale AutoML benchmark study across 100 classification datasets using six frameworks, including AutoWEKA, AutoSklearn, TPOT, RECIPE, ATM, and SmartML. The study explored how pipeline design decisions—such as search space size, use of meta-learning, time budgets, and ensemble strategies—impact performance. Unlike many benchmarks that report only aggregate scores, Eldeeb et al. emphasized how tool behavior changes under different constraints. Although they did not focus on multilabel classification, their results provide a detailed comparative analysis of tool robustness and configurability across a wide range of tasks, offering practical guidance for AutoML deployment.

Research gap and our contribution

This section has reviewed various AutoML frameworks, highlighting their transformative potential across diverse applications and methodologies. While these studies demonstrate significant advancements, challenges such as scalability, optimization for multilabel tasks, and the need for standardized benchmarks remain. Prior research has largely focused on theoretical comparisons, often failing to address real-world applications. Notably, although some works incorporate limited performance metrics (e.g., accuracy) or consider only binary and multiclass tasks, few studies adopt multi-level statistical tests or examine native and powerset multilabel approaches in a unified setting.

To bridge these gaps, our study evaluates sixteen AutoML frameworks under stringent time constraints across binary, multiclass, and multilabel problems—including both native and label-powerset classifications. Unlike many prior efforts, we employ extensive, multi-tiered statistical analyses (per-dataset, across-datasets, and all-datasets) to robustly determine significance in both predictive performance and computational efficiency. This hands-on methodology connects theoretical insights with real-world outcomes, offering practitioners actionable guidance for selecting or refining AutoML strategies. Our open-source code and reproducible protocols further ensure that researchers can replicate, extend, and apply our findings to a broad range of classification scenarios.

By evaluating AutoML frameworks using real datasets, our study provides a broader, more practical perspective on their capabilities, thus helping researchers and practitioners select the most appropriate tool based on classification type, computational constraints, and desired performance metrics. Table 2 highlights the key focuses, methods, metrics, and outcomes of prior research. It also outlines how our work addresses existing gaps – such as limited task diversity, lack of multilabel support, and insufficient statistical rigor—through multi-task benchmarking, multi-tier statistical analysis, and the explicit evaluation of both native and label-powerset multilabel strategies.

Table 2 Study-by-study summary of AutoML research, highlighting methods, findings, and distinctions from our work.

To complement the study-specific overview in Tables 2 and 3 presents a comparative summary of recent AutoML benchmarking efforts across key methodological dimensions. This feature-level synthesis highlights how our study extends the state of the art in terms of classification coverage, dataset diversity, statistical validation, and practical applicability.

Table 3 Feature-level comparison of AutoML studies, emphasizing task coverage, tool diversity, and evaluation rigor.

Assessment methodology

This section describes the methodology for evaluating AutoML tools in different classification tasks. It details dataset selection, data preprocessing, tool workflow, performance metrics, and result analysis to ensure a fair and reproducible comparison.

Dataset selection

To evaluate AutoML frameworks across different classification tasks, we selected datasets spanning binary, multiclass, and multilabel classification problems. These datasets are all real, publicly available OpenML benchmarks, not synthetic toy problems. They vary in size and include a mix of quantitative, qualitative, and mixed feature types. The number of predictive features ranges from just a few to over 200, and the label structures differ in complexity: from simple binary outcomes to multi-class categories and multilabel combinations. For multilabel datasets, we report both the number of original labels and the number of unique label combinations resulting from the Label Powerset transformation. We specifically chose these 21 OpenML datasets because they are among the most commonly referenced benchmarks in the literature, ensuring comparability with prior studies, and they collectively cover a broad spectrum of real-world domains and data characteristics.

To quantify dataset characteristics, we used two complementary metrics. The first, complexity, is calculated differently depending on the classification type. For binary and multiclass tasks, complexity⁶² is defined as the ratio of the product of features and classes to samples. For multilabel classification, complexity¹¹ incorporates label cardinality (the average number of labels per instance) to compute effective classes. This metric helps contextualize the computational difficulty of each dataset, where higher values suggest a more challenging classification task. We also report the imbalance, defined for binary and multiclass tasks as the ratio of the smallest to the largest class size. For multilabel datasets, we report both a global imbalance ratio based on total positive and negative label counts, and a powerset-based ratio computed over unique label combinations. Values near 1 indicate balanced distributions, while values near 0 reflect severe imbalance.

Our selection aimed for broad diversity across several dimensions. We sampled (i) size tiers—small ($<1000$ rows), medium (1000–2000), and large ($>2000$); (ii) application domains, including finance (credit-g), health (diabetes, cardiotocography), imaging (wdbc, segment, scene), text (reuters), and time-series/audio (birds); (iii) a wide complexity spectrum—from 0.006 for bank-note-authentication to 7.766 for birds; and (iv) a broad imbalance range—from 0.001 for reuters to 1.000 for hill-valley and segment. A complete summary of all datasets is presented in Table 4.

Table 4 Summary of the datasets.

Data preprocessing

Minimal preprocessing was applied prior to feeding data into the AutoML tools. Categorical features were integer-encoded using factorization for compatibility across frameworks. Targets were numerically encoded for binary and multiclass tasks; for multilabel classification, labels were either binarized (0 = absence, 1 = presence) or transformed via Label Powerset into unique class identifiers. All other preprocessing, including missing value handling, scaling, and feature engineering, was delegated to the AutoML frameworks to allow them to optimize data preparation internally.

Tool workflow

Frameworks were selected based on adoption in the research community, open-source availability, and integration with widely used ML libraries to align with standard workflows. Each AutoML framework was executed with minimal intervention, handling data preprocessing, feature selection, model training, and HPO. To ensure fair comparison, key parameters—time budget, evaluation metrics, and parallelization—were unified. Because each framework conducts its own internal hyperparameter search, we gauged consistency by running 20 independent trials per dataset, each started with a different prime-number seed—thereby sampling distinct HPO trajectories without externally altering the tools’ default settings. Table 1 summarizes key features: data handling, classification task coverage, and optimization techniques. Details on dataset partitioning, runtime constraints, and hardware specifications are provided in “Setup” section, while threats to validity are discussed in “Threats to validity” section.

Performance metrics

To evaluate AutoML frameworks, we define key performance metrics. Precision is the proportion of correctly predicted positive instances among all predicted positives for a given class $a$, while recall measures the proportion of actual positives correctly identified. Here, $a$ represents a specific class, $TP(a)$ are correctly predicted positives, $FP(a)$ are incorrectly predicted as positive, and $FN(a)$ are actual positives missed by the model. Their formal definitions are given in Eqs. (1) and (2).

$$\begin{aligned} Precision(class = a) = \frac{TP(a)}{TP(a) + FP(a)}, \end{aligned}$$

(1)

$$\begin{aligned} Recall(class = a) = \frac{TP(a)}{TP(a) + FN(a)}. \end{aligned}$$

(2)

A more robust and informative metric is the F₁ score, which represents the harmonic mean of precision and recall for a given class $a$. This metric balances the trade-off between precision and recall, making it particularly useful for evaluating imbalanced datasets. However, while the $F_1$ score effectively evaluates individual classes, it does not account for class imbalances across the dataset. To address this, the weighted $F_1$ score^84,85,86 extends the $F_1$ score by incorporating the support, which is the number of true instances (samples) of each class in the dataset. This ensures that the metric reflects the relative importance of each class proportionally. Here, $C$ represents the set of all classes, $n_a$ is the support of class $a$ (i.e., the number of true samples belonging to class $a$), and $F_1~score(a)$ is the $F_1$ score for class $a$. The formulas for both metrics are given in Eqs. (3) and (4).

$$\begin{aligned} F_1~score(class = a) = 2 \cdot \frac{\text {Precision}(a) \cdot \text {Recall}(a)}{\text {Precision}(a) + \text {Recall}(a)}, \end{aligned}$$

(3)

$$\begin{aligned} Weighted~F_1~score(class = a) = \frac{\sum _{a \in C} n_a \cdot F_1~score(a)}{\sum _{a \in C} n_a}. \end{aligned}$$

(4)

The calculation of the weighted $F_1$ score varies slightly depending on the type of classification problem:

• Binary: the weighted $F_1$ score is equivalent to the standard $F_1$ score when there are only two classes, as the weights are derived directly from the support of the positive and negative classes.

• Multiclass: the weighted $F_1$ score considers the $F_1~score(a)$ for each class $a$ and weights them by their respective support ($n_a$). This ensures that the contribution of each class to the final score reflects its proportion in the dataset.

• Multilabel: each label is treated as a binary classification problem, and the weighted $F_1$ score is calculated across all labels by summing the weighted $F_1$ scores for each label and dividing by the total support.

The weighted $F_1$ score provides a robust and comprehensive performance measure, making it suitable for various classification tasks with imbalanced datasets. Incorporating the relative importance of each class allows results to be presented and evaluated responsibly and fairly. Each metric ranges from 0 to 1, with values closer to 1 indicating better performance.

Alternative evaluation metrics such as the Area Under the Receiver Operating Characteristic Curve (AUROC), the Area Under the Precision-Recall Curve (AUC-PR), and log-loss were not adopted due to limitations in multiclass and multilabel contexts. AUROC measures the trade-off between true and false positive rates across thresholds, while AUC-PR reflects precision-recall performance for the positive class^87,88. Both are difficult to interpret or inconsistently defined when label dependencies are present, as in multilabel classification¹¹. Logarithmic loss (log-loss) assesses the confidence of probabilistic predictions but is sensitive to class imbalance and lacks intuitive interpretability across tasks⁸⁹. In contrast, the weighted $F_1$ score is robust, interpretable, and applicable across binary, multiclass, and multilabel settings, making it the most suitable choice for unified AutoML benchmarking. Although some frameworks—such as AutoSklearn, FLAML, and mljar-supervised—support interpretability via SHAP (SHapley Additive exPlanations)⁹⁰ and feature importance scores⁹¹, this study focuses on predictive performance and computational efficiency. A dedicated evaluation of interpretability features is left for future work.

Result analysis

The evaluation of AutoML frameworks considers both performance and efficiency. To assess model reliability, stability, and computational demands, we analyze the following:

• Weighted $F_1$ score: Evaluates classification performance by balancing precision and recall. We report: (i) maximum weighted $F_1$ score, indicating the best-case scenario, (ii) mean weighted $F_1$ score, representing expected performance, and (iii) standard deviation (SD), measuring variability, where lower values indicate greater stability. Results for binary, multiclass, and multilabel tasks are analyzed separately, with framework rankings aggregated for overall assessment.

• Training time: Assesses efficiency based on execution speed and consistency. We report: (i) minimum training time, reflecting the fastest execution, (ii) mean training time, estimating typical computational needs, and (iii) standard deviation, indicating runtime stability, where lower values suggest more predictable performance.

To ensure robust comparisons, we apply statistical tests in “Statistical analysis” section to evaluate performance ($F_1$ score) and efficiency (training time) across frameworks. The analysis considers three scenarios: per-dataset, across-datasets, and all-datasets. Per-dataset analysis examines each dataset individually, across-datasets analysis ranks frameworks based on aggregated results, and all-datasets analysis identifies the best-performing framework overall. These tests confirm that observed differences are statistically meaningful rather than random variations. Additional methodological details are also provided in the section.

Experiments

Setup

The experimental setup involved implementing the experiments in Python and consolidating the code and instructions for reproducibility in the following public GitHub repository: https://github.com/marcelovca90/auto-ml-evaluation. Key functionalities, including data retrieval, sampling, and target encoding, were executed using the Pandas⁹², scikit-learn²¹, and scikit-multilearn⁹³ (for label powerset) libraries. Datasets were sourced from the public API of the OpenML tool⁹⁴.

To ensure robust and random evaluations, each dataset underwent 20 rounds of shuffling using prime number seeds (2–71) for the random number generator (RNG). This shuffling mitigates bias and strengthens the generalizability of the findings. The data was split into an 80/20 ratio for training and testing in each round, ensuring consistency across evaluations. Additionally, the prime number seeds were used to initialize the random state of the AutoML frameworks, enhancing reproducibility in their search processes. Prime numbers were chosen as seeds to minimize unintended correlations in dataset shuffling. Unlike composite numbers, they reduce the risk of systematic bias and improve statistical randomness. This approach aligns with best practices in cryptography and randomized algorithms, reinforcing the robustness and fairness of experimental outcomes⁹⁵.

For each seed, a shell script orchestrated the experiments in a dedicated Linux environment, executing all AutoML frameworks per dataset with a fixed 5-min timeout. This limit ensured fair comparison across frameworks with varying optimization speeds—some rely on fast heuristics, others on longer runtimes. A fixed cap prevents bias toward either. RAM was monitored throughout, but no framework exceeded system memory or failed due to resource limits, so no cap was enforced. After each iteration, results were aggregated using NumPy⁹⁶ to compute basic statistics (max, min, mean, and standard deviation), providing insight into framework performance.

The experiments were conducted on a computer with an AMD® Ryzen™ 9 5900X processor, 128 GB of DDR4-3200 RAM, Nvidia GeForce® RTX™ 3090 24 GB GDDR6X dedicated graphics card (driver version 546.17), and Ubuntu operating system (version 22.04.2 LTS) under Windows 11 Professional (version 22H2) using WSL (Windows Subsystem for Linux).

For a more comprehensive understanding of the experiment’s configuration, Table 5 details the custom parameters used for each framework. This table provides insight into the specific settings employed during the construction, fitting, and prediction processes through custom parameters.

Results and discussion

This section presents experimental results for binary, multiclass, and multilabel classification tasks. The primary performance metric is the weighted $F_1$ score (defined in “Performance metrics” section), which balances precision and recall while accounting for class imbalance. Training time is also analyzed to assess computational efficiency.

Each framework-dataset pair was evaluated over 20 runs with shuffled splits using prime number seeds. We report the maximum, mean, and standard deviation of the weighted $F_1$ score. A high maximum indicates strong predictive capacity in at least one trial, while a high mean and low standard deviation reflect robustness to hyperparameter and data variation.

While prediction time matters in real-time settings such as Network Traffic Analysis (NTA)^97,98, we focus on training time, as excessive durations can hinder model usability.

For each classification type, results are summarized in tables and figures reporting weighted $F_1$ scores and training times. The discussion is structured around the following key aspects:

• Performance analysis Comparison of frameworks based on weighted $F_1$ scores across datasets of varying complexity. The analysis identifies where advanced techniques like ensemble learning or NAS contribute to higher accuracy.

• Training time analysis Examination of computational efficiency through training time comparisons. This highlights the trade-off between frameworks that maximize accuracy through exhaustive optimization versus those prioritizing speed through adaptive resource allocation.

• Usability and scalability comparison Evaluation of framework behavior under growing data complexity and resource constraints, including how they manage missing values, categorical features, and class imbalance. We highlight differences in scalability and design focus (e.g., exhaustive search vs. adaptive strategies).

• Biases, limitations, and failure modes We log crashes, timeouts, and degenerate predictions (e.g., NaNs, single-class outputs), tracing them to issues such as inadequate handling of missing values, categorical encoding, or label imbalance. These cases expose framework brittleness and complement quantitative results with robustness insights.

• Insights on complexity and imbalance Expanded analysis of the relationship between dataset complexity, class imbalance, and framework performance, with emphasis on cases where traditional complexity metrics fail to explain results. In both standard and multilabel settings, severe imbalance—whether across labels or label combinations—often proved more predictive of failure than complexity alone, highlighting the need for imbalance-aware modeling.

• Conclusion Summary of trade-offs between frameworks favoring exhaustive search and those optimized for efficiency.

Next, we present and discuss the results for each classification task, followed by overall findings and insights. Finally, we examine threats to validity, considering potential limitations and the reliability of our conclusions.

Table 5 Custom settings used in each framework.

Binary scenario

From here on, each dataset is identified as “Name (ID, C/I)”, where C denotes complexity and I indicates class imbalance, as per Table 4; scores are reported as “max. (mean ± SD)” for $F_{1}$, and training times as “min. (mean ± SD).” For the binary datasets, Tables 6a and b, along with Figs. 6 and 7, summarize each framework’s weighted $F_{1}$ score and training time.

Table 6 Performance summary for binary classification tasks.

Fig. 6

Binary weighted $F_1$ score—maximum (mean ± std dev).

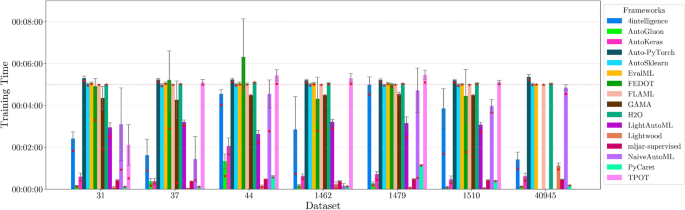

Fig. 7

Binary training time—minimum (mean ± std dev).

Performance analysis

From a performance perspective, most frameworks achieved strong results on simpler datasets, as shown in Table 6a and Fig. 6—particularly bank-note-authentication (ID 1462, 0.006/0.800), where perfect $F_{1}$ scores were common. However, as dataset complexity increased, performance variability became more pronounced. On hill-valley (ID 1479, 0.165/1.000), frameworks exhibited a wide range of results, with AutoSklearn and GAMA achieving a perfect score, followed by TPOT with 0.992. In contrast, AutoGluon, despite a maximum of 0.926 (mean: 0.685 ± 0.162), showed better adaptability to training time, whereas LightAutoML struggled, reaching only 0.368. These differences highlight the impact of framework design on handling complex datasets. Frameworks like AutoSklearn and Auto-PyTorch use advanced Bayesian HPO³⁸, while GAMA and TPOT employ genetic programming⁴⁹, both consistently yielding high scores and robust performance. Meanwhile, AutoGluon leverages stacked ensembles and adaptive model selection³⁵, maintaining competitive results with lower training time. In contrast, LightAutoML and Lightwood, with limited feature engineering and less aggressive HPO^44,45, showed performance degradation on high-dimensional datasets.

Training time analysis

Training time analysis revealed a clear trade-off between exhaustive optimization and rapid execution. As shown in Table 6b and Fig. 7, heavy-search frameworks such as AutoSklearn and TPOT consistently used nearly the full 5-min budget (05:00 ± 00:02), achieving the highest $F_{1}$ scores. In contrast, adaptive pipelines dynamically adjusted their runtimes: AutoGluon completed bank-note-authentication (ID 1462, 0.006/0.800) in just 00:11 ± 00:03 while still reaching $F_{1}=1.000$, and on hill-valley (ID 1479, 0.165/1.000) it finished in 00:17 ± 00:04 (with $F_{1}=0.926$). “Speed-first” tools ran dramatically faster but at lower accuracy – for example, Lightwood ran in about 2 s ($\approx 150\times$ faster) with $F_{1}=0.563$, and LightAutoML ran in 02:29 ± 00:18 ($\approx 2\times$ faster) with $F_{1}=0.368$. These results underscore how runtime strategies directly affect both speed and accuracy.

Usability and scalability comparison

On spambase (ID 44, 0.025/0.650), frameworks that relied on extensive HPO required the full training budget to achieve high scores, while others produced comparable results in significantly less time. This supports findings that HPO through Bayesian optimization³⁸ or genetic programming⁴⁹ can increase training time without necessarily yielding substantial performance improvements. On hill-valley (ID 1479, 0.165/1.000), which contains 100 features, scalability differences were more apparent. Some frameworks required the full training budget due to their reliance on exhaustive model selection³⁸, whereas others completed training in a fraction of the time at the cost of lower $F_{1}$, illustrating the speed–accuracy trade-off in high-dimensional tasks^35,44.

Biases, limitations, and failure modes

Four frameworks—FEDOT, GAMA, LightAutoML, and TPOT—crashed on the moderately imbalanced titanic set (ID 40945, 0.020/0.618) for distinct but related reasons: FEDOT stalled on missing-value imputation, TPOT failed to encode non-numeric categoricals, and GAMA and LightAutoML aborted when extreme class imbalance left the target effectively single-class (the latter performing a sanity check). AutoSklearn and AutoGluon completed the task, evidencing resilient pipelines with built-in imputation, encoding, and class-balancing heuristics. Two general patterns emerged across the seven binary datasets: (i) exhaustive Bayesian or genetic search engines (AutoSklearn, Auto-PyTorch, TPOT) achieved the highest $F_{1}$ scores but often overfit the trivially separable bank-note-authentication (ID 1462, 0.006/0.800); (ii) speed-first pipelines (LightAutoML, Lightwood) ran dramatically faster but suffered major accuracy losses ($\ge 0.6$ in $F_{1}$) on noisy, high-dimensional hill-valley (ID 1479, 0.165/1.000). Tree-ensemble tools (AutoGluon, FLAML) showed only mild dips on imbalanced sets, likely because their 5-minute budgets precluded advanced re-sampling or cost-sensitive learning.

Insights on complexity and imbalance

Dataset difficulty hinges on how complexity interacts with class skew. The noisy, high-dimensional hill-valley (ID 1479, 0.165/1.000) defeated every speed-first tool despite moderate complexity, whereas the separable yet skewed bank-note-authentication (ID 1462, 0.006/0.800) still yielded perfect $F_{1}$ for most frameworks. Low complexity but moderate skew in credit-g (ID 31, 0.040/0.429) caused dips in tree ensembles, while slight skew in diabetes (ID 37, 0.021/0.536) challenged pipelines without feature-interaction search. High complexity and moderate skew in wdbc (ID 1510, 0.105/0.594) saw uniformly strong scores, confirming that informative feature geometry can override imbalance. Together, these findings show that neither complexity nor skew alone predicts risk; it is their joint profile that decides success.

Conclusion

The binary scenario analysis reveals trade-offs among the evaluated frameworks. AutoSklearn and TPOT, which employ comprehensive model search and HPO^38,49, achieve high accuracy but require longer training times, prioritizing performance over efficiency. AutoGluon and FLAML balance accuracy and scalability through efficient model selection and automated ensembling^35,41. In contrast, LightAutoML and GAMA, which limit computational resources^42,44, exhibit higher performance variability, particularly on complex datasets, due to constraints in feature engineering and optimization. These results highlight the need for adaptable frameworks with low variability to ensure reliable performance across diverse datasets.

Multiclass scenario

Departing from the binary datasets, analyzing the multiclass scenarios through Tables 7a and b, as well as Figs. 8 and 9, we observe significant variation in performance and training times across frameworks.

Table 7 Performance summary for multiclass classification tasks.

Fig. 8

Multiclass weighted $F_1$ score—maximum (mean ± std dev).

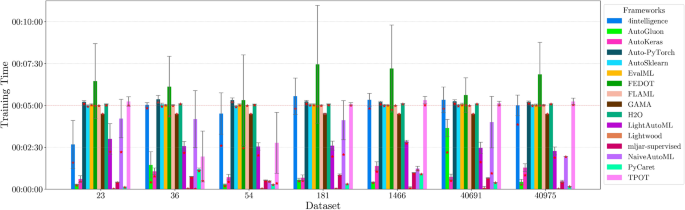

Fig. 9

Multiclass training time—minimum (mean ± Std Dev).

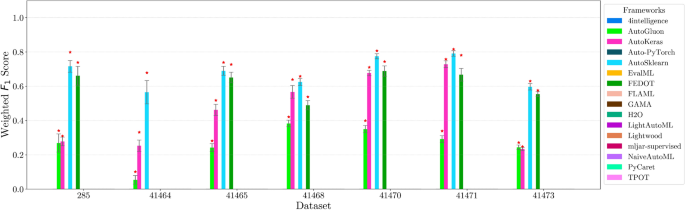

Fig. 10

Multilabel (native) weighted $F_1$ score—maximum (mean ± std dev).

Fig. 11

Multilabel (native) training time—minimum (mean ± std dev).

Performance analysis

Performance across multiclass datasets revealed notable differences in framework robustness, as shown in Table 7a and Fig. 8. On cardiotocography (ID 1466, 0.165/0.091), frameworks like AutoSklearn (1.000 ($1.000\pm 0.000$)) and PyCaret (1.000 ($0.999\pm 0.002$)) achieved high weighted $F_{1}$ scores with low variability, indicating reliable performance on high-complexity tasks. In contrast, H2O (0.915 ($0.706\pm 0.214$)) struggled to handle complex distributions consistently, while LightAutoML performed poorest (0.150 ($0.104\pm 0.022$)) on that dataset. Trends also varied on simpler datasets such as contraceptive-method-choice (ID 23, 0.018/0.529). Here, AutoSklearn (max 0.631, mean $0.569\pm 0.031$) proved more consistent, whereas LightAutoML (max 0.461, mean $0.415\pm 0.029$) demonstrated weaker performance and higher variability. Overall, many frameworks (e.g., AutoGluon, Auto-PyTorch, FEDOT, mljar-supervised, NaiveAutoML, TPOT) reached near-perfect $F_{1}$ on datasets such as segment (ID 36, 0.058/1.000), wine-quality-red (ID 40691, 0.041/0.015), and car (ID 40975, 0.014/0.054), underscoring the capacity of AutoML to excel on diverse multiclass tasks.

Training time analysis

Training times also varied significantly across frameworks and datasets, as shown in Table 7b and Fig. 9. Some frameworks (e.g., Auto-PyTorch, AutoSklearn, EvalML, TPOT) generally utilized the full 5-min budget or close to it, irrespective of dataset complexity, yielding top-tier $F_{1}$ scores but at the cost of longer, inflexible runtimes. In contrast, LightAutoML took only a few minutes on most datasets (e.g., 02:15 min for contraceptive-method-choice (ID 23, 0.018/0.529), 02:44 min for cardiotocography (ID 1466, 0.165/0.091)), though its performance was inconsistent. Meanwhile, AutoGluon, PyCaret, and mljar-supervised consistently completed tasks in well under a minute on simpler datasets—and even on more complex ones often finished in 1–3 min (e.g., AutoGluon ’s min 02:12 min on wine-quality-red (ID 40691, 0.041/0.015)), leveraging adaptive resource usage and ensembling. Finally, Lightwood reported extremely short runtimes (a few seconds) though with more variable performance.

Usability and scalability comparison

On spambase (ID 44, 0.025/0.650), frameworks that relied on extensive HPO required the full training budget to achieve high scores, while others produced comparable results in significantly less time. This supports findings that HPO through Bayesian optimization³⁸ or genetic programming⁴⁹ can increase training time without necessarily yielding substantial performance improvements. On hill-valley (ID 1479, 0.165/1.000), which contains 100 features, scalability differences were more apparent: some frameworks required the full training budget due to their reliance on exhaustive model selection³⁸, whereas others completed training in a fraction of the time at the cost of lower $F_{1}$, illustrating the speed-accuracy trade-off in high-dimensional tasks^35,44.

Biases, limitations, and failure modes

No multiclass dataset triggered a hard failure, yet two systematic weaknesses surfaced: (i) NAS-driven frameworks (AutoKeras, Auto-PyTorch) excelled on image-like segment (ID 36, 0.058/1.000) but showed limited generalization across tasks, revealing bias toward convolutional backbones; (ii) pipelines that blindly one-hot encode categoricals (H2O, LightAutoML) suffered severe accuracy drops (up to 0.80 in $F_{1}$) on cardiotocography (ID 1466, 0.165/0.091) and yeast (ID 181, 0.054/0.011), where rare classes combine with many sparse features, whereas CatBoost-based engines (FLAML, mljar-supervised) remained unaffected. Exhaustive-search systems (AutoSklearn, Auto-PyTorch, TPOT, GAMA) consistently consumed full 5-minute budgets, confirming classic speed-versus-performance trade-off.

Combined variability analysis

In multiclass classification, frameworks displayed differing levels of reliability in performance and training times. AutoSklearn and PyCaret consistently maintained low variability—exemplified on segment (ID 36, 0.058/1.000), where AutoSklearn reached 0.993 (0.985 ± 0.006) and PyCaret 0.994 (0.983 ± 0.005) with limited fluctuations. In contrast, LightAutoML and H2O reported greater variability, especially on cardiotocography (ID 1466, 0.165/0.091), where standard deviations in $F_{1}$ exceeded 0.020 and 0.200, respectively—suggesting sensitivity to parameter initialization or partial pipeline exploration.

Insights on complexity and imbalance

Imbalance dominated outcomes more than nominal complexity. The most complex set, cardiotocography (ID 1466, 0.165/0.091), yielded near-ceiling scores with robust encoders, while benign yeast (ID 181, 0.054/0.011) remained chief failure case for one-hot or linear pipelines. Even low-complexity, mid-skew contraceptive-method-choice (ID 23, 0.018/0.529) exposed $F_{1}$ gaps between exhaustive search engines and fast heuristics. Conversely, balanced but richer segment (ID 36, 0.058/1.000) posed little difficulty for NAS-based tools. Hence, the practical “hardness” surface is shaped by twin axes of categorical sparsity and minority-class share rather than feature-class ratio.

Conclusion

AutoSklearn and PyCaret balanced performance, efficiency, and robustness well on multiclass tasks. AutoGluon, mljar-supervised, and TPOT also demonstrated strong results, especially when time was limited and adaptive resource allocation proved beneficial. H2O and LightAutoML exhibited larger swings in performance, highlighting the need for tuning when faced with high-complexity data or subtle class imbalances. Encouragingly, no failures occurred on any dataset, underscoring these frameworks’ capabilities under controlled conditions, though real-world deployments still demand cautious preprocessing.

Multilabel (Native) scenario

Analyzing the native multilabel cases (i.e., without “label powerset” transformation) reveals framework compatibility and performance insights. Tables 8a and b, as well as Figures 10 and 11, present the experimental results.

Table 8 Performance summary for multilabel (Native) classification tasks.

Performance analysis

Among the functioning frameworks, AutoSklearn consistently outperformed AutoKeras, AutoGluon, and FEDOT, as shown in Table 8a and Fig. 10. It achieved significantly higher $F_{1}$ scores across all datasets, with lower or comparable standard deviations, indicating greater robustness^3,32. For instance, on yeast (ID 41473, 2.528/0.434), AutoSklearn reported a weighted $F_{1}$ score of $0.630\,(0.597\pm 0.019)$, outperforming both FEDOT with $0.576\,(0.554\pm 0.014)$ and AutoKeras with $0.248\,(0.234\pm 0.009)$. Even the best performer (AutoSklearn) peaked at just 0.63 on the hardest dataset, versus $>0.9$ on binary/multiclass tasks—underscoring that native multilabel remains largely unsolved. AutoGluon, while efficient on many binary or multiclass tasks³⁵, struggled to surpass $F_{1}=0.421$ on image (ID 41468, 0.417/0.328), suggesting less effective internal strategies for multi-output data³. FEDOT performed moderately but remained sensitive to dataset complexity, and AutoKeras maintained relatively short training times but lagged in predictive accuracy on large or complex label spaces.

Training time analysis

As shown in Table 8b and Fig. 11, AutoSklearn consistently consumed the full 5-min budget, yielding thorough HPO and, consequently, higher $F_{1}$ scores^24,38. By comparison, AutoKeras completed many tasks in under two minutes (e.g. 00:45–03:15), leveraging faster neural architecture exploration at the cost of fully optimized configurations²². AutoGluon displayed mixed times (1–5 min), reflecting adaptive resource usage³⁵. Meanwhile, FEDOT sometimes hovered near 5 min (and even exceeded it on reuters (ID 41470, 0.981/0.197)), indicating less stable search strategies for higher-complexity problems⁴⁰. These findings align with the principle that deeper model searches or ensemble methods typically yield better predictive performance but require proportionally more compute time^2,32.

Usability and scalability comparison

From a usability perspective, frameworks with native multilabel support are rare; most either do not implement multi-output methods or rely on wrappers³. In this experiment, only AutoSklearn, AutoGluon, AutoKeras, and FEDOT produced valid native multilabel models. Among these, AutoSklearn ’s advanced Bayesian HPO often secured the highest $F_{1}$ but demanded full-time allocation^24,38, while AutoKeras achieved faster builds via NAS but lower accuracy. AutoGluon and FEDOT landed in between, reflecting moderate performance and variable runtimes. This suggests that frameworks balancing thorough pipeline searches with efficient resource usage—via optimized cross-validation or automated ensembling^32,35—offer more scalability on larger datasets under time constraints. However, the dearth of native multilabel solutions underscores that specialized tasks can limit an AutoML framework’s applicability in real-world scenarios.

Biases, limitations, and failure modes

Only four frameworks—AutoSklearn, AutoGluon, AutoKeras, and FEDOT—could train native multilabel models; the remaining eleven either lack multi-output estimators or crashed during pipeline construction. AutoSklearn ’s Binary-Relevance ensembles achieved the highest overall weighted $F_{1}$ but still reached only 0.799 (mean $0.716\pm 0.034$) on the highly imbalanced flags dataset (ID 285, 4.336/0.524), highlighting struggles with rare labels. Shared-backbone architectures of AutoGluon and AutoKeras also showed lower $F_{1}$ on flags, and FEDOT ’s performance varied widely, occasionally timing out under high label cardinality. These patterns illustrate how different native multilabel strategies yield varied robustness when faced with label sparsity.

Combined variability analysis

AutoSklearn and PyCaret consistently maintained low variability, exemplified on segment (ID 36, 0.058/1.000), where AutoSklearn reached $0.993\,(0.985\pm 0.006)$ and PyCaret $0.994\,(0.983\pm 0.005)$ with limited fluctuations. In contrast, LightAutoML and H2O reported greater variability, especially on cardiotocography (ID 1466, 0.165/0.091), where standard deviations in $F_{1}$ exceeded 0.020 and 0.200, respectively. Such variation can imply sensitivity to parameter initialization or partial pipeline exploration, implying further tuning might be necessary in practice.

Insights on complexity and imbalance

For native multilabel, rare-label frequency—not dimensionality—dictated variance. Every framework stumbled on flags (ID 285, 4.336/0.524), where half the labels appear in < 5% of samples, yet several handled the far larger and denser birds (ID 41464, 7.766/0.056) without incident. AutoSklearn ’s binary-relevance ensembles softened the blow but still posted zero recall on the sparsest tags, while shared-backbone models in AutoGluon/AutoKeras excelled on image (ID 41468, 0.417/0.328). These contrasts show that robustness scales with a tool’s ability to detect and weight ultra-minor labels rather than with search depth or feature count.

Conclusion

In native multilabel classification, AutoSklearn demonstrated the strongest combination of accuracy and stability, leveraging exhaustive model selection and HPO^24,38. AutoKeras offered fast training but lower predictive power, while AutoGluon and FEDOT delivered mixed results and times. Only four of the 16 evaluated frameworks provided native multilabel support, leaving most unable to train directly on multi-output data. As a result, real-world users must often resort to label-powerset transformations or custom pipelines. This highlights a structural limitation within current AutoML, where tasks such as multilabel classification still require bespoke solutions to bridge persistent gaps in support³.

Multilabel (powerset) scenario

Moving on to the powerset-transformed multilabel scenarios, we observe varying performance and training efficiency among different frameworks, as shown in Tables 9a and b, as well as Figs. 12 and 13. All imbalance values reported in this section refer to the powerset-transformed label space, as defined in Table 4.

Table 9 Performance summary for multilabel (powerset) classification tasks.

Performance analysis

Regarding the $F_{1}$ score, AutoSklearn consistently achieved the highest values across most datasets, demonstrating robustness and reliability^32,38, as shown in Tables 9a and 12. For example, on scene (ID 41471, 0.787/0.003), AutoSklearn reached $0.796\,(0.749\pm 0.021)$, exceeding both FLAML with $0.772\,(0.723\pm 0.024)$ and Lightwood with $0.299\,(0.235\pm 0.040)$. Such superior performance often stems from comprehensive pipeline searches and ensemble-based optimization, which consistently yield higher accuracy but require more computational effort^2,24. Meanwhile, FLAML and AutoGluon^35,41 also delivered competitive $F_{1}$ results on datasets like reuters (ID 41470, 0.981/0.001), highlighting their potential for powerset-transformed tasks. However, frameworks like Lightwood⁴⁵ and PyCaret⁴⁸ persistently underperformed in predictive accuracy, likely due to shallower HPO strategies or limited feature-engineering capabilities¹.

Training time analysis

Training efficiency varied considerably among frameworks, as shown in Fig. 13 and Table 9b. AutoSklearn exhibited stable training times near the 5-min limit, indicating a thorough optimization process. By contrast, Lightwood often completed tasks in under a minute, emphasizing minimal pipeline overhead at the cost of performance drops³. For instance, on reuters (ID 41470, 0.981/0.001), Lightwood finished in $00{:}14\pm 00{:}02$ but lagged behind AutoSklearn ’s $F_{1}$ by over 30%. PyCaret, conversely, suffered extended runtimes on high-complexity datasets, sometimes exceeding 5 min and negatively impacting usability for time-constrained scenarios. Such disparities confirm the trade-off: deeper HPO or ensembling can boost $F_{1}$ but require more computation, while faster frameworks may be appealing yet yield lower accuracy^24,32.

Usability and scalability comparison

Label-powerset transformations inflate the effective number of classes, leading to pronounced imbalance and sparse label distributions^11,13. Frameworks with robust ensembling or Bayesian HPO strategies (e.g., AutoSklearn³⁸) generally cope better with this complexity, albeit at the cost of longer training times². Meanwhile, tools like AutoGluon and AutoKeras balance speed and accuracy via adaptive model selection^35,41, often excelling on moderately complex tasks without exhausting the time budget. In contrast, frameworks such as LightAutoML⁴⁴, Lightwood⁴⁵, or PyCaret⁴⁸ scale well in runtime but exhibit steeper drops when confronted with large powerset label spaces or heavy imbalances^1,3. Hence, user priorities—rapid prototyping vs. highest possible $F_{1}$—dictate which frameworks are most suitable in powerset scenarios (Table 10).

Table 10 Comparison of AutoML frameworks across classification scenarios in this and prior studies.

Biases, limitations, and failure modes

After powerset transformation, effective class count explodes, exposing three recurrent issues: (i) memory-intensive GP/evolutionary frameworks (Auto-PyTorch, TPOT) struggled on high-cardinality sets birds (ID 41464, 7.766/0.003) and yeast (ID 41473, 2.528/0.004), achieving low precision on rare combinations; (ii) lighter Bayesian engines (FLAML, AutoGluon) finished within budget but lost precision on rare labels, reflecting limited cost-sensitive tuning; (iii) majority-class fallbacks in Lightwood and PyCaret produced sub-minute runtimes yet ignored over 90% of minority classes, yielding degenerate, mode-seeking predictions. FEDOT and GAMA failed on several powerset tasks due to memory or sparsity issues, whereas AutoSklearn ’s bagged one-vs-rest ensembles handled memory pressure and imbalance at the cost of a 5-min budget. These patterns confirm that robustness under label explosion demands either heavy compute (deep ensembles) or specialized imbalance-aware strategies—capabilities missing in many AutoML frameworks.

Combined variability analysis

AutoSklearn maintained low variability in both $F_{1}$ and training times, making it a robust choice for powerset-transformed tasks. On reuters (ID 41470, 0.981/0.001), it achieved $0.764\,(0.718\pm 0.015)$ at $05{:}06\pm 00{:}04$. In contrast, Lightwood displayed high instability, finishing swiftly ($<1$ min) but yielding widely fluctuating results. FLAML offered a middle ground, balancing competitive accuracy (i.e., $0.745\,(0.717\pm 0.016)$ on reuters (ID 41470, 0.981/0.001)) with moderate time usage, illustrating how partial yet efficient HPO can yield strong performance without monopolizing the runtime⁴¹. Hence, frameworks with heavier (or more methodical) optimization loops generally show lower performance variance, while faster solutions introduce the greater risk of suboptimal hyperparameter sets^2,24.

Insights on complexity and imbalance

After powerset transformation, imbalance ratios plunge (< 0.05) yet effective classes skyrocket, producing thousands of near-singletons that cripple memory-hungry GP engines and majority baselines. Moderately complex emotions (ID 41465, 1.361/0.012) proved tougher than denser reuters (ID 41470, 0.981/0.001) because rare label combinations outnumber informative ones. AutoSklearn and FLAML contained long tail via bagged one-vs-rest or cost-aware boosting, whereas EvalML and FEDOT timed out on high-cardinality yeast (ID 41473, 2.528/0.004). Once label-space explosion sets in, success depends less on complexity than specialised imbalance-aware search, memory discipline.

Conclusion

In the multilabel powerset scenario, AutoSklearn generally dominated in $F_{1}$ performance, while FLAML and AutoGluon provided strong contenders with shorter average training times. Frameworks such as Lightwood and PyCaret, though quick on some datasets, often fell behind in predictive quality, illustrating the classic speed-versus-accuracy trade-off^3,32. Additionally, a few tools failed to complete powerset tasks altogether due to label-sparsity-induced pipeline breakdowns^3,12. The results confirm that deeper searches and robust ensembling yield higher accuracy but come at the cost of runtime, while less exhaustive approaches can be advantageous in time-sensitive contexts yet require careful consideration of label imbalance.

Benchmark comparison with prior studies

To situate our results within the broader AutoML evaluation landscape, we compare our results against four representative benchmark studies (see Table 3):

• Truong et al. (2019)²: early analysis of binary and multiclass $F_1$-score ranges under varying class imbalance.

• Wever et al. (2021)³: subset-$F_1$ performance of advanced hyperparameter optimizers on native multilabel tasks.

• Gijsbers et al. (2024)⁴: AUC for binary and log-loss for multiclass across diverse datasets.

• Eldeeb et al. (2024)⁶¹: $F_1$ ± SD results under extended time budgets (10–240 min).

Note: we did not include Romero et al. (2022)⁵⁷ in our comparison because their evaluation was performed on a completely disjoint set of datasets with no overlap to the ones used in this study (Table 4).

We summarize each study’s top-reported metrics (and runtimes, where available) alongside our 5 min budget $F_1$ scores in Table 3—highlighting advances in predictive quality and persistent gaps, particularly in multilabel classification; see the table notes for full definitions and aggregation details. Having established how our results compare to prior benchmarks, we now turn to a detailed examination—analyzing weighted $F_1$ scores across binary, multiclass, native multilabel, and powerset multilabel scenarios.

Binary scenario

In this study, most frameworks achieve high $F_1$ scores (0.75+ minimum), with several reaching perfect 1.0, except for LightAutoML (0.231–0.636) and H2O (0.380–0.985). Comparing with Truong et al.², AutoSklearn shows improvement from their 0.200–0.930 range, while TPOT maintains consistent performance. Darwin (only in Truong’s study) showed impressive binary performance (0.900–0.940). Eldeeb et al.⁶¹ reported strong $F_1$ scores for TPOT (0.890 ± 0.121) and ATM (0.899 ± 0.121), suggesting these frameworks maintain reliability across different benchmark studies.

Multiclass scenario

Again, most frameworks reach perfect scores on some datasets, with AutoGluon, AutoSklearn, and PyCaret showing strong lower bounds (0.61+). Comparing across studies, AutoSklearn improved from Truong’s findings (0.000–0.950), while H2O still shows variability. Gijsbers et al.⁴ used different metrics (log-loss) where AutoSklearn slightly outperformed AutoGluon (0.442 ± 0.026 vs 0.456 ± 0.062, lower is better). Interestingly, frameworks like TPOT show consistent performance across three different studies spanning 2019–2025.

Multilabel (Native) scenario

Only AutoSklearn (0.630–0.816), AutoKeras (0.248–0.758), AutoGluon (0.101–0.421), and FEDOT (0.538–0.781) report native multilabel capabilities in this study. Wever et al.³ focused exclusively on multilabel classification with specialized algorithms like HTN-BF showing competitive performance (0.430–0.790). The contrast between studies highlights that multilabel classification has received less attention in AutoML benchmarking, with specialized approaches from Wever et al. potentially offering insights for improving general-purpose frameworks.

Multilabel (powerset) scenario

Our study shows 4intelligence leading (0.258–0.823) using the label powerset approach, with most frameworks achieving moderate performance but showing greater variability than in binary/multiclass scenarios. None of the previous studies evaluated multilabel powerset approaches, making this a unique contribution of the current research and highlighting a gap in AutoML evaluation literature for transformed multilabel problems. Our analysis reveals that the powerset transformation inherently exacerbates class imbalance by creating numerous rare label combinations, which increases modeling difficulty and explains the higher variance observed across frameworks and datasets compared to binary and multiclass scenarios.

Across scenarios and studies, AutoSklearn demonstrates the most consistent performance and has been thoroughly evaluated in multiple benchmarks. Frameworks show progressive improvements between Truong et al. and this study, particularly for binary and multiclass problems. However, multilabel classification remains challenging with lower $F_1$ scores across all frameworks and studies. The use of different evaluation metrics ($F_1$, AUC, log-loss), dataset selections, and runtime budgets (our 5-minute constraint versus Eldeeb et al.’s extended 10–240 min) across studies makes direct comparison challenging, but frameworks like TPOT and AutoSklearn demonstrate reliable performance across different research efforts, time periods, and computational constraints. Gijsbers’ use of AUC and log-loss provides complementary performance insights that align with $F_1$-based rankings, further validating the overall performance trends observed across different evaluation approaches.

Overall findings and insights

The analysis reveals that no single AutoML framework excels across all scenarios. AutoSklearn consistently demonstrated strong performance across binary, multiclass, and multilabel tasks (both native and powerset), making it a reliable choice for a wide range of classification problems. Its combination of high $F_{1}$ scores, robustness (low variability across datasets), and relatively stable training times underscores its versatility. However, it often consumes the full 5-min budget³⁸, reflecting deeper hyperparameter searches that can be prohibitive in strict time-sensitive contexts².

Frameworks like Lightwood and AutoKeras offered faster training times but showed trade-offs in accuracy due to simpler pipeline strategies and more limited hyperparameter exploration^1,45. Meanwhile, dataset complexity played a significant role in framework performance, though traditional complexity metrics alone did not fully capture real-world challenges such as label imbalance or complex feature interactions. In multiclass tasks, some frameworks exhibited counterintuitive results on ostensibly simpler datasets (e.g., 23) while performing well on more complex ones (e.g., 1466), suggesting domain-specific factors can override nominal complexity³².

Challenges like sparse labels, imbalanced data, and preprocessing limitations were particularly notable in multilabel scenarios. In the native multilabel setting, only AutoSklearn, AutoGluon, AutoKeras, and FEDOT produced valid results, highlighting the scarcity of built-in multi-output support³. Meanwhile, powerset transformations further exacerbated class imbalance, leading to partial failures for frameworks like GAMA and FEDOT. EvalML also struggled on certain transformations, reflecting the need for more robust data-handling strategies (e.g., label subset smoothing, meta-label modeling)^12,13.

Table 11 summarizes the key findings, challenges, and recommendations. It underscores how advanced hyperparameter optimization techniques (Bayesian or genetic)^38,49 can yield top scores at the expense of runtime, while faster methods sacrifice some accuracy. Across binary, multiclass, and multilabel tasks, frameworks like AutoSklearn proved exceptionally consistent but time-consuming, whereas LightAutoML and Lightwood frequently finished in minutes (or seconds) but faced larger performance drops on high-dimensional or imbalanced datasets^44,45. Striking a balance between thoroughness and efficiency remains a central challenge in AutoML design.

By addressing these gaps—improving native multilabel support, handling imbalanced classes, and refining preprocessing pipelines—AutoML frameworks can become more versatile and reliable. This is particularly important for real-world tasks where data quality is inconsistent and resource constraints are stringent^3,32. The recommendations in Table 11 provide actionable steps to guide framework development toward low-variability, high-adaptability solutions for the wide range of classification challenges encountered in practice.

Table 11 Summary of the results and discussion.

In summary, each framework balanced accuracy, speed, and ease of use differently across binary, multiclass, and multilabel tasks. The next section provides a statistical analysis for deeper insights into their real-world applicability.

Statistical analysis

A robust, three-stage statistical analysis was conducted to compare AutoML frameworks with respect to both predictive performance ($F_1$ score) and computational efficiency (training time). In view of the heterogeneous nature of the datasets, classification tasks, and framework behaviors, all decisions regarding the selection of statistical tests and post-hoc comparisons were made automatically, guided by programmatically assessed properties such as normality (e.g., Shapiro–Wilk), variance homogeneity (e.g., Levene’s test), and sphericity (Mauchly’s test). This approach minimized the risk of subjective choices and ensured consistent, repeatable evaluations despite the complexity of the data.

The analysis was organized into three parts:

• Per-dataset analysis (“Per-dataset analysis” section): Each dataset was handled as a standalone case to highlight framework-specific strengths or deficiencies. We tested for normality and variance homogeneity, then applied either a parametric method (ANOVA with Tukey’s HSD) or a non-parametric counterpart (Kruskal–Wallis with Dunn’s post-hoc). This revealed how each framework performed on every individual dataset, unveiling nuances possibly masked by aggregate analyses.

• Across-datasets analysis (“Across-datasets analysis” section): We then aggregated results within each classification scenario (binary, multiclass, multilabel) to identify overarching performance trends. Mean $F_1$ and median training time were tested for normality (Kolmogorov–Smirnov if necessary) before employing either a repeated-measures ANOVA (with Greenhouse–Geisser correction if sphericity was violated) or the Friedman test if parametric assumptions did not hold. This stage provided a broader perspective on how frameworks fared in each scenario as a whole.

• All-datasets analysis (“All-datasets analysis)” section: Lastly, a global comparison was performed by pooling all datasets across all classification types, creating a unified view of framework performance. Given frequent departures from sphericity, a Friedman test was chosen, followed by Nemenyi post-hoc tests for pairwise framework comparisons. This produced a final, scenario-agnostic ranking of methods.

Throughout the analysis, a significance level of $\alpha = 0.05$ was maintained, following standard hypothesis testing conventions⁹⁹, ensuring that the observed differences in framework performance were statistically meaningful. To further strengthen the reliability and reproducibility of these findings, we implemented all statistical tests in Python 3.10 using well-established libraries: scipy¹⁰⁰ for core hypothesis testing, statsmodels¹⁰¹ for advanced model diagnostics, scikit-posthocs¹⁰² for multiple-comparisons procedures, and pingouin¹⁰³ for additional metrics.

By structuring the analysis into per-dataset, across-datasets, and all-datasets stages, we capture nuances at increasing levels of aggregation, thereby addressing potential confounding factors like dataset complexity or class imbalance. The following subsections detail each step, presenting key results and discussing potential research and practical implications.

Per-dataset analysis

For each dataset, we assessed the performance of multiple AutoML frameworks based on two key metrics: $F_1$ Score (predictive performance) and Training Time (computational efficiency). Because each framework–dataset combination had at most 20 trials, the Shapiro–Wilk test¹⁰⁴ was used to assess normality (appropriate for smaller sample sizes), and Levene’s test¹⁰⁵ determined whether variances were homogeneous across frameworks.

When both normality and homogeneity held, we proceeded with parametric statistical tests; otherwise, we used non-parametric methods. To improve normality and stabilize variance, we applied two transformations. First, for bounded $F_1$ values in $[0,1]$, we used the arcsine square root transformation¹⁰⁶, $X' = \arcsin (\sqrt{X})$. Second, for right-skewed Training Time data, we employed a logarithmic transform¹⁰⁷, $X' = \log (1 + X)$.

If the transformed data satisfied normality and homoscedasticity, we ran a one-way ANOVA⁹⁹ to test for overall significance ($p<0.05$). In cases where ANOVA was significant, Tukey’s Honestly Significant Difference (HSD)¹⁰⁸ identified pairwise differences among frameworks. Where assumptions were violated, we relied on the Kruskal-Wallis test¹⁰⁹, a rank-based alternative to ANOVA, and then used Dunn’s post-hoc procedure¹¹⁰ with Holm’s correction¹¹¹ to account for multiple comparisons.

Results

Table 12 summarizes the statistical test results for $F_1$ Score and Training Time in the per-dataset setting. Win–Loss matrices were constructed for each dataset to show how often one framework significantly outperformed another, and these were aggregated by scenario into Win–Loss stacked bar plots, as shown in Fig. 14. Additionally, the distribution of post-hoc $p$-values is illustrated via boxplots in Fig. 15, highlighting the strength of observed differences in both $F_1$ Score and Training Time. Most datasets did not meet the criteria for parametric methods, so Kruskal–Wallis with Dunn’s post-hoc predominated. Nonetheless, a few cases (notably in some multilabel datasets) allowed ANOVA and Tukey’s HSD, demonstrating how differing dataset characteristics can necessitate different statistical procedures.

Table 12 Statistical test results.

Fig. 12

Multilabel (powerset) weighted $F_1$ score—maximum (mean ± std dev).

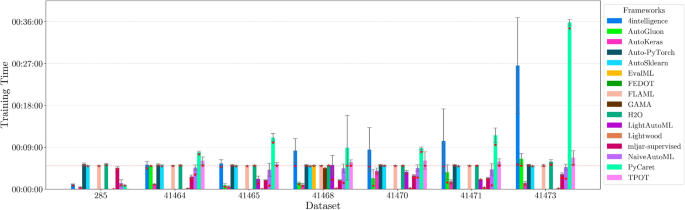

Fig. 13

Multilabel (powerset) training time—minimum (mean ± std dev).

Fig. 14

Win–loss stacked bar plots for each scenario. Each bar represents the number of datasets where a framework achieved statistically significant wins (green) or losses (red) relative to others, shown separately for $F_1$ score and training time.

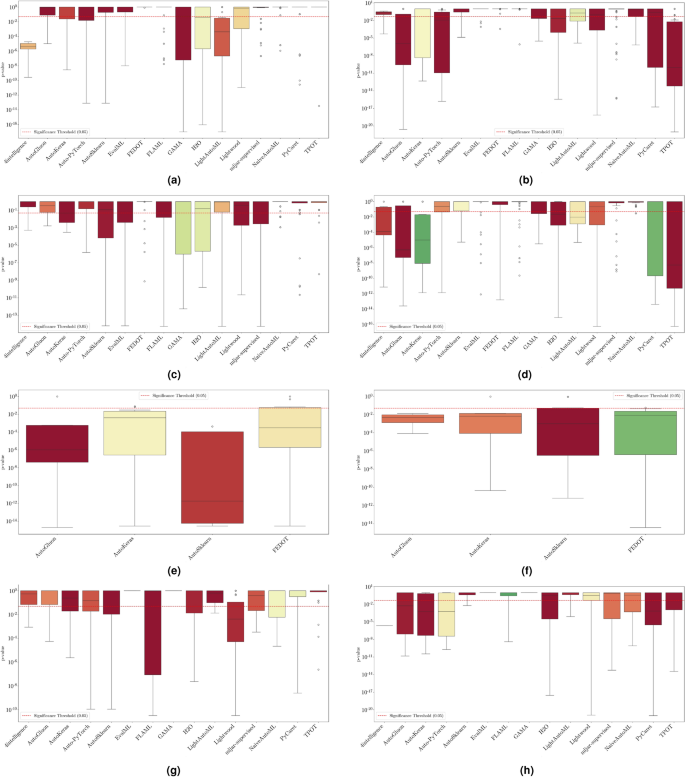

Fig. 15

Post-hoc p-value distributions for each scenario, illustrating pairwise significance among frameworks for $F_1$ Score and Training Time. Colors indicate different significance levels, with green for strong significance, yellow for moderate, and red for weak. The red dashed line marks the $\alpha$ threshold.

Statistical interpretation

Before addressing the research questions in detail, we provide an overview of how the per-dataset results should be interpreted. Each dataset is treated independently to uncover framework-specific strengths and weaknesses in different settings. Because transformations (arcsine or logarithmic) and test choices (parametric vs. non-parametric) can vary from one dataset to another, the following questions and findings capture scenario-by-scenario observations rather than an overall ranking.

RQ1: What statistical test was used for each dataset, and why?

For most datasets, normality and variance assumptions were violated, prompting the Kruskal–Wallis test over ANOVA. As shown in Tables 12a and b, all datasets yielded statistically significant differences in both $F_1$ Score and Training Time. Extremely small $p$-values (e.g., $3.1 \times 10^{-39}$) point to pronounced framework performance disparities. When assumptions were met (e.g., dataset 41465), ANOVA + Tukey’s HSD was applied.

RQ2: Which frameworks perform best and worst for each dataset, in terms of $F_1$ Score and Training Time?

• Best/Worst in $F_1$ Score: Binary tasks show that 4intelligence and AutoSklearn often secured the most wins, while LightAutoML ranked poorly (Fig. 14a). In multiclass settings, AutoSklearn dominated, with PyCaret close behind, but H2O and LightAutoML struggled (Fig. 14c). For multilabel (native), AutoSklearn again excelled, whereas AutoGluon recorded the most losses (Fig. 14e). In the powerset approach, 4intelligence led with more significant wins, while Lightwood and H2O lagged (Fig. 14g).

• Best/Worst in Training Time: Lightwood and AutoGluon were quickest on binary datasets, while Auto-PyTorch and H2O were slowest (Fig. 14b). This pattern continued in multiclass tasks, with Lightwood and PyCaret being the most efficient and Auto-PyTorch/H2O again slower (Fig. 14d). For multilabel (native), AutoKeras proved to be the fastest, whereas FEDOT was consistently slow (Fig. 14f). Finally, Lightwood and AutoKeras also led in powerset tasks, whereas PyCaret and TPOT remained the slowest (Fig. 14h).

RQ3: How strong and consistent are the performance differences among frameworks across datasets?

• $F_1$ Score consistency: Across binary tasks, post-hoc $p$-values were largely below $10^{-10}$, confirming robust differences (Fig. 15a). AutoSklearn and 4intelligence were repeatedly strong, while LightAutoML showed higher $p$-value medians (i.e., weaker performance). In multiclass tasks, AutoSklearn and PyCaret again featured the lowest $p$-values, whereas H2O and Lightwood indicated higher variance (Fig. 15c). Meanwhile, multilabel scenarios often showed broader spreads in significance; AutoSklearn stayed near the top, but AutoGluon had varying results (Figs. 15e , 15g).

• Training time consistency For binary tasks, Lightwood and AutoGluon repeatedly showed small medians, while Auto-PyTorch and H2O were slower with high variance (Fig. 15b). Similar patterns emerged in multiclass (Fig. 15d), whereas in multilabel (native) tasks, AutoKeras was the fastest with tight whiskers, and FEDOT was slow (Fig. 15f). Lastly, in powerset tasks, Lightwood and AutoKeras again ranked as the most efficient, while PyCaret and TPOT performed poorly (Fig. 15h).

These results show that certain frameworks (AutoSklearn, 4intelligence) frequently lead in $F_1$ Score, whereas others (Lightwood, AutoGluon) commonly excel in Training Time. A few (H2O, LightAutoML) display less stable performance across datasets. Because these findings do not provide a definitive ranking over multiple tasks, the subsequent sections aggregate results to identify more general and robust patterns.

Across-datasets analysis

While the per-dataset analysis provided insights into individual datasets, we also assessed framework performance across multiple datasets within each scenario to derive broader rankings. Specifically, we aggregated results per dataset by computing the mean $F_1$ Score for each framework (suitable for near-symmetric distributions) and the median Training Time (to mitigate skewness) before comparing frameworks across all datasets in a given scenario.

Before deciding on a statistical test, we checked the aggregated data for normality. When the number of datasets was fewer than 50, the Shapiro–Wilk test¹⁰⁴ was used; for dataset counts of 50 or more, the Kolmogorov–Smirnov test¹¹² was applied. If normality was violated ($p < 0.05$), we proceeded with the Friedman test¹¹³, a rank-based alternative that does not assume normality or sphericity. Conversely, if normality was upheld, we ran Mauchly’s test¹¹⁴ to examine sphericity. A satisfactory sphericity result ($p \ge 0.05$) permitted the use of Repeated-Measures ANOVA (RM-ANOVA)¹¹⁵, whereas sphericity violations led to applying the Greenhouse-Geisser correction¹¹⁶ for RM-ANOVA. If Mauchly’s test failed altogether (e.g., returning NaN due to a singular matrix or excessive missing data), the procedure automatically reverted to the Friedman test.

After determining the primary test (RM-ANOVA or Friedman), we selected a post-hoc method based on both the statistical approach and the number of pairwise comparisons. Under RM-ANOVA, we employed pairwise $t$-tests with Holm–Bonferroni correction¹¹¹ if there were fewer than 10 comparisons or the Benjamini–Hochberg correction¹¹⁷ if 10 or more. For the Friedman test, the Conover test¹¹⁸ with Holm–Bonferroni correction was used if there were fewer than 10 comparisons (roughly five frameworks), whereas the Nemenyi test¹¹⁹ was applied when 10 or more comparisons existed, since Nemenyi does not require an additional correction.

Framework performance within each scenario was then expressed via an average rank. Under RM-ANOVA, each dataset assigned ranks to frameworks according to higher $F_1$ Scores (better, i.e., lower rank) and lower Training Times (also better, i.e., lower rank). These ranks were then averaged across all datasets in that scenario. When the Friedman test was used, the same ranking approach was conducted according to the non-parametric procedure inherent to Friedman. In both cases, a lower final rank indicated superior overall performance. If the primary test revealed no statistically significant difference ($p \ge 0.05$), the frameworks were simply reported rather than ranked.

Table 13 summarizes this decision process, detailing the thresholds for normality, sphericity checks, and the respective primary/post-hoc tests that govern how frameworks were compared across multiple datasets.

Table 13 Statistical decision framework for AutoML comparison across datasets.

Results

Table 14 presents the statistical test results for $F_1$ Score and Training Time when performance is aggregated across all datasets within each scenario. Each row corresponds to a scenario–metric combination, indicating which normality test was performed (Shapiro–Wilk or Kolmogorov–Smirnov), whether the data passed normality ($p \ge 0.05$), the outcome of Mauchly’s sphericity test if applicable, the final primary test chosen (Friedman or RM-ANOVA), and the post-hoc method. The resulting $p$-values confirm statistically significant differences among frameworks ($p < 0.05$) for every scenario and metric.

After applying the appropriate statistical test, we computed each framework’s average rank within each scenario. Figure 16 presents these rankings for $F_1$ Score and Training Time across the binary, multiclass, multilabel (native), and multilabel (powerset) scenarios, offering a comparative view of framework consistency within each scenario.

Table 14 Statistical test results across datasets for $F_1$ score and training time.

Overall, these results indicate that framework choice significantly impacts both the $F_1$ Score and Training Time across all scenarios (binary, multiclass, and both multilabel modes). The statistical tests (Friedman or RM-ANOVA, when applicable) provided strong evidence of these differences. The subsequent average-rank plots (Fig. 16a–h) highlight the top- and bottom-performing frameworks across aggregated datasets.

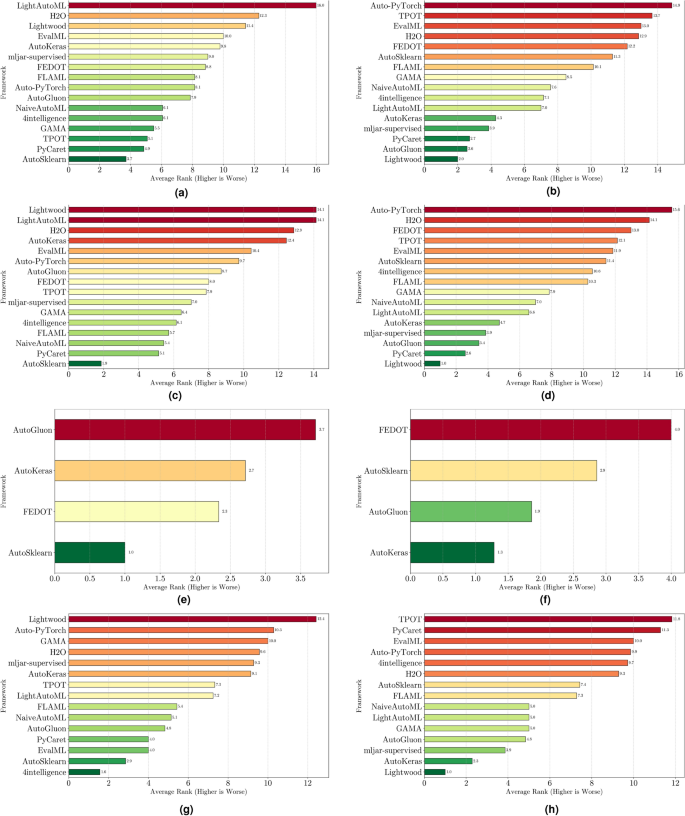

Fig. 16

Average ranks for each framework in $F_1$ Score (left subplots) and Training Time (right subplots) across the four scenarios (Binary, Multiclass, Multilabel Native, and Multilabel Powerset). Each pair of subplots corresponds to one scenario, illustrating which frameworks tend to rank higher (lower rank value) or lower (higher rank value) when results from multiple datasets are aggregated.

Statistical interpretation

Before addressing the research questions for the across-datasets analysis, it is useful to recall that these results aggregate each framework’s performance across all datasets belonging to a particular scenario. Thus, the mean $F_1$ Score and median Training Time serve as single representative values per dataset, allowing a scenario-wide comparison that may differ from the conclusions drawn at the per-dataset level.

RQ4: Do framework performance differences remain statistically significant across datasets within each scenario?

Yes. As shown in Table 14, every scenario (binary, multiclass, and multilabel in both native and powerset forms) exhibits significant differences ($p < 0.05$) for both $F_1$ Score and Training Time. The Multiclass scenario shows especially pronounced variations, particularly in Training Time ($p = 2.4 \times 10^{-13}$) and, to a slightly lesser extent, $F_1$ Score ($p = 3.8 \times 10^{-7}$). Similarly, the Binary scenario registers considerable discrepancies ($p = 5.7 \times 10^{-11}$ for Time, $p = 4.8 \times 10^{-6}$ for $F_1$ Score).

By contrast, both Multilabel (Native) and Multilabel (Powerset) scenarios show statistically significant yet smaller-effect differences (e.g., $p \approx 10^{-3}$). This implies that although frameworks remain distinguishable, their relative performance is somewhat more interchangeable in multilabel tasks than in binary or multiclass classification. Notably, Training Time divergences are consistently more extreme than those observed for $F_1$ Score, suggesting framework choice impacts computational efficiency even more strongly than predictive performance.

RQ5: Which frameworks perform best and worst across datasets within each scenario?

The statistical test results (Table 14) and the average-rank plots (Fig. 16) confirm that certain frameworks dominate in $F_1$ Score, while others excel in Training Time. Binary tasks see 4intelligence and AutoSklearn leading on $F_1$ Score, whereas Lightwood and AutoKeras are fastest. Conversely, Lightwood and Auto-PyTorch trail in $F_1$ Score, while TPOT and PyCaret are the slowest. In Multiclass tasks, AutoSklearn dominates $F_1$ Score, followed by FEDOT and AutoKeras, whereas AutoGluon ranks last. For Training Time, AutoKeras is fastest, but FEDOT is consistently slower. Within Multilabel (Native), AutoSklearn stands out in $F_1$ Score, while Lightwood leads in speed, and in Multilabel (Powerset), AutoSklearn still achieves the top $F_1$ Score rank, but LightAutoML lags behind. Meanwhile, Lightwood repeats its speed advantage, with Auto-PyTorch and TPOT trailing behind.

RQ6: How do the results from the across-datasets analysis compare to the per-dataset analysis?

Many key patterns remain consistent, such as AutoSklearn ’s strong $F_1$ Score and Lightwood ’s speed advantage, yet ranking disparities emerge once multiple datasets are aggregated. For instance, 4intelligence excels in binary tasks on a per-dataset basis but drops in the aggregated standings, indicating potential dataset-specific dependencies. Conversely, H2O improves upon aggregation despite weaker single-dataset results, suggesting scenario-specific variability. These shifts highlight how some frameworks perform well under certain conditions but less so when many datasets are considered simultaneously.

Table 15 summarizes these comparisons by listing the best and worst frameworks in both the per-dataset and across-datasets analyses. While aggregation provides a broader perspective within each scenario, some frameworks remain consistently strong (shown in Bold), while others persist as weaker performers (shown in Italic). However, robust frameworks in one setting may show inconsistencies in another, reinforcing the importance of evaluating performance across different aggregation levels.

Table 15 Comparison of best and worst frameworks between per-dataset and across-datasets analyses.

The across-datasets analysis offers valuable insights, but it does not establish cross-scenario robustness. The upcoming all-datasets analysis (“All-datasets analysis” section) further consolidates every task and both metrics, aiming to identify frameworks that balance predictive performance and computational efficiency across all classification types.

All-datasets analysis

To derive an overall ranking of frameworks across all classification scenarios, we combined every dataset—binary, multiclass, and both multilabel modes—into one unified analysis. Because each dataset-framework combination constitutes a repeated measure, we first tested sphericity. As shown in Table 16, the sphericity assumptions failed, necessitating a non-parametric approach rather than RM-ANOVA.

Following the procedure used in the across-datasets analyses (“Across-datasets analysis” section), we employed the Friedman test to assess whether frameworks differed significantly in both $F_1$ Score and Training Time when evaluated over all datasets. Upon finding significant results ($p<0.05$), pairwise comparisons were conducted with Nemenyi’s post-hoc test to pinpoint which frameworks were meaningfully distinct. We then calculated each framework’s average rank (from the Friedman procedure) to form a final, comprehensive ranking encompassing all tasks.

To illustrate these results, we generated Critical Difference (CD) diagrams for both $F_1$ Score and Training Time (Figs. 17a,b). These diagrams concisely show how frameworks cluster together (or stand apart) according to average ranks. Additionally, we plotted a dual-rank scatter (Fig. 19), which shows each framework’s relative position regarding predictive performance versus computational efficiency. This visualization helps readers quickly identify which frameworks strike the best trade-off between high $F_1$ Scores and low Training Times when every dataset, regardless of classification type, is considered.

Results

Table 16 summarizes the statistical outcomes. The Shapiro-Wilk test for normality indicated a pronounced deviation ($p \ll 0.05$), and Mauchly’s test confirmed sphericity violations ($p=0$), leading us to the Friedman test for both metrics. Post-hoc Nemenyi analyses showed clear differences among frameworks ($p=1.6 \times 10^{-5}$ for $F_1$ Score and $p=1.8 \times 10^{-29}$ for Training Time), indicating that the choice of framework remains highly impactful even when all tasks are considered jointly.

Table 16 Statistical test results across all datasets for $F_1$ score and training time.

Figures 17a and 18a display the Critical Difference diagrams for $F_1$ Score and Training Time, respectively. Both diagrams illustrate that certain frameworks group together statistically, whereas others sit far apart, reflecting greater relative differences.

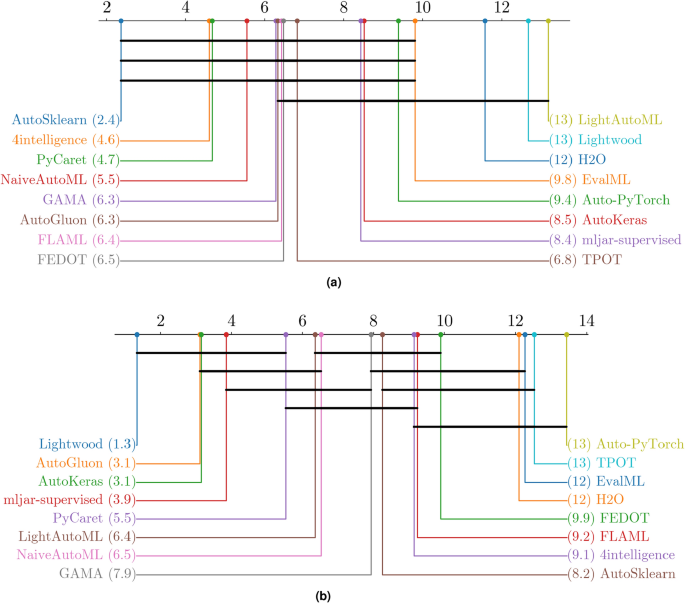

Fig. 17

Critical difference diagrams for framework performance in terms of $F_1$ score and training time.

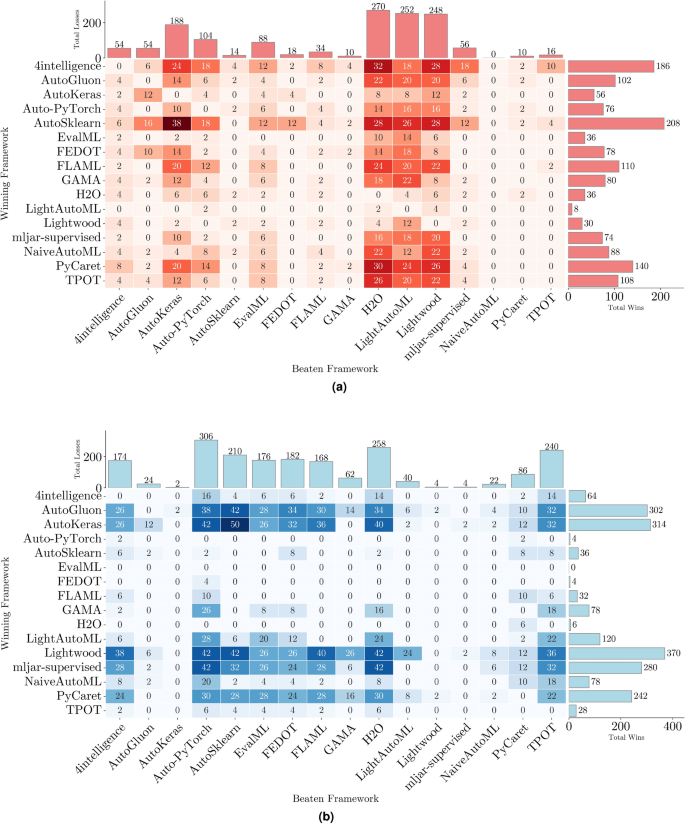

Fig. 18

Pairwise win–loss matrices showing how often each framework outperformed others across all datasets in terms of $F_1$ score and training time. Marginals indicate total wins and losses per framework.

To complement the statistical tests and provide a finer-grained perspective, we visualized the raw pairwise win–loss counts for each framework across all datasets (Fig. 18). Each cell in the matrix shows how often the framework in the row outperformed the one in the column in terms of $F_1$ Score (Fig. 18a) and Training Time (Fig. 18b). Marginal bar plots summarize the total number of wins (right) and losses (top), offering a clear snapshot of overall competitiveness. This matrix highlights dominant frameworks that tend to underperform relative to others. By directly counting wins, this view complements the rank-based CD diagrams with a more interpretable metric of comparative dominance.

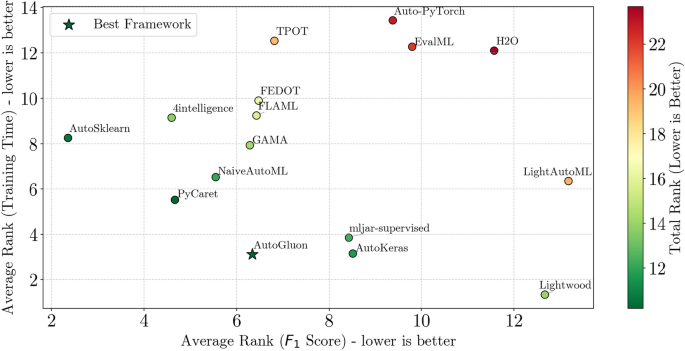

Fig. 19

Summary of framework performance across all datasets.

Finally, Fig. 19 shows a dual-rank scatter plot in which each framework’s rank on $F_1$ Score (horizontal axis) is plotted against its rank on Training Time (vertical axis). Frameworks located toward the lower-left corner attain consistently high $F_1$ Score values and low training durations, thus striking an advantageous balance.

With the overall framework rankings established, we now examine their statistical significance to determine whether the observed differences are robust and meaningful.

Statistical interpretation

RQ7: Do framework performance and computational efficiency differences remain statistically significant when considering all datasets together?

When all datasets—across binary, multiclass, and multilabel tasks—are pooled into a single unified analysis, it is essential to determine whether frameworks still exhibit meaningful performance distinctions in both predictive performance ($F_1$ Score) and computational efficiency (Training Time). We, therefore, conducted normality checks (Shapiro–Wilk) and tested for sphericity (Mauchly’s test). As shown in Table 16, both metrics deviated strongly from normality ($p \approx 10^{-21}$ for $F_1$ Score, $10^{-22}$ for Time), and sphericity violations ($p=0$) confirmed that neither a parametric nor sphericity-based approach (e.g., RM-ANOVA) was appropriate.

Accordingly, we used the Friedman test. The resulting $p$-values ($1.6 \times 10^{-5}$ for $F_1$ Score and $1.8 \times 10^{-29}$ for Time) indicate that framework selection remains highly significant even when every dataset is considered simultaneously. A post-hoc Nemenyi procedure further revealed substantial pairwise differences between certain frameworks. These findings expand upon those from “Across-datasets analysis” section, implying that the impact of framework choice on predictive performance and computational efficiency is not confined to individual tasks or aggregated scenarios but persists across all classification settings combined.

RQ8: Which framework achieves the best performance across all scenarios in terms of $F_1$ Score?

We next examined the CD diagram for $F_1$ Score (Fig. 17a), which aggregates each framework’s average rank (from the Friedman test) while also grouping statistically equivalent frameworks. The diagram shows that AutoSklearn obtained the best average rank ($\approx 2.4$), signaling excellent predictive performance across the entire dataset corpus. However, post-hoc analysis indicates that AutoSklearn is not strictly better than several close contenders, including 4intelligence ($\approx 4.6$), PyCaret ($\approx 4.7$), and NaiveAutoML ($\approx 5.5$). Moreover, the aggregated win–loss tallies (Fig. 19a) confirm that AutoSklearn achieved 208 wins against only 36 losses in head-to-head $F_1$ comparisons, outpacing 4intelligence (186 wins/54 losses) and PyCaret (140/56), and underscoring its consistent dominance.

Below this top group stands a broader “middle tier,” comprising frameworks like TPOT, FLAML, GAMA, and AutoGluon, each showing competent $F_1$ Scores though lacking the small rank values of the top cluster. Meanwhile, LightAutoML and Lightwood share the worst positions (rank $\approx 13.0$), indicating that these frameworks consistently underperformed regarding raw predictive performance. Thus, although AutoSklearn emerges as a top contender, multiple others (4intelligence, PyCaret, NaiveAutoML) can achieve similar predictive performance, emphasizing that training speed and other practical considerations may further influence framework choice.

RQ9: Which framework is the most efficient across all scenarios in terms of Training Time?

We inspected the Training Time CD diagram (Fig. 18a) to identify the fastest framework overall. In stark contrast to the more crowded ranks for $F_1$ Score, Lightwood stands out as the unequivocally fastest (rank $\approx 1.3$), with statistical evidence (Friedman + Nemenyi) confirming its significant lead. Clustering behind it, AutoGluon and AutoKeras (both $\approx 3.1$) form the second-best computational efficiency group, while a mid-tier segment includes mljar-supervised ($\approx 3.9$) and PyCaret ($\approx 5.5$). Another slightly slower band (LightAutoML, NaiveAutoML, GAMA) hovers around ranks 6–8, significantly behind the leaders but not as slow as the bottom group. The pairwise speed heatmap (Fig. 18b) further illustrates that Lightwood recorded 370 wins against just 40 losses in training-time comparisons, vastly exceeding AutoGluon ’s 302/24 and AutoKeras ’s 314/32, thereby quantifying its clear efficiency edge.

Finally, AutoSklearn ($\approx 8.2$), H2O (12), TPOT (13), and Auto-PyTorch (13) fall at the trailing end. These outcomes align with prior observations that Lightwood consistently yields minimal training times, whereas frameworks like TPOT or Auto-PyTorch exhibit much higher computational overhead. From a purely computational efficiency-driven standpoint, Lightwood is the clear winner.

RQ10: Which framework performs best across all scenarios when considering both $F_1$ Score and Training Time?

While separate CD diagrams for $F_1$ Score (Fig. 17a) and Training Time (Fig. 17b) clarify who excels at predictive performance versus computational efficiency, practical deployment often requires a framework that balances both. To visualize this trade-off, Fig. 19 plots each framework’s final rank on $F_1$ Score (x-axis) against its rank on Time (y-axis). The lower-left quadrant denotes frameworks that are simultaneously strong in predictive performance and cost-effective in training.

From this scatter, AutoGluon emerges as the most balanced option—outperforming peers with 102 wins vs. 54 losses in $F_1$ and 302 vs. 24 in Training Time—while AutoSklearn and PyCaret trade speed for slightly higher $F_1$, and Lightwood trades accuracy for speed. At the other end, frameworks like Auto-PyTorch, TPOT, EvalML, and H2O lag on both axes, and LightAutoML ’s training overhead diminishes its overall standing. Thus, AutoGluon offers the best compromise for general use, though specific use-cases might still favor the speed of Lightwood or the raw accuracy of AutoSklearn.

Summary of statistical findings

The statistical analyses conducted in this study—covering per-dataset, across-datasets, and all-datasets comparisons—consistently revealed strong, statistically significant distinctions among AutoML frameworks in both $F_1$ Score (predictive performance) and Training Time (computational efficiency). In simpler tasks such as Binary and Multiclass classification, these differences tended to be especially pronounced, with Training Time variations often exceeding the gaps observed in predictive performance. This underlines the considerable disparities in computational efficiency across frameworks.

In the per-dataset and across-datasets analyses, certain frameworks emerged as clear leaders in either predictive performance or computational efficiency. AutoSklearn regularly appeared at or near the top in $F_1$ Score rankings, and Lightwood consistently delivered the fastest Training Times, albeit at the expense of lower predictive performance. AutoGluon and PyCaret generally struck a balance, maintaining relatively strong ranks on both metrics. Other frameworks, including Auto-PyTorch and LightAutoML, struggled in multiple settings, suggesting more limited applicability for those seeking either top-tier performance or fast training.

When pooling all datasets, head-to-head tallies reinforce these findings: AutoSklearn recorded 208 wins versus 14 losses in $F_1$ comparisons, Lightwood logged 370 wins against 4 losses in speed, and AutoGluon alone achieved net positive records on both axes (102–54 in $F_1$, 302–24 in Time).

Once all datasets were pooled into a single analysis, the results confirmed that AutoSklearn retained its role as one of the most accurate solutions, though it fell behind in speed. Lightwood again stood out for its computational efficiency but continued to post weaker predictive outcomes. AutoGluon, meanwhile, rose to the forefront by combining solid $F_1$ Scores with comparatively low Training Times, making it the most well-rounded choice overall. Less competitive frameworks included Auto-PyTorch, TPOT, and EvalML, which frequently incurred high computational costs while also underperforming on predictive performance.

Taken together, these findings offer practical guidance for selecting an AutoML framework. Users with a strict focus on predictive performance may lean toward AutoSklearn or PyCaret, whereas those needing rapid model training might adopt Lightwood or AutoKeras. For those seeking a balanced compromise, AutoGluon proved to be the strongest general-purpose option, ranking highly in both predictive performance and computational efficiency across the full range of classification tasks.

Threats to validity

No benchmarking study is immune to methodological or contextual limitations, particularly when comparing complex systems like AutoML frameworks. In this section, we outline the primary factors that may affect the validity, reproducibility, or generalizability of our findings. We separate these into two categories: (1) limitations stemming from the design and scope of the study itself, and (2) emergent biases and behavioral patterns observed during evaluation.

Scope and design limitations

• The evaluation was conducted using specific framework versions available at the time of the study. Because AutoML tools evolve rapidly, results may differ for future releases. Version tracking is essential for reproducibility.

• Although the selected datasets span binary, multiclass, and multilabel tasks, their domain coverage remains limited. Important areas such as healthcare, finance, or cybersecurity are underrepresented. Future studies could incorporate more specialized benchmarks to broaden generalizability.

• The runtime constraint of 5 min per tool-task pair was chosen to reflect practical deployment settings. However, this may have limited the performance of frameworks designed for long-running or iterative optimization.

• The use of default configurations ensured fair and comparable conditions across tools, but may have disadvantaged those that benefit from tuning or expert guidance. Custom parameterization could yield different performance outcomes.

• Our primary evaluation metrics were weighted $F_1$ and training time. While widely used, these do not capture complementary concerns such as fairness, interpretability, or energy efficiency.

• A small number of tool–dataset combinations failed due to compatibility or stability issues, including timeouts, memory errors, or unsupported feature types. These partial failures may skew aggregate metrics if not properly accounted for.

These limitations reflect deliberate design choices made to ensure fairness and reproducibility across tools. While necessary for methodological clarity, they may constrain how broadly the findings apply, especially in highly specialized or dynamic settings.

Systematic biases and runtime constraints

In addition to these structural constraints, the evaluation revealed recurring behavioral patterns that arise from the internal design of AutoML frameworks. These are not specific to individual tools but rather reflect systemic tendencies in how AutoML methods handle data, allocate resources, and optimize performance under pressure.

• Many tools made strong preprocessing assumptions, expecting numeric inputs or fully cleaned data. Frameworks that lacked robust handling of categorical variables or missing values frequently failed or underperformed when those conditions were not met.

• Differences in optimization strategy created trade-offs between accuracy and speed. Exhaustive search methods (e.g., Bayesian or genetic algorithms) often struggled under tight runtime constraints, while lightweight pipelines tended to favor simplicity at the expense of model expressiveness.

• The level of native support for multilabel classification varied widely. Several frameworks relied on label-powerset transformations, which introduced class imbalance and label sparsity—particularly problematic in high-cardinality settings.

• We observed notable hardware sensitivity, especially for tools optimized around GPU acceleration. These frameworks often experienced performance drops or memory bottlenecks when restricted to CPU-only environments.

• There were clear signs of modality bias across tools. Frameworks tailored for image or text classification frequently generalized poorly to tabular problems, and vice versa, due to pipeline assumptions and architecture defaults.

• Despite using 20 replicate runs with different seeds, we observed significant run-to-run variability in certain frameworks. Methods relying on stochastic optimization or non-deterministic pipeline generation exhibited inconsistent results even under controlled conditions.

To mitigate these risks, we recommend selecting frameworks based on alignment with the task type and resource environment, validating preprocessing compatibility in advance, and repeating runs to assess stability—particularly for methods using stochastic or non-deterministic algorithms.

Understanding these biases is essential not only for interpreting our results but also for improving the design of future benchmarks. As AutoML continues to evolve, careful attention to tool behavior under real-world constraints will remain critical for producing evaluations that are both fair and actionable.

Conclusion

This study provides a comprehensive evaluation of AutoML frameworks across binary, multiclass, and multilabel classification tasks, highlighting their strengths, limitations, and trade-offs in predictive performance and computational efficiency. By analyzing datasets of varying complexities, we offer practical insights into framework selection for real-world applications. We also benchmarked our results against four representative prior studies to contextualize our findings within the existing AutoML literature.

Our findings indicate that AutoSklearn and PyCaret achieved the highest $F_1$ scores, albeit with longer training times, while Lightwood and AutoKeras prioritized speed at the expense of predictive performance. A structured summary of these trade-offs is provided in Table 11.

To ensure that these differences were not due to random variation, we conducted a multi-level statistical analysis. The results confirmed significant performance disparities across all classification tasks. In binary classification, frameworks that perform exhaustive HPO—such as AutoSklearn and TPOT—consistently achieved the highest $F_1$ scores but required longer runtimes. Meanwhile, faster frameworks like Lightwood and AutoGluon sacrificed some predictive performance for improved efficiency. A similar trend was observed in multiclass classification, where AutoSklearn and PyCaret achieved the best accuracy, while H2O and LightAutoML exhibited greater variability and, in some cases, slower convergence.

Multilabel classification posed a unique challenge, as few frameworks supported it natively. Among those that did, AutoSklearn delivered the strongest accuracy, whereas AutoKeras prioritized speed at the cost of predictive performance. When using powerset transformations, AutoSklearn remained the most effective, but frameworks such as LightAutoML, Lightwood, and GAMA struggled significantly with sparse label spaces. The all-datasets analysis reinforced these findings, showing that AutoSklearn consistently led in $F_1$ scores but frequently consumed the full training budget, making it less suitable for time-sensitive applications. In contrast, Lightwood was the fastest but least accurate, while AutoGluon emerged as the most well-rounded framework, striking a strong balance between predictive performance and computational efficiency.

Future research should explore meta AutoML frameworks that dynamically optimize framework selection across tasks. Expanding the dataset pool to include domain-specific challenges and integrating techniques like reinforcement or meta-learning could further enhance AutoML adaptability. Ethical considerations, such as bias mitigation and interpretability, remain crucial as AutoML adoption grows.

By addressing these challenges—particularly the need for robust multilabel support and fair, interpretable models—AutoML frameworks can fully realize their potential as universal AI tools. While AutoGluon emerged as the strongest general-purpose solution, users must consider trade-offs between predictive performance, computational efficiency, and framework adaptability based on their specific application needs. All code and analysis scripts are publicly available to ensure full reproducibility and to support future advancements in AutoML.
