Fig. 10
From: Elimination of certain honeybee venom activities by adipokinetic hormone

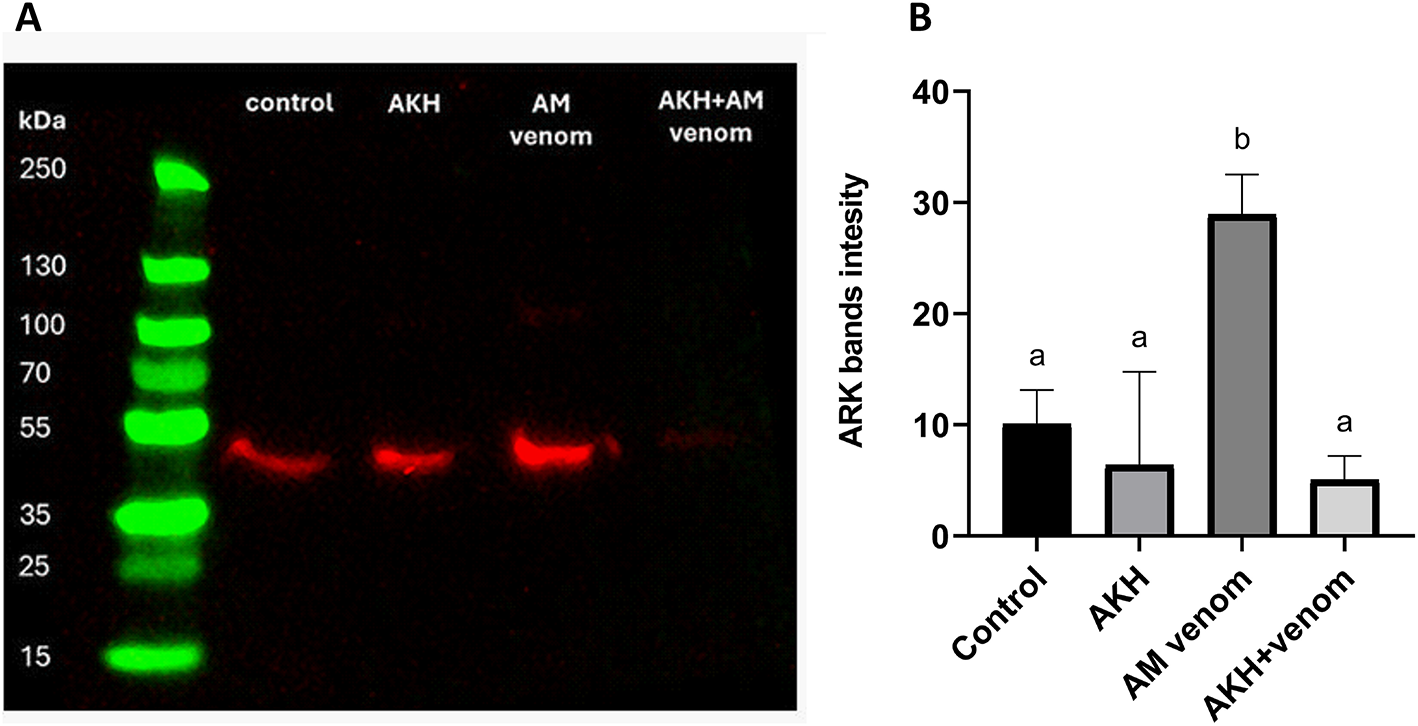

Relative arginine kinase (ARK; m.w. = 40 kDa) amount released into the medium from thoracic muscles of 7-day-old females D. melanogaster after 24 h incubation in the following tested groups: control, Drome-AKH, AM venom, and AM venom + Drome-AKH. (A) Multichannel photo of western-blotted membrane; green colour = ladder (colorimetric) and red colour = ARK in tested groups (chemiluminometric). (B) Graph quantifying the ARK bands from 3 independent western-blotted membranes. Statistically significant differences among the groups (mean ± SD, n = 3) are assessed by one-way ANOVA with Tukey post-test at the 5% level and are indicated by different letters above the columns (a, b). The numbers above the columns represent fold-difference in comparison to the control group.
