Fig. 4
From: Elimination of certain honeybee venom activities by adipokinetic hormone

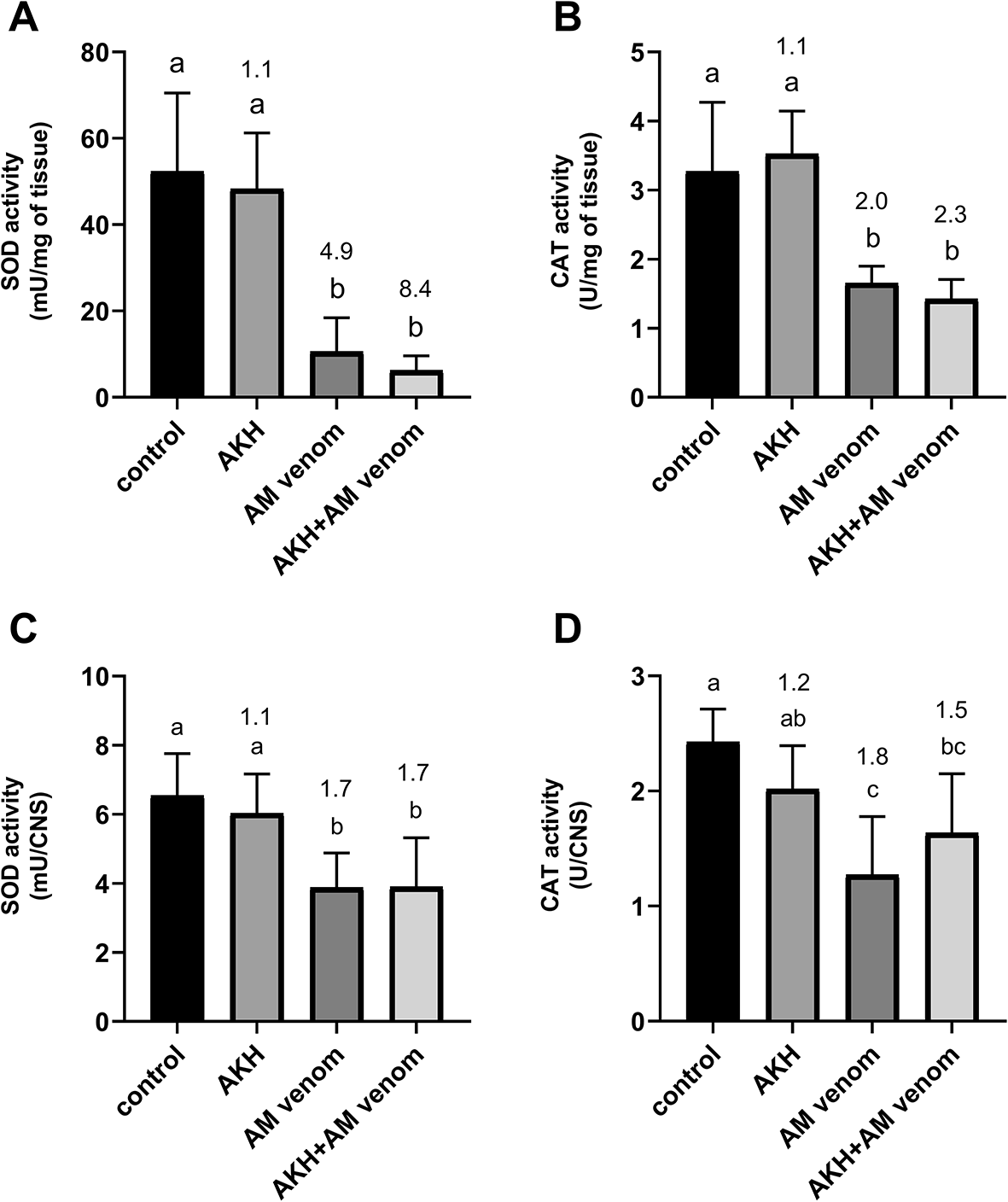

Level of oxidative stress markers – superoxide dismutase (A, C) and catalase (B, D) in thoracic muscles (A, B) and CNS (C, D) of 7-day-old females D. melanogaster after 24 h incubation in the following tested groups: control, Drome-AKH, AM venom, and AM venom + Drome-AKH. The enzyme activity in thoracic muscles is expressed per mg of tissues, in CNS per organ. Statistically significant differences among the groups (mean ± SD, n = 4–5 (A, B), n = 6–8 (C, D)) are assessed by one-way ANOVA with Tukey post-test at the 5% level and are indicated by different letters above the columns (a, b, c). The numbers above the columns represent fold-difference in comparison to the control group.
