Fig. 5
From: Immunoendocrine network under conditions of diabetes-filariasis co-morbidity DMLF6

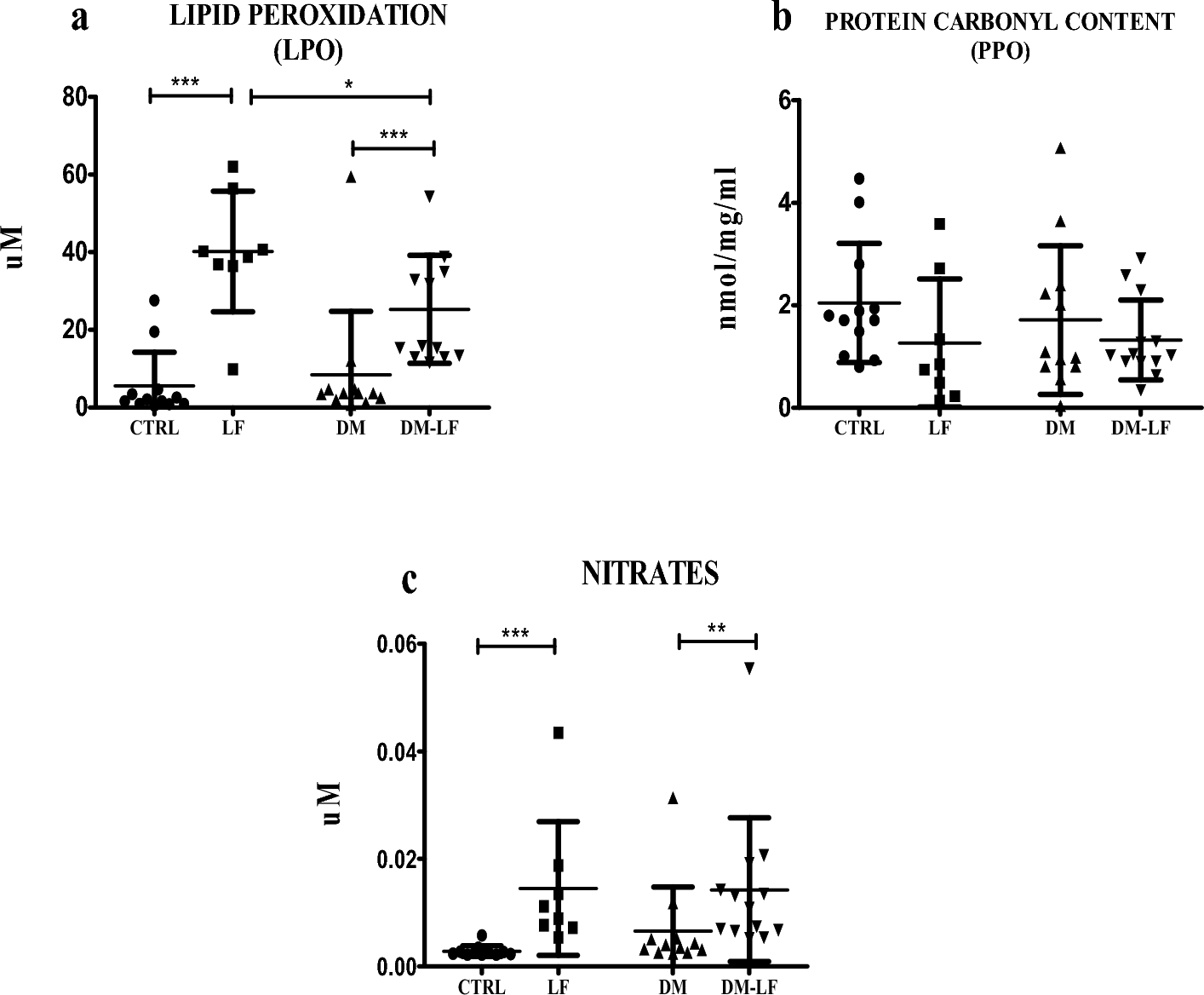

Circulating levels of protein and lipid peroxidation and nitrates in DM-LF subjects. The plasma levels of redox parameters and nitrate in LF + subjects were quantified by colorimetric analysis. Bar graph showing the levels of Lipid peroxidation (a), Protein peroxidation (b), Nitrates (c) in the plasma of Control, LF, DM and DM-LF subjects. Statistical significance was determined by non-parametric Mann–Whitney U test and p < 0.05 was considered significant. *p < 0.05; **p < 0.01; ***p < 0.001.
