Fig. 6
From: An analytical model for quantitative evaluation of friction drag in directional sliding drilling

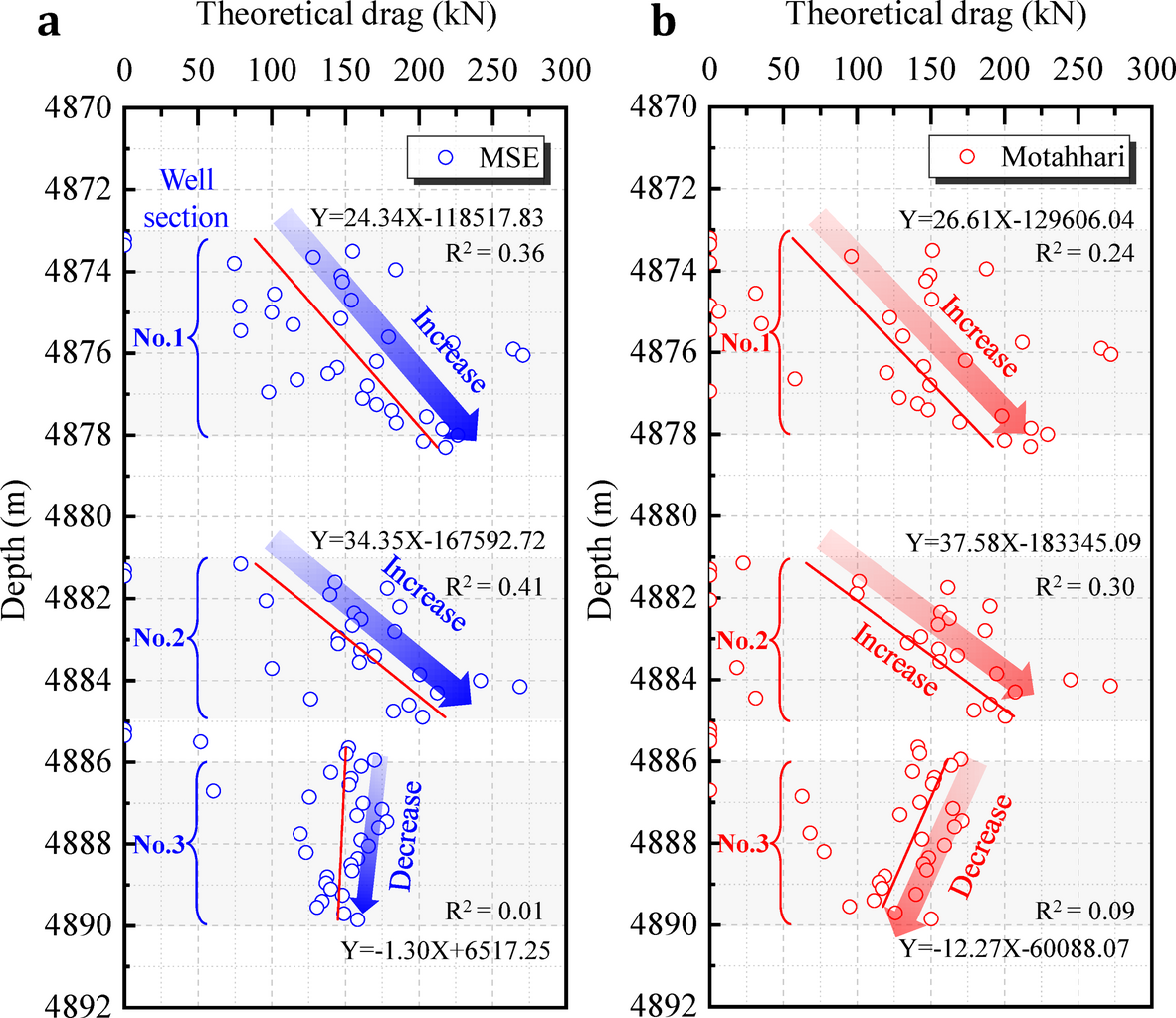

Analysis of friction drag during the sliding drilling phase from 4860.00 m to 4900.00 m. (a) MSE; (b) Motahhari.
