From: Development and verification of a novel tiling PCR method for long-range HIV-1 sequencing in a diagnostic setting

Fig. 3

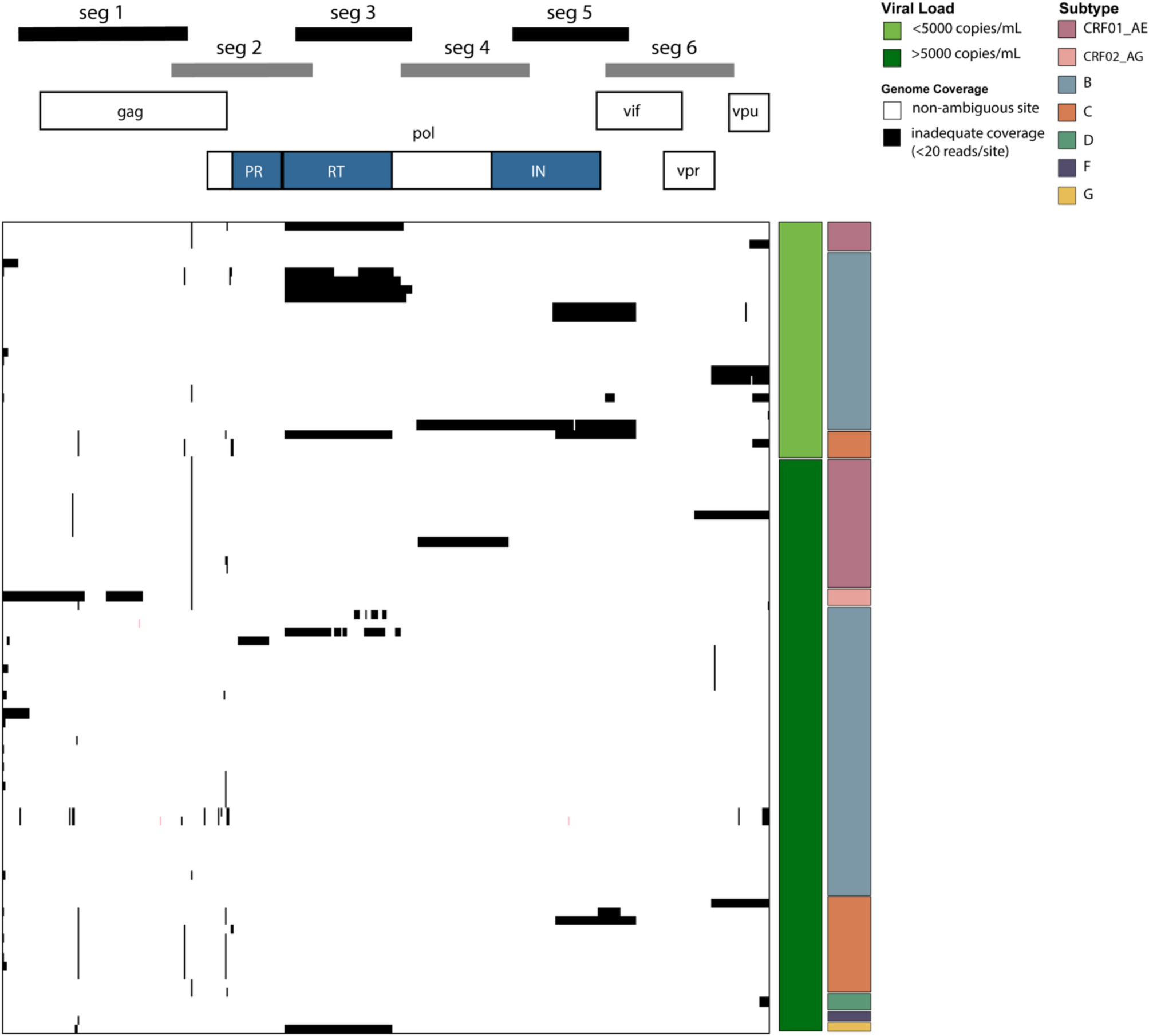

Sequence coverage of panel samples using the HIV-1 tiling assay. Any site where under 20 reads were generated, that is where gaps or an N was present in the consensus sequence, is represented in black. The location of notable drug resistance mutations (DRMs) is highlighted in navy on the representative genome. Samples are clustered first by viral load, then by subtype.
