Fig. 2
From: Null-image effect of planar coils over a grounded ferrite slab

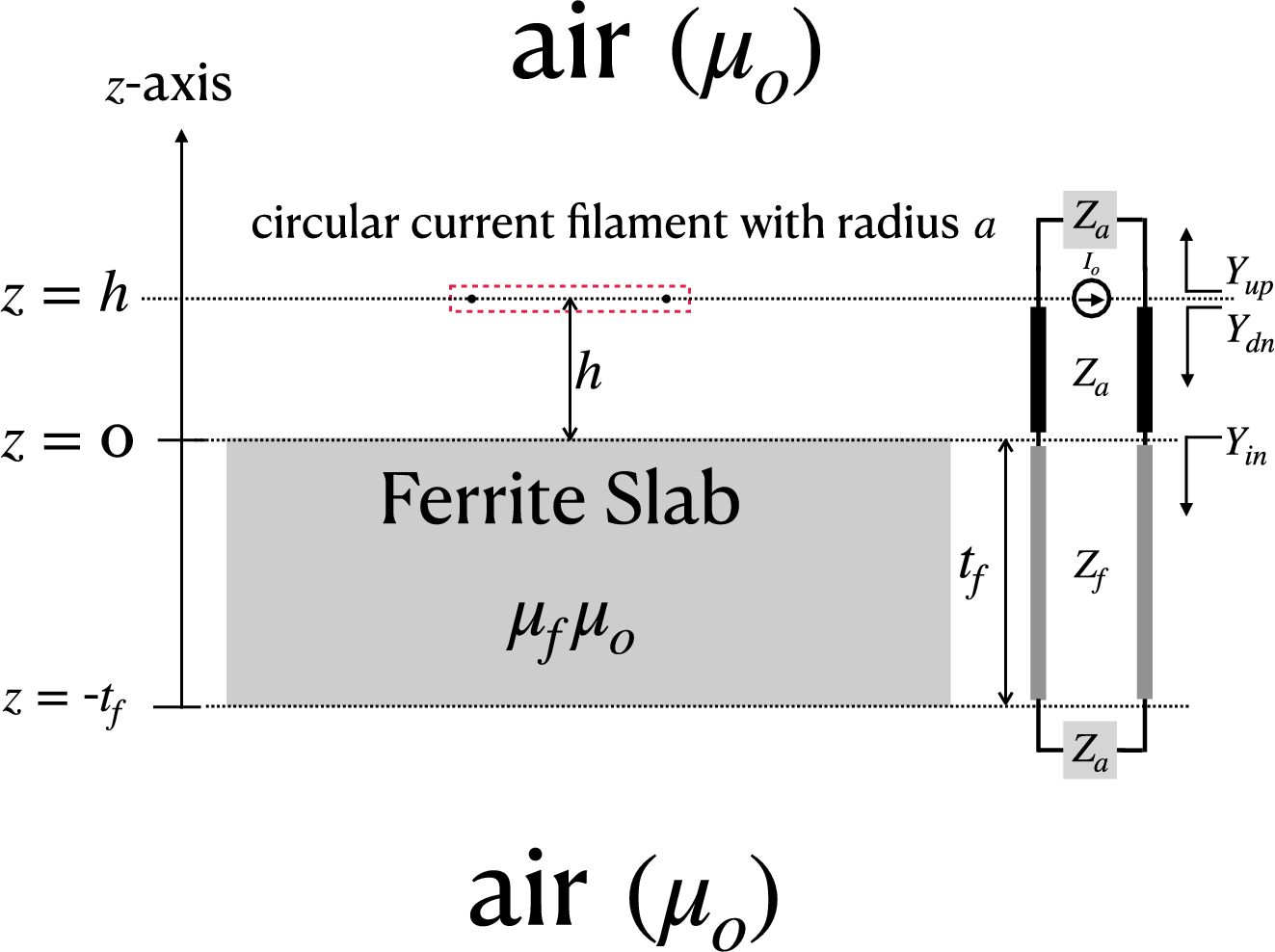

Structural configuration of a circular current loop (filament) positioned above a ferrite slab at a distance h. The thickness of the ferrite slab is denoted as \(t_f\).
Fig. 2 | Scientific Reports
