Fig. 5
From: Null-image effect of planar coils over a grounded ferrite slab

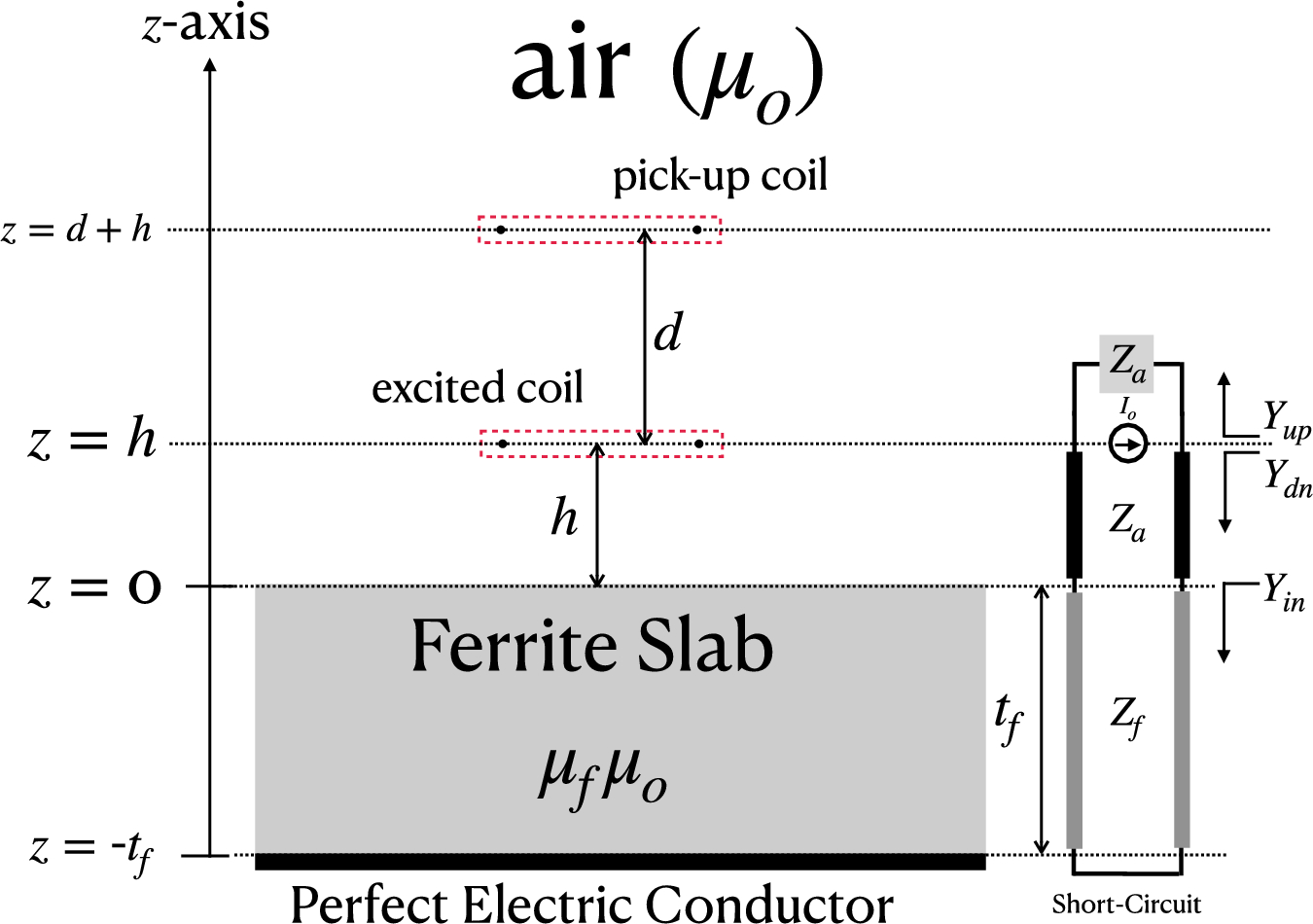

Structural configuration of a circular current loop (filament) positioned above a PEC backed ferrite slab at a distance h. The thickness of the grounded ferrite slab is denoted as \(t_f\).
