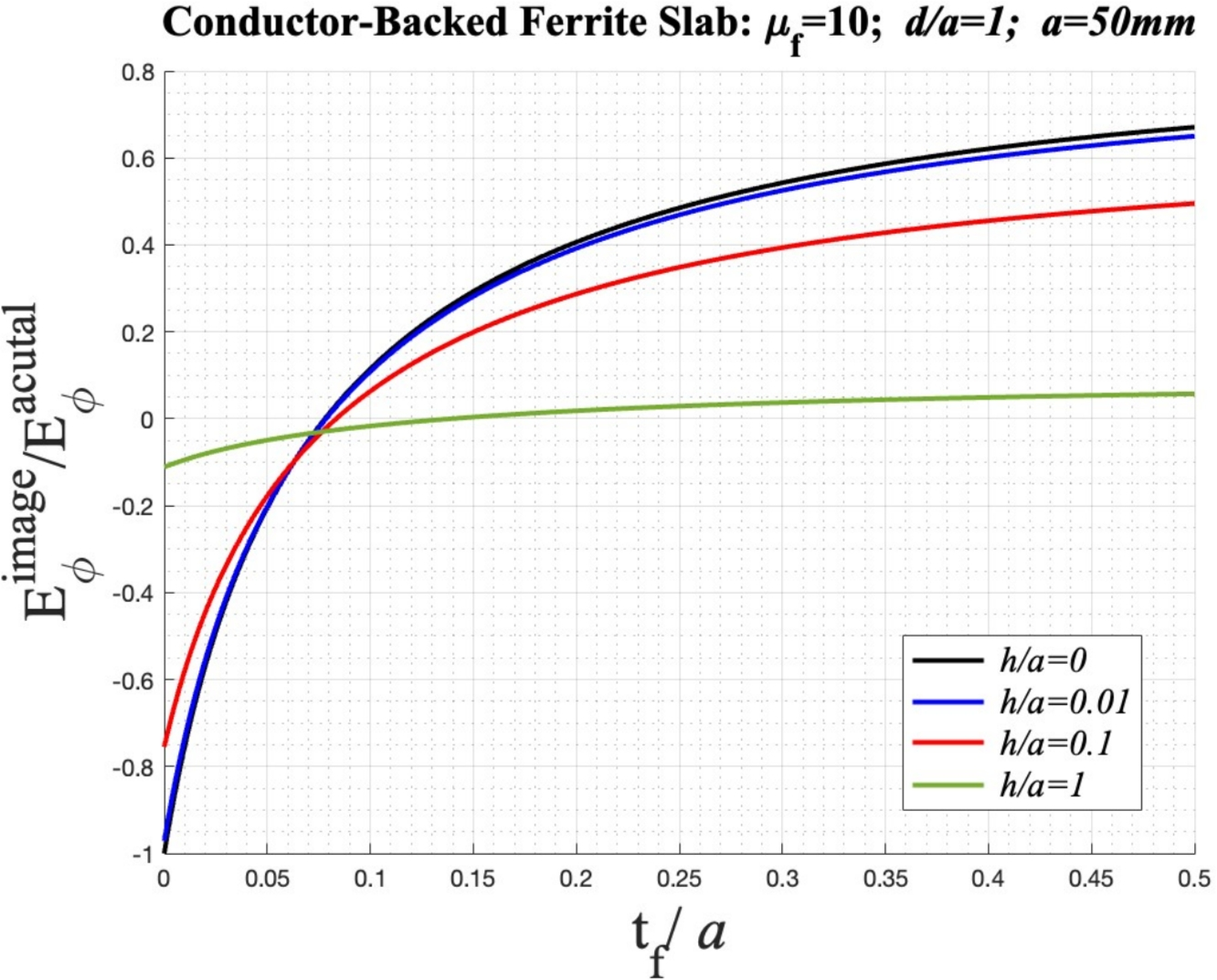

Fig. 6
From: Null-image effect of planar coils over a grounded ferrite slab
The electric field, observed at \(z=h+d\), due to image current normalized to that of the actual current located at \(z=h\), against the conductor backed ferrite slab thickness \(t_f\): \(\mu _f=10\).
