Fig. 3
From: Novel ribosome biogenesis-related biomarkers and therapeutic targets identified in psoriasis

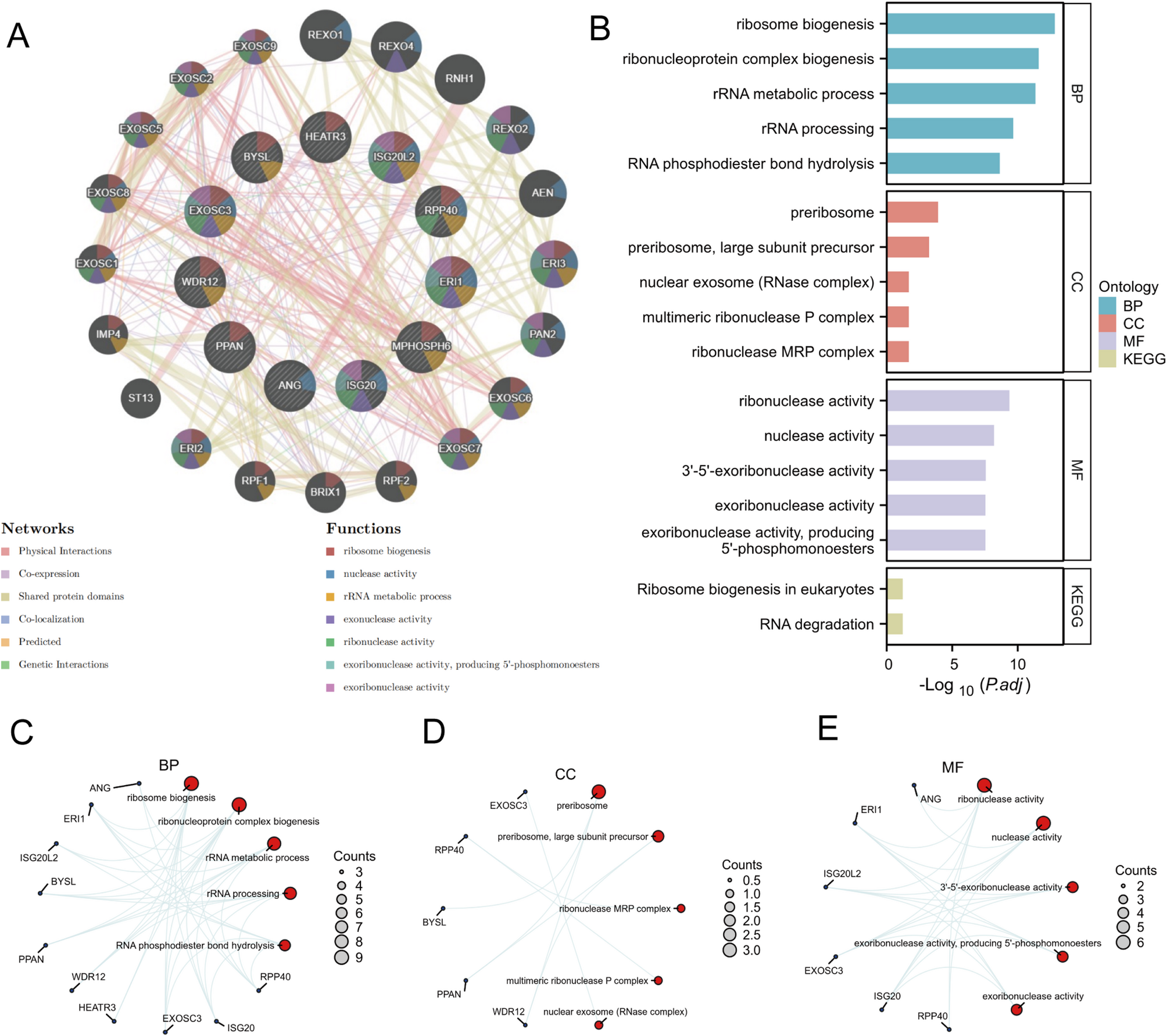

Functional Enrichment Analysis. (A) Interactions and functions of the 11 candidate diagnostic biomarkers. The candidate biomarkers are in the inner ring, the predicted genes are in the outer ring, and the networks and functions formed between the genes are represented in different colors. (B) GO/KEGG enrichment analysis showing the top 5 items per category (enriched to 2 pathways in KEGG). (C) Network diagram of the candidate biomarkers with the top five items in BP. (D) Network diagram of the candidate biomarkers with the top five items in CC. (E) Network diagram of the candidate biomarkers with the top five items in MF.
