Introduction

In 2023, Mycobacterium tuberculosis (Mtb) was one of the leading causes of mortality from any infectious disease with 10.6 million cases tuberculosis (TB) and 1.3 million deaths1. Standard treatment requires a 4–6 month long multi-drug regimen. However, this extended treatment is not always successful and up to 15% of patients relapse, even when the infecting strains are fully drug susceptible. These relapses are thought, at least in part, to result from populations of bacteria that are in a phenotypic state that makes them refractory to the antibiotics, despite the strains being drug-sensitive.

The existence of such antibiotic-refractory bacteria was recognised at the very advent of the antibiotic era, when in 1944 Gladys Hobby recorded that around 1% of a streptococcal cell in culture survived long-term penicillin treatment2. These cells were named ‘persisters’ and were considered to be a phenotypically resistant sub-population induced by environmental stresses2. Subsequently, similar persister subpopulations were noted in other organisms, including Pseudomonas aeruginosa and Escherichia coli3,4. In Mtb populations, evidence for persisters has been identified not only in vitro5, but also in animal models6,7,8 and in humans9,10,11,12. A decade later in 1958, the related phenomenon of ‘tolerance’ was described by McDermott13 when he observed that anaerobiosis in ‘tubercule bacilli’ slowed the rate of killing by STM of the entire culture, not just a rare persister sub-population14,15.

This distinction between persister and tolerant populations is often characterised by their respective kill curve. Persisters have a biphasic kill curve, in which the bulk population of susceptible cells are rapidly killed leaving a minority population of persister cells that are killed more slowly. In contrast, the kill curve of tolerant populations have a slow, but constant kill rate, due to the reduced, but homogeneous sensitivity of the entire population16. Although closely related, there is evidence that the mechanisms that generate these two phenotypic states can be independent. For example growth arrest may induce tolerance in a population without altering the number of persisters, and indeed can mask the presence of any persister subpopulations17. These differences between persistence and tolerance can be subtle, and so to truly distinguish persisters from tolerant populations often single cell analysis such as microfluidic is required. In clinical situations there is evidence that M. tuberculosis populations are extremely heterogeneous, with populations of both persisters and tolerant cells, leading to multiple distinct killing rates18.

Persistence and tolerance are distinct from resistance in that they refer to a non-heritable phenotypic state in which cells are recalcitrant to antibiotics. Because the phenomenon is non-heritable, the progeny of persisters and of tolerant populations are antibiotic sensitive. This differs from resistant populations that have genetic changes that make the antibiotics less effective, and so the progeny inherit the antibiotic resistance profile of their parents. Classically, resistant bacteria can be distinguished from tolerant bacteria or persisters by having a raised minimum inhibitory concentration (MIC)16.

Although neither tolerant populations, nor persisters carry a genetically encoded resistance to antibiotics, genes have been identified that influence the frequency at which they arise. Some of the most intensively researched are toxin-antitoxin (TA) genes that have long been associated with increased dormancy and higher levels of both tolerance and persister formation7,19,20 in many organisms including Mtb21,22 and the related, model organism M. smegmatis23,24,25,26. However, the exact relationship between TA modules, dormancy, and recalcitrance to antibiotics is not straightforward. It is well recognised that slow growing or static cells can be less susceptible to antibiotics and that nutrition, stress, and growth stage can all be contributing factors27. However, these recalcitrant states do not arise as an indirect result of growth arrest but are rather a distinct, reversible, and programmed physiological state21,25,28,29. One of the first TA systems implicated in modulating antibiotic sensitivity was the RelA/SpoT system that has been shown to alter the frequency of persister formation by regulating a conserved stringent response. Mutants have altered levels of the regulatory metabolite (p)pGppp that cause changes in metabolite levels and in the cell wall that result in increased persister frequencies30. Other genes whose disruption has been identified as increasing antibiotic tolerance/persistence include genes such as those of the mycobactin exporting ESX-3 transport system that, under iron limited conditions, promote persister formation31 and the regulator, mce3R, that is involved in lipid metabolism and resistance to oxidative stress32. Mutations that sensitise Mtb to antibiotics have also been discovered, such as phoY, part of the phosphate regulating system. Mutations in phoY generate fewer persisters when phosphate starved or when in stationary phase33.

In an attempt to catalogue these tolerance and persistence modulating genes several studies have adopted whole genome approaches. Torrey et al10 in 2016 conducted a whole genome screen of randomly mutagenized Mtb co-challenged with both rifampicin (RIF) and streptomycin (STM) and identified non-synonymous SNPS in 36 genes that had altered fitness. The genes identified encoded functions that included phthiocerol dimycocerosates (pDIM) synthesis, glycerol catabolism and the TCA cycle. Further work demonstrated that SNPs in some of these genes were present in isolates from a longitudinal study of patients with Mtb infections that were recalcitrant to treatment, suggesting that antibiotic profiles of these mutants were clinically significant10. Using a similar approach, Xu et al34 exposed an Mtb transposon library to partially inhibitory concentrations of antibiotics, including RIF, to look for mutants with altered levels of survival. They identified 74 mutants with increased susceptibility to RIF including the lytR/cpsA cell wall group of genes, and genes associated with phosphate transport. Most recently, Bellerose et al., 2020 screened a transposon library35 in rifampicin treated mice to identify RIF hypersusceptible mutants, that were predominately associated with cell wall components.

In this study, we exposed an Mtb transposon library to either RIF or STM over an extended period and at concentrations that were designed to enrich for persisters. RIF remains one of four antibiotics used in the standard 1st line mutli-drug therapy for TB. STM is no longer a 1st line drug, but can still be used to treat patients with RIF resistant, or multi-drug resistant isolates36. By using two antibiotics with different mechanisms of actions we were able to compare the results and determine if the genetic requirements for persistence/tolerance were shared between antibiotics, or whether they were independent. Transposon library assays are particularly well suited to this type of study as they offer a robust and sensitive genome scale assay that can identify a wide range of mutants with altered fitness under specific selection criteria, such as an antibiotic challenge. When the transposon library is subjected to a selective pressure, mutants with altered fitness are enriched or depleted. The resultant changes in frequency of each insertion mutant in the library can then be determined by sequencing and the relative fitness of each mutant calculated37,38. Using these methods this study reports a genome wide assessment of the genes that modulate the frequency at which persisters, tolerance and resistance arise.

Results

Mtb H37Rv transposon library selection using RIF or STM

To design a transposon library selection to identify genes with altered persister frequency, we performed preliminary studies to determine antibiotic concentrations that generated the biphasic kill curve characteristic of persisters, ie had a rapid kill of the bulk of the population, and an antibiotic recalcitrant subpopulation (Supplementary Fig. 1), but still maintained an output library large enough to represent the libraries mutant diversity. This ensured that the concentration chosen balanced the competing requirements of ensuring the selection pressure was strong enough to differentiate between mutants with altered antibiotic fitness, whilst still maintaining a library diversity sufficient to allow identification of any changes in mutant abundance in subsequent analyses. The concentrations chosen were 3 times the MIC for RIF (0.15 µg ml-1) and 10 times the MIC for STM (5 µg ml-1). Both treatments rapidly reduced cell numbers by 2–3 orders of magnitude, after which numbers remained relatively constant throughout the rest of the experiment (Fig. 1).

Fig. 1
figure 1

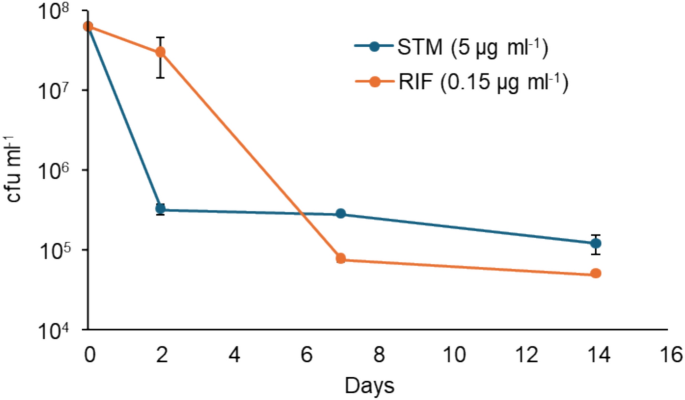

Kill curves for the transposon libraries. An exponential culture of the transposon library was exposed to 0.15 μg ml-1 (3 × MIC) of rifampicin, or 5 μg ml-1 (10 × MIC) of streptomycin. Results are representative of three biological replicates with the bars showing standard errors.

Full size image

Although designed to select for persisters, the selection also enriched for tolerant and resistant organisms. To help distinguish persister and tolerance promoting mutants, from resistant mutants, and so inform later interpretation of the data, we determined the number of heritably resistant bacilli throughout the antibiotic-killing experiment by sampling and enumerating the bacteria on plates containing RIF or STM. Prior to antibiotic exposure, the frequency of RIF and STM resistant mutants were 8 × 10–5 and 1 × 10–4 mutants CFU-1 respectively. These frequencies increased during the experiment, such that by day 14, 16% (RIF) and 25% (STM) of survivors were resistant mutants. However many of these resistant mutants, are likely due to spontaneous SNPs in genes such rpoB for RIF39 and rpsL and rrs for STM40. Because these SNPs are not associated with any specific transposon insertion, they will not be identified by the transposon library analysis so long as the library contains enough diversity that the SNPs occur in a wide variety of transposon mutant backgrounds so minimising any stochastic selection for a given transposon insertion site.

Identification of genes affecting long-term survival frequency to RIF and STM

The Mtb transposon library contained 5 × 105 individual mutants. Analysis of the transposon insertion loci predicted that this represented a saturation level of 67% of the TAs in the genome (50,228 sites from a total of 74,602 TA sites). Approximately 17,150 of these TA loci are deemed essential, whilst 6,659 have non-permissive motifs that are less likely to have transposon inserts41. Excluding these loci, leaves 60,040 TAs that are readily available for mutagenesis, giving a library coverage of 84% of the available insertion loci. In the antibiotic-treated output samples 45,254 sites (75%) and 34,409 sites (57%) were present in the library RIF and STM selected libraries respectively. Such levels of coverage have been previously shown to be sufficient to reliably identify genes whose frequency is modified by the selective pressure applied to the libraries42,43.

The transposon data was analysed with TRANSIT-2’s44 resampling method and mutants with both enhanced and reduced fitness identified. Using cutoffs of q < 0.05 and fold changes of <  > 2, a total of 52 and 23 reduced fitness mutants, and 13 and three (gidB and the anion transporter genes, Rv3679c and Rv3680c) enhanced fitness mutants were identified after RIF or STM treatment respectively (Fig. 2, Supplementary Data File 1). These genes strongly correlated with genes identified in previous genome scale studies that challenged mutant libraries with RIF and STM10,34,35 (Fig. 3, all with Χ2 p < 0.01).

Fig. 2
figure 2

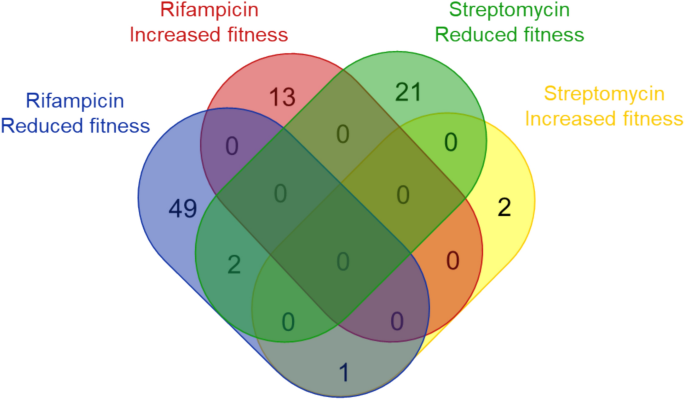

The relationship between mutants identified after RIF and STM treatment. A Venn diagram comparing the identified mutants (fold change of > 2 or < -2, and a q value of < 0.05) after antibiotic treatment with RIF or STM. Created by Venny 2.145.

Full size image
Fig. 3
figure 3

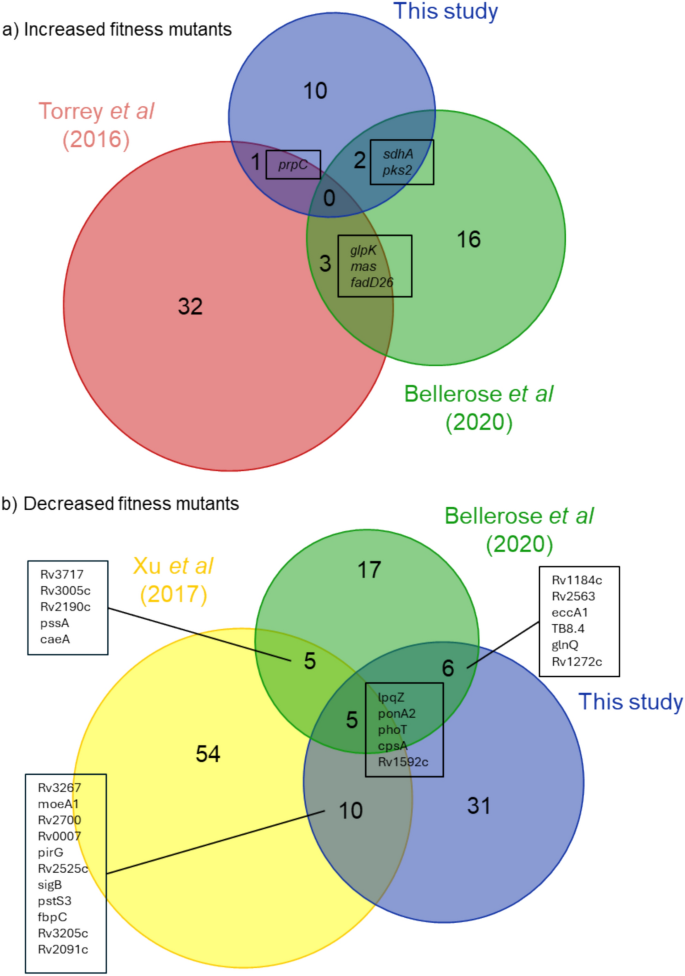

The relationship between mutants identified after RIF treatment in this study and other whole genome screens. Euler diagrams comparing mutants identified after treatment with RIF in published whole genome screens. Xu et al34 selected a transposon library with sub-lethal concentrations RIF (4 ng ml-1). Bellerose et al35 selected a transposon library with an inhibitory dose in a mouse model. Torrey et al11 selected a mutagenized library with inhibitory concentrations of both STM (10 µg ml-1) and RIF (1 µg ml-1) combined to identify mutants with increased fitness. Only gidB was common amongst mutants with increased fitness in the STM selection and Torrey et al10 (not shown). All overlaps are significant, chi squared, p < 0.001, except for the STM mutants of Torrey et al10 and those of this study were p = 0.002.

Full size image

All the mutants identified as having enhanced fitness after RIF treatment were distinct from those identified after STM (Fig. 2). For mutants with reduced fitness, only two were common to RIF and STM treatment, Rv2700, a hypothetical protein associated with the cell wall, and Rv0406c (a beta-lactamase) (Fig. 2), whilst one gene, Rv3680, part of anion transport mechanism, was identified as having enhanced fitness with STM and reduced fitness with RIF.

Thirteen mutants were identified as having enhanced fitness with RIF (Figs. 4, 5 and Supplementary Data File 1). These included all three of Mtb’s dedicated methyl citrate genes, prpCD and their regulator prpR, (p < 0.001); two genes of the Trk K+ transport system, ceoB and the adjacent gene Rv2690, (p = 0.025); and lepA, a mutation known to induce rifampicin tolerance in M. smegmatis46. Three mutants had enhanced fitness with STM (Fig. 4, 6): gidB, which is known to promote resistance to STM47,48 and the operonic genes Rv3679 and Rv3680, that are predicted to be part of an anion transport complex with unknown substrates but have been associated with nitrous oxide tolerance.

Fig. 4
figure 4

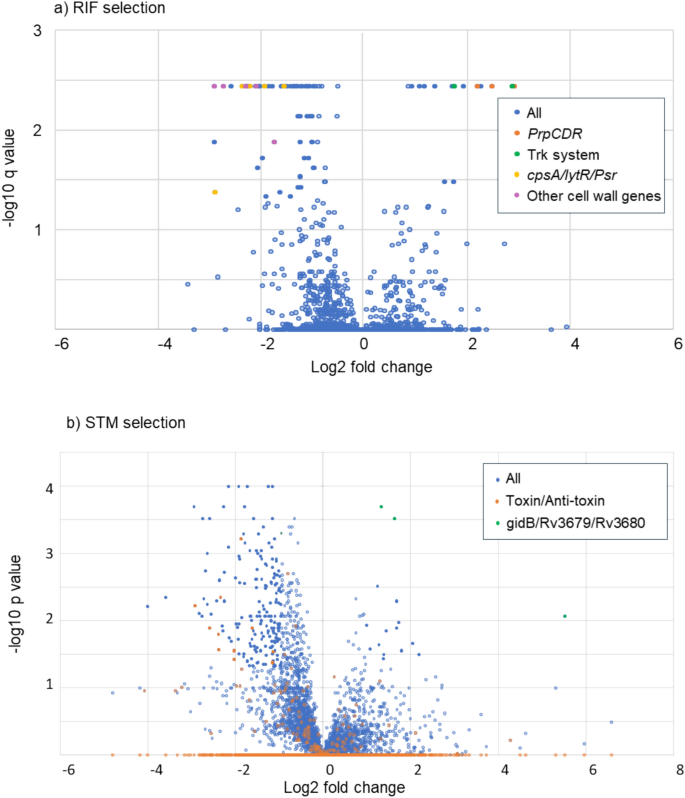

A volcano plot of (a) Rifampicin and (b) Streptomycin selected mutants. Each point represents an individual mutant and its predicted fold change phenotype and a probability. Mutants with fold changes of < 2, or > -2, and q > 0.05 (for RIF) or p > 0.05 (for STM) are faded.

Full size image
Fig. 5
figure 5

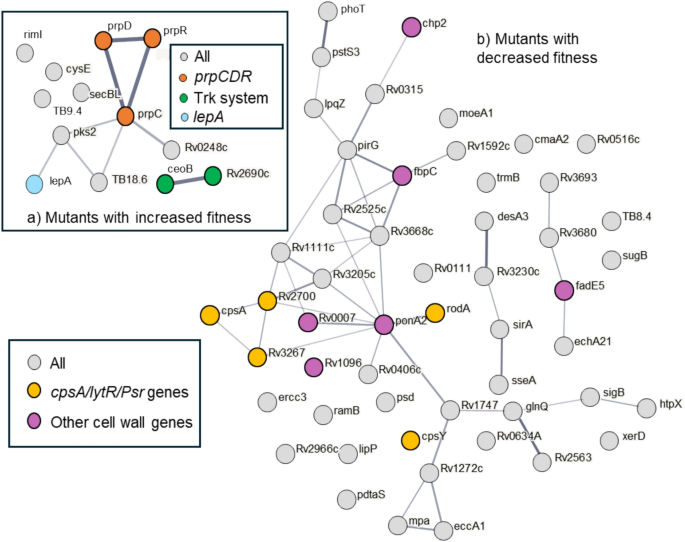

A gene association plot of mutants with (a) increased, and (b) decreased fitness when challenged with Rifampicin. Genes with q < 0.05 and fold change of more than 2 were submitted to STRING v1283. The thickness of the lines between plots indicate the confidence of the gene association.

Full size image
Fig. 6
figure 6

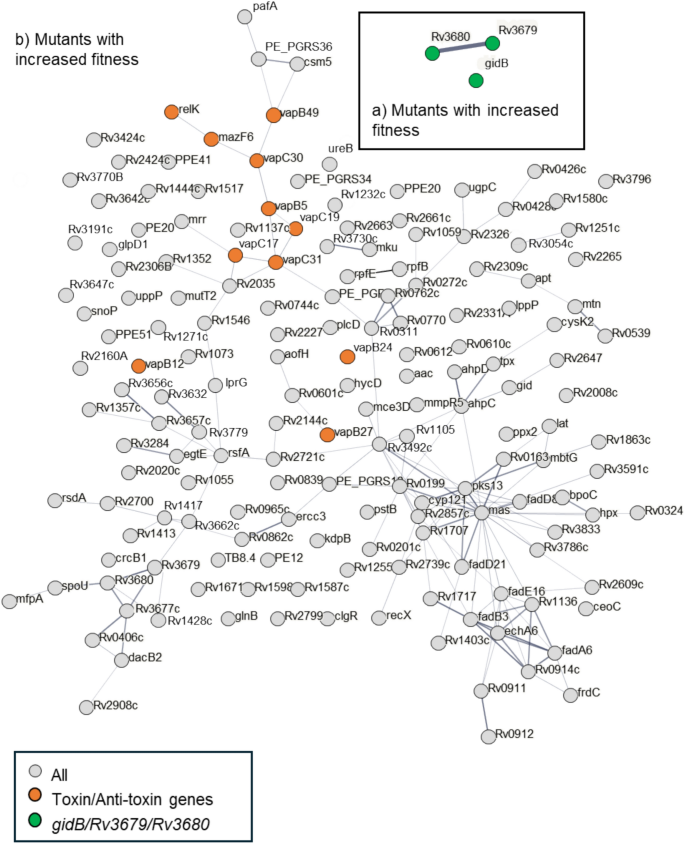

A gene association plot of significant mutants with (a) increased, and (b) decreased fitness when challenged with Streptomycin. Genes with p < 0.05 and fold change of more than 2 were submitted to STRING v1283. The thickness of the lines between plots indicates the confidence of the gene association.

Full size image

Mutants with lowered fitness

Mutants with lowered fitness after antibiotic challenge were more numerous (Fig. 4–6, Supplementary Data File 1). Among the 52 mutants identified with RIF were five genes of the cpsA/lytR/Psr group, cpsA, cpsY, rodA, Rv2700 and Rv326749 (p < 0.001), that encode proteins that anchor arabinogalactan to peptidoglycan, along with a further 6 cell envelope associated genes: chp2 (PAT synthesis50), ponA2 (peptidoglycan crosslinking), Rv0007 (peptidoglycan synthesis51), Rv1096 (peptidoglycan deacetylase51), fbpC (trehalose dimycolate synthesis) and fadE5 (lipid beta degradation). Two of these mutants, ponA2 and Rv0007, are thought to interact, with Rv0007 being required for ponA2 function51, both were previously identified by Xu et al34 as being lost in transposon libraries subject to sub-lethal concentrations of RIF. STM treatment identified 23 mutants with lowered fitness, although no functional groupings were apparent (Supplementary Fig. 2). When the cutoff criteria were lowered, and p values rather than q values used, we identify 172 mutants with reduced fitness (Fig. 5–6), and noted a preponderance of toxin/anti-toxin mutants, vapB5, B12, B19, B24, B27, B49, C17, C19, C30, C31, mazF6, and relK (Χ2 p = 0.015).

ΔfadE5 mutants have altered fitness.

To confirm our transposon-based predictions and to further investigate the antibiotic phenotypes of the mutants, we generated targeted deletions of two RIF selected mutants: prpD (this knockout included the N terminal region of prpC, in much the same way that a transposon prpD insertion likely disrupts the operonic expression of prpC), which was identified as a mutant with increased fitness, and fadE5, which was identified as a mutant with lowered fitness. Time-kill experiments were performed to determine their persistence/tolerance phenotypes, and MICs carried out to measure any resistance phenotype. Both ∆prpD (predicted fold change of × 4.9) and ∆fadE5 mutants (predicted fold change of × 0.22) behaved as expected when exposed to RIF, with ∆prpD having significantly more survivors and ∆fadE5 producing significantly less (Fig. 7). The dynamics of the kill curves were both indicative of changes in tolerance rather than persisters, but definitive conclusions are difficult to draw without single cell analysis using microfluidics, which would constitute future works. Importantly no change in the MIC was observed (Fig. 7, Supplementary Fig. 3), demonstrating that these mutations did not infer a resistance phenotype. These results confirm that the transposon library screen identified genes that both increase and decrease the fitness of Mtb in ways that is not attributable to heritable changes in resistance.

Fig. 7
figure 7

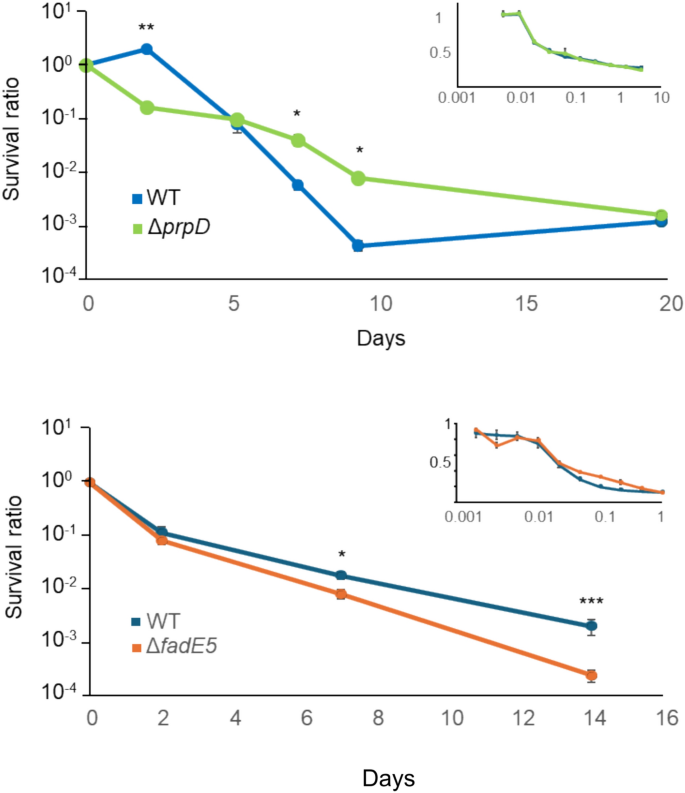

Kill curves of ∆prpD and ΔfadE5 challenged with RIF. Kill curves of (a) ∆prpD (∆Rv1130) and (b) ΔfadE5 (∆Rv0244) mutants treated with 1 µg ml-1 rifampicin compared with wild-type Mtb. Values are mean ± SEM of at least three biological repeats. Statistical differences were calculated using unpaired t-tests. *p < 0.05, **p < 0.01, ***p < 0.001. Insets are the MIC for the mutants (from Supplementary Fig. 3), of RIF concentration (µg ml-1) plotted against the ratio of the treated culture and the no antibiotic control.

Full size image

Discussion

Transposon libraries are a comprehensive and sensitive tool to generate genome-scale inventories of mutants that alter fitness under a given environmental condition34,35,43. For the library to be effective they must contain sufficient diversity, both before and after selection, to ensure good coverage of the genome and allow statistically significant differences in gene frequencies to be detected37. In these experiments we had to balance the need to select for the rare persister subpopulations that we hoped to analyse, whilst simultaneously retaining sufficient diversity to ensure that the library remained representative. The library used in this study contained 5 × 105 mutants and our experimental inoculum was approximately 100 times this number. Antibiotic selection reduced the population by ~ 1000-fold; allowing us to recover approximately 106 cells that was sufficient to provide a statistically valid sampling of the Mtb genome of ~ 4,000 genes and minimise any stochastic gene selection.

Both RIF and STM treatment of the transposon library changed the relative abundance of a wide variety of mutants, that were associated with long-term survival in the presence of the antibiotic. The genes identified correlated strongly with previous studies10,34,35, with many, but not all, of the genes identified in this work being common between studies. This both validates our data and implies that the genes uniquely identified in our study are also associated with antibiotic fitness.

Although the timing of the selection, and the antibiotic concentrations, were optimised to enrich for persisters we did inevitably also identify genes associated with resistance and tolerance. This is because it is difficult, if not impossible, when working with bulk populations to design out co-selection of resistance and tolerance associated mutants alongside any persister enhancing mutants. We did observe a strong selection for resistant organisms in our experiments, but despite this, we did not identify many transposon-associated resistance mutants in our analysis. This is because most of the resistant bacilli that were observed are likely due to SNP-mediated spontaneous resistance39,40 and so did not lead to the enrichment of any individual transposon insertion locus and as such they are not identified in the analysis.

As well as resistance associated mutants, we also identified many mutants associated with tolerance. In the context of our transposon library assays such co-selection is almost inevitable as the very distinction between tolerance and persister modulating mutants is challenged. Our transposon library is a mix of ~ 50,000 unique mutants, making any single mutant, including tolerance associated mutants, inherently rare, even after the selective pressure has been applied. This makes the behaviour of any single mutant in the tranposon library indistinguishable from that of persisters, which are defined as being a rare tolerant subpopulation. In similar experiments, when Torrey et al., 201610 subjected a mutagenized population of Mtb to a combination of RIF and STM they also found a mix of tolerance and persister-enhancing, as well as some genetically resistant mutants, including the STM resistance mutant gidB. Only when individual mutants are created and assayed can an attempt be made to distinguish tolerance from persistence, and even then, such distinctions can be difficult to determine without single cell analysis.

The mycobacterial cell wall—the front-line defence against RIF

Our RIF selection identified 52 mutants with reduced fitness, a significant number of which were in cell wall associated genes. Such mutants are of particularly interest as any gene target that synergises with RIF, could form the basis of novel drugs with the potential to enhance the effectiveness of RIF and so reduce rates of treatment relapse. Several of these cell wall mutants, cpsA2, cpsA, cpsY, rodA, Rv3267c and Rv2700 were in genes that are members of the LytR-Cps2A-Psr family involved in arabinogalactan transfer and attachment to peptidoglycan52,53,54. Of these genes, Rv2700 and Rv3267c deletion mutants have been reported to have much reduced IC50s/MICs for RIF53, indicating that these mutants exhibit reduced RIF resistance, rather than persistence or tolerance. These changes in resistance were antibiotic specific, as the same mutants did not have enhanced sensitivity to either isoniazid or ethambutol53,54, whilst in our STM screen these mutants were not selected. We identified a further six mutants in genes involved cell wall synthesis, chp2, fbpC, fadE5, Rv1096 and the functional pair, ponA2 and Rv000751. Rv0007 mutants have previously been identified as having a reduced ability to survive inhibitory concentrations of RIF34,55, but importantly, its MIC is reported to be unchanged34,56, confirming that knockouts of this gene are indeed low persister/tolerance mutants. Whilst fadE5 was one of the two knockouts used to validate our selection, and was shown to have a tolerance phenotype with reduced kill rates but no change in MIC.

The mycobacterial cell wall is normally an important barrier to host-effector mechanisms and antibiotics. By disrupting the cell wall’s structures these mutants likely increase cell wall permeability, allowing more rifampicin to enter the cell, so increasing sensitivity to RIF35,57. Although these increases in cell wall permeability seems to affect RIF, the mutants do not seem to affect sensitivity to STM, as none of these genes were found in our STM screen, supporting our conclusions, and that of other studies34, that the cell wall’s protective properties are especially relevant to challenge with RIF.

Antitoxin-toxin mutants promote mycobacterial long term survival in STM

Our initial STM selection analysis identified 23 mutants with reduced fitness, but with no obvious functional enrichment. If we relaxed the criteria to use p value < 0.05, rather than the q value, we found that toxin/antitoxin(TA) genes were significantly enriched, with 12 TA genes in the now 172 mutants. Toxin/anti-toxin genes are typically shorter than other genes, and so have less transposon insertion sites (a median of 3 TA loci compared to a 8 for all genes) and so need higher levels of transposon saturation to reach a significance threshold58, making there identification in a transposon screen inherently prone to type II error ie falsely reporting no change in abundance. Using p-values rather than a q-value compensates for this, but at the cost of increasing the risk of Type I errors, ie falsely reporting changed abundance.

Toxin:anti-toxin (TA) modules have been suggested as one of the mechanisms by which Mtb is able to enter the slow or non-growing states that are often associated with tolerance or persistence59,60. The Mtb H37Rv genome is estimated to contain 149 of these TA genes, constituting some 79 TA systems, that are thought to be regulated, and to function, independently of each other61,62,63, including in the presence of STM64. Two of the 12 TA mutants identified in our STM screen have been characterised. VapC30 has been shown to be associated with slow growth, dormancy and persistence65,66. In M. smegmatis, the VapC30 ortholog regulates glycerol metabolism via a specific ribonuclease activity to co-ordination the anabolic demands of the cell (e.g., fast or slow growth) with glycerol catabolism and so ensuring energy-producing and energy-consuming reactions of the cell are in balance65. The other well characterised toxin identified as depleted in our screen was mazF6 that, along with genes mazF5 and mazF1, are known to facilitate a state of reversible bacteriostasis that can enable survival upon antibiotic exposure67,68,69. The established roles of these two TA mutants in modulating bacteriostasis and in surviving antibiotic exposure, implies that despite utilising lowered statistical stringency, the mutants we identify were genuinely depleted in the STM selection.

Disruption of the methyl citrate cycle promotes long term survival in RIF

Our RIF selection identified 13 mutants with enhanced survival, which included mutants in genes encoding all three of the dedicated enzymes of the methyl citrate cycle (MCC), prpC, prpD, and their regulator prpR, indicating that dysfunction of the MCC increases survival under antibiotic stress. The MCC is a heavily regulated pathway that in the presence of propionyl-coA uses PrpC, PrpD, a (methyl)isocitrate lyase and part of the tricarboxylic acid cycle to metabolise propionate to pyruvate via a series of potentially toxic intermediates. When this pathway is blocked, metabolism is disrupted either directly by the toxic intermediates, or indirectly due to collateral changes to metabolism70, that ultimately lead to growth being inhibited, or even prevented71,72.

A role for the MMC in altering RIF susceptibility has been previously observed by Hicks et al11 who identified SNPs in prpR and prpC, but not in prpD, as prevalent in drug-resistant clinical isolates. They further demonstrated that in vitro, a prpR knockout (which have severely reduced prpDC expression) was tolerant to RIF, but only in the presence of propionate70,73.

The identification of the three MCC mutants in our library screen and the properties of our directed prpD knockout, confirmed that, at least under our conditions, the MCC tolerance phenotype occurred even in the absence of propionate implying that the MCC remained active under such conditions. Metabolic models and 13C labelling experiments predict this to be possible, with the cycle running in reverse to produce propionyl CoA for lipid production74,75. This activity could then still produce the toxic intermediates and metabolic changes that cause the growth disrupting, and tolerance phenotypes11,76. The absence of a tolerance phenotype by Hicks et al11 when propionate was not present maybe simply be due to difference in the experimental detail with differing timelines (6 v 14 days) and RIF concentration (0.5 v 0.15 µg ml-1), particularly as in our data tolerance is only apparent after day 7.

The other discrepancy between our results and those of Hicks et al11 is that although prpC and prpR were identified in both studies, prpD was observed only in our transposon screen. Tolerance in transposon mediated ΔprpD has been observed in a separate study by Quinonez et al., this time to isoniazid70, but again only in the presence of propionate. It may be that the transposon insertion knockout strategy, used in our library and by Quinonez et al70, disrupts the operonic expression of the downstream prpC gene, and so mutants phenocopy the ΔprpR used by Hicks et al11, whilst the effect of prpD SNPs on prpC function in the clinical isolates screened by Hicks et al11is minimal.

Potassium transport disruption promotes long term survival in RIF

The other notable gene grouping identified amongst mutants with enhanced survival in the RIF treated samples was ceoB and the adjacent Rv2690c gene. CeoB is a component of the Trk system, a K+ uptake system that is known to have major roles in osmotic stress tolerance, internal pH maintenance, regulation of protein activity and the control of bacterial virulence77. Exactly how disrupting this system leads to increased fitness under RIF stress is unclear but a lack of potassium can lead to non-replicating states in Mtb, which are commonly associated with persistence/tolerance mechanisms78.

Summary

Our study identified Tn mutants that had both enhanced and reduced fitness in the presence of RIF and STR. Amongst these mutants were genes associated with both tolerance and persistence, as well as some genes associated with resistance. Surprisingly, very few genes were common to both RIF and STR treatments, implying that the mechanisms that result in persistence and tolerance phenotypes were specific to each antibiotic. Several of the genes identified have previously been associated with changed levels of fitness under antibiotic stress, strongly arguing for the effectiveness of our screen and the relevance of the additional novel genes identified here. We confirmed the fitness phenotypes of two of the novel mutations, ΔprpD and ΔfadE5. Mutations in some of genes identified have been observed in clinical studies11,46,79, demonstrating that the library screen did identify clinically relevant targets, and therefore is providing new potential targets for TB drug development. To conclude, our findings identify a wide range of genes, unique to each antibiotic, that are involved in both increasing or decreasing the fraction of persisters or tolerant cells in the population of Mtb.

Methods

Strains, media culture and laboratory conditions

Mtb was grown at 37 °C in Middlebrook 7H9 containing 0.2% glycerol and 0.05% Tween80® with shaking (200 rpm), or on Middlebrook 7H11 agar. Time-killing experiments used a modification of the method described by Langmead and Salzberg80. To optimise the antibiotic concentration for the library selction, antibiotics were added to exponential phase (OD600 0.6–0.8) cultures at 3, 5 and 10 times the MIC: 0.09, 0.15 and 0.3 µg ml-1, respectively for RIF and 1.5, 2.5 and 5 µg ml-1, respectively for STM. Samples were enumerated by culture before antibiotic addition and after 2, 7 and 14 days. At least 3 biological and 3 technical replicates were carried out for each experiment.

Selecting transposon library by RIF or STM exposure

A himar1 H37Rv transposon library of approximately 5 × 105 individual mutants was generated as described by Mendum et al43 and frozen in aliquots at -70 °C. Triplicate aliquots were thawed and cultured until exponential phase (OD600 ~ 0.7). For each replicate, an initial sample was removed, and cultured on agar until confluent, the material was collected and frozen to give ‘input’ samples. The remaining cultures were split in two, and either RIF (0.15 µg ml-1) or STR (5 µg ml-1) added. Samples were enumerated on days 0, 7 and 14, on non-selective plates, to determine the overall number of surviving bacteria, and on selective plates to determine the number of resistant bacteria. At day 14 the cultures were harvested by centrifugation, washed in media, plated, incubated until confluent and stored at -70 °C to give ‘output’ samples.

Library DNA extraction

DNA was extracted from each input and output sample. Samples were centrifuged, the cryopreservant removed, and the pellet resuspended in TE, pH 8.0 (Sigma). An equal volume of 2:1 methanol:chloroform (Sigma) was added and the solution rocked by hand for 5 min. The suspension was then centrifuged at 4000 rpm for 10 min and the aqueous and organic phases carefully removed from the bacterial mass which was dried for 2–3 h. TE buffer (5 ml) containing 100 µg ml-1 lysozyme (Sigma), 1% SDS and 100 µg ml-1 of proteinase K (Sigma) was added to the pellet and the mix incubated at 50 ºC for 3 h. The viscous solution was transferred into a clean tube containing an equal volume of phenol:chloroform:isoamyl alcohol 25:24:1 (Sigma) and mixed by hand for 15 min. The mix was centrifuged, and the aqueous phase removed to a new tube and extracted once again with an equal volume of chloroform. The aqueous phase was then transferred to a new tube, and the DNA precipitated with 0.1 volumes of 3 M sodium acetate (Sigma) and × 0.7 volume of isopropanol (Sigma). Recovered DNA was washed twice with 70% ethanol and dissolved in molecular grade water. DNA quality and quantity was measured on 0.8% agarose, and by Nanodrop (Thermo Scientific).

Processing DNA for next generation sequencing

Approximately 5 μg of the DNA was suspended in 130 µl of molecular grade water. The suspension was transferred to a cuvette and the DNA sheared using a Covaris Sono 7 machine with settings of Incident Power—105, Duty Factor – 5% for 200 cycles/burst for 80 s. Resultant DNA fragments were quantified and checked on agarose to confirm shearing.

The DNA fragments were blunt ended using the NEBNext End Repair Module (New England BioLabs) by mixing 1–5 µg of DNA with 10 µl NEBNext End Repair buffer (10x), 5 μl NEBNext End Repair Enzyme mix and water to a total volume of 100 µl and incubated at 20 °C for 30 min. The product was cleaned with a QiaQuick PCR cleanup kit (Qiagen) and resuspended in 50 μl water. A 3’ A was added to the blunt-ended DNA, using the NEBNext dA-Tailing Module (New England BioLabs) following the manufacturer’s instruction: recovered DNA was mixed with 5 µl NEBNext dA-Tailing reaction buffer (10x), 3 μl Klenow fragments (3’-5’ exo) and molecular grade water to 50 μl, incubated at 37 °C for 30 min and cleaned with a QiaQuick PCR cleanup kit and eluted into 50 μl water.

An adapter with a 3’ ‘T’ overhang was generated by mixing 100 μM of oligonucleotide Adap1 and Adap2 (Supplementary Table 1) in 50 μM MgCl2, heating at 95 °C for 5 min, and then cooling slowly to room temperature. This adapter was ligated to the A-tailed DNA by adding 4 μl of the 50 μM adapter to 250 ng A-tailed DNA (100–200 molar excess) with T4 ligase (Promega) and incubating for 2 h at room temperature. The resultant product was cleaned up with the QiaQuick PCR cleanup kit (Qiagen) with 4 PE washes, and eluted into 50 μl molecular grade water.

Loci adjacent to the Mariner transposon were amplified with primers MarA to MarJ, and primer IS6 (Supplementary Table 1). Cycle conditions were 98 °C for 30 s, followed by cycles of 98 °C for 10 s, 58 °C for 10 s and then 72 °C for 30 s. Cycle numbers were optimised in 10 µl real-time reactions containing 5 μl Phusion High Fidelity PCR master mix with GC buffer (New England BioLabs), 0.5 μl × 20 EvaGreen (Biotium), 2 pmol ul-1 of each primer, and 1 μl of the DNA a to give maximal amplification but without entering the artefact inducing plateau phase of the reaction. Once the number of cycles was optimized, the PCR were repeated in larger, preparative volumes of 4 × 50 μl each. To remove PCR artefacts such as primer dimers and get the appropriate fragment sizes, the PCR products were separated on a 1% agarose gel and fragments of between ~ 400–600 bp excised and cleaned with the QiaQuick Gel extraction kit (Qiagen), using 6 PE washes. The final product was eluted into 50 μl molecular grade water after a 2 min incubation at RT and fragment size and concentrations determined on a BioAnalyser (Agilent 2100). Samples were Illumina sequenced, with double reads of at least 100 bp, and double indexing.

Sequencing results were returned as fastq files and processed:

  1. 1.

    fastqFilter.py : filters input read sequences where end nucleotides with a fastq score < '#' were removed.

  2. 2.

    transposonFilter.py : filtered out non-transposon reads, by removing anything that does not contain the transposon insert site of ‘TGTTA’ near the start of the read.

  3. 3.

    aligned to the Mtb H37Rv genome (NC-018143) using Bowtie2 81.

  4. 4.

    count Tn PCR dedup.py : counts the number of inserts at each position with mapping quality <  = 30 and removes those with the same random Adap1 index and insertion loci, so removing artefactual PCR duplicates.

  5. 5.

    Gene essentiality analysis using the TRANSIT resampling method. We used a cut-off fold change ± twofold and a q value of 0.05, and visualised with STRING version 1282.

RIF Time-Kill experiment with deletion mutants

The prpD(∆Rv1130) knockout was constructed by PCR amplifying homologous regions upstream and downstream of prpD (Supplementary Table 2) and inserting them into pYUB245 as described by Bardarov et al.83. Mycobacteriophage for the fadE5 knockout were kindly provided by Prof. William Jacobs Junior of Albert Einstein College of Medicine. Both wild type and KO mutants were cultured to an OD600 0.5 ~ 0.8. Rifampicin (Sigma) was added to the cultures to a final concentration of 1 μg ml-1 (33 × MIC) and incubated at 37 °C for 2–3 weeks. Aliquots were taken at time points and enumerated by plating.

MIC assays of deletion mutants.

The wild-type Mtb H37Rv and KO mutants prpD and fadE5 were cultured to an OD600 ~ 0.5, diluted 1:10 and inoculated into antibiotic dilution series arrayed in 96 well plates, and incubated at 37 °C for one week and the OD600 value of each well was measured using a microplate reader.
