Fig. 3 | Scientific Reports

Fig. 3

From: Strictosamide and mitraphylline inhibit cancer cell motility by suppressing epithelial-mesenchymal transition via integrin α4-mediated signaling

Fig. 3

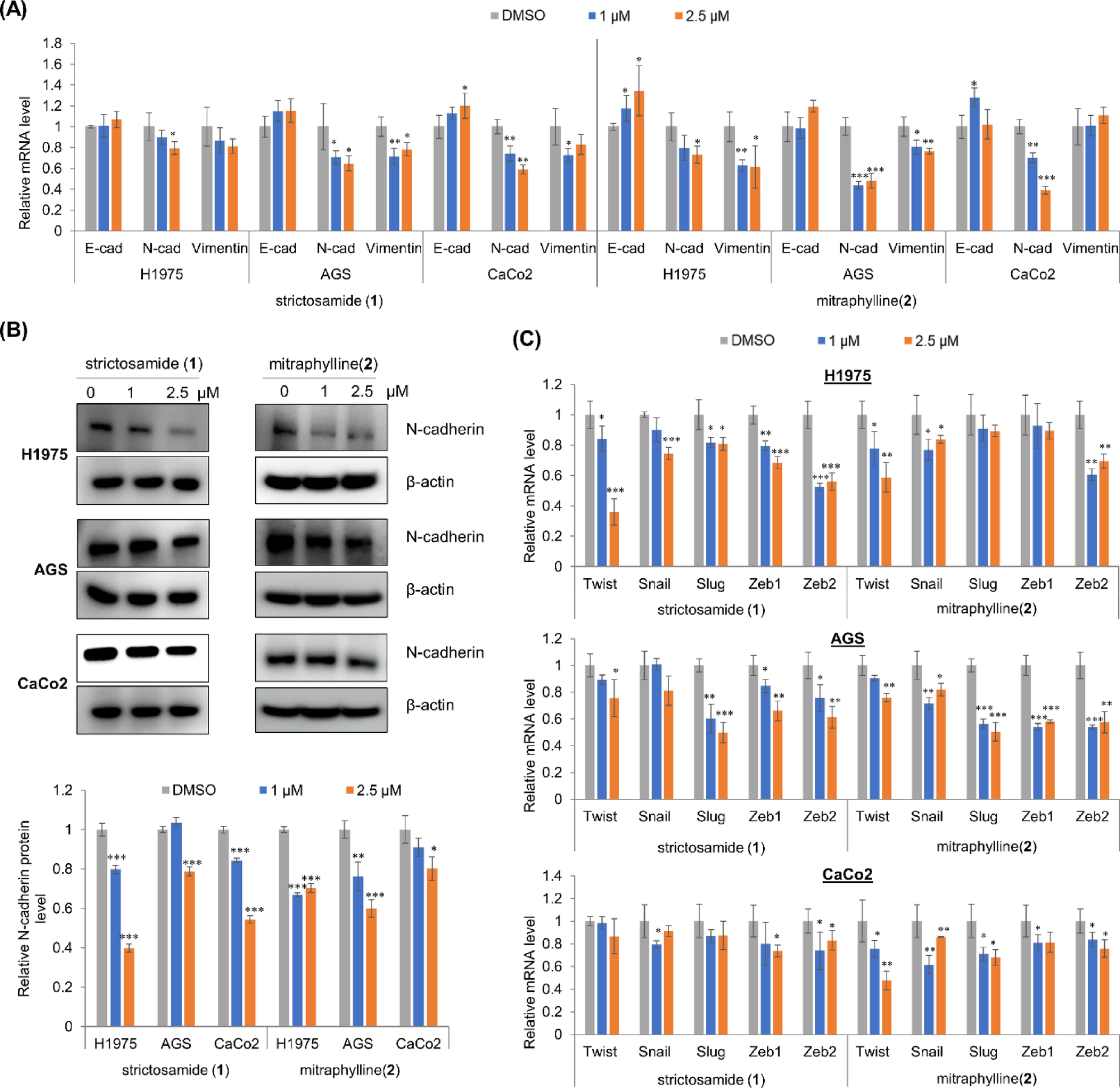

Strictosamide (1) and mitraphylline (2) downregulated the expression of EMT effectors and transcription factors. (A) The mRNA expression of EMT effectors (N-cadherin, vimentin and E-cadherin) were analyzed by qRT-PCR. The mRNA expressions were normalized against β-actin. (B) The protein levels of N-cadherin were measured. β-actin served as a loading control. (C) The mRNA expressions of EMT transcription factors (Twist, Snail, Slug, Zeb1, and Zeb2) were analyzed by qRT-PCR. The mRNA expressions were normalized against β-actin. Data are represented as the mean ± S.D. * p < 0.05; ** p < 0.01; *** p < 0.001.
