Fig. 5 | Scientific Reports

Fig. 5

From: Polylepis wood acclimation strategies to ENSO events

Fig. 5

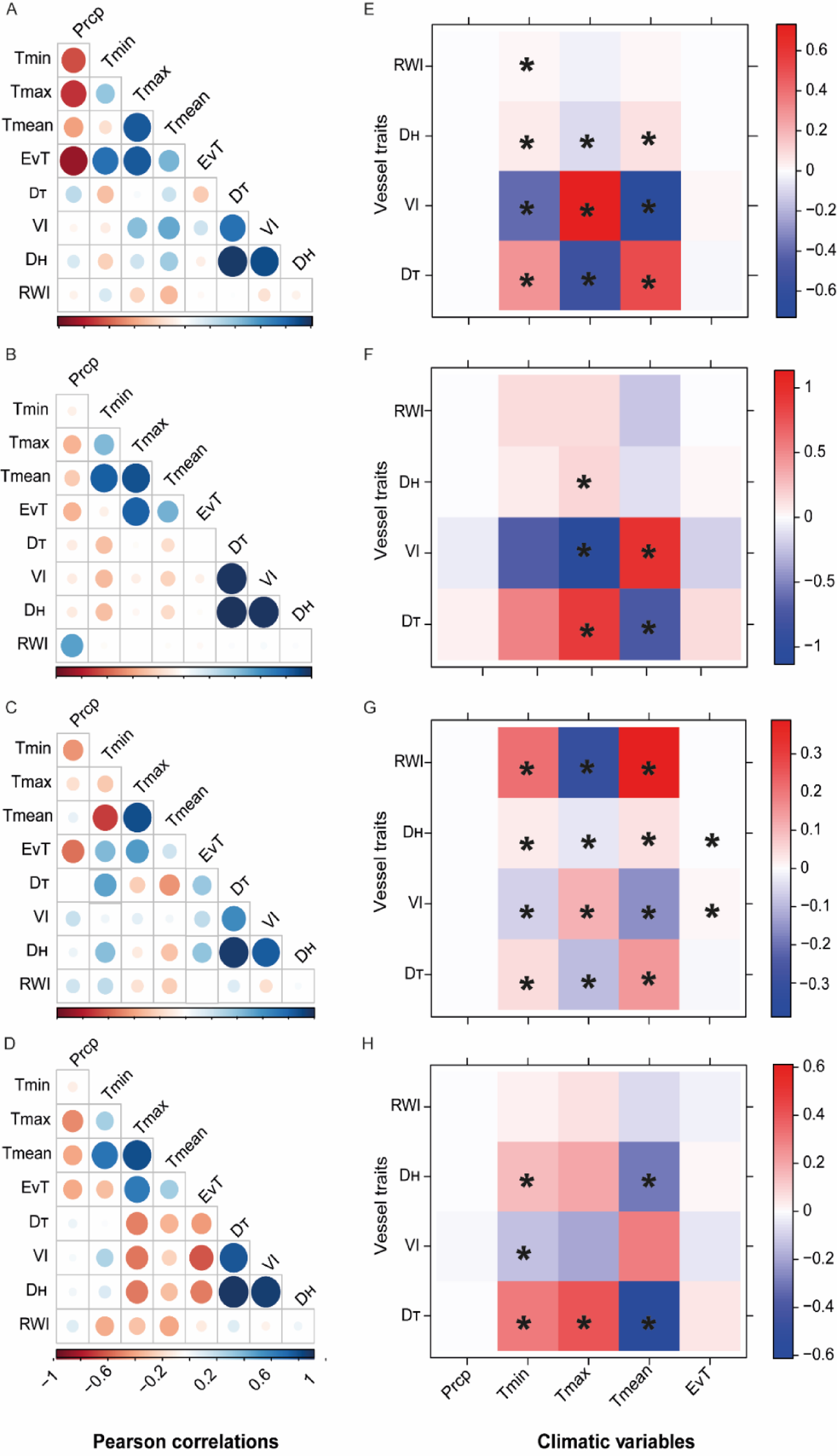

Pearson correlation and average model coefficients that influence wood anatomical traits; best models that were statistically significant (p < 0.05) between La Niña and El Niño events for each Polylepis species. (A and E) P. rugulosa vs La Niña; (B and F) P. tarapacana vs La Niña; (C and G) and P. rugulosa vs El Niño; (D and H) P. tarapacana vs El Niño. (A, B, C, and D) = Pearson correlation graphs. (E, F, G, and H) = Average model coefficient graphs. Asterisks represent significant correlations (p < 0.05).
