Fig. 5
From: Ionic liquid-assisted biomass-derived N, S-doped carbon dots with enhanced corrosion inhibition

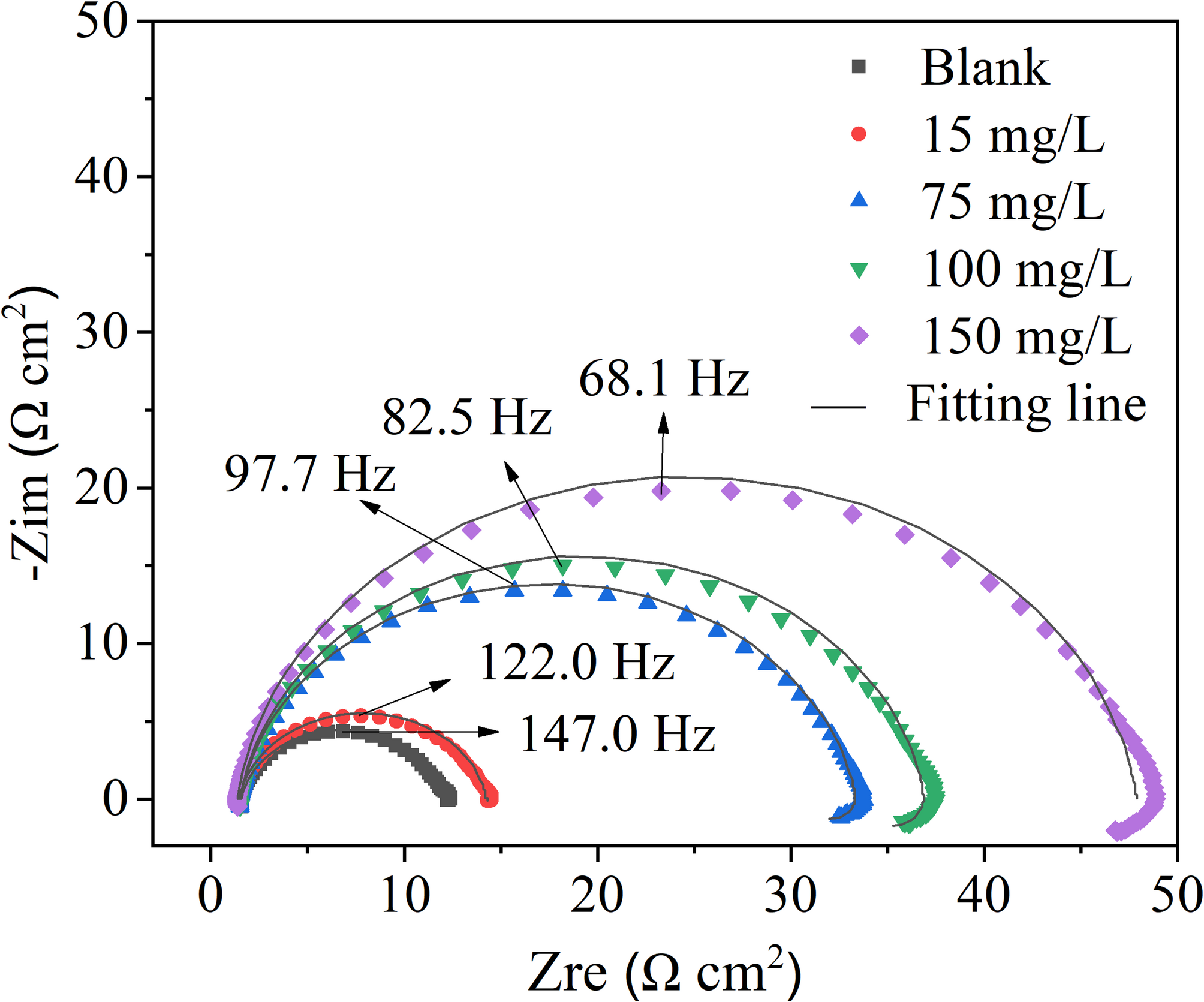

Nyquist plots of carbon steel in 0.5 M H2SO4 solution uninhibited and inhibited with different concentrations of the IL-CDs.
