Fig. 7
From: Ionic liquid-assisted biomass-derived N, S-doped carbon dots with enhanced corrosion inhibition

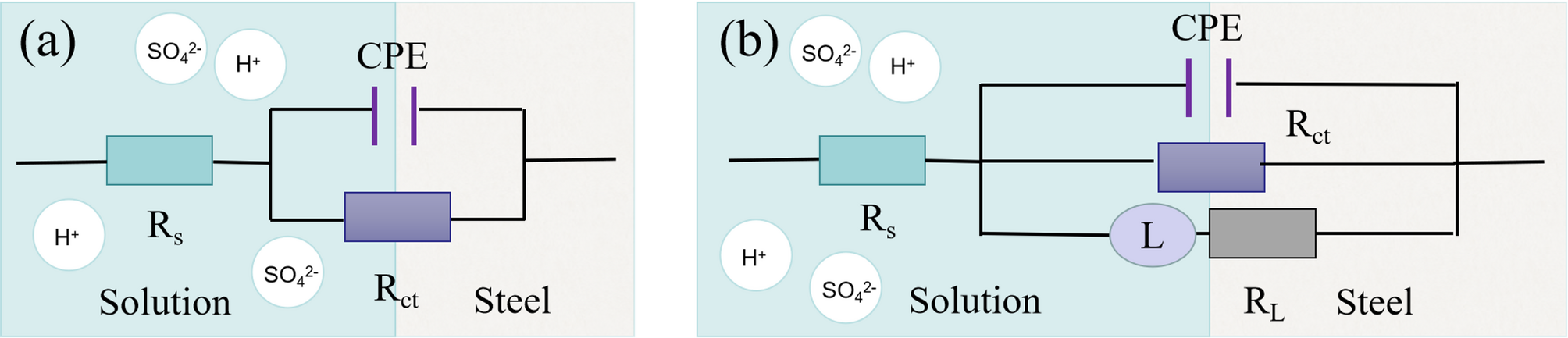

Electrochemical equivalent circuit for fitting EIS data for carbon steel in 0.5 M H2SO4 solution (a) without inhibitor, and (b) with IL-CDs and CDs.
