From: Sustainable production of bacterial nanocellulose from date fruit waste using Bacillus haynesii for waste valorisation and crystal violet dye removal

Fig. 3

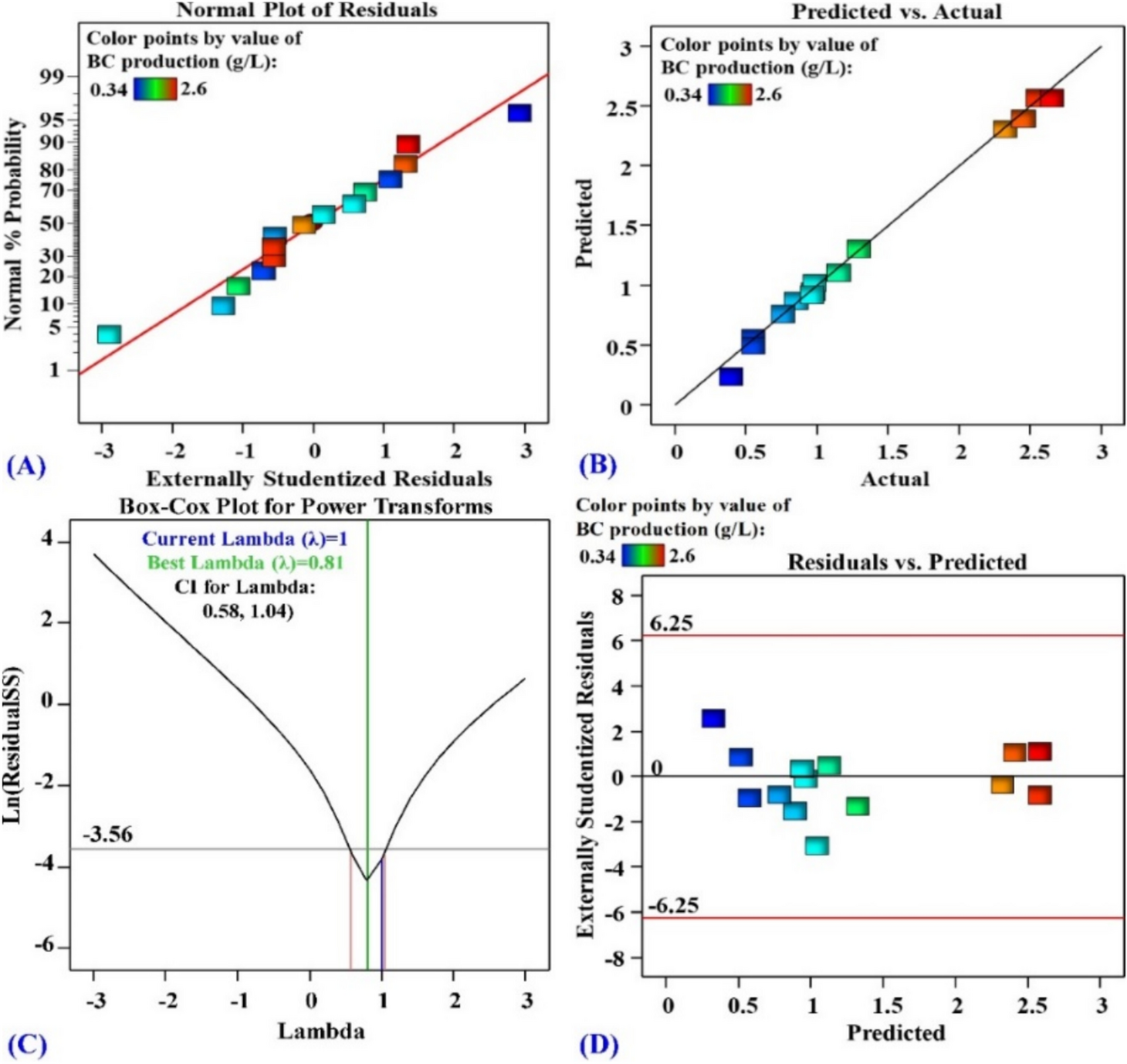

(A) NPP of residuals, (B) Graph comparing predicted to actual values, (C) Box-Cox plot for power transform, and (D) displays a graph comparing the studentized residuals with the predicted BNC production by B. haynesii 9.1AP strain as influenced by temperature (X1), date waste extract (%) (X2) and initial pH level (X3).
