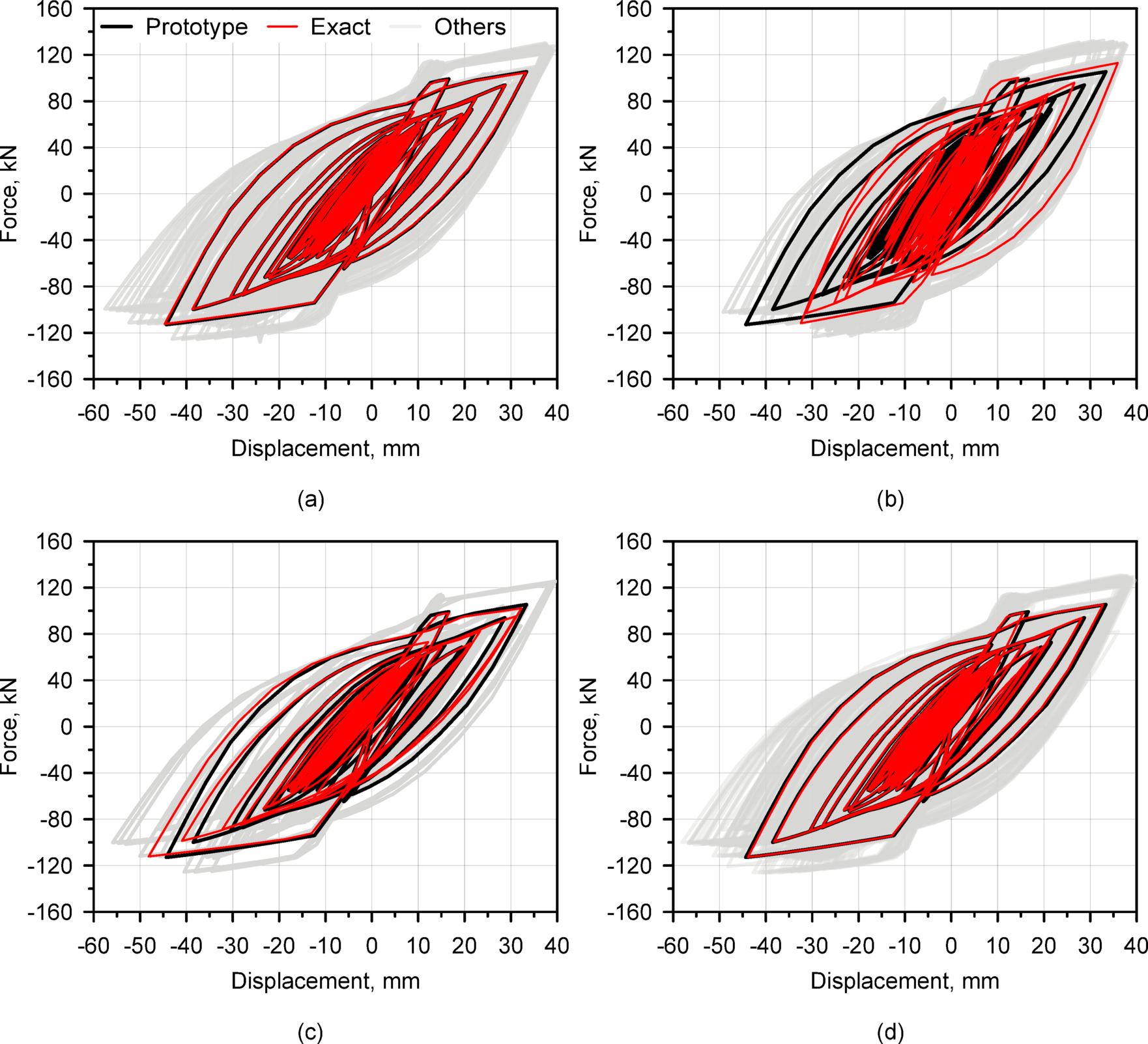

Fig. 12

Predicted force-displacement relationships compared with the actual force-displacement relationship of the prototype (SF = 1.25): (a) K-M law with \(\epsilon_{rs}\); (b) K-M law with \(\epsilon_{rc}\); (c) Kim’s law; (d) proposed similitude law
