Fig. 3

From: Inhibition of levodopa metabolism to dopamine by honokiol short-chain fatty acid derivatives may enhance therapeutic efficacy in Parkinson’s disease

Fig. 3

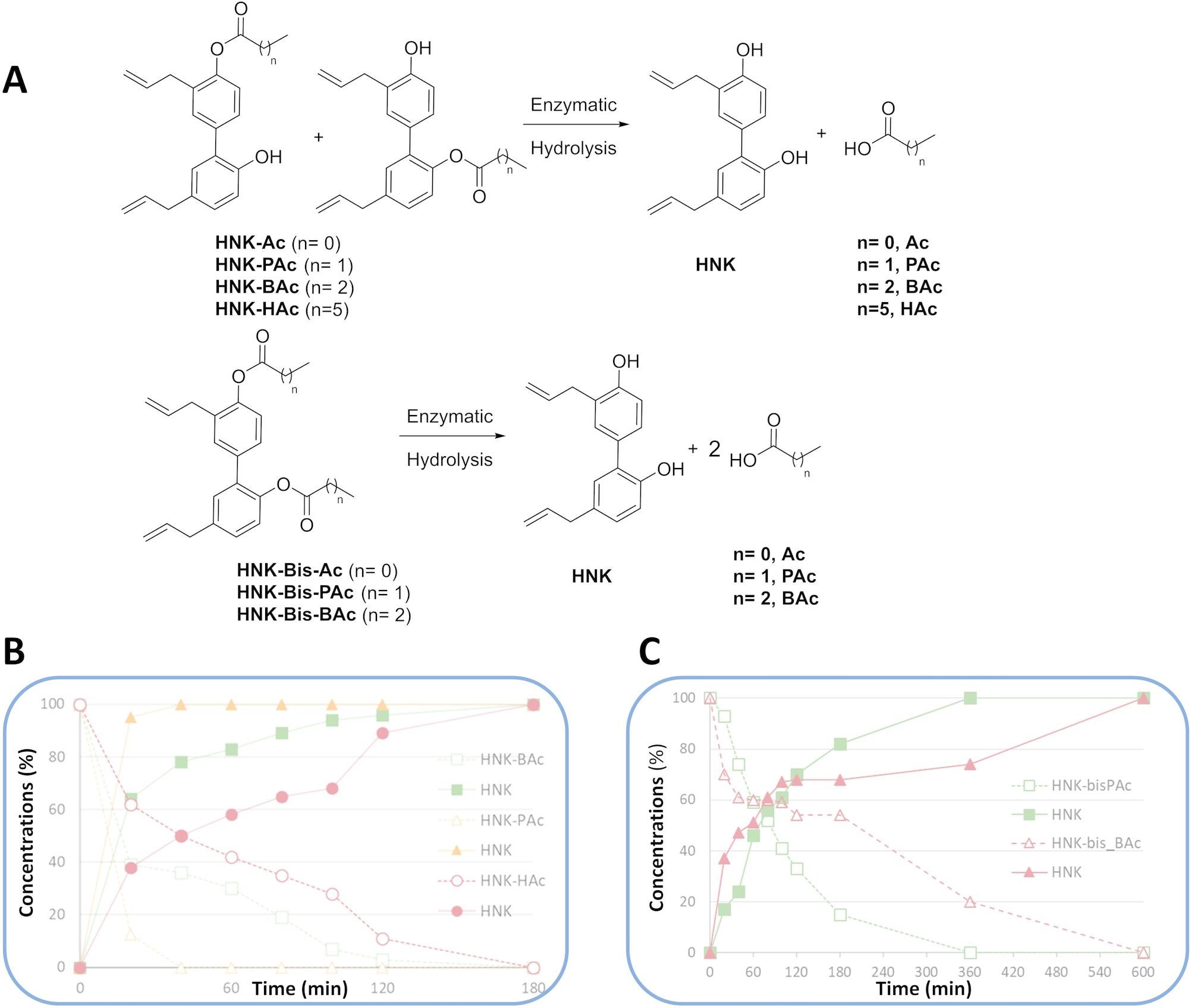

Kinetics of esterase-induced hydrolysis of HNK-SCFA-mono and bis-esters. (A) Schemes showing the hydrolysis of HNK-SCFA-esters and the bis-esters. (B) Kinetics of esterase-induced hydrolysis of HNK-SCFAs. HNK-SCFA-esters (100 µM) were incubated in the presence of esterase (30 U/mL). (C) Kinetics of esterase-induced hydrolysis of HNK-SCFA-bis-esters. HNK-SCFA-bis-esters (100 µM) were incubated in the presence of esterase (30 U/mL).
