Introduction

Optical biosensing and diagnostics are dominated by Surface Plasmon Resonance (SPR) and fluorescence-based approaches, which are very sensitive technologies but generally require sample labelling and provide no direct information on molecular structures. Molecular spectroscopy is an alternative approach with potential to provide a wealth of information on analyte composition, structure and conformation, allowing rapid and detailed biochemical analyses based on molecular fingerprints of biomarkers1,2,3,4,5. Chalcogenide glasses are inorganic vitreous materials that possess unique optical properties such as high non-linear refractive index, large transparency in the infrared (IR) optical range and their ability to be drawn into fibers6,7. The biocompatibility of these glasses is also demonstrated for the glassy compositions showing a long term stability in water8. All these features make these materials inescapable for designing IR optical systems aiming to record quantitative profiling of the fundamental vibration signatures of organic molecules in the mid-IR spectral region9,10,11. In this regard, the inherent molecular selectivity of mid-IR sensors characterizing the spectral fingerprint of chemical or biological species provides a good alternative as it is direct, fast, label-free and non-destructive9,12. Over the last decade, chalcogenide glass fibers have been successfully implemented in fiber evanescent wave spectroscopy (FEWS) experiments as it provides a real-time sensing without the cumbersome sample collection or pretreatment for the detection of biochemical species in various fields of applications including water pollution, microbiology, medicine and food safety13,14,15,16,17. Further, it provides a high degree of flexibility besides the advantage of the size of the probe which facilitates its insertion into chemical cells to follow reaction mechanisms18 as well as putting a section of an IR fiber optic probe in contact with living tissues to detect cellular metabolic activity, specifically cancer at early stages19.

A detection by FEWS technique is based on the evanescent field attenuation caused by the absorption of the surrounding media. The core of enhancing the sensitivity of a fiber sensor based on FEWS is to enhance the interaction between the optical evanescent field and the analyte8,20,21. One way is to enhance the intensity of the fiber evanescent field by optimizing the geometry/size of the optical guide; the second way is to increase the analyte concentration on the surface of the fiber evanescent field which can be obtained by specific surface functionalization of the optical material.

Regarding the first approach, a number of studies have been conducted in recent years on IR sensing based on tapered chalcogenide glasses. For example, Hocdé et al. have tapered Te-As-Se fibers from a diameter of 400 μm down to 100 μm to measure the concentration of acetone diluted in methylene chloride, they obtained values as low as 2.5%7. Le Coq et al. have employed Te-As-Se fibers tapered to a diameter of 50 μm to detect ethanol in water and a detection limit of 0.5% was acquired22. Velmuzhov et al. manufactured IR-tapered fiber sensors based on the Ge20Se80 composition with different geometries of the sensitive zone (straight, U-shaped form, one loop, two loops) to detect the content of an additive to diesel fuel and hence attained a detection limit of 0.02%23. Moreover, Yang et al. reported on tapering Ge-Se-Te glass fibers with a diameter of 400 μm to different taper waist diameters between 30 and 90 μm as sensors to detect mixed liquids containing different ratios of methanol and dichloromethane by FEWS24.

Compared to other sensing systems, mid-IR sensors are still limited in sensitivity to the high parts-per-million concentration levels due to the interfering absorptions of water, which presents a limiting factor especially for biological applications25. Detection at low parts-per-million and -billion concentration ranges necessitates functionalized surfaces allowing chemical or biochemical selectivity. This simultaneously enriches the targeted species within the volume probed by the evanescent field and minimizes the solvent absorption. For biosensors, receptors such as antibodies or aptamers can selectively increase the quantity of biomolecules targeted on the probe’s surface thus resulting in a drastic enhancement of the limit of detection.

The development of surface bio-functionalization methodologies for optical sensing is a classical strategy commonly developed on oxide glasses which are transparent in the visible/NIR domain4,5, however on IR optical material such approach is relatively limited in the domain of biosensing. Surface functionalization via short peptides, organosilanes or thiol monolayers have been demonstrated on Silicon26,27, ZnSe28, Germanium29, chalcogenide films30 and melt-quenched glasses31. Another method is to form a lipid bilayer containing nitrilotriacetic-acid on a Ge ATR crystal surface to characterize proteins by FTIR spectroscopy32. In the current paper, in order to demonstrate and quantify the advantage of a surface bio-functionalization for FEWS protein detection, we have pursued the work of Alvarado et al.31 on bio-functionalized sulfide chalcogenide glasses. Alvarado et al.. have studied three different approaches for the covalent grafting of biotin functional groups on a germanate sulfide chalcogenide glass : first, a traditional silane chemistry to functionalize hydroxyl moieties of the glassy surfaces, while other strategies were based on the reactivity of maleimide and cyclooctyne derivatives to react on sulfhydryl moieties. In the present work, the maleimide reactivity on surface sulfhydryl has been chosen for both its efficiency as well as for its simple one step procedure very well adapted to chalcogenide glass samples in the shape of mechanically fragile optical fiber.

Chalcogenide glass fibers based on a composition in the system Ge-Sb-S have been developed, tapered, and bio-functionalized using surface reactivity of thiol on the glassy surface. Finally, these IR fiber-optic probes were coupled to a FTIR spectrometer and tested for the bio-detection of protein solutions for various concentrations. A systematic comparison between non-functionalized and functionalized fibers has permitted to demonstrate the bio-selectivity of the probes and a quantification of the limit of detection improvement.

Materials and methods

Chalcogenide glass synthesis and fiber drawing

Chalcogenide glass synthesis of nominal composition Ge15Sb20S65 was prepared following the method indicated in Ref31. The preform was subsequently annealed for 4 h at 10 °C below its glass transition temperature (Tg = 250 °C).

The fabricated preform was then placed in the furnace and heated up to its softening point (460 °C) at a rate of 10 °C/min under helium gas flow (3 L/min) to be drawn into fibers using a dedicated 2 m high drawing tower. During the fiber drawing, the preform was slowly fed (2 mm/min) into the furnace as the drawing parameters were continuously adjusted in order to manufacture fibers with a controlled diameter ranging from 700 to 875 μm ± 5 μm, the average drawing speed was 0.3 m/min.

Fabrication of fiber tapers

Short tapers were fabricated from fibers using a well-known post-processing technique based on VYTRAN Glass Processing Workstation (GPX-3400 series) device. The system consists of a filament heater, precision stages, with multi-axis control, and a microscopic high resolution CCD imaging system. As during the drawing process, the fibers were fed in the filament heater at constant speed, while being pulled at a higher speed on the other side. The high precision (1/4 µm) of the moving stages allows a fine tuning of the feeding and pulling speeds, and thus a fine control over the transitions shapes.

The taper manufactured for this work consists of two smooth transitions of 17.5 mm length reducing the fiber diameter on its middle and forming a uniform waist of 100 μm of diameter over a length of 60 mm.

Biotinylation of the tapered fibers

Before each functionalization approach, all substrates were cleaned by sonication in CHCl3 for 15 min and dried under a N2 flow. Tapered fibers were immersed in a solution of 1.76 mL deionized water mixed with 405 µL of dimethyl sulfoxide (DMSO from Sigma Aldrich) and 34.4 µL of maleimide-EG3-Biotin (6.0 10−3 M in DMSO). The final concentration of Mal-EG3-Biotin is 9.4 10−5 M. DMSO is added to the solution to maintain the solubility of maleimide-EG3-Biotin in water. After 16 h at room temperature, the fibers were cleaned by immersion cycles in deionized water (2×) and CHCl3 (2×) using an orbital shaker.

Bio-functionalization and in-situ bio-detection of Streptavidin via FEWS optical sensor

The complete procedure followed to study biotin-streptavidin interaction at the surface of bio-functionalized chalcogenide fibers is illustrated in Fig. 1. The experimental setup used for FEWS experiments is presented in Fig. 2. It consisted of a microscope (Nic-Plan) attached to a FTIR spectrometer (Nicolet 6700) coupled to a parabolic mirror to inject the IR beam in the glass fiber which is maintain in position using classical fiber holders. All measurements were conducted for a room temperature of 22 °C (controlled using an air conditioner). The tapered fiber acting as a sensing probe is mounted on a 2 cm length polytetrafluoroethylene (PTFE) cell. The output signal from the fiber was collected using a biconvex lens BaF2 (F = 40 mm) in a 4 F optical system to focus the IR beam on a liquid nitrogen-cooled MCT detector. Initially, the cell was filled with PBS solution (Phosphate Buffer Saline, pH = 7.4) and a spectrum was recorded (t0). In a second step, the PBS solution was removed and the cell was filled with a solution of PBS-T (Phosphate Buffer Saline with Tween 20 from Sigma/Aldrich Chemical Company at 0.05% v/v, pH = 7.4) containing Streptavidin for three different concentrations 0.1 mg/mL (100 ppm), 10−3 mg/mL (1 ppm) or 10−5 mg/mL, (10 ppb). Tween 20 was used as blocking agent to limit non specific adhesion. To study the kinetics of the biotin-streptavidin interaction, seven to nine consecutive measurements were recorded every 15 min (named ti, where i = 1 to 9, for a total duration of 135 min). Each spectrum was obtained by averaging 2000 scans with a spectral resolution of 8 cm−1. The absorption spectrum of the analyzed sample was calculated using the following equation:

$$A(\bar{\upsilon})=-\text{l}\text{o}\text{g}\left(\frac{{I}_{S}}{{I}_{ref}}\right)$$

where \(A (\bar{\upsilon})\) is the absorption at the wavenumber ῡ, \(\:{I}_{S}\) and \(\:{I}_{ref}\) are the intensities of light transmitted through the fiber located in an empty cell in the ambient atmosphere and immersed in the analyzed solution, respectively. All spectra have been normalized to the H2O stretching band at 3270 cm−1. Then, to characterize quantitatively the effect of streptavidin adsorption on the tapered fiber probe, the reference spectrum of the PBS solution has been subtracted giving the absorbance difference (\(\:\varDelta\:A\)).

Fig. 1
figure 1

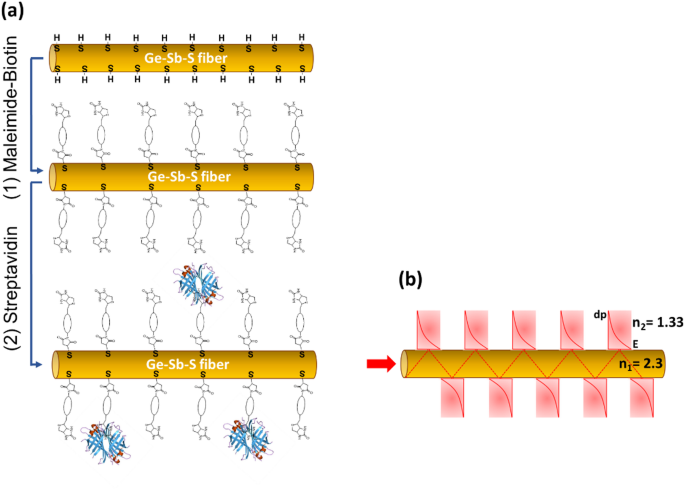

(a) Schematic representation of the functionalization approach on the fiber surface: (1) maleimide-based functionalization of sulfhydryl moieties to obtain a biotinylated fiber surface, and (2) surface bio-functionalization with Streptavidin in the presence of Tween 20 from Sigma/Aldrich Chemical Company. (b) Schematic representation of the FEWS approach.

Full size image
Fig. 2
figure 2

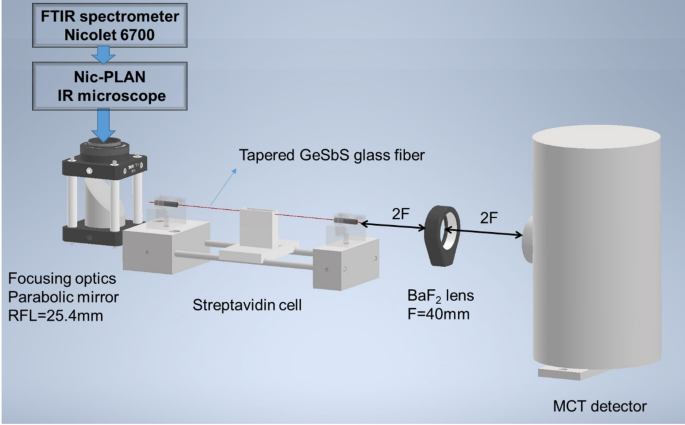

Experimental setup for the detection of streptavidin. This Figure was prepared using Autodesk Inventor 2024 (https://www.autodesk.com/).

Full size image

Results and discussion

As a reminder, Alvarado et al. have studied various reactivity approaches for the surface biotinylation of a sulfide glassy composition depending on the chemical functional groups observed on the glass surface: sulfhydryl (S-H) and/or hydroxyl (OH)31. In this study, the sulfhydryl reactivity with a maleimide chemical function has been chosen to functionalize the surface of chalcogenide fibers. Thus, using a commercial solution of Biotin-dPEG3®-Maleimide allows to obtain, by a simple and reproducible method, biotinylated sulfide glassy surfaces having a high affinity to streptavidin (STV) proteins. The impact on the detection of STV by FEWS IR spectroscopy of this particular method of surface bio-functionalization is presented in the following results.

Figure 3 presents the spectra recorded after PBS-T containing-STV incubation (highest concentration of 100 ppm) as a function of time for the biotinylated and non-biotinylated tapered fiber surfaces. For all the spectra, the 4000–1500 cm−1 region is dominated by absorptions of water: OH stretching at 3270 cm−1, O-H bending at 1640 cm−1 and bend-libration combination band at 2100 cm−1. For a better visualization of the protein bands, we show insets in the 1690–1490 cm−1 range where amide I at 1633 cm−1 and amide II bands at 1540 cm−1 characteristic features of streptavidin can be detected. To better reveal the absorption bands of the protein, we have subtracted the scaled PBS spectrum from those of PBS-T containing-STV. Figure 3 (c, d) shows IR difference absorption spectra for biotinylated and non-biotinylated surface fibers. The presence of amide I, amide II, CH2 bending and amide III characteristic bands respectively at 1633, 1540, 1461 and 1407 cm−1 confirm the presence of proteins on the biotinylated surfaces of Ge15Sb20S65 glass fibers. One can see in Fig. 3 that the intensity of amide I, II, III and CH2 bending bands increase with the incubation time for the bio functionalized fiber probe whereas for the non-functionalized fiber the presence of STV is observed but do not change significantly with the incubation time. One can notice that in our optical configuration, the amide II band is more intense than amide I which is not the case if one compares to STV spectra measured by classical ATR configurations using high refractive index crystal of Si or Ge for example26. This can be attributed to strong band distortions caused by a perturbed total internal reflection configuration33. This is expected because of the relatively low refractive index of the GeSbS glass fiber (n ≈ 2.3)34.

In Fig. 4, one can analyze the results obtained for the same method but using a PBS-T containing-STV solution at a concentration of 1 ppm for the incubation. For this lower concentration, the IR absorption bands attributed to the STV protein are clearly observed and increase with incubation time for the biotinylated fiber. In the case of the non-functionalized fiber, all the measurements present a band around 1732 cm−1 corresponding to carbonyl ester group attributed to Tween 20 which was used as a passivating agent to limit the non-specific streptavidin adhesion. One can notice that the Tween 20 IR absorption is detected for all the tested fibers. It shows an absorbance increase from approximately 0.0028 at t1 and remain stable after t2 with values around 0.0035.

Fig. 3
figure 3

Evolution as a function of time of PBS-T containing streptavidin (high concentration of 100 ppm) absorbance measured by FEWS with (a) a biotinylated fiber surface and (b) a non-biotinylated surface. (c) and (d) show absorbance difference spectra obtained by the subtraction of the scaled buffer solution spectrum.

Full size image
Fig. 4
figure 4

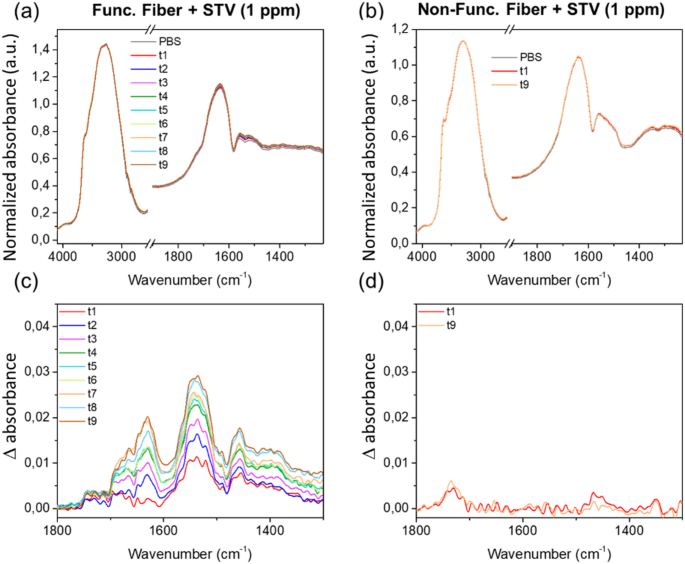

Evolution as a function of time of PBS-T containing streptavidin (1 ppm) absorbance measured by FEWS with (a) a biotinylated fiber surface and (b) a non-biotinylated surface. (c) and (d) show absorbance difference spectra obtained by the subtraction of the scaled buffer solution spectrum.

Full size image

These first observations prove the effective binding of the protein to the biotin groups on the surface of the functionalized fiber surfaces. This validates (1) the proof of concept for optical fiber surface bio-functionalization which allows the selective grafting of proteins and (2) the potential of lowering the detection limits to very low concentrations without the need to use concentrated protein solutions.

In a second step, we will quantify more precisely the absorbance values linked to STV in the three cases. The amide II band was chosen since it is the most intense one. For the 100 pm concentration of STV in contact with the biotinylated surfaces (Fig. 3c), absorbance values increase from 0.02 at t1 to 0.04 at t7 (Δ = 0.02). Employing the same concentration but with non-biotinylated surfaces (Fig. 3d), the absorbance of amide II ranges from 0.0096 at t1 to 0.012 at t9, the STV signal is clearly observed but its time variation is within the error of the measurement, and thus can be considered as almost constant from t1 to t9 for this experiment. The STV detection observed for the non-biotinylated fiber corresponds to the non-specific adsorption which is detected only for the incubation with the highest STV concentration. For the 1 ppm concentration of STV in contact with biotinylated surfaces (Fig. 4c), absorbance increases from 0.011 at t1 to 0.029 at t9 (Δ = 0.018). For more details, the kinetics of STV detection is plot in Fig. 5 for the four cases described above. In Fig. 5a, we present the evolution of the amide II absorption for a biotinylated fiber and a reference non-functionalized fiber exposed to the same 100 ppm protein concentration. The kinetics for the former case is much slower than the latter one. This suggests that, in the absence of chemical functionalization by biotin, the non-specific adhesion of STV on the fiber surface occurs within the first 15 min and then do not evolve significantly. In contrast, in the presence of a chemical surface functionalization, the protein detection stabilizes after 100 min. Figure 5b depicts the amide II absorption for 1 ppm STV concentration for both functionalized and non-functionalized fibers. No protein has been detected on the non-functionalized fiber (Fig. 4d), indicating that the non-specific adsorption occurring at this concentration is under our limit of detection. However, for the biotinylated fiber, we evidence a clear gradual increase of the amide II adsorption. Finally, in order to compare the specific protein adsorption occurring on biotinylated fibers for 100 ppm and 1 ppm STV concentrations, we have estimated the part of specific adhesion for the kinetic measurements done for the 100 ppm STV concentration by subtracting the absorbance of STV measured for the reference non-functionalized fiber (showing only non-specific adsorption) from that of the biotinylated fiber (showing both specific and non-specific surface interactions). The estimated kinetics of specific detection of STV for both concentrations are plotted in Fig. 5c. One can notice a very good correlation of the data demonstrating that for a concentration above 1 ppm of STV, the strong affinity of the fiber surface allows to obtain a similar saturation coverage of the surface independently of the protein concentration. This is explained by a STV concentration at the probe surface governed by the surface bio-functionality and not limited by the STV volumetric concentration and diffusion processes. This confirms the validity of the present chemically functionalized optical system which permits an effective immobilization of proteins at the surface of the fiber probe.

Fig. 5
figure 5

Binding kinetics of streptavidin to functionalized and non-functionalized surfaces: Plot of amide II absorbance as a function of time for biotinylated (red symbols) and non-biotinylated surfaces (black symbols) with (a) high (100 ppm) and (b) low concentrations of streptavidin (1 ppm). (c) Plot of the amide II absorbance corresponding to specific adhesion (blue solid circles), representing the subtraction of biotinylated from non-biotinylated surfaces in contact with streptavidin. On the same plot, we show again amide II absorbance for biotinylated surface in contact with low concentrations of streptavidin which represents only the specific adhesion (non-specific adhesion is not detected for 1 ppm concentration). Error has been estimated of 15%. Curves are only used as guide for the eyes.

Full size image

After the successful demonstrations of protein detection and bio-affinity of the functionalized chalcogenide fibers developed, we have decided to test a much lower STV concentration of 10 parts-per-billion. For this purpose, we have diluted the concentration already analyzed (0.001 mg/mL) by a factor of 100. As shown in Fig. 6, the spectrum of streptavidin has been successfully detected but only after an incubation of 80 min. The detection limit was determined as follow: the maximum of the absorption band of amide II (@1540 cm−1) should be 2 times greater than the noise level of the measurement. In the specific case of the 10 ppb STP sensing, the noise level observed on the unmodified spectra is a absorbance difference of Δabs = 2.10−3. Thus the noise level was set as Δabs = 4.10−3. One should notice that this detection limit can vary from one experiment to another as the amount of IR light injected in the fiber and collected by the detection unit can vary. For longer durations, the absorbance of STV increases linearly and reach for t9 an absorbance close to 10−2 equivalent to the one observed at the early time of the kinetics done for the 1 ppm STV concentration. It is expected that the rate of protein adsorption on the biotinylated fiber surface for a such low concentration is not only governed by the surface properties, but is diffusion limited because of the weak presence of proteins in the vicinity of the fiber surface35. This last set of data demonstrates the strong advantage of using biotinylated chalcogenide glass fiber surface for the use of IR FEWS spectroscopy as a bio-detection method. It has been shown that a pristine fiber does not allow the detection of STV at 1 ppm concentration, whereas STV detection is achieved at 10 ppb for a functionalized chalcogenide fiber probe. This represents an improvement of at least two orders of magnitude. Nevertheless, one should notice that such long incubations induce some risks of degradation for real bio applications, it points out that some efforts will be needed to accelerate diffusion limited surface adsorption.

As compared to the literature results of FEWS Mid-IR sensor, the surface functionalization used in our study has permitted a considerable improvement of the method sensibility. As example, the lowest detection limit, to the best of our knowledge, was reported by Velmuzhov et al.23. They have manufactured chalcogenide IR-tapered fiber sensors with different geometries of the sensitive zone to attain a detection limit of 0.02% (# 200 ppm) of an additive to diesel fuel23. It confirms that the analyte enrichment at the surface of the chalcogenide fiber sensor using selective chemical functionalization is very effective for FEWS and can improve the detection limit of such sensing approach by more than 2 orders of magnitude. At this point, one should also compare our results to other IR spectroscopic methods not using an optical fiber as sensing probe36,37. A first good example is the findings of Hinkov et al.38 on monitoring biomolecular interactions in a dynamic fashion using an integrated microfluidic device. They achieved very low detection limits for different biomolecules, as low as 0.075 mg/mL. Their approach highlights the particularity of the device’s design to improve signal-to-noise ratio. Furthermore, Kratz et al.39 have employed an optofluidic system as well as surface chemistry functionalization to enhance IR absorption using surface enhanced IR absorption (SEIRA) on a metal island film, attaining detection limits of streptavidin at the nanogram scale. Similarly, Campu et al.40 demonstrated the capability of gold nanpyramids to enhance significantly the IR absorption signal to develop ultrasensitive SEIRA-based immunosensors, exhibiting a detection limit of streptavidin of 1 pM. Vrážel et al.41 have introduced a real-time monitoring to detect organic pollutants in water using a chalcogenide IR photonic sensor functionalized with a polymer membrane. The sensor demonstrated sensitivity enhancement with a detection limit of 100 ppb. Compared to previous studies, our work demonstrates comparable, if not superior sensitivity, using tapered biofunctionalized fibers, achieving detection limits down to 0.189 nM (10−5 mg/mL). This suggests that our setup provides strong surface interactions for enhancing sensitivity. One should mention that direct comparison is challenging due to differences of experimental setups and in some cases of target bioanalytes. Nevertheless, the ability to detect such low concentrations demonstrates the efficacy of our tapered functionalized fiber approach.

Finally, our results are very encouraging but there is still some efforts to compete in terms of limit of detection with electrochemical, fluorescent or SPR based optical sensing for which a ppb level of detection or lower is currently achieved1,2,3. To further improve the sensitivity of FEWS Mid-IR sensor, one could increase the sensing optical length or optimize the evanescent wave using different fiber geometry. Nevertheless, if one aims sensing in aqueous media, we are always limited by the strong water absorption (absorbance above 1 for a 2 cm sensing length in our case). Thus, one should not expect a large improvement by optimizing the sensing fiber geometry. However, the signal-noise ratio can be considerably improved by increasing the amount of light injected in the fiber in order to increase the signal level on the detection. This could be achieved by changing the light injection method or by using a new kind of IR source with a higher brightness, such as quantum cascade technology. In addition to that, one can consider agitation or microfluidic systems to mitigate diffusion limitations. This proof of concept clearly opens new opportunities for using chalcogenide glasses combined with surface functionalization methods in biological analysis and detection by infrared spectroscopy.

Fig. 6
figure 6

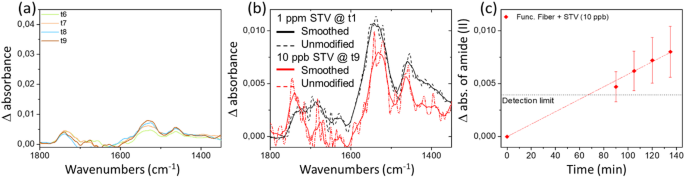

(a) Evolution as a function of time of absorbance difference spectra obtained by the subtraction of the scaled buffer solution spectrum to the PBS-T containing streptavidin (10 ppb) absorbance measured by FEWS with a biotinylated fiber surface. (b) Comparison of absorbance difference spectra measured for 1 ppm concentration after 15 min of incubation and the one measured for a 10 ppb concentration after an incubation of 135 min. Unmodified and smoothed data are respectively presented in dashed and full lines. (c) Absorbance kinetics of the amide II band during 135 min of incubation in a 10 ppb PBS-T containing STV solution.

Full size image

Conclusions

Chalcogenide IR fibers are suitable for evanescent wave spectroscopy especially because of the possibility to obtain increased sensitivity in tapering the fiber. We experimentally demonstrated using FEWS that the proposed sensing bio-functionalized architecture confirm the adsorption of bioanalyte by providing on one hand a chemical identity of the targeted molecules from their IR absorption fingerprints, and on the other hand providing a remarkable enhancement of the sensitivity of detection. Such fingerprinting sensitivity enhancement may help to identify bioanalytes in biochemical sensing, especially when the analyte quantity is very limited. Hence, this novel bio-functionalized chalcogenide tapered fiber can be highly promising for future diagnostic point-of-care assays.
