From: Atmospheric teleconnection patterns and hydrological whiplashes in the Western U.S.

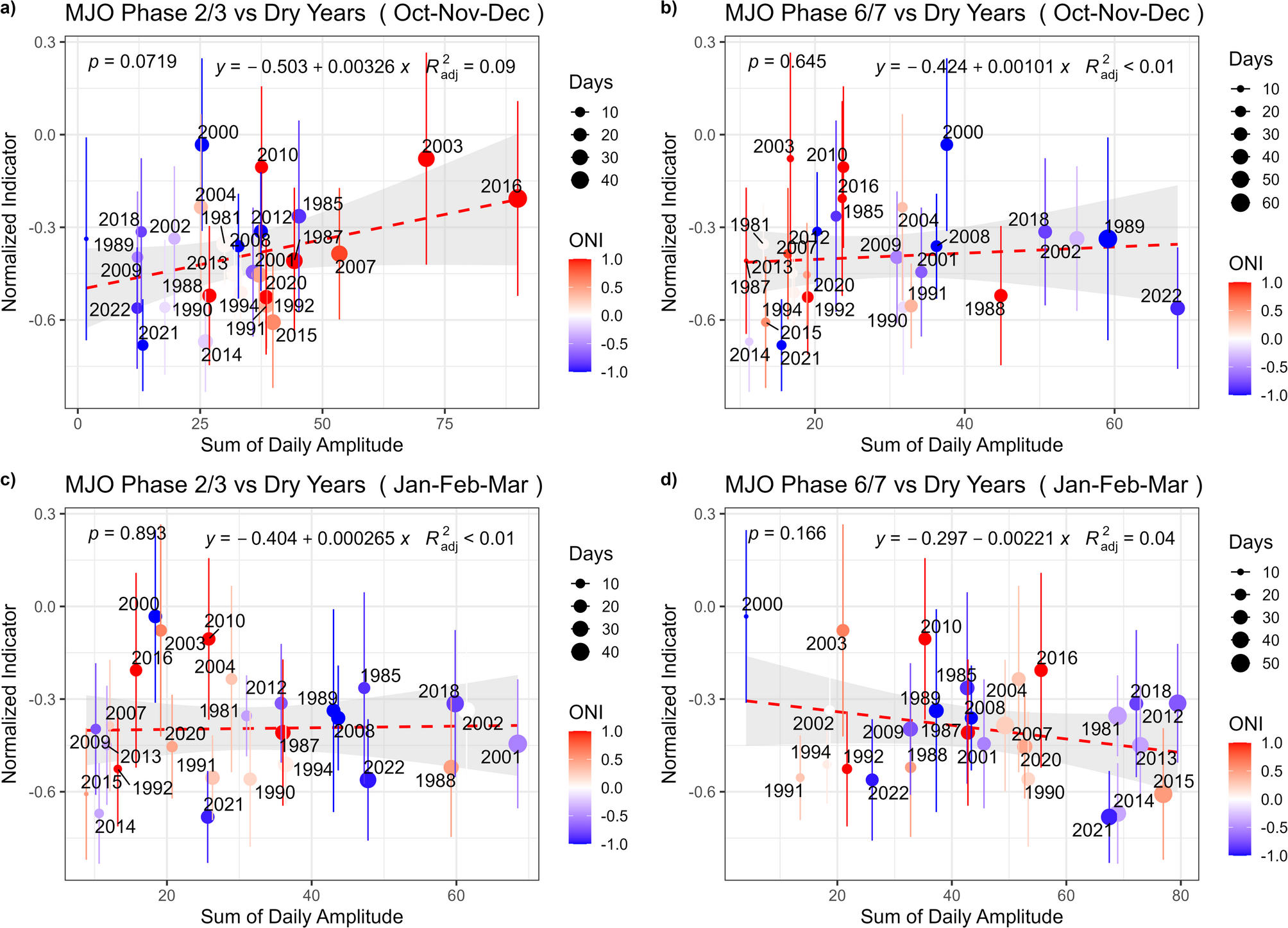

Combined MJO and ENSO sub-seasonal teleconnections on dry streamflow conditions (averaged normalized indicator < 0) in California. (a) Scatterplots with regression lines showing the relationship between basin-average wet year streamflow conditions and the sum of amplitudes for days when the MJO is in Phases 2 and 3 from October to December. The size of the points represents the number of days of Phases 2 and 3. (b) Similar to panel (a) but for MJO Phases 6 and 7. (c) Similar to panel (a) but for January to March. (d) Similar to panel (c) but for MJO Phases 6 and 7.
